| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B75274901 | AIR COOLING-IGNITION COOLING LEADS, PRE SBE70-0089 | aa | ||
| SBE0089-01 | AIR COOLING-IGNITION COOLING LEADS, PRE SBE70-0266 | ab | ||
| SBE0266-01 | AIR COOLING-IGNITION COOLING LEADS, PRE SBE70-0392 | ac | ||
| SBE0392-01 | AIR COOLING-IGNITION COOLING LEADS, PRE SBE70-0604 | ad | ||
| SBE0604-01 | AIR COOLING-IGNITION COOLING LEADS, PRE SBE70-0806 | ae | ||
| SBE0806-01 | AIR COOLING-IGNITION COOLING LEADS | af | ||
| 050 | 5W8300 | • BRACKET | aa-af | 1 |
| 095 | NAS1594-020 | • O - RING 80205 PRE SBE70-0806 | aa-af | 1 |
| 095A | M83248-2-020 | • RING - SEALING TOROIDAL, .070DIA X .864ID 81349 ALT NAS1594-020 POST SBE70-0806 | aa-af | 1 |
| 095B | NAS1594-020 | • O - RING 80205 ALT M83248-2-020 POST SBE70-0806 | aa-af | 1 |
| 100 | 5A9183 | • HOSE - AIR INLET PRE SBE70-0089 | aa-af | 1 |
| 100A | 5A0422 | • HOSE - AIR INLET POST SBE70-0089 PRE SBE70-0604 | aa-af | 1 |
| 100B | BA203636 | • HOSE - AIR INLET IGNITION BOX COOLING U1901 ALT 5A0422 POST SBE70-0604 | aa-af | 1 |
| -100C | 5A0422 | • HOSE - IGNITION BOX COOLING ALT BA203636 POST SBE70-0604 | aa-af | REF |
| 110 | 4W0001 | • NUT - .190 DIA | aa-af | 2 |
| 115 | 4W2328 | • SCREW - .190 DIA X .750 PRE SBE70-0266 | aa-ab | 2 |
| 115A | AS50914 | • SCREW - .190-32UNJF X .875 U1653 POST SBE70-0266 PRE SBE70-0392 | ac-af | 2 |
| 115B | 4W2330 | • SCREW - .190 DIA X .875 POST SBE70-0392 | ac-af | 2 |
| 125 | AN737TW38 | • CLAMP 81352 | aa-af | 1 |
| 200 | 5A0263 | • FITTING | aa-af | 1 |
| 210 | AN737TW38 | • CLAMP 81352 | aa-af | 1 |
| 450 | 5W8300 | • BRACKET | aa-af | 1 |
| 495 | NAS1594-020 | • O - RING 80205 PRE SBE70-0806 | aa-af | 1 |
| 495A | M83248-2-020 | • RING - SEALING TOROIDAL, .070DIA X .864ID 81349 ALT NAS1594-020 POST SBE70-0806 | aa-af | 1 |
| 495B | NAS1594-020 | • O - RING 80205 ALT M83248-2-020 POST SBE70-0806 | aa-af | 1 |
| 500 | 5A9183 | • HOSE - AIR INLET PRE SBE70-0089 | aa-af | 1 |
| 500A | 5A0422 | • HOSE - AIR INLET POST SBE70-0089 PRE SBE70-0604 | aa-af | 1 |
| 500B | BA203636 | • HOSE - AIR INLET IGNITION BOX COOLING U1901 ALT 5A0422 POST SBE70-0604 | aa-af | 1 |
| -500C | 5A0422 | • HOSE - IGNITION BOX COOLING ALT BA203636 POST SBE70-0604 | aa-af | REF |
| 510 | 4W0001 | • NUT - .190 DIA | aa-af | 2 |
| 515 | 4W2328 | • SCREW - .190 DIA X .750 PRE SBE70-0266 | aa-ab | 2 |
| 515A | AS50914 | • SCREW - .190-32UNJF X .875 U1653 POST SBE70-0266 PRE SBE70-0392 | ac-af | 2 |
| 515B | 4W2330 | • SCREW - .190 DIA X .875 POST SBE70-0392 | ac-af | 2 |
| 525 | AN737TW38 | • CLAMP 81352 | aa-af | 1 |
| 600 | 5A0264 | • FITTING | aa-af | 1 |
| 610 | AN737TW38 | • CLAMP 81352 | aa-af | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

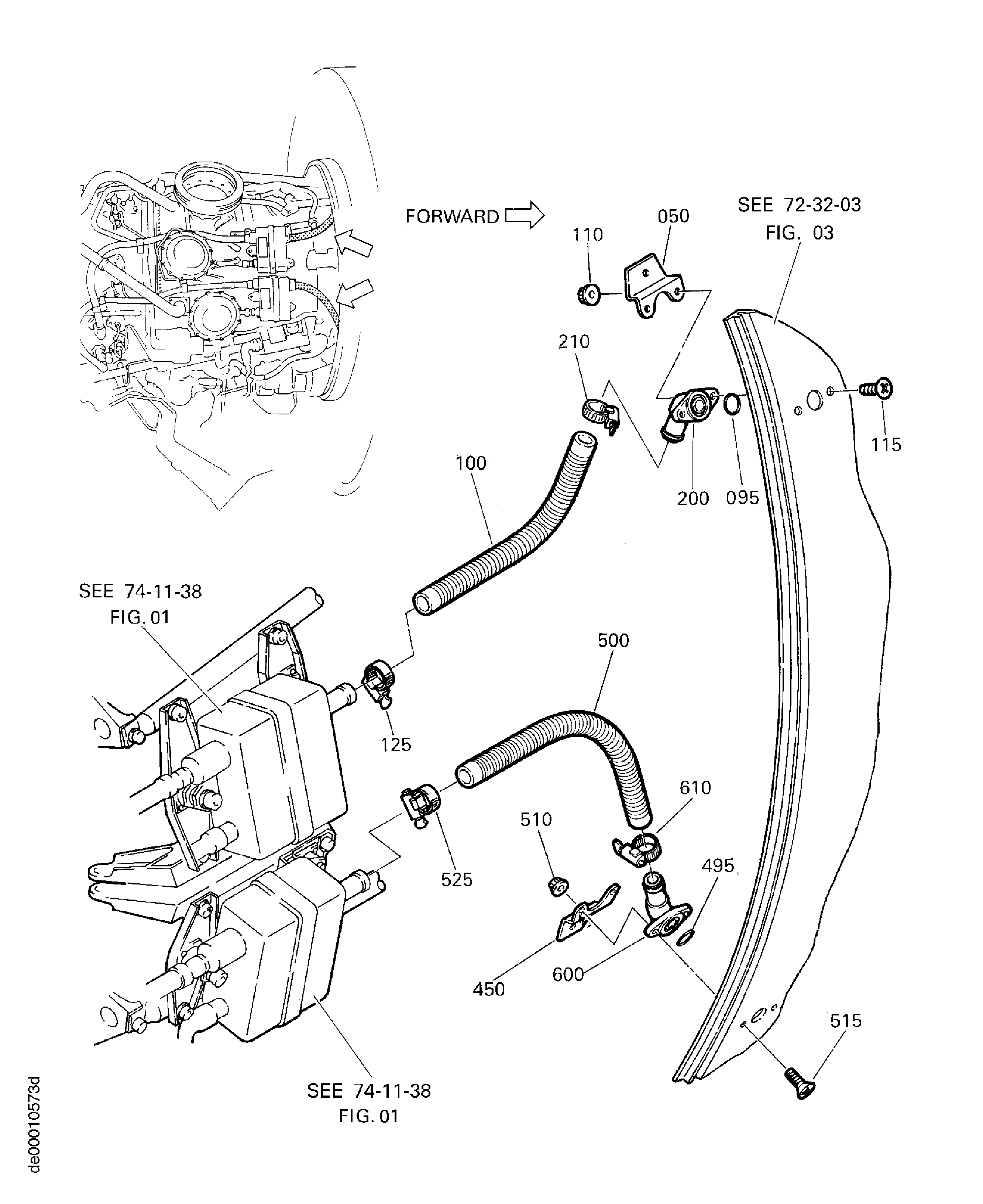

Figure: AIR COOLING-IGNITION COOLING LEADS
IGNITION EXCITER COOLING TUBES
