DMC:V2500-A1-75-28-49-02A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B75284902 | AIR-EEC COOLING DUCTS, PRE SBE71-0031 | aa | ||
| SBE0031-01 | AIR-EEC COOLING DUCTS, PRE SBE71-0070 | ab | ||
| SBE0070-01 | AIR-EEC COOLING DUCTS | ac | ||
| 100 | 740-5212-507 | • INLET - ASSY 51563 PRE SBN71-0069 | ***** | 1 |
| 125 | AS21514 | • BOLT - .250 DIA X .875 U1653 PRE SBN71-0069 | ***** | 2 |
| 130 | SP155E | • WASHER K7766 PRE SBN71-0069 | ***** | 2 |
| 135 | AS20625 | • NUT - .250 DIA U1653 PRE SBN71-0069 | ***** | 2 |
| 140 | AS21515 | • BOLT - .250 DIA X .938 U1653 | aa-ac | 1 |
| 145 | SP155E | • WASHER K7766 | aa-ac | 1 |
| 150 | AS20625 | • NUT - .250 DIA U1653 | aa-ac | 1 |
| 500 | 740-5221-503 | • DUCT - ASSY EJECTOR 51563 | aa-ac | 1 |
| 525 | AS21413 | • BOLT - .190 DIA X .812 U1653 PRE SBN71-0069 | ***** | 1 |
| 530 | 400WSS20 | • CLIP 83930 | aa-ac | 1 |
| 530A | 400WSS19 | • CLIP 83930 PRE SBN71-0069 | ***** | 1 |
| 535 | AS21508 | • BOLT - .250 DIA X .500 U1653 PRE SBN71-0069 | ***** | 2 |
| 540 | 740-4073-501 | • SEAL 51563 PRE SBN71-0069 | ***** | 1 |
| -900 | 740-5229-501 | • BRACKET 51563 Optional Part 740-5229-501 SEE 71-51-41 | aa-ac | REF |
| -900A | 740-5229-503 | • BRACKET 51563 POST SBE71-0031 PRE SBE71-0070 | ab-ac | REF |
| -900B | 740-5429-501 | • BRACKET 51563 POST SBE71-0070 | ab-ac | REF |
| 920 | 740-5228-501 | • BRACKET - ASSY SUPPORT 51563 | aa-ac | 1 |
| -930 | 740-5223-501 | • BRACKET 51563 Optional Part 740-5223-501 SEE 71-51-42 | aa-ac | REF |
| -930A | 740-5223-505 | • RAFT - ASSY 51563 (SEE 71-51-42-05-800 ) | aa-ac | REF |
| -950 | 740-5230-501 | • BRACKET 51563 Optional Part 740-5230-501 SEE 71-51-42 | aa-ac | REF |
| -957 | 740-5923-501 | • PACKING - PIECE 51563 SEE 71-51-42 | aa-ac | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

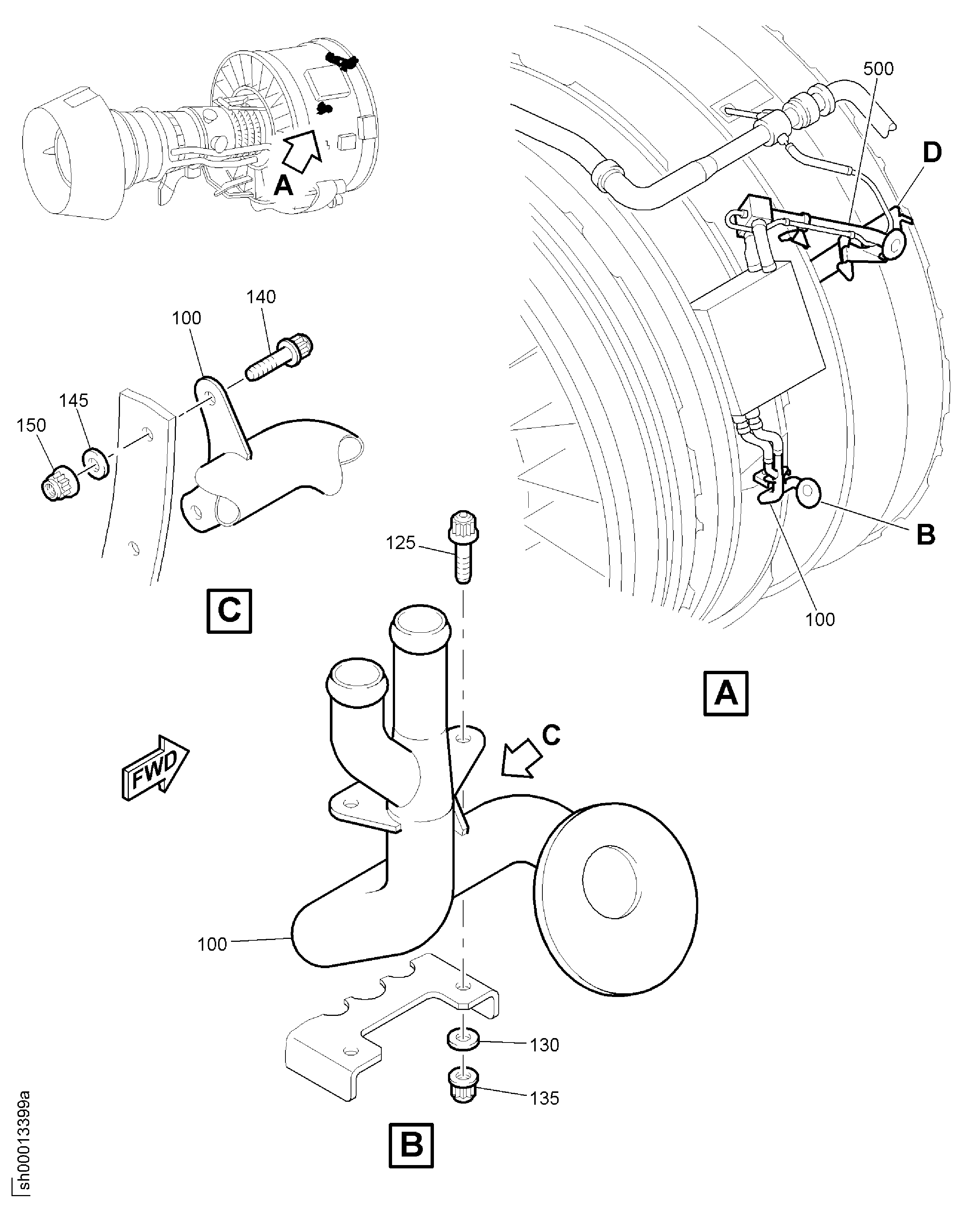

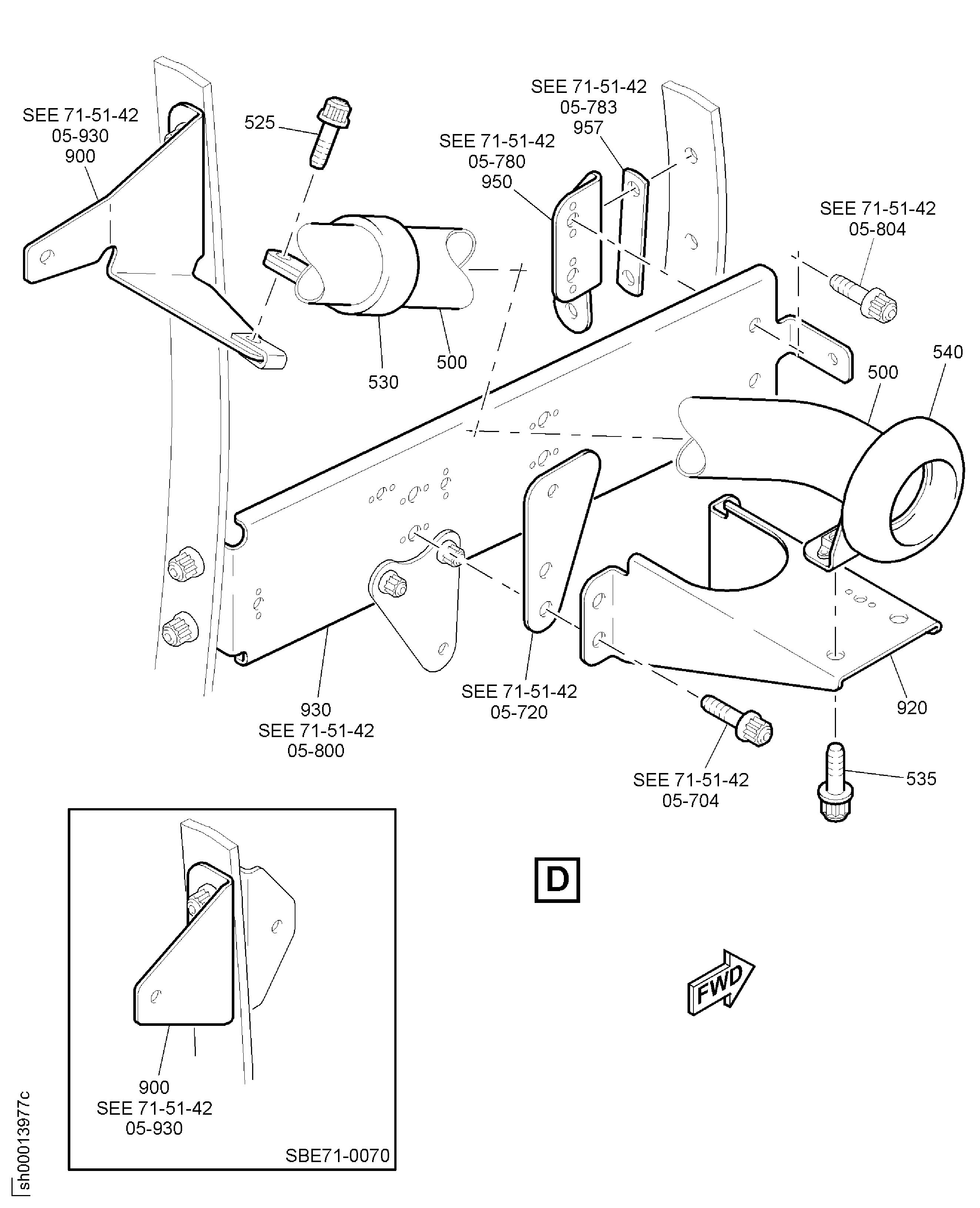

Figure: AIR-EEC COOLING DUCTS
DUCTS EEC COOLING
DUCTS EEC COOLING
