DMC:V2500-A1-75-32-52-01A-941A-DIssue No:005.00Issue Date:2018-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B75325201 | AIR - HPC STAGE 7 BLEED VALVE, PRE SBE75-0040 | aa | ||
| SBE0040-01 | AIR - HPC STAGE 7 BLEED VALVE, PRE SBE75-0053 | ab | ||
| SBE0053-01 | AIR - HPC STAGE 7 BLEED VALVE, PRE SBE75-0071 | ac | ||
| SBE0071-01 | AIR - HPC STAGE 7 BLEED VALVE, PRE SBE75-0093 | ad | ||
| SBE0093-01 | AIR - HPC STAGE 7 BLEED VALVE, PRE SBE75-0092 | ae | ||
| SBE0092-01 | AIR - HPC STAGE 7 BLEED VALVE, PRE SBE75-0105 | af | ||
| SBE0105-01 | AIR - HPC STAGE 7 BLEED VALVE | ag | ||
| SBE0123-01 | AIR-HPC STAGE 7 BLEED VALVE | ah | ||
| SBE0126-01 | AIR-HPC STAGE 7 BLEED VALVE | ai | ||
| 060 | 6A1497 | • SILENCER - AIR, HP 7TH STAGE, LEFT HAND LOWER, ASSEMBLY OF PRE SBE75-0071 | aa-ac | 1 |
| 060A | 6A6533 | • SILENCER - AIR, HP 7TH STAGE, LEFT HAND, LOWER, ASSEMBLY OF POST SBE75-0071 | ad-ag | 1 |
| 061 | 4W0002 | • NUT, SELF LOCKING DBL HEX - .250 DIA Optional Part 4W0002 POST SBE75-0071 | ad-ag | 12 |
| 062 | 4W1486 | • BOLT - 0.250 DIA X 0.750 PRE SBE75-0071 | aa-ac | 12 |
| 062A | 4W1484 | • BOLT - 0.250 DIA X 0.625 POST SBE75-0071 | ad-ag | 12 |
| 070 | 6A3192 | • SEAL - ASSEMBLY OF PRE SBE75-0071 | aa-ac | 1 |
| 080 | AS16490 | • • RIVET U1653 POST SBE70-0353 | ***** | 1 |
| 080A | AS16090 | • • RIVET - SOLID, UNIVERSAL HEAD U1653 POST SBE75-0071 | ***** | 12 |
| 081 | AS16532 | • • RIVET - SOLID, COUNTERSUNK HEAD U1653 PRE SBE75-0071 | aa-ac | 16 |
| -083 | AS16132 | • • RIVET - SOLID UNIVERSAL HD U1653 POST SBE75-0126 | ai | 12 |
| -085 | 6M1190 | • • RING, RETAINING - SEAL D3309 POST SBE75-0126 | ai | 2 |
| 086 | ARM944 | • • DUCT - SEAL K7766 POST SBE70-0353 | ***** | 1 |
| 100 | AC69254 | • VALVE - BLEED, 7TH STAGE, HPC U8976 PRE SBE75-0040 | aa | 3 |
| 100A | AC69859 | • VALVE - BLEED ST 7 HP COMPRES 88041 POST SBE75-0040 PRE SBE75-0053 | ab-ag | 3 |
| 100B | AC69924 | • VALVE - BLEED ST7 HP COMPRESS 88041 POST SBE75-0053 PRE SBE75-0105 | ab-ag | 3 |
| 100C | EB101729B | • VALVE - BLEED STG.7 U8976 POST SBE75-0105 PRE SBE75-0123 | ag | 3 |
| 100D | EB101729C | • VALVE - BLEED, 7TH STAGE, HPC K1037 POST SBE75-0123 | ah | 3 |
| 102 | 4W0002 | • NUT, SELF LOCKING DBL HEX - .250 DIA | aa-ag | 24 |
| 104 | AS21013 | • BOLT - 0.25 DIA X 0.812 U1653 | aa-ag | 36 |
| 104A | AS21012 | • CLAMP - LOOP, DOUBLE HEX, .250 DIA X .750 U1653 | aa-ag | 36 |
| 230 | 6A8319 | • SPACER POST SBE75-0092 | af-ag | 1 |
| 250 | 6A2092 | • SILENCER - AIR HP, 7TH STAGE, RIGHT HAND UPPER, ASSEMBLY OF PRE SBE75-0071 | aa-ac | 1 |
| 250A | 6A6535 | • SILENCER - 7TH STAGE, ASSEMBLY OF POST SBE75-0071 PRE SBE75-0093 | ad | 1 |
| 250B | 6A8338 | • SILENCER - AIR, HP 7TH STAGE, LEFT HAND, UPPER, ASSEMBLY OF POST SBE75-0093 | ae-ag | 1 |
| 265 | 6A3194 | • SEAL - ASSEMBLY OF PRE SBE75-0071 | aa-ac | 1 |
| 266 | 4W0002 | • NUT, SELF LOCKING DBL HEX - .250 DIA | aa-ag | 12 |
| 268 | AS21012 | • CLAMP - LOOP, DOUBLE HEX, .250 DIA X .750 U1653 PRE SBE75-0071 | aa-ac | 12 |
| 268A | AS21010 | • BOLT - .250 DIA X .625 U1653 POST SBE75-0071 PRE SBE75-0092 | ad-ae | 12 |
| 268B | AS21013 | • BOLT - 0.25 DIA X 0.812 U1653 POST SBE75-0092 | af-ag | 12 |
| 280 | AS16490 | • • RIVET U1653 POST SBE70-0353 | ***** | 1 |
| 280A | AS16090 | • • RIVET - SOLID, UNIVERSAL HEAD U1653 POST SBE75-0071 | ***** | 12 |
| 281 | AS16532 | • • RIVET - SOLID, COUNTERSUNK HEAD U1653 POST SBE70-0353 | ***** | 1 |
| -282 | AS16132 | • • RIVET - SOLID UNIVERSAL HD U1653 POST SBE75-0126 | ai | 12 |
| -285 | 6M1190 | • • RING, RETAINING - SEAL D3309 POST SBE75-0126 | ai | 2 |
| 286 | ARM944 | • • DUCT - SEAL K1406 POST SBE70-0353 | ***** | 1 |
| 465 | 6A3195 | • DUCT - AIR HP 7TH STAGE, RIGHT HAND, LOWER, ASSEMBLY OF | aa-ag | 1 |
| 466 | 4W0002 | • NUT, SELF LOCKING DBL HEX - .250 DIA | aa-ag | 12 |
| 468 | AS21010 | • BOLT - .250 DIA X .625 U1653 | aa-ag | 12 |
| 481 | AS16532 | • • RIVET - SOLID, COUNTERSUNK HEAD U1653 POST SBE70-0093 | ae-ag | 16 |
| -490 | 6A2283 | • • DUCT - AIR HP 7TH STAGE RIGHT HAND, LOWER, ASSEMBLY OF | aa-ag | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

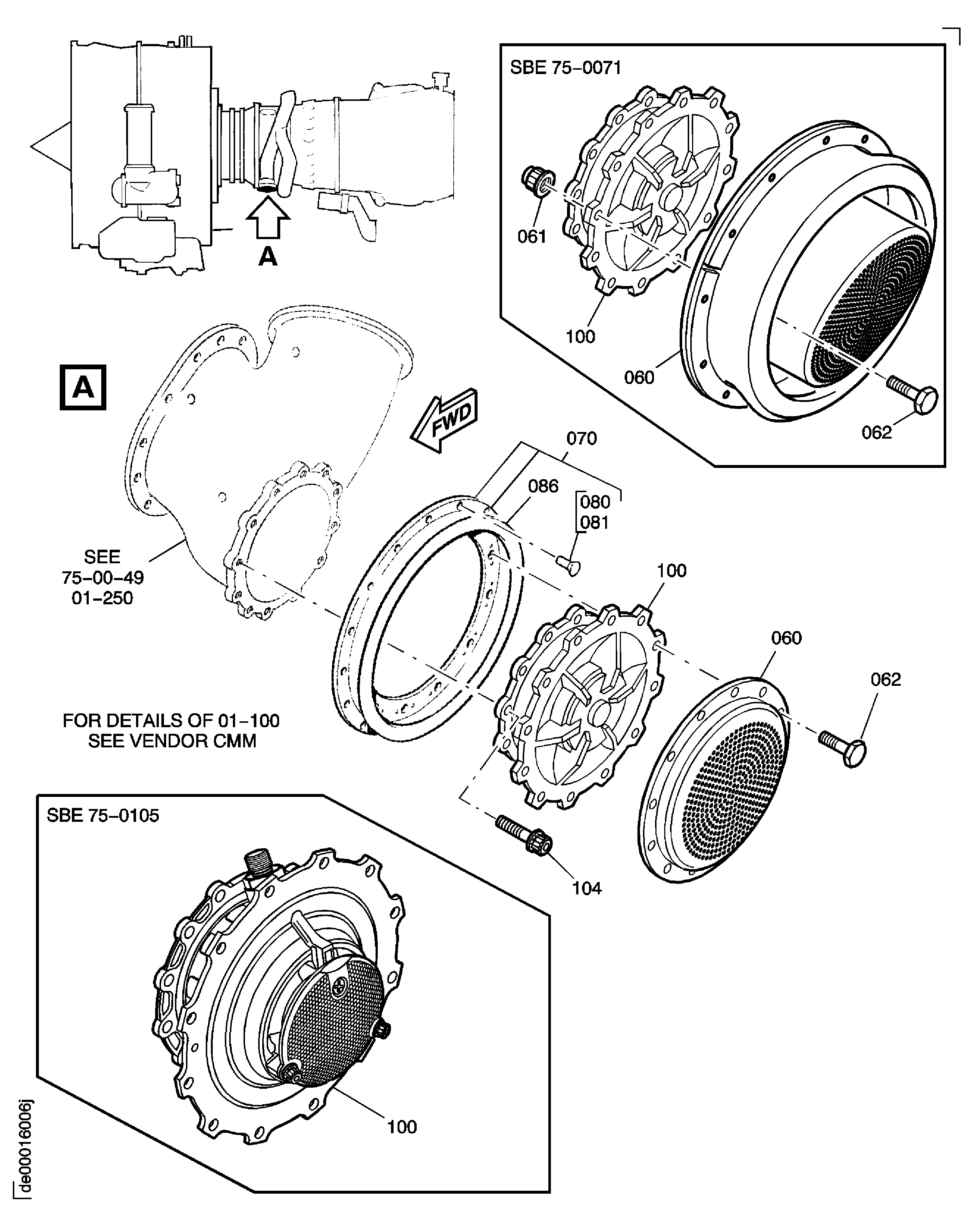

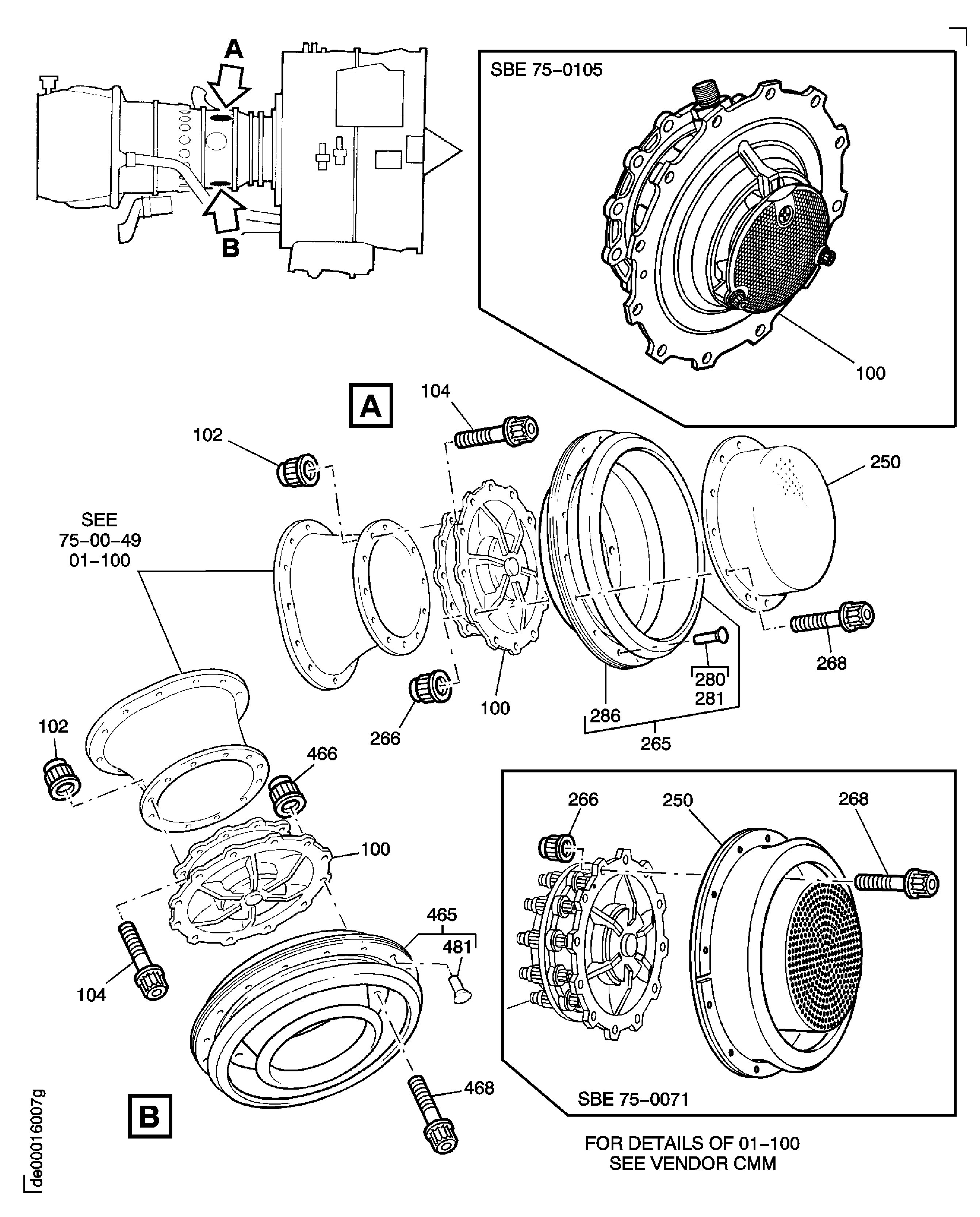

Figure: AIR-HPC STAGE 7 BLEED VALVE
HP COMPRESSOR BLEED VALVES
HP COMPRESSOR BLEED VALVES
