| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B77211501 | ENGINE INDICATING-EGT THERMOCOUPLE, PRE SBE70-0191 | aa | ||
| SBE0191-01 | ENGINE INDICATING-EGT THERMOCOUPLE, PRE SBE72-0063 | ab | ||
| SBE0063-01 | ENGINE INDICATING-EGT THERMOCOUPLE, PRE SBE77–0011 | ac | ||
| SBE0011-01 | ENGINE INDICATING-EGT THERMOCOUPLE | ad | ||
| 100 | 4T8027 | • THERMCPL - EGT REF No. 792–6–19 | aa-ac | 4 |
| 100A | 4T8050 | • THERMCPL - OPTION ALT 4T8027 REF No. 792–6–19 POST SBE70-0191 PRE SBE72-0063 | ab | 4 |
| -100B | 4T8027 | • THERMCPL - EGT ALT 4T8048 POST SBE70-0191 PRE SBE72-0063 | ab | REF |
| -100C | 4T8048 | • THERMCPL ALT 2A2159 POST SBE70-0191 PRE SBE72-0063 | ab | REF |
| 100D | 2A2159 | • THERMCPL - OPTION ALT 2A2160 POST SBE72-0063 PRE SBE77–0011 | ac-ad | 4 |
| -100E | 2A2160 | • THERMCPL - IMMERSION ALT 2A2224 REF No. HAD19795 POST SBE72-0063 PRE SBE77–0011 | ac-ad | REF |
| -100F | 2A2224 | • THERMCPL - IMMERSION REF No. 792-6-20 POST SBE72-0063 PRE SBE77–0011 | ac-ad | REF |
| -100G | 2A4328 | • THERMCPL - IMMERSION REF No. 30030-000 POST SBE77–0011 | ad | 4 |
| 120 | AS43706 | • BOLT U1653 PRE SBE72-0063 | aa-ab | 8 |
| 140 | 4T8007 | • RING PRE SBE72-0063 | aa-ab | 8 |
| 140A | 2A2256 | • SEAL POST SBE72-0063 | ac | 8 |
| -200 | 4W2627 | • WIRE Optional Part 4W2627 | aa-ac | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

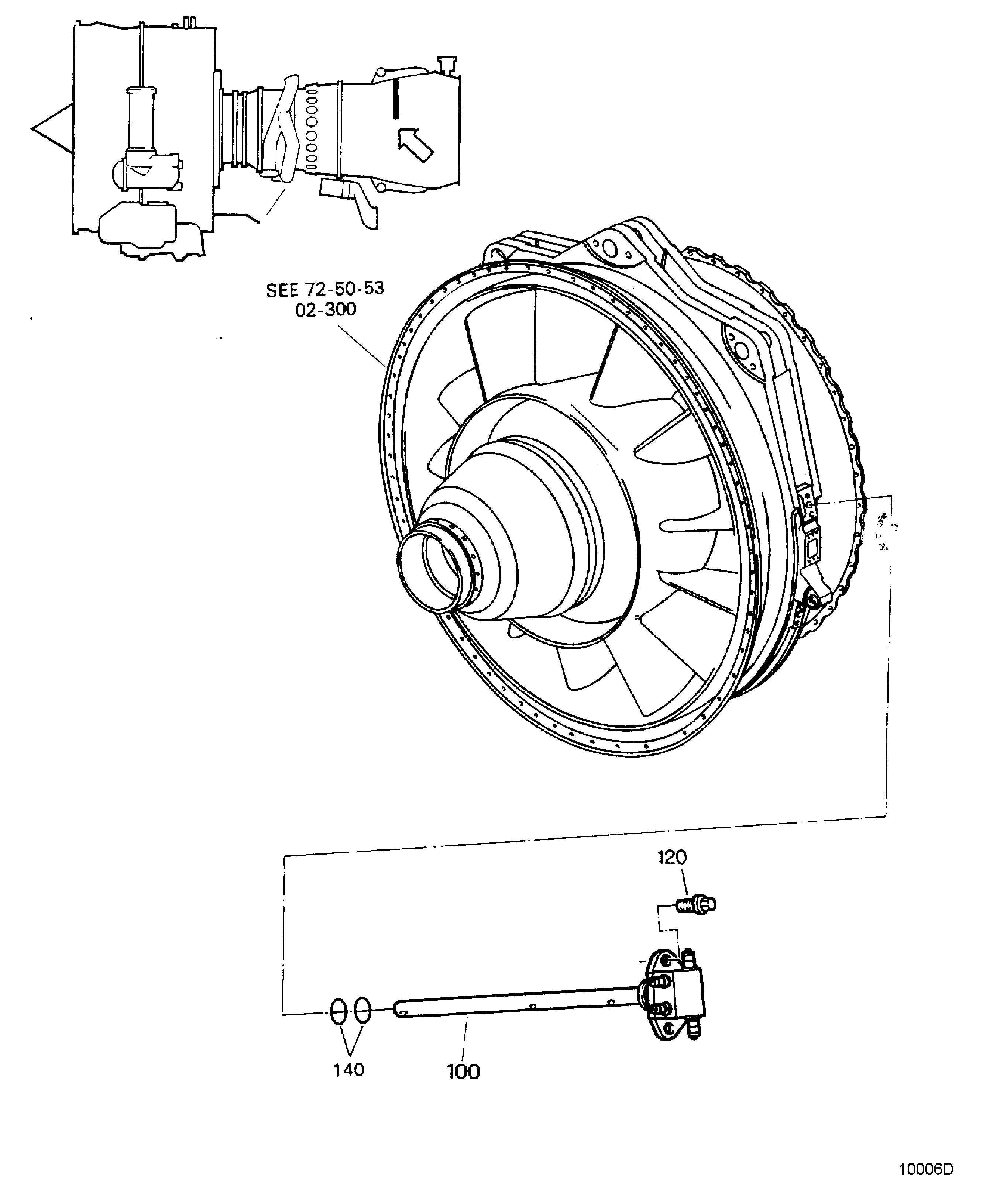

Figure: ENGINE INDICATING-EGT THERMOCOUPLE
THERMOCOUPLE EGT
