DMC:V2500-A1-77-21-15-20A-941A-DIssue No:002.00Issue Date:2018-02-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 20 | ||||
| B77211520 | ENGINE INDICATING-EGT THERMOCOUPLE, PRE SBE72-0063 | aa | ||
| SBE0063-01 | ENGINE INDICATING-EGT THERMOCOUPLE, PRE SBE70-0267 | ab | ||
| SBE0267-01 | ENGINE INDICATING-EGT THERMOCOUPLE, PRE SBE77-0016 | ac | ||
| SBE0016-01 | ENGINE INDICATING-EGT THERMOCOUPLE | ad | ||
| 100 | 2A2224 | • THERMCPL - IMMERSION REF No. 792-6-20 POST SBE72-0063 PRE SBE70-0267 | ab-ac | 4 |
| 100A | 2A2159 | • THERMCPL - OPTION ALT 2A2160 REF No. HAD19795 POST SBE70-0267 PRE SBE77-0016 | ac | 4 |
| -100B | 2A2160 | • THERMCPL - IMMERSION ALT 2A2224 POST SBE70-0267 | ac | REF |
| -100C | 2A2224 | • THERMCPL - IMMERSION ALT 2A2159 REF No. 792-6-20 POST SBE70-0267 | ac | REF |
| 100D | 2A4529 | • THERMCPL - IMMERSION 77445 VENDOR P/N (30404-000) POST SBE77-0016 | ad | 4 |
| 120 | MS9575-04 | • BOLT 96906 POST SBE72-0063 | ab-ac | 8 |
| 140 | 2A2256 | • SEAL - RING, METAL POST SBE72-0063 | ab-ac | 8 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

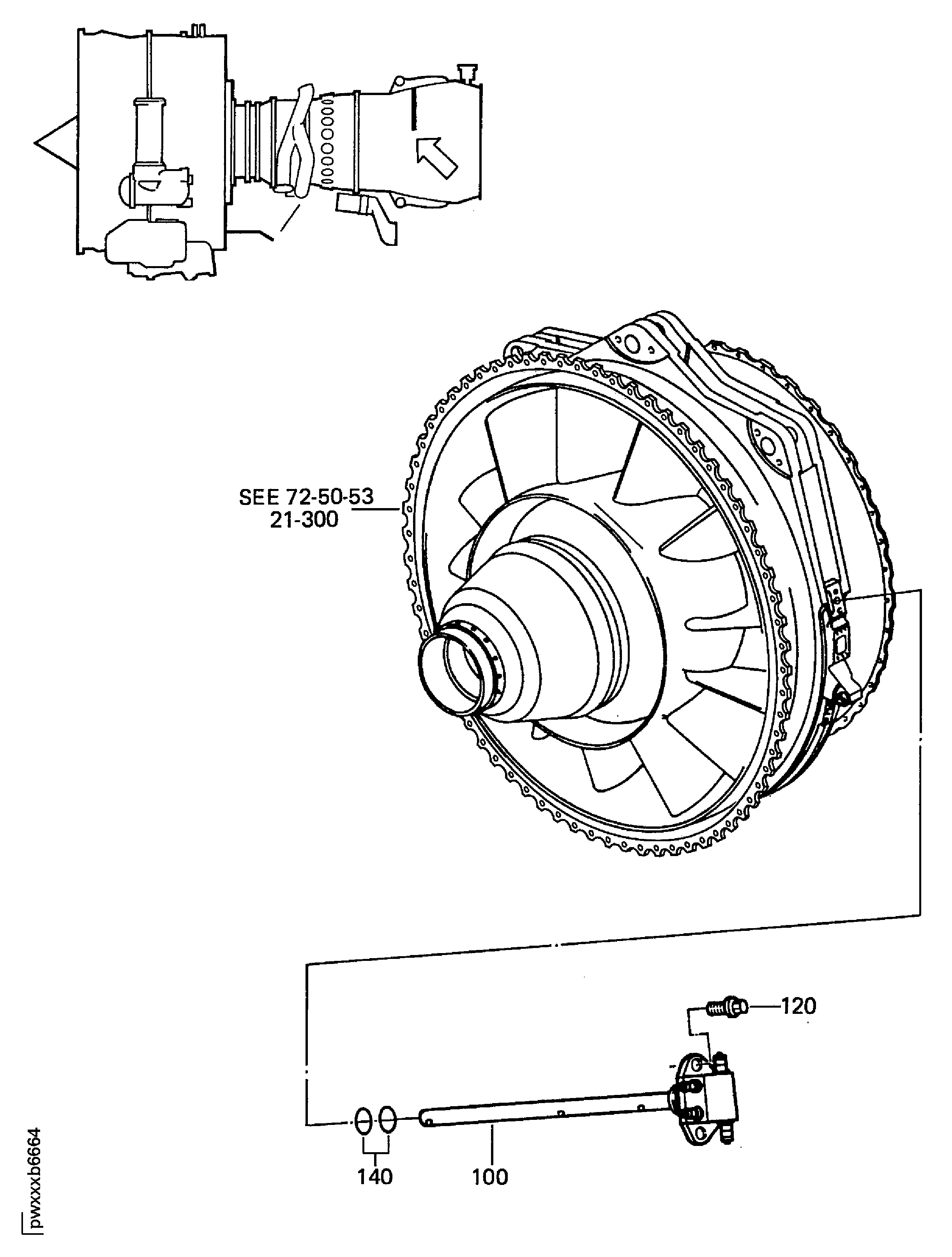

Figure: ENGINE INDICATING-EGT THERMOCOUPLE
EGT THERMOCOUPLE
