ENGINE INDICATING-EGT HARNESS AND JUNCTION BOX

DMC:V2500-A1-77-21-43-01A-941A-D|Issue No:004.00|Issue Date:2016-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
000B77214301ENGINE INDICATING-EGT HARNESS AND JUNCTION BOX, PRE SBE72-0014aa
000SBE0014-01ENGINE INDICATING-EGT HARNESS AND JUNCTION BOX, PRE SBE77-0001ab
000SBE0001-01ENGINE INDICATING-EGT HARNESS AND JUNCTION BOX, PRE SBE77-0002ac
000SBE0002-01ENGINE INDICATING-EGT HARNESS AND JUNCTION BOX, PRE SBE77-0004ad
000SBE0004-01ENGINE INDICATING-EGT HARNESS AND JUNCTION BOX, PRE SBE77-0003ae
000SBE0003-01ENGINE INDICATING-EGT HARNESS AND JUNCTION BOX, PRE SBE72-0007af
000SBE0007-01ENGINE INDICATING-EGT HARNESS AND JUNCTION BOX, PRE SBE70-0080ag
000SBE0080-01ENGINE INDICATING-EGT HARNESS AND JUNCTION BOX, PRE SBE77-0006ah
000SBE0006-01ENGINE INDICATING-EGT HARNESS AND JUNCTION BOX, PRE SBE77-0005ai
000SBE0005-01ENGINE INDICATING-EGT HARNESS AND JUNCTION BOX, PRE SBE77-0009aj
000SBE0009-01ENGINE INDICATING-EGT HARNESS AND JUNCTION BOX, PRE SBE73-0202ak
000SBE0202-01ENGINE INDICATING-EGT HARNESS AND JUNCTION BOX, PRE SBE77-0012al
000SBE0012-01ENGINE INDICATING-EGT HARNESS AND JUNCTION BOXam
0100102A1117• BOX - & CABLE,TC
77445
REF No. HAD19475
PRE SBE72-0014		aa1
010010A2A1380• BOX - CABLE,TC
REF No. HAD19669
POST SBE72-0014
PRE SBE77-0004		ab-aj1
010010BHAD19824• BOX - CABLE,TC
00060
IAE NO.2A1609
POST SBE77-0004
PRE SBE77-0009		ab-aj1
010010C25975-000• BOX - CABLE, TC
00060
IAE NO.2A3580
POST SBE77-0009
PRE SBE77-0012		ak-al1
010010D2A4337• BOX - CABLE,TC
77445
VENDOR P/N (30040-000)
POST SBE77-0012		am1
-012012MDC18666• • COVER
00060
POST SBE70-0080		ah-amREF
0130132A2439• • • SCREW - (VENDOR P/N HDA14449
POST SBE70-0080		ah-am4
-014014HDC18665• • PLATE - BASE
00060
POST SBE70-0080		ah-amREF
-015015HDB18667• • • PLATE - MOUNTING
00060
POST SBE70-0080		ah-alREF
0160162A2442• • • • NUT - SELF-LOCKING
POST SBE70-0080		ah-al2
016016A2A2442• • • • NUT - SELF-LOCKING
POST SBE70-0080
PRE SBE77-0009		ah-aj2
016016BAS20624• • • • NUT - SELF LOCKING,BIHEX, .190 DIA
U1653
POST SBE77-0009		ah-al2
016016C2A3564• • • • NUT - SELF-LOCKING (VENDOR NO. 25483-001)
POST SBE77-0009		ah-am2
017017HDA13955• • • • NUT - SELF LOCKING, .164-32 UNJC
00060
POST SBE70-0080		ah-al2
017017A2A2443• • • • NUT - SELF-LOCKING
POST SBE70-0080
PRE SBE77-0009		ah-aj2
017017BAS27832• • • • NUT - ASSEMBLED WASHER
U1653
POST SBE77-0009		ah-am2
017017C2A3565• • • • NUT - SELF LOCKING (VENDOR NO. 25483-000)
POST SBE77-0009		ah-am2
-018018HDA19673-03• • • • WIRE - SAFETY
00060
POST SBE70-0080		ah-am1
-018018AMS9226-03• • • • WIRE - SAFETY
96906
POST SBE70-0080		ah-am1
0200204W0002• NUT - .250 DIA
Optional Part
4W0002		aa-am2
025025HAB18619-1• STUD
00060
POST SBE77-0009		ak-am2
030030HAB18619-2• STUD
00060
POST SBE77-0009		ak-am2
0400404W0164• BOLT - .250 DIA X .625
Optional Part
4W0164		aa-am2
0420424W0002• NUT - .250 DIA
Optional Part
4W0002		aa-am1
0440444W0164• BOLT - .250 DIA X .625
Optional Part
4W0164		aa-am1
0460464W0002• NUT - .250 DIA
Optional Part
4W0002		aa-am1
0480484W0164• BOLT - .250 DIA X .625
Optional Part
4W0164		aa-am1
0550554W0001• NUT - .190 DIA
Optional Part
4W0001		aa-am1
0600604W0001• NUT - .190 DIA
Optional Part
4W0001		aa-am1
0650654W0001• NUT - .190 DIA
Optional Part
4W0001		aa-am1
0700704W0001• NUT - .190 DIA
Optional Part
4W0001		aa-am1
0750754W0001• NUT - .190 DIA
Optional Part
4W0001		aa-am1
0800804W0001• NUT - .190 DIA
Optional Part
4W0001		aa-am1
0850854W0001• NUT - .190 DIA
Optional Part
4W0001		aa-am1
0900904W0001• NUT - .190 DIA
Optional Part
4W0001		aa-am1
0950954W0001• NUT - .190 DIA
Optional Part
4W0001		aa-am1
1501504W0103• BOLT - .190 DIA X .500
Optional Part
4W0103
PRE SBE77-0006		aa-am1
150150A4W1183• BOLT - .190 DIA X .500
Optional Part
4W1183
POST SBE77-0006		aa-am1
1551554W0103• BOLT - .190 DIA X .500
Optional Part
4W0103
PRE SBE77-0006		aa-am1
155155A4W1183• BOLT - .190 DIA X .500
Optional Part
4W1183
POST SBE77-0006		aa-am1
1601604W0103• BOLT - .190 DIA X .500
Optional Part
4W0103
PRE SBE77-0006		aa-amaa-al1
160160A4W1183• BOLT - .190 DIA X .500
Optional Part
4W1183
POST SBE77-0006		aa-am1
1651654W0103• BOLT - .190 DIA X .500
Optional Part
4W0103
PRE SBE77-0006		aa-am1
165165A4W1183• BOLT - .190 DIA X .500
Optional Part
4W1183
POST SBE77-0006		aa-am1
1701704W0103• BOLT - .190 DIA X .500
Optional Part
4W0103
PRE SBE77-0002		aa-ac1
170170A4W1183• BOLT - .190 DIA X .500
Optional Part
4W1183
POST SBE77-0002
PRE SBE72-0007		aa-af1
170170B4W2324• SCREW - .190 DIA X .500
Optional Part
4W2324
POST SBE72-0007		ag-am1
170170C593111• SCREW - MACHINE
77445
POST SBE72-0007		ag-al1
1751754W0103• BOLT - .190 DIA X .500
Optional Part
4W0103
PRE SBE77-0006		aa-am1
175175A4W1183• BOLT - .190 DIA X .500
Optional Part
4W1183
POST SBE77-0006		aa-am1
1801804W0103• BOLT - .190 DIA X .500
Optional Part
4W0103
PRE SBE77-0006		aa-am1
180180A4W1183• BOLT - .190 DIA X .500
Optional Part
4W1183
POST SBE77-0006		aa-am1
1851854W0103• BOLT - .190 DIA X .500
Optional Part
4W0103
PRE SBE77-0006		aa-am1
185185A4W1183• BOLT - .190 DIA X .500
Optional Part
4W1183
POST SBE77-0006		aa-am1
1901904W0103• BOLT - .190 DIA X .500
Optional Part
4W0103
PRE SBE77-0006		aa-am1
190190A4W1183• BOLT - .190 DIA X .500
Optional Part
4W1183
POST SBE77-0006		aa-am1
1951954W0103• BOLT - .190 DIA X .500
Optional Part
4W0103
PRE SBE77-0003		aa-ae1
195195A4W0001• NUT - .190 DIA
Optional Part
4W0001
POST SBE77-0003		af-am1
196196347493• WASHER - FLAT, .255 X .500 X .050
77445
POST SBE77-0005
PRE SBE77-0007		*****1
2002004W0103• BOLT - .190 DIA X .500
Optional Part
4W0103
PRE SBE77-0003		aa-ae1
200200A4W0001• NUT - .190 DIA
Optional Part
4W0001
POST SBE77-0003		af-am1
2052054W0103• BOLT - .190 DIA X .500
Optional Part
4W0103
PRE SBE77-0003		aa-ae1
205205A4W0001• NUT - .190 DIA
Optional Part
4W0001
POST SBE77-0003		af-am1
2102104W0103• BOLT - .190 DIA X .500
Optional Part
4W0103
PRE SBE77-0003		aa-ae1
210210A4W0001• NUT - .190 DIA
Optional Part
4W0001
POST SBE77-0003		af-am1
2152154W0103• BOLT - .190 DIA X .500
Optional Part
4W0103
PRE SBE77-0003		aa-ae1
215215A4W0001• NUT - .190 DIA
Optional Part
4W0001
POST SBE77-0003		af-am1
2202204W0103• BOLT - .190 DIA X .500
Optional Part
4W0103
PRE SBE77-0003		aa-ae1
220220A4W0001• NUT - .190 DIA
Optional Part
4W0001
POST SBE77-0003		af-am1
221221347493• WASHER - FLAT, .255 X .500 X .050
77445
POST SBE77-0005
PRE SBE77-0007		*****1
2252254W0103• BOLT - .190 DIA X .500
Optional Part
4W0103		aa-am1
2302304W0103• BOLT - .190 DIA X .500
Optional Part
4W0103		aa-am1
240240318079• NUT - PLAIN,HEX
77445		aa-am8
245245191776• WASHER - LOCK
77445		aa-am8
250250318078• NUT - PLAIN,HEX
77445		aa-am8
255255191775• WASHER - LOCK
77445		aa-am8
2702704W0001• NUT - .190 DIA
Optional Part
4W0001		aa-am1
2722724W0103• BOLT - .190 DIA X .500
Optional Part
4W0103		aa-am1
274274284062• CLIP
77445
PRE SBE72-0014		aa1
276276277398• CLAMP
77445
PRE SBE70-0006		aa-ak1
276276AST1428-02• CLAMP - LOOP CUSHION
K1012
POST SBE70-0006
PRE SBE73-0202		aa-ak1
2802804W0001• NUT - .190 DIA
Optional Part
4W0001		aa-am1
2822824W0103• BOLT - .190 DIA X .500
Optional Part
4W0103		aa-am1
284284284062• CLIP
77445
PRE SBE72-0014		aa1
286286277398• CLAMP
77445
PRE SBE70-0006		aa-ak1
286286AST1428-02• CLAMP - LOOP CUSHION
K1012
POST SBE70-0006
PRE SBE73-0202		aa-ak1
2882884W0001• NUT - .190 DIA
Optional Part
4W0001
POST SBE72-0014		ab-am1
2902904W0103• BOLT - .190 DIA X .500
Optional Part
4W0103
POST SBE72-0014
PRE SBE77-0002		ab-ac1
290290A4W1183• BOLT - .190 DIA X .500
Optional Part
4W1183
POST SBE77-0002
PRE SBE72-0007		ab-af1
290290B4W2324• SCREW - .190 DIA X .500
Optional Part
4W2324
POST SBE72-0007		ag-am1
290290C593111• SCREW - MACHINE
77445
POST SBE72-0007		ag-am1
3003004W0001• NUT - .190 DIA
Optional Part
4W0001
PRE SBE72-0014		aa1
3023024W0103• BOLT - .190 DIA X .500
Optional Part
4W0103
PRE SBE72-0014		aa1
304304ST1428-02• CLAMP - LOOP CUSHION
K1012
PRE SBE72-0014		aa1
306306AS3257-07• CLAMP - LOOP CUSHION
U1653
PRE SBE72-0014		aa1
3103104W0001• NUT - .190 DIA
Optional Part
4W0001
PRE SBE72-0014		aa1
3123124W0103• BOLT - .190 DIA X .500
Optional Part
4W0103
PRE SBE72-0014		aa1
314314ST1428-02• CLAMP - LOOP CUSHION
K1012
PRE SBE72-0014		aa1
316316AS3257-07• CLAMP - LOOP CUSHION
U1653
PRE SBE72-0014		aa1
3603602A1854-01• BRACKET - LOOP CLAMP A/O
POST SBE77-0001
PRE SBE77-0007		ac-af6
360360A2A1854-01• BRACKET - LOOP CLAMP A/O
POST SBE77-0007
PRE SBE73-0202		ag-ak4
360360B2A4042-01• BRACKET - LOOP CLAMP,A/O
POST SBE73-0202		al-am4
3853854W2386• SCREW - .250 DIA X .625
POST SBE77-0001
PRE SBE77-0007		ac-af12
-385385A503659• SCREW
77445
POST SBE77-0001
PRE SBE77-0001		*****REF
385385B4W2386• SCREW - .250 DIA X .625
POST SBE77-0007		ag-am8
3903904W0002• NUT - .250 DIA
POST SBE77-0001
PRE SBE77-0007		ac-af12
390390A4W0002• NUT - .250 DIA
POST SBE77-0007		ag-am8
4204202A1763-01• BRACKET - LOOP CLAMP-ASSY OF
POST SBE77-0007
PRE SBE73-0202		ag-ak2
420420A2A1763-01• BRACKET
POST SBE73-0202		al-am1
4304304W2386• SCREW - .250 DIA X .625
POST SBE77-0007		ag-al4
4404404W0002• NUT - .250 DIA
POST SBE77-0007		ag-am4
455455379661• • WASHER - .216 X .400 X .050
77445
POST SBE77-0007		ag-am1
4704702A4041-01• BRACKET - ASSY OF
POST SBE73-0202		al-am1
5105102A4339• • HARNESS, WIRING, THERMOCOUPLE
77445
Vendor P/N (30041–000)
POST SBE77-0012		am1
5205202A4340• • HARNESS, WIRING, THERMOCOUPLE
77445
Vendor P/N (30042–000)
POST SBE77-0012		am1
5305302A4338• • BOX, JUNCTION, THERMOCOUPLE
77445
Vendor P/N (30043–000)
POST SBE77-0012		am1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

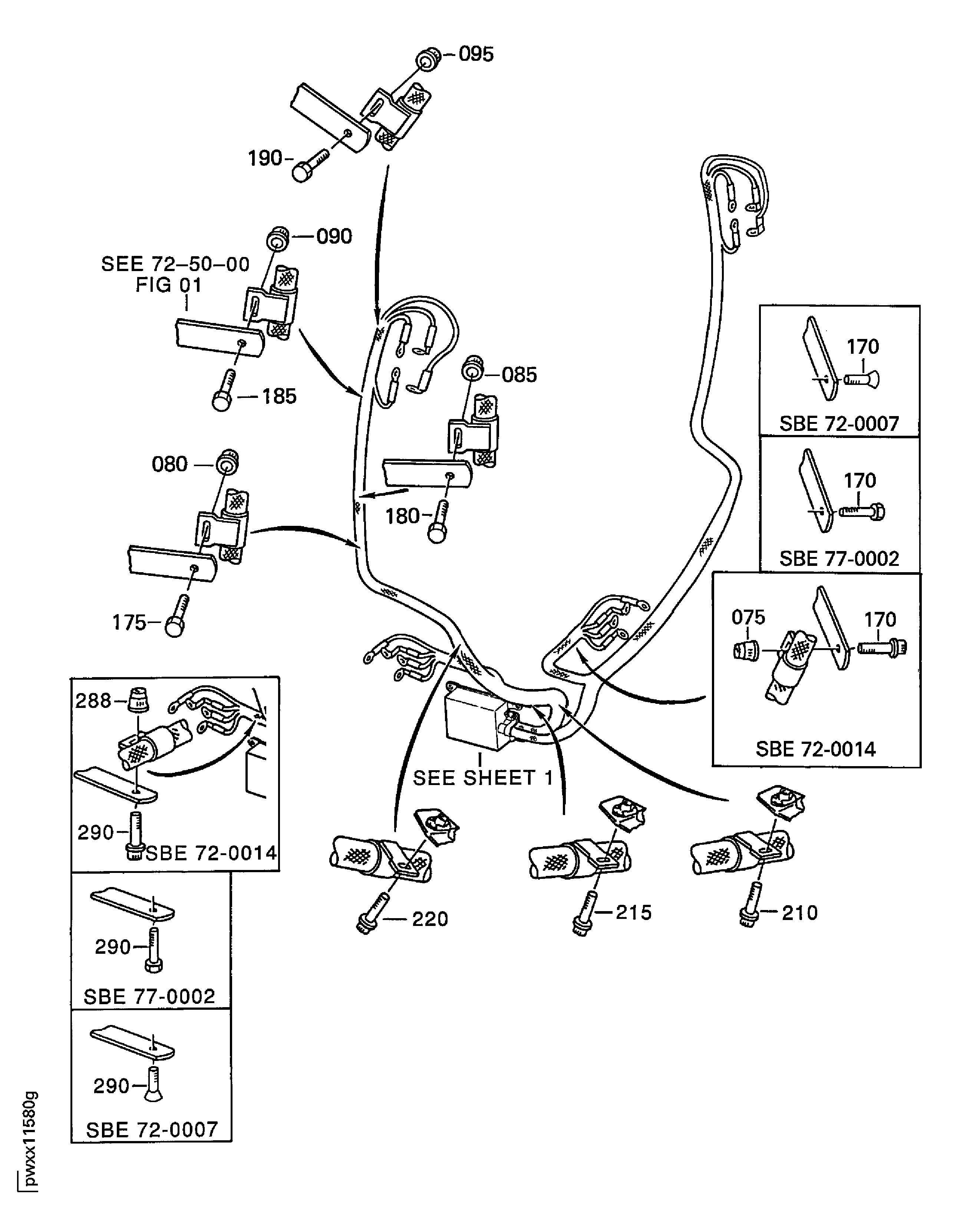

Figure: ENGINE INDICATING-EGT HARNESS AND JUNCTION BOX

Egt Harness And Junction Box

Figure: ENGINE INDICATING-EGT HARNESS AND JUNCTION BOX

Egt Harness And Junction Box

Figure: ENGINE INDICATING-EGT HARNESS AND JUNCTION BOX

Egt Harness And Junction Box

Figure: ENGINE INDICATING-EGT HARNESS AND JUNCTION BOX

Egt Harness And Junction Box

Figure: ENGINE INDICATING-EGT HARNESS AND JUNCTION BOX

Egt Harness And Junction Box

Figure: ENGINE INDICATING-EGT HARNESS AND JUNCTION BOX

Egt Harness And Junction Box

Change Type:

Corrected SB Reference

Change Type:

Corrected Effectivity

Manufacturer Code:00060
Enterprise Name:HARCO LABORATORIES, INC
BU Name:HARCO LABORATORIES, INC
Street:186 CEDAR ST
City:BRANFORD
State:CT
Zip Code:06405-0010
Country:USA
Phone Number:NA
Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:77445
Enterprise Name:PRATT AND WHITNEY
BU Name:PRATT & WHITNEY
Street:400 MAIN STREET
City:EAST HARTFORD
Country:USA
Phone Number:8605657700
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:191775
Part Name:WASHER - LOCK
Manufacturer Code:77445
Part Number:191776
Part Name:WASHER - LOCK
Manufacturer Code:77445
Part Number:25975-000
Part Name:BOX - CABLE, TC
Manufacturer Code:00060
Part Number:277398
Part Name:CLAMP
Manufacturer Code:77445
Part Number:284062
Part Name:CLIP
Manufacturer Code:77445
Link not Found
Part Number:2A1380
Part Name:BOX - CABLE, TC
Manufacturer Code:0AM53
Part Number:2A1763-01
Part Name:BRACKET
Manufacturer Code:0AM53
Part Number:2A1854-01
Part Name:BRACKET - LOOP CLAMP, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A2439
Part Name:SCREW
Manufacturer Code:0AM53
Part Number:2A2442
Part Name:NUT - SELF LOCKING
Manufacturer Code:0AM53
Part Number:2A2443
Part Name:NUT - SELF LOCKING
Manufacturer Code:0AM53
Part Number:2A3564
Part Name:NUT - SELF LOCKING
Manufacturer Code:0AM53
Part Number:2A3565
Part Name:NUT - SELF LOCKING
Manufacturer Code:0AM53
Part Number:2A4041-01
Part Name:BRACKET - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A4042-01
Part Name:BRACKET - LOOP CLAMP, ASSEMBLY OF
Manufacturer Code:0AM53
Link not Found
Link not Found
Link not Found
Link not Found
Part Number:318078
Part Name:NUT - PLAIN, HEXAGON
Manufacturer Code:77445
Part Number:318079
Part Name:NUT - PLAIN, HEXAGON
Manufacturer Code:77445
Part Number:347493
Part Name:WASHER - FLAT, .255 X .500 X .050
Manufacturer Code:77445
Part Number:379661
Part Name:WASHER - 0.216 X 0.400 X 0.050
Manufacturer Code:77445
Part Number:4W0001
Part Name:NUT, OPTION - .190 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS20624NUT, SELF LOCKING DBL HEX - .190 DIAU1653
Part Number:4W0002
Part Name:NUT, SELF LOCKING DBL HEX - .250 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS20625NUT, SELF LOCKING, BIHEX, .250 DIAU1653
Part Number:4W0103
Part Name:BOLT - .190 DIA X .500
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21408BOLT - 0.19 DIA X 0.500U1653
Part Number:4W0164
Part Name:BOLT - .250 DIA X .625
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21510BOLT - .250 DIA X .625U1653
Part Number:4W1183
Part Name:BOLT - 0.190 DIA X 0.500
Manufacturer Code:0AM53
Part Number:4W2324
Part Name:SCREW - 0.190 DIA X 0.500
Manufacturer Code:0AM53
Part Number:4W2386
Part Name:SCREW - 0.250 DIA X 0.625
Manufacturer Code:0AM53
Part Number:503659
Part Name:SCREW
Manufacturer Code:77445
Part Number:593111
Part Name:SCREW - MACHINE
Manufacturer Code:77445
Part Number:AS20624
Part Name:NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:U1653
Part Number:AS20625
Part Name:NUT, SELF LOCKING, BIHEX, .250 DIA
Manufacturer Code:U1653
Unit Of Issue:EA
Part Number:AS21408
Part Name:BOLT - 0.19 DIA X 0.500
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
MS9556-06BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.50096906
Part Number:AS21510
Part Name:BOLT - .250 DIA X .625
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9557-08BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.2500 - 28 X 0.62596906
Part Number:AS27832
Part Name:NUT - WASHER, ASSEMBLED
Manufacturer Code:U1653
Part Number:AS3257-07
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Part Number:HAB18619-1
Part Name:STUD
Manufacturer Code:00060
Part Number:HAB18619-2
Part Name:STUD
Manufacturer Code:00060
Part Number:HAD19824
Part Name:BOX - CABLE, TC
Manufacturer Code:00060
Part Number:HDA13955
Part Name:NUT - SELF LOCKING, 0.164-32 UNJC
Manufacturer Code:00060
Part Number:HDA19673-03
Part Name:WIRE - SAFETY
Manufacturer Code:00060
Part Number:HDB18667
Part Name:PLATE - MOUNTING
Manufacturer Code:00060
Part Number:HDC18665
Part Name:PLATE - BASE
Manufacturer Code:00060
Part Number:MDC18666
Part Name:COVER
Manufacturer Code:00060
Part Number:MS9226-03
Part Name:WIRE - SAFETY
Manufacturer Code:96906
Part Number:MS9556-06
Part Name:BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500
Manufacturer Code:96906
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS21408BOLT - 0.19 DIA X 0.500U1653
Part Number:MS9557-08
Part Name:BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.2500 - 28 X 0.625
Manufacturer Code:96906
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS21010BOLT - .250 DIA X .625U1653
AS21510BOLT - .250 DIA X .625U1653
Link not Found
