VIBRATION TRANSDUCER JUNCTION BOX

DMC:V2500-A1-77-32-43-01A-941A-D|Issue No:002.00|Issue Date:2020-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
000B77324301VIBRATION TRANSDUCER JUNCTION BOX, PRE SBE70-0061aa
000SBE0061-01VIBRATION TRANSDUCER JUNCTION BOX, PRE SBE71-0067ab
000SBE0067-01VIBRATION TRANSDUCER JUNCTION BOX, PRE SBE71-0177ac
000SBE0177-01VIBRATION TRANSDUCER JUNCTION BOX, PRE SBE70-0742ad
000SBE0742-01VIBRATION TRANSDUCER JUNCTION BOX, PRE SBE70-0746ae
000SBE0746-01VIBRATION TRANSDUCER JUNCTION BOX, PRE SBE77-0014af
000SBE0014-01VIBRATION TRANSDUCER JUNCTION BOXag
-004004740-5405-507INSTALL - VIBRATION TRANSDUCER
51563
PRE SBE71-0067		aa-afREF
-004004A740-5405-509INSTALL - VIBRATION TRANSDUCER
51563
POST SBE71-0067		aa-afREF
005005740-5968-501• HARNESS - VIBRATION
51563		aa-af1
100100922-167-000-031• CABLE - EC-167, ASSEMBLY OF
S3960		aa-af1
100100A922-167-000-031• CABLE - EC-167, ASSEMBLY OF
S3960		aa-af1
110110AS21409• BOLT - 0.190 DIA X 0.562
U1653		aa-af1
110110AAS21409• BOLT - 0.190 DIA X 0.562
U1653
PRE SBE70-0061		aa1
110110B4W0105• BOLT - MACHINE DOUBLE HEX, .190 DIA X .625
POST SBE70-0061
PRE SBE70-0742		ab-ad1
110110C4W0103• BOLT - .190 DIA X .500
POST SBE70-0742		ae-af1
111111SP154D• WASHER - 0.190 DIA
K7766		aa-af1
111111ASP154D• WASHER - 0.190 DIA
K7766
PRE SBE70-0746		aa-ae1
111111BSP154D• WASHER - 0.190 DIA
K7766
POST SBE70-0746		af1
113113JM44LC39S103• CLAMP
22175		aa-af1
113113AJM44LC39H103RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ae1
113113BTA025074-02• CLAMP - 0.125 DIA
84971
ALT AS61932
POST SBE71-0067
PRE SBE70-0746		aa-ae1
-113113CAS61932• CLAMP - LOOP 3.18 MM (.125)
U1653
ALT TA025074-02
POST SBE71-0067
PRE SBE70-0746		ac-aeREF
113113DTA025074-02• CLAMP - 0.125 DIA
84971
ALT AS61932
POST SBE70-0746		ac-ae1
-113113EAS61932• CLAMP - LOOP 3.18 MM (.125)
U1653
ALT TA025074-02
POST SBE70-0746		ac-aeREF
1171174W0001• NUT, OPTION - .190 DIA
PRE SBE70-0746		aa-af1
117117A4W0001• NUT, OPTION - .190 DIA
POST SBE70-0746		aa-af1
118118AS21408• BOLT - .190 DIA X .500
U1653		aa-af1
118118AAS21408• BOLT - .190 DIA X .500
U1653
PRE SBE70-0061		aa1
118118B4W0105• BOLT - MACHINE DOUBLE HEX, .190 DIA X .625
POST SBE70-0061
PRE SBE71-0177		ab-ac1
118118C4W0104• BOLT - .190 DIA X .562
VENDOR PN (AS21409)
POST SBE71-0177
PRE SBE70-0746
PRE SBE77-0014		ad-ae1
118118D4W0104• BOLT - .190 DIA X .562
VENDOR PN (AS21409)
POST SBE70-0746
PRE SBE77-0014		af1
118118EAS21416• BOLT - BIHEX HD, .190 DIA X 1.000
U1653
POST SBE77-0014		ag1
119119SP154D• WASHER - 0.190 DIA
K7766		aa-af1
119119ASP154D• WASHER - 0.190 DIA
K7766
PRE SBE71-0177		aa-ac1
119119BSP154D• WASHER - 0.190 DIA
K7766
POST SBE71-0177
PRE SBE70-0746		ad-ae2
119119CSP154D• WASHER - 0.190 DIA
K7766
POST SBE70-0746		af2
120120ST1698D48• SPACER (10MM)
K4585
POST SBE77-0014		ag1
121121JM44LC39S103• CLAMP
22175		aa-af1
121121AJM44LC39H103RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ae1
121121BTA025074-02• CLAMP - 0.125 DIA
84971
ALT AS61932
POST SBE71-0067
PRE SBE70-0746		aa-ae1
-121121CAS61932• CLAMP - LOOP 3.18 MM (.125)
U1653
ALT TA025074-02
POST SBE71-0067
PRE SBE70-0746		ac-aeREF
121121DTA025074-02• CLAMP - 0.125 DIA
84971
ALT AS61932
POST SBE70-0746		ac-ae1
-121121EAS61932• CLAMP - LOOP 3.18 MM (.125)
U1653
ALT TA025074-02
POST SBE70-0746		ac-aeREF
125125AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa-af1
125125A4W0001• NUT, OPTION - .190 DIA
PRE SBE70-0746		aa-ae1
125125B4W0001• NUT, OPTION - .190 DIA
POST SBE70-0746		af1
126126AS21408• BOLT - .190 DIA X .500
U1653		aa-af1
126126A4W0103• BOLT - .190 DIA X .500
PRE SBE70-0746		aa-ae1
126126B4W0103• BOLT - .190 DIA X .500
POST SBE70-0746		af1
127127SP154D• WASHER - 0.190 DIA
K7766		aa-af1
127127ASP154D• WASHER - 0.190 DIA
K7766
PRE SBE70-0746		aa-ae1
127127BSP154D• WASHER - 0.190 DIA
K7766
POST SBE70-0746		af1
129129JM44LC39S103• CLAMP
22175		aa-af1
129129AJM44LC39H103RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ae1
129129BTA025074-02• CLAMP - 0.125 DIA
84971
ALT AS61932
POST SBE71-0067
PRE SBE70-0746		aa-ae1
-129129CAS61932• CLAMP - LOOP 3.18 MM (.125)
U1653
ALT TA025074-02
POST SBE71-0067
PRE SBE70-0746		ac-aeREF
129129DTA025074-02• CLAMP - 0.125 DIA
84971
ALT AS61932
POST SBE70-0746		ac-ae1
-129129EAS61932• CLAMP - LOOP 3.18 MM (.125)
U1653
ALT TA025074-02
POST SBE70-0746		ac-aeREF
133133AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa-af1
133133A4W0001• NUT, OPTION - .190 DIA
PRE SBE70-0746		aa-ae1
133133B4W0001• NUT, OPTION - .190 DIA
POST SBE70-0746		af1
134134AS21408• BOLT - .190 DIA X .500
U1653		aa-af1
134134A4W0103• BOLT - .190 DIA X .500aa-af1
134134B4W0103• BOLT - .190 DIA X .500
POST SBE70-0746		af1
135135SP154D• WASHER - 0.190 DIA
K7766		aa-af1
135135ASP154D• WASHER - 0.190 DIA
K7766
PRE SBE70-0746		aa-ae1
135135BSP154D• WASHER - 0.190 DIA
K7766
POST SBE70-0746		af1
137137JM44LC39S103• CLAMP
22175		aa-af1
137137AJM44LC39H103RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ae1
137137BTA025074-02• CLAMP - 0.125 DIA
84971
ALT AS61932
POST SBE71-0067
PRE SBE70-0746		aa-ae1
-137137CAS61932• CLAMP - LOOP 3.18 MM (.125)
U1653
ALT TA025074-02
POST SBE71-0067
PRE SBE70-0746		ac-aeREF
137137DTA025074-02• CLAMP - 0.125 DIA
84971
ALT AS61932
POST SBE70-0746		ac-ae1
-137137EAS61932• CLAMP - LOOP 3.18 MM (.125)
U1653
ALT TA025074-02
POST SBE70-0746		ac-aeREF
141141AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa-af1
141141A4W0001• NUT, OPTION - .190 DIA
PRE SBE70-0746		aa-ae1
141141B4W0001• NUT, OPTION - .190 DIA
POST SBE70-0746		af1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

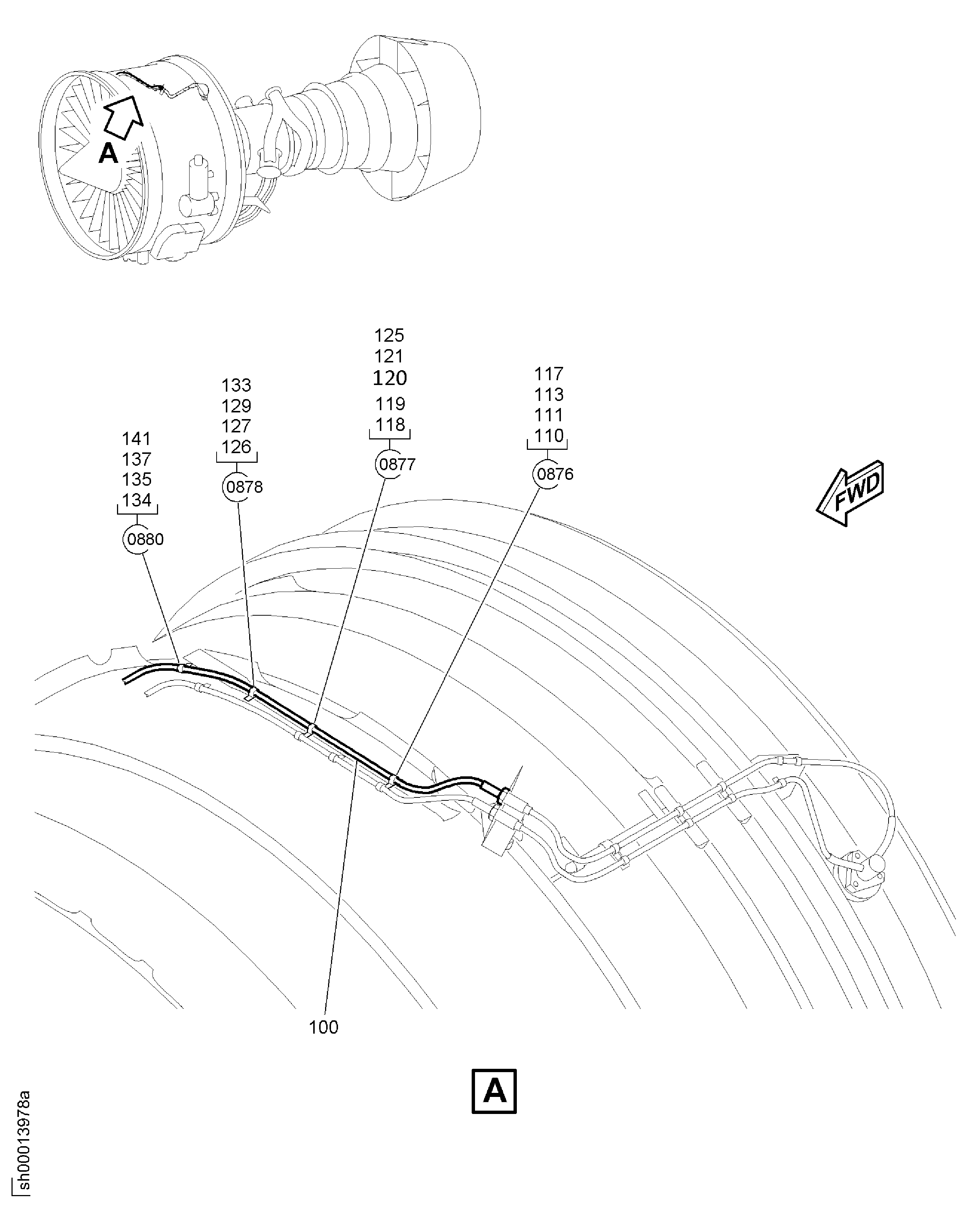

Figure: VIBRATION TRANSDUCER JUNCTION BOX

VIBRATION TRANSDUCER JUNCTION BOX

Change Type:

Incorporated SBE 77-0014.

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:22175
Enterprise Name:J AND M PRODUCTS INC
BU Name:J AND M PRODUCTS INC
Street:2435 N NAOMI STREET
City:BURBANK
State:CA
Zip Code:91504-3425
Country:USA
Manufacturer Code:51563
Enterprise Name:ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:ROHR INC, A COLLINS AEROSPACE COMPANY
Street:850 LAGOON DRIVE
City:CHULA VISTA
State:CA
Zip Code:91910-2098
Country:USA
Phone Number:1-619-691-2089
Fax Number:1-619-691-6195
Manufacturer Code:84971
Enterprise Name:KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
BU Name:KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
Department:TA MFG LTD
Street:28065 WEST FRANKLIN PARKWAY,VALENCIA
City:SANTA CLARITA
State:CALIFORNIA
Zip Code:GL1 2BS
Country:USA
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:K4585
Enterprise Name:SHORT BROS PLC
BU Name:NULL
Street:AIRPORT ROAD
P.O. Box:PO BOX 241 BT3
City:QUEENS ISLAND
State:BELFAST
Zip Code:9DZ
Country:UNITED KINGDOM
Manufacturer Code:K7766
Enterprise Name:K7766
BU Name:British Standards Institution
Street:2 Park Street
City:London
Zip Code:AW1A 2BS
Country:England
Manufacturer Code:S3960
Enterprise Name:VIBRO-METER SA
BU Name:VIBRO-METER SA
Street:ROUTE DE MONCOR 4
P.O. Box:1701
City:FRIBOURG
State:NH
Zip Code:03103
Country:SWITZERLAND
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:4W0001
Part Name:NUT, OPTION - .190 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS20624NUT, SELF LOCKING DBL HEX - .190 DIAU1653
Part Number:4W0103
Part Name:BOLT - .190 DIA X .500
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21408BOLT - 0.19 DIA X 0.500U1653
Part Number:4W0104
Part Name:BOLT - .190 DIA X .562
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0344BOLT , BIHEX HD - .190 DIA X .5620AM53
Part Number:4W0105
Part Name:BOLT - MACHINE DOUBLE HEX, .190 DIA X .625
Manufacturer Code:0AM53
Part Number:4W0344
Part Name:BOLT , BIHEX HD - .190 DIA X .562
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0104BOLT - .190 DIA X .5620AM53
Part Number:740-5405-507
Part Name:INSTALL - VIBRATION TRANSDUCER
Manufacturer Code:51563
Part Number:740-5405-509
Part Name:INSTALL - VIBRATION TRANSDUCER
Manufacturer Code:51563
Part Number:740-5968-501
Part Name:HARNESS - VIBRATION
Manufacturer Code:51563
Part Number:922-167-000-031
Part Name:CABLE - EC-167, ASSEMBLY OF
Manufacturer Code:S3960
Part Number:AS20624
Part Name:NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:U1653
Part Number:AS21408
Part Name:BOLT - 0.19 DIA X 0.500
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
MS9556-06BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.50096906
Part Number:AS21409
Part Name:BOLT - 0.190 DIA X 0.562
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9556-07BOLT - MACHINE, DOUBLE HEXAGON, EXTERNAL WASHER HEAD, 0.190 - 32 X 0.56296906
Part Number:AS21416
Part Name:BOLT - .190 DIA X .625
Manufacturer Code:U1653
Unit Of Issue:EA
Link not Found
Part Number:AS61932
Part Name:CLAMP - LOOP 3.18 MM (.125)
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
TA025074-02CLAMP - 0.125 DIA84971
Part Number:JM44LC39H103RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39S103
Part Name:CLAMP
Manufacturer Code:22175
Part Number:MS9556-06
Part Name:BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500
Manufacturer Code:96906
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS21408BOLT - 0.19 DIA X 0.500U1653
Part Number:MS9556-07
Part Name:BOLT - MACHINE, DOUBLE HEXAGON, EXTERNAL WASHER HEAD, 0.190 - 32 X 0.562
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
AS21409BOLT - 0.190 DIA X 0.562U1653
Part Number:SP154D
Part Name:WASHER - 0.190 DIA
Manufacturer Code:K7766
Part Number:ST1698D48
Part Name:SPACER (10MM)
Manufacturer Code:K4585
Part Number:TA025074-02
Part Name:CLAMP - 0.125 DIA
Manufacturer Code:84971
Optional Parts
Part NumberPart NameManufacturer
AS61932CLAMP - LOOP 3.18 MM (.125)84971
AS61932CLAMP - LOOP 3.18 MM (.125)U1653
