| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B78301001 | EXHAUST-CROSSOVER BEAM, PRE SBN70-0137 | aa | ||
| SBN0137-01 | EXHAUST-CROSSOVER BEAM | ab | ||
| 010 | 740-0445-507 | • BEAM - ASSY,CROSSOVER 51563 PRE SBN70-0137 | aa-ab | 1 |
| 010A | 740-0445-509 | • BEAM - ASSY CROSSOVER 51563 POST SBN70-0137 | aa-ab | 1 |
| 022 | HL94DU5 | • • COLLAR 73197 | aa-ab | 1 |
| 024 | HL40-5-4 | • • PIN 73197 | aa-ab | 1 |
| 026 | MS20615-4M | • • RIVET 96906 | aa-ab | 2 |
| 032 | HL94DU5 | • • COLLAR 73197 | aa-ab | 1 |
| 034 | HL40-5-4 | • • PIN 73197 | aa-ab | 1 |
| 042 | HL94DU5 | • • COLLAR 73197 | aa-ab | 1 |
| 044 | HL40-5-4 | • • PIN 73197 | aa-ab | 1 |
| 046 | MS20615-4M | • • RIVET 96906 | aa-ab | 2 |
| 052 | HL94DU5 | • • COLLAR 73197 | aa-ab | 1 |
| 054 | HL40-5-4 | • • PIN 73197 | aa-ab | 1 |
| 060 | 740-0483-503 | • • SHIELD 51563 | aa-ab | 2 |
| 062 | MS20615-4M | • • RIVET - SOLID CSK HEAD 96906 | aa-ab | 4 |
| 090 | 740-0237-511 | • • RETAINER - ,(VRS2136) 51563 POST SBN70-0333 | ***** | 1 |
| 092 | HL94DU4 | • • COLLAR - ,(VRS2136) 73197 POST SBN70-0333 | ***** | 1 |
| 094 | HL40-4-4 | • • PIN - ,(VRS2136) 73197 POST SBN70-0333 | ***** | 1 |
| 096 | MS20615-4M | • • RIVET - SOLID CSK HEAD,(VRS2137) 96906 POST SBN70-0333 | ***** | 4 |
| 100 | 740-0237-512 | • • RETAINER - ,(VRS2136) 51563 POST SBN70-0333 | ***** | 1 |
| 102 | HL94DU4 | • • COLLAR - ,(VRS2136) 73197 POST SBN70-0333 | ***** | 1 |
| 104 | HL40-4-4 | • • PIN - ,(VRS2136) 73197 POST SBN70-0333 | ***** | 1 |
| 106 | MS20615-4M | • • RIVET - SOLID CSK HEAD,(VRS2136) 96906 POST SBN70-0333 | ***** | 4 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

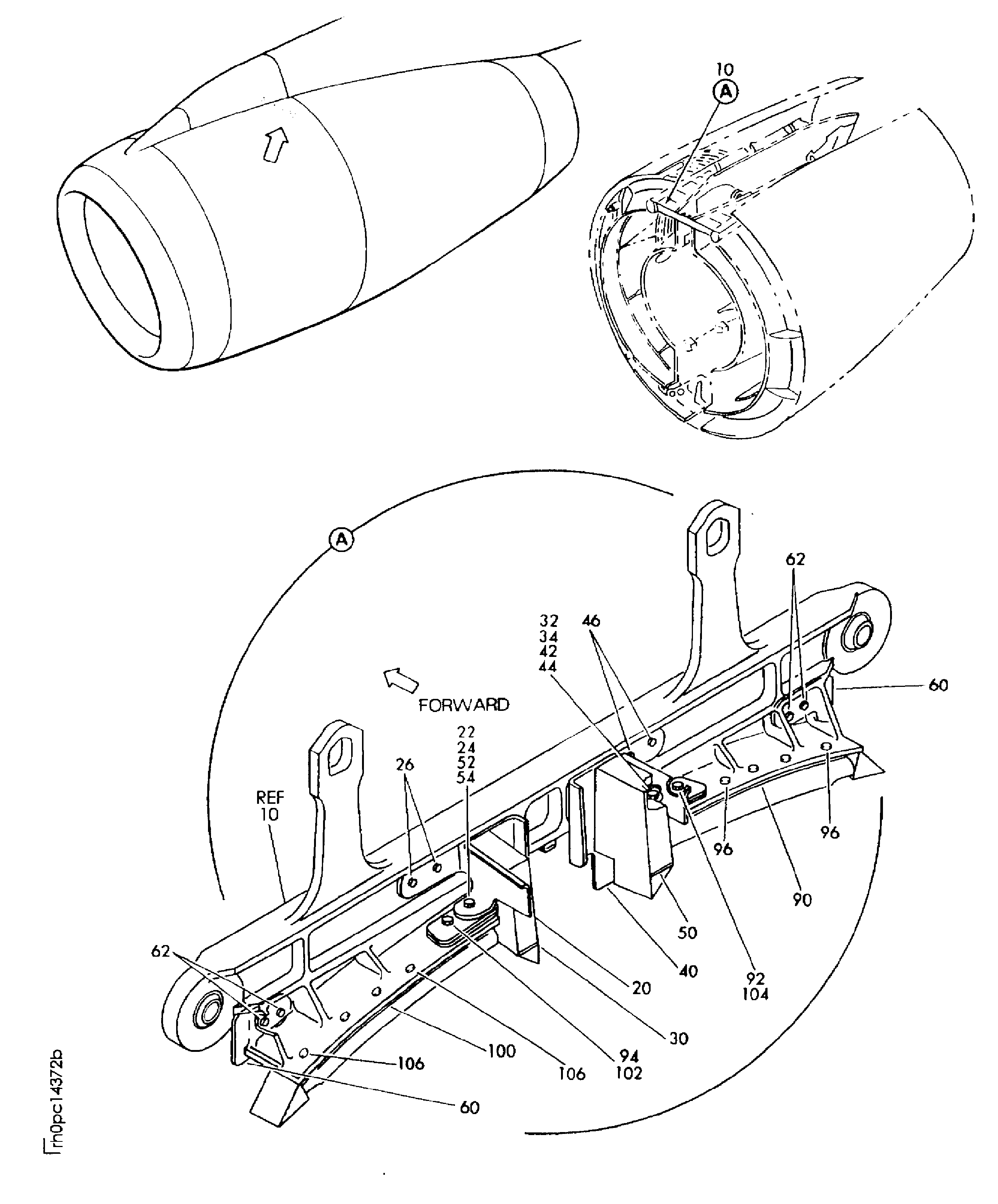

Figure: EXHAUST-CROSSOVER BEAM
BEAM ASSY CROSSOVER
