| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B78301501 | EXHAUST-SUPPORT STRUTS-T/REVERSER, PRE SBN78-0102 | aa | ||
| SBN0102-01 | EXHAUST-SUPPORT STRUTS-T/REVERSER | ab | ||
| 010 | 740-0466-501 | • STRUT - ASSY COMPRESSION 51563 PRE SBN78-0102 | aa | 1 |
| 010A | 740-0466-505 | • STRUT - ASSY 51563 POST SBN78-0102 | aa-ab | 1 |
| 015 | NAS509-9 | • • NUT - JAM 80205 PRE SBN70-0270 | ***** | 2 |
| 025 | 740-0469-501 | • • END - STRUT 51563 PRE SBN70-0270 | ***** | 2 |
| 035 | 740-0466-5 | • • TUBE - ASSY 51563 PRE SBN70-0270 | ***** | 1 |
| 050 | 740-0466-503 | • STRUT - ASSY COMPRESSION 51563 PRE SBN78-0102 | aa | 2 |
| 050A | 740-0466-507 | • STRUT - ASSY 51563 POST SBN78-0102 | aa-ab | 2 |
| 060 | NAS509-9 | • • NUT - JAM 80205 PRE SBN70-0270 | ***** | 1 |
| 070 | 740-0469-501 | • • END - STRUT 51563 PRE SBN70-0270 | ***** | 1 |
| 080 | 740-0466-7 | • • TUBE - ASSY 51563 PRE SBN70-0270 | ***** | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

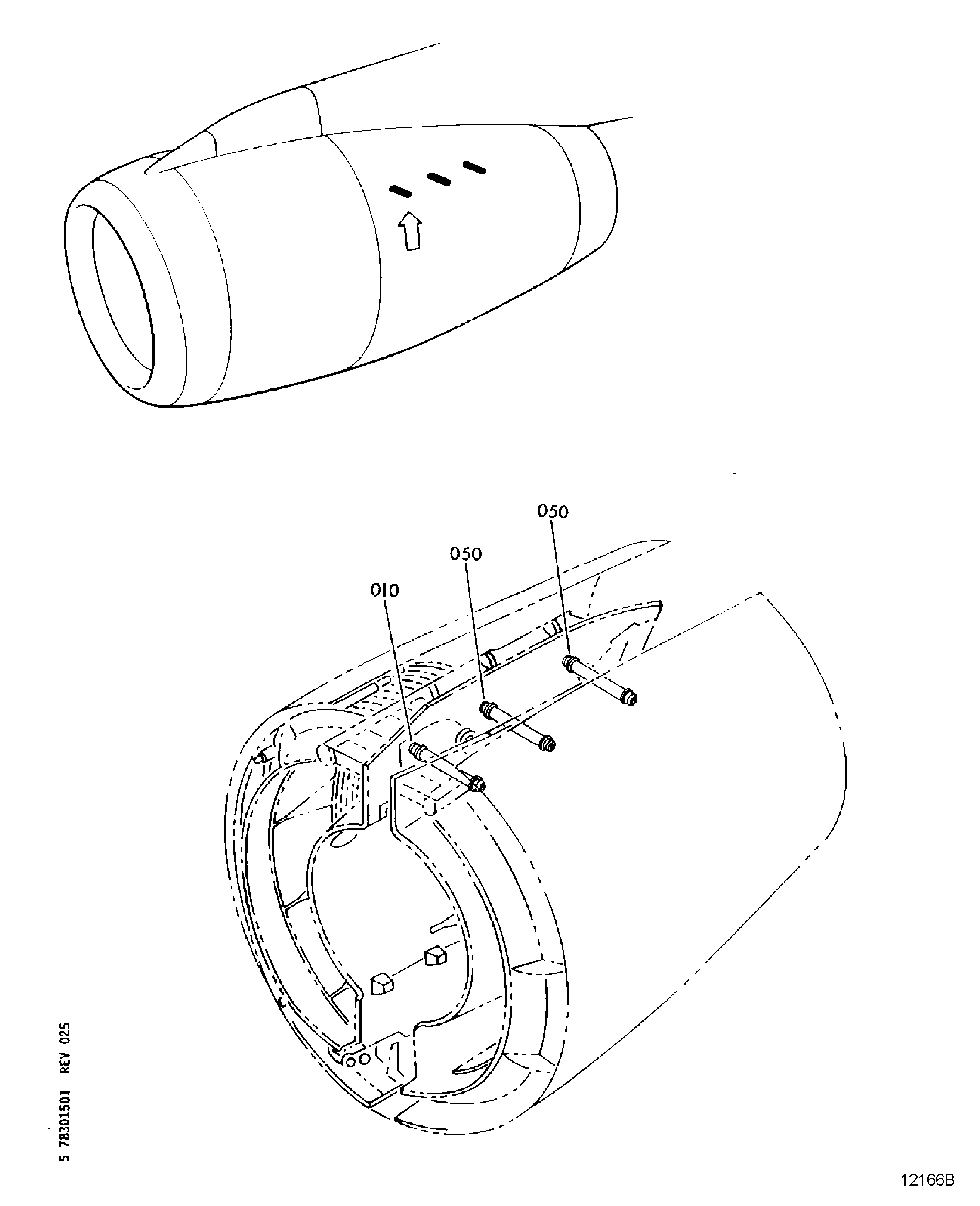

Figure: EXHAUST-SUPPORT STRUTS-T/REVERSER
SUPPORT STRUTS T/REVERSER EXHAUST
