DMC:V2500-A1-78-32-01-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B78320101 | EXHAUST-LEFT THRUST REVERSER HALF ENG NO.1, PRE SBN78-0001 | aa | ||
| SBN0001-01 | EXHAUST-LEFT THRUST REVERSER HALF ENG NO.1, PRE SBN70-0119 | ab | ||
| SBN0119-01 | EXHAUST-LEFT THRUST REVERSER HALF ENG NO.1, PRE SBN78-0044 | ac | ||
| SBN0044-01 | EXHAUST-LEFT THRUST REVERSER HALF ENG NO.1, PRE SBN70-0116 | ad | ||
| SBN0116-01 | EXHAUST-LEFT THRUST REVERSER HALF ENG NO.1, PRE SBN78-0016 | ae | ||
| SBN0016-01 | EXHAUST-LEFT THRUST REVERSER HALF ENG NO.1, PRE SBN78-0038 | af | ||
| SBN0038-01 | EXHAUST-LEFT THRUST REVERSER HALF ENG NO.1, PRE SBN70-0185 | ag | ||
| SBN0185-01 | EXHAUST-LEFT THRUST REVERSER HALF ENG NO.1, PRE SBN78-0181 | ah | ||
| SBN0181-01 | EXHAUST-LEFT THRUST REVERSER HALF ENG NO.1 | ai | ||
| -010 | 740-0002-529 | • THRUST - RVSR ASSY,LH 51563 (SEE 78–32–01–02 FOR SP KIT) | aa-ai | REF |
| -010A | 740-0002-553 | • THRUST - RVSR ASSY,LH SIDE 51563 (SEE 78–32–01–02 FOR SP KIT) PRE SBN78-0001 | aa | REF |
| -010B | 740-0002-649 | • THRUST - RVSR ASSY,LH SIDE 51563 (SEE 78–32–01–02 FOR SP KIT) | aa-ai | REF |
| -010C | 740-0002-573 | • THRUST - RVSR ASSY,LH. SIDE 51563 (SEE 78–32–01–02 FOR SP KIT) POST SBN78-0001 | ab-ai | REF |
| -010D | 740-0002-581 | • THRUST - RVSR ASSY,LH SIDE 51563 (SEE 78–32–01–02 FOR SP KIT) POST SBN78-0001 | ab-ai | REF |
| -010E | 740-0002-589 | • THRUST - RVSR ASSY,LH SIDE 51563 (SEE 78–32–01–02 FOR SP KIT) POST SBN78-0001 | ab-ai | REF |
| -010F | 740-0002-601 | • THRUST - RVSR ASSY,LH SIDE 51563 (SEE 78–32–01–02 FOR SP KIT) POST SBN78-0001 | ab-ai | REF |
| -010G | 740-0002-605 | • THRUST - RVSR ASSY,LH SIDE 51563 (SEE 78–32–01–02 FOR SP KIT) POST SBN78-0001 | ab-ai | REF |
| -010H | 740-0002-609 | • THRUST - RVSR ASSY,LH SIDE 51563 (SEE 78–32–01–02 FOR SP KIT) POST SBN78-0001 | ab-ai | REF |
| 012 | MS24665-304 | • PIN 96906 | aa-ai | 1 |
| 015 | NAS1805-9L | • NUT 80205 | aa-ai | 3 |
| 015A | NAS1291C6M | • NUT 80205 | aa-ai | 3 |
| 020 | NAS1805-8L | • NUT 80205 | aa-ai | 1 |
| 020A | LCN12-820 | • NUT 56878 | aa-ai | 1 |
| 030 | AN960C916 | • WASHER 81352 | aa-ai | 3 |
| 030A | S700W0110-6C16G | • WASHER 51563 | aa-ai | 3 |
| 040 | S700W0131R8L17 | • WASHER 51563 | aa-ai | 2 |
| 040A | S700W0131R8L20 | • WASHER 51563 | aa-ai | 1 |
| 040B | S700W0131R8L20 | • WASHER 51563 POST SBN78-0038 | ag-ai | 2 |
| 045 | VN936NP8C | • WASHER 92215 | aa-ai | 1 |
| 045A | AN960C1016 | • WASHER 81352 POST SBN78-0016 PRE SBN78-0038 | af | 1 |
| 045B | VN936NP8C | • WASHER 92215 POST SBN78-0038 PRE SBN70-0185 | ag | 1 |
| 045C | S700W1352-8 | • WASHER 77445 POST SBN70-0185 | ah-ai | 2 |
| 050 | 740-0225-503 | • SLEEVE 51563 | aa-ai | 1 |
| 050A | 740-0225-503 | • SLEEVE 51563 | aa-ai | 1 |
| 060 | S700B1152-1D | • BOLT 51563 | aa-ai | 3 |
| 060A | S700B1152-1 | • BOLT 51563 POST SBN70-0116 | ae-ai | 3 |
| 070 | NAS628-80 | • BOLT 80205 | aa-ai | 1 |
| 070A | S700B1191 | • BOLT 51563 | aa-ai | 1 |
| 070B | 275B0308DU91 | • BOLT K0316 ALT A1C4753-8D91 POST SBN70-0185 | ah-ai | 1 |
| -070C | A1C4753-8D91 | • BOLT K7766 ALT 77711-8D91 POST SBN70-0185 | ah-ai | REF |
| -070D | 77711-8D91 | • BOLT 56878 ALT 275B0308DU91 POST SBN70-0185 | ah-ai | REF |
| -100 | 740-0394-501 | • • MARKING - INSTL V2500 T/R 51563 POST SBN70-0119 | ac-ai | REF |
| 105 | 740-0394-5 | • • • DECAL - HOIST POINT 51563 POST SBN70-0119 | ac-ai | 1 |
| 110 | 740-0394-3 | • • • DECAL - HINGE ACCESS PANEL 51563 POST SBN70-0119 PRE SBN78-0044 | ac-ai | 1 |
| 110A | 740-0394-67 | • • • DECAL - HINGE ACCESS PANEL 51563 POST SBN78-0044 | ac-ai | 1 |
| 113 | 740-0394-83 | • • • DECAL - HINGE ACC PANEL (ESP) 51563 POST SBN78-0181 | ai | 1 |
| 115 | 740-0394-7 | • • • DECAL - HOIST POINT "C" DUCT 51563 POST SBN70-0119 | ac-ai | 2 |
| 120 | 740-0394-23 | • • • DECAL - ACTUATOR ACCESS PANEL 51563 POST SBN70-0119 | ac-ai | 2 |
| 123 | 740-0394-89 | • • • DECAL - ACTUATOR ACC PANEL (ESP) 51563 POST SBN78-0181 | ai | 1 |
| 125 | 740-0394-1 | • • • DECAL - HOIST POINT XLTG SLV 51563 POST SBN70-0119 | ac-ai | 3 |
| 130 | 740-0394-11 | • • • DECAL - PIN STOWAGE 51563 POST SBN70-0119 | ac-ai | 1 |
| 133 | 740-0394-87 | • • • DECAL - PIN STOWAGE (ESP) 51563 POST SBN78-0181 | ai | 1 |
| 135 | 740-0394-55 | • • • DECAL - SEAL REMOVAL 51563 POST SBN70-0119 | ac-ai | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

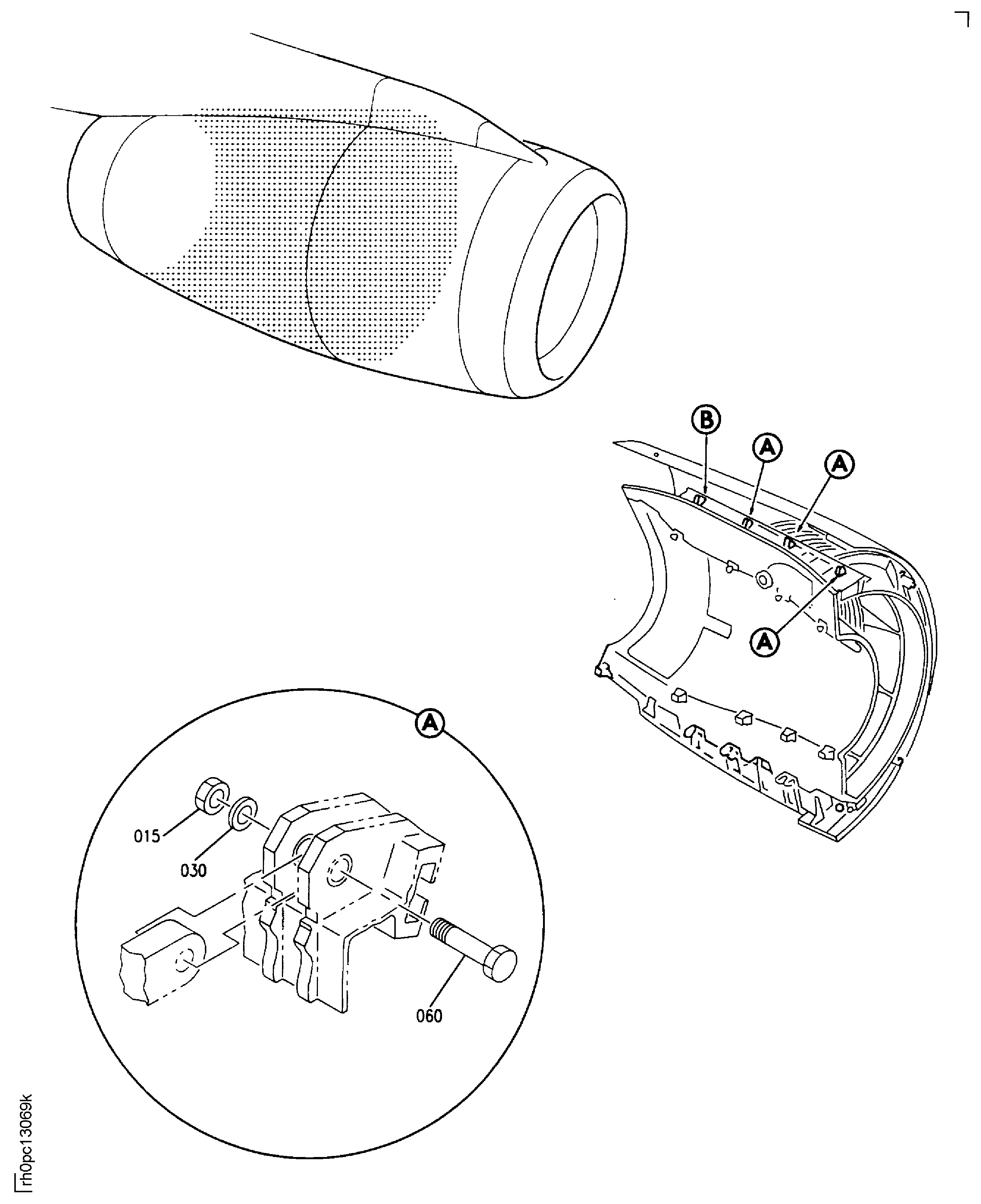

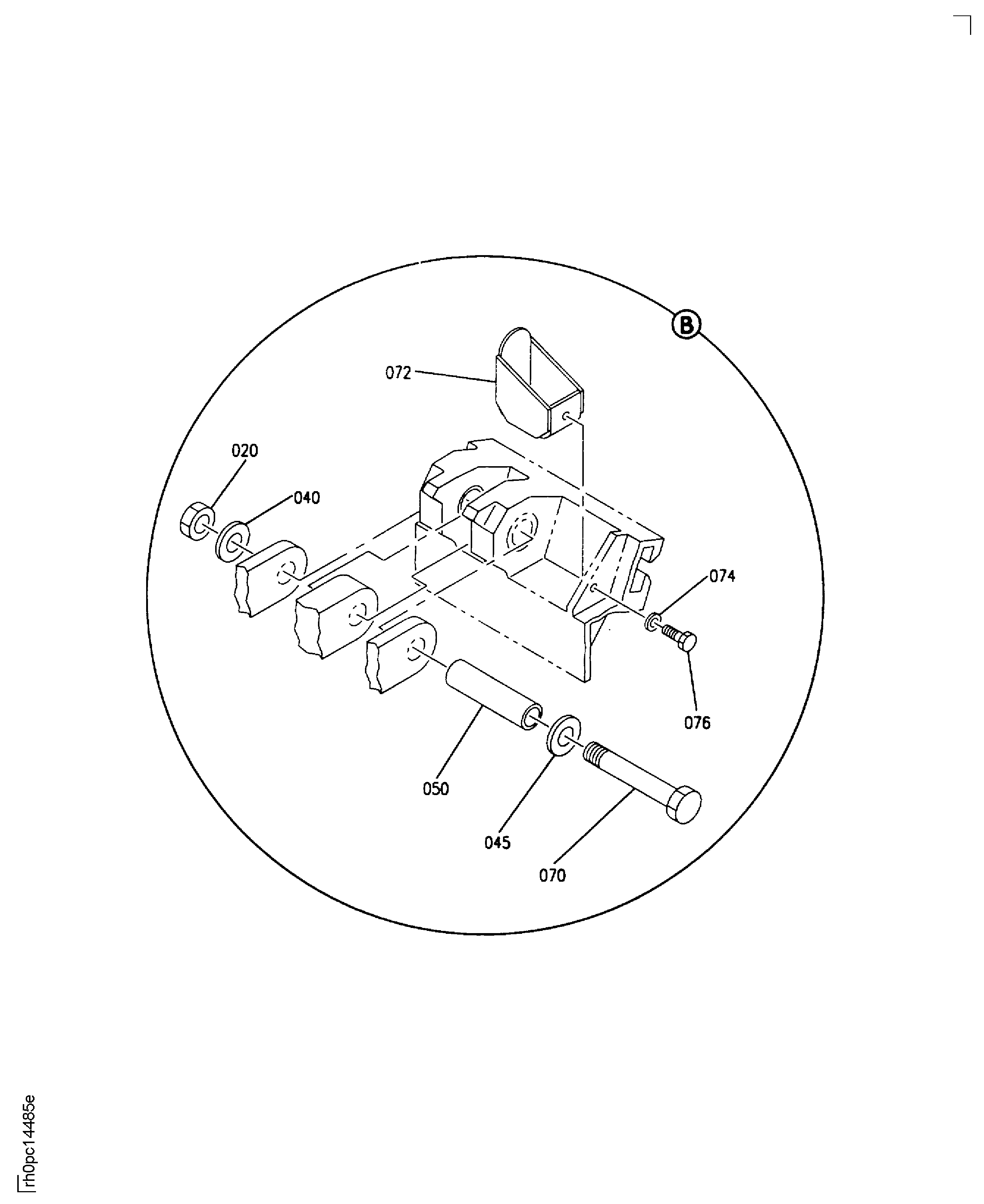

Figure: EXHAUST-LEFT THRUST REVERSER HALF ENG NO.1
THRUST REVERSER ASSY
THRUST REVERSER ASSY
