DMC:V2500-A1-78-32-01-02A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B78320102 | EXHAUST-LEFT THRUST REVERSER HALF ENG NO.1, PRE SBN78-0001 | aa | ||
| SBN0001-01 | EXHAUST-LEFT THRUST REVERSER HALF ENG NO.1, PRE SBN78-0027 | ab | ||
| SBN0027-01 | EXHAUST-LEFT THRUST REVERSER HALF ENG NO.1, PRE SBN78-0006 | ac | ||
| SBN0006-01 | EXHAUST-LEFT THRUST REVERSER HALF ENG NO.1, PRE SBN70-0116 | ad | ||
| SBN0116-01 | EXHAUST-LEFT THRUST REVERSER HALF ENG NO.1, PRE SBN78-0016 | ae | ||
| SBN0016-01 | EXHAUST-LEFT THRUST REVERSER HALF ENG NO.1, PRE SBN78-0038 | af | ||
| SBN0038-01 | EXHAUST-LEFT THRUST REVERSER HALF ENG NO.1, PRE SBN78-0098 | ag | ||
| SBN0098-01 | EXHAUST-LEFT THRUST REVERSER HALF ENG NO.1, PRE SBN78-0199 | ah | ||
| SBN0199-01 | EXHAUST-LEFT THRUST REVERSER HALF ENG NO.1, PRE SBN70-0877 | ai | ||
| SBN0877-01 | EXHAUST-LEFT THRUST REVERSER HALF ENG NO.1 | aj | ||
| 010 | 740K9002-1 | • KIT - T/R SP ENG 1 CONV ENG 2 51563 | aa-aj | 1 |
| 015 | NAS1081C4A4 | • • SETSCREW - BLANKING 80205 POST SBN78-0006 | ad-aj | 8 |
| 018 | NAS604-11 | • • SCREW 80205 POST SBN78-0006 | ad-aj | 4 |
| -020 | 740-0002-529 | • • THRUST - RVSR ASSY,LH SIDE 51563 | aa-aj | REF |
| -020A | 740-0002-553 | • • THRUST - RVSR ASSY,LH SIDE 51563 PRE SBN78-0001 | aa | REF |
| -020B | 740-0002-649 | • • THRUST - RVSR ASSY,LH SIDE 51563 | aa-aj | REF |
| -020C | 740-0002-573 | • • THRUST - RVSR ASSY,LH SIDE 51563 POST SBN78-0001 | ab-aj | REF |
| -020D | 740-0002-581 | • • THRUST - RVSR ASSY,LH SIDE 51563 POST SBN78-0001 | ab-aj | REF |
| -020E | 740-0002-589 | • • THRUST - RVSR ASSY,LH SIDE 51563 POST SBN78-0001 | ab-aj | REF |
| -020F | 740-0002-601 | • • THRUST - RVSR ASSY,LH SIDE 51563 POST SBN78-0001 | ab-aj | REF |
| -020G | 740-0002-605 | • • THRUST - RVSR ASSY,LH SIDE 51563 POST SBN78-0001 | ab-aj | REF |
| -020H | 740-0002-609 | • • THRUST - RVSR ASSY,LH SIDE 51563 POST SBN78-0001 | ab-aj | REF |
| -030 | 740-0002-531 | • • THRUST - RVSR ASSY,RH SIDE 51563 | aa-aj | REF |
| -030A | 740-0002-555 | • • THRUST - RVSR ASSY,RH SIDE 51563 PRE SBN78-0001 | aa | REF |
| -030B | 740-0002-637 | • • THRUST - RVSR ASSY,RH SIDE 51563 | aa-aj | REF |
| -030C | 740-0002-575 | • • THRUST - RVSR ASSY,RH SIDE 51563 POST SBN78-0001 | ab-aj | REF |
| -030D | 740-0002-583 | • • THRUST - RVSR ASSY,RH SIDE 51563 POST SBN78-0001 | ab-aj | REF |
| -030E | 740-0002-591 | • • THRUST - RVSR ASSY,RH SIDE 51563 POST SBN78-0001 | ab-aj | REF |
| -030F | 740-0002-597 | • • THRUST - RVSR ASSY,RH SIDE 51563 POST SBN78-0001 | ab-aj | REF |
| -035 | MS24665-304 | • • PIN 96906 | aa-aj | REF |
| -040 | NAS1805-8L | • • NUT 80205 | aa-aj | REF |
| -040A | LCN12-820 | • • NUT 56878 | aa-aj | REF |
| -050 | NAS1805-9L | • • NUT 80205 | aa-aj | REF |
| -050A | NAS1291C6M | • • NUT 80205 | aa-aj | REF |
| -060 | S700W0131R8L20 | • • WASHER 51563 | aa-aj | REF |
| -065 | VN936NP8C | • • WASHER 92215 PRE SBN78-0016 | aa-ae | REF |
| -065A | AN960C1016 | • • WASHER 81352 POST SBN78-0016 PRE SBN78-0038 | aa-af | REF |
| -065B | VN936NP8C | • • WASHER 92215 POST SBN78-0038 | ag-aj | REF |
| -070 | AN960C916 | • • WASHER 81352 | aa-aj | REF |
| -070A | S700W0110-6C16G | • • WASHER 51563 | aa-aj | REF |
| -080 | 740-0225-503 | • • SLEEVE 51563 | aa-aj | REF |
| -080A | 740-0225-503 | • • SLEEVE 51563 | aa-aj | REF |
| -090 | NAS628-80 | • • BOLT 80205 | aa-aj | REF |
| -090A | S700B1191 | • • BOLT 51563 | aa-aj | REF |
| -100 | NAS629-24 | • • BOLT 80205 | aa-aj | REF |
| -100A | S700B1152-1D | • • BOLT 51563 PRE SBN70-0116 | aa-aj | REF |
| -100B | S700B1152-1 | • • BOLT 51563 POST SBN70-0116 | aa-aj | REF |
| -110 | 740-0106-505 | • • CASCADE - EGGBOX 51563 | aa-aj | REF |
| -110A | 740-0106-507 | • • CASCADE - EGGBOX 51563 PRE SBN78-0027 | aa-ab | REF |
| -110B | 740-0235-531 | • • CASCADE - ASSY 51563 POST SBN78-0027 | ac-aj | REF |
| -120 | 740-0235-518 | • • CASCADE - ASSY 51563 | aa-aj | REF |
| -120A | 740-0235-524 | • • CASCADE - ASSY 51563 PRE SBN78-0027 | aa-ab | REF |
| -120B | 740-0235-538 | • • CASCADE - ASSY 51563 POST SBN78-0027 | ac-aj | REF |
| -130 | 740-0235-519 | • • CASCADE - ASSY 51563 | aa-aj | REF |
| -130A | 740-0411-504 | • • CASCADE - ASSY 51563 PRE SBN78-0098 | aa-ag | REF |
| -130B | 740-0411-506 | • • DOOR - CASCADE ASSY 51563 POST SBN78-0098 PRE SBN78-0199 | ah | REF |
| -135 | 745-0109-501 | • • PANEL - COMPOSITE,BLK CASCADE 51563 POST SBN78-0199 PRE SBN70-0877 | ai-aj | REF |
| -135A | 745-0109-507 | • • PANEL - COMPOSITE,BLK CASCADE 51563 POST SBN70-0877 | ai-aj | REF |
| -140 | NAS6404U10 | • • BOLT - HEX HEAD 80205 | aa-aj | REF |
| -150 | NAS1587-4L | • • WASHER 80205 | aa-aj | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

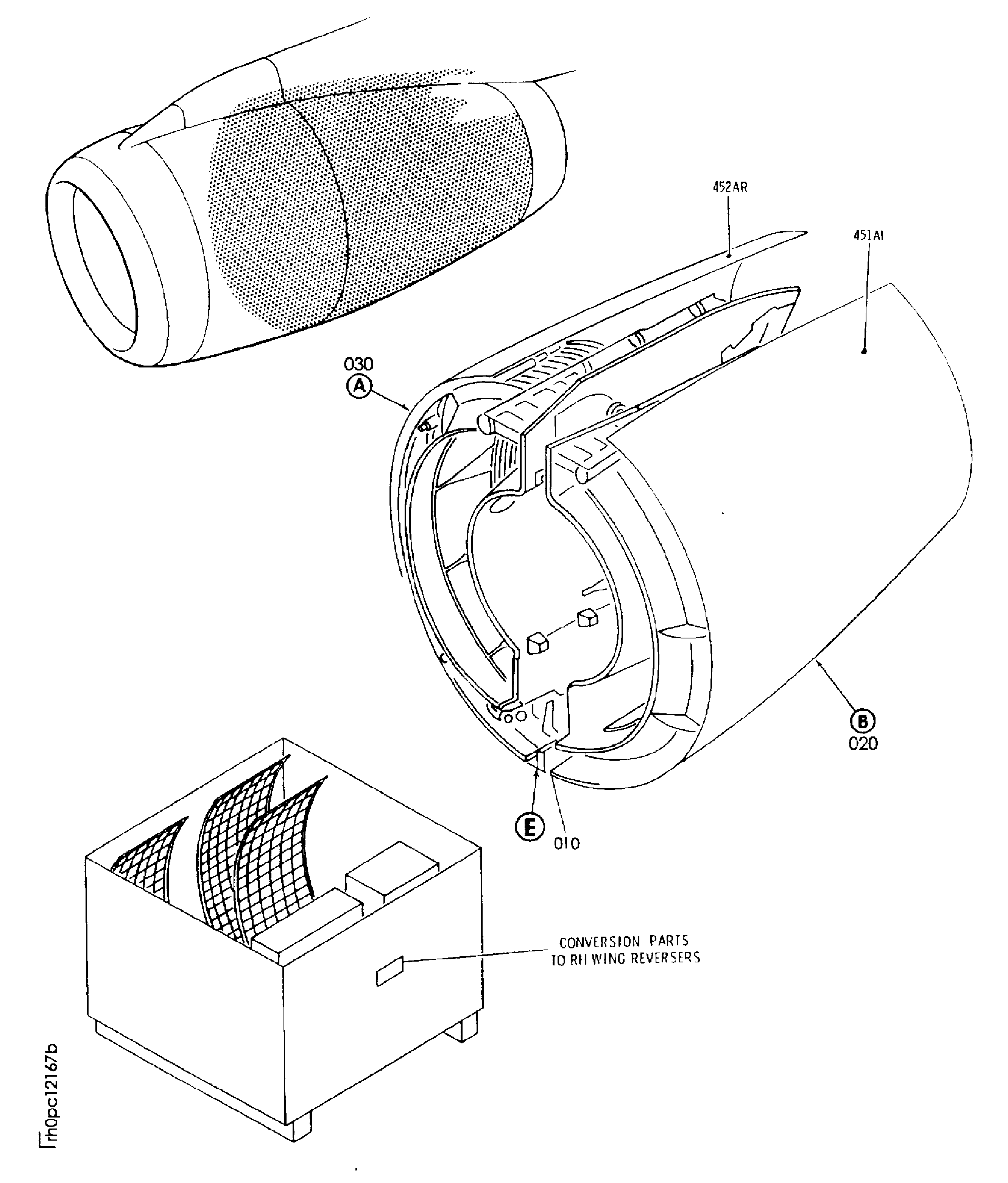

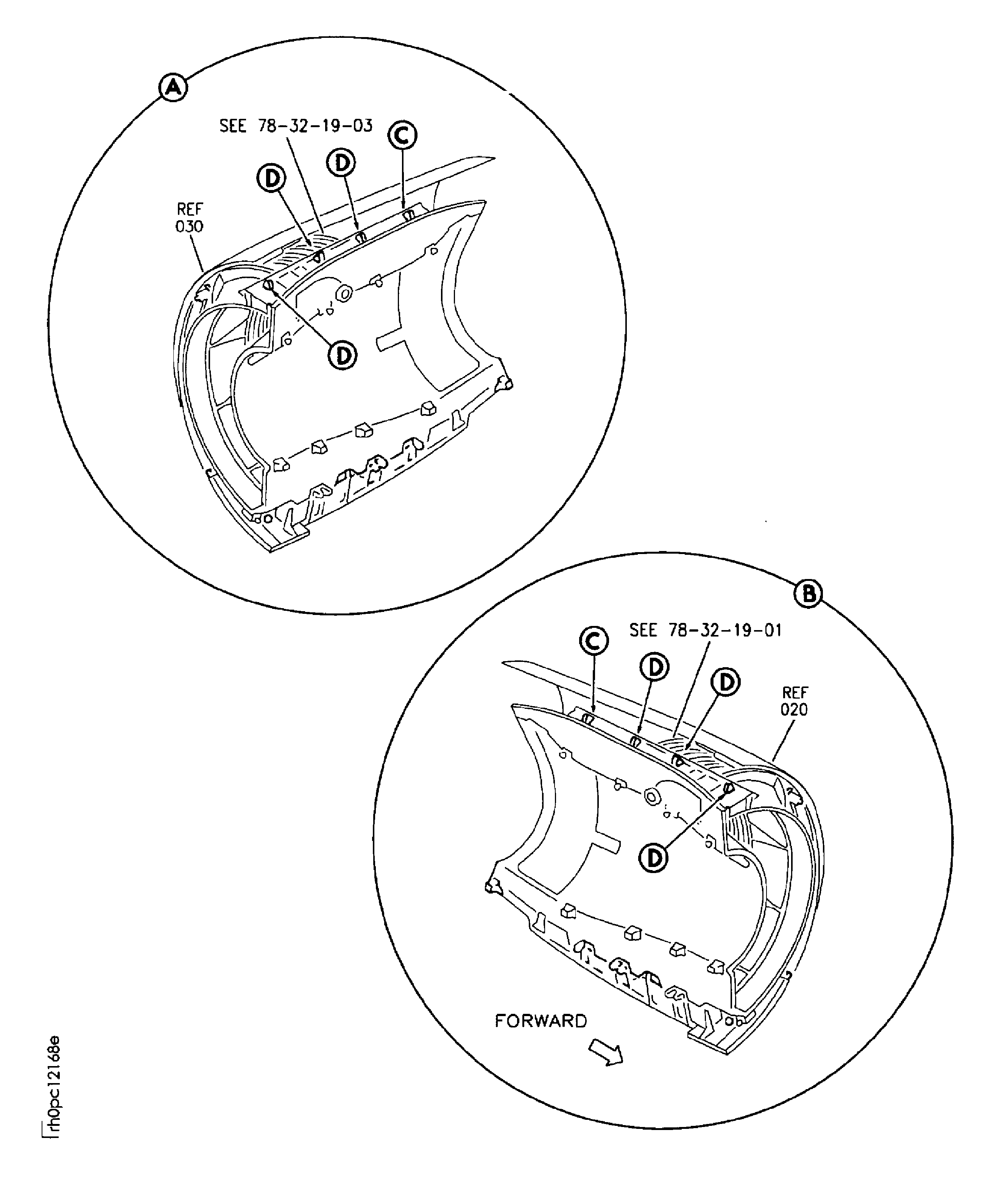

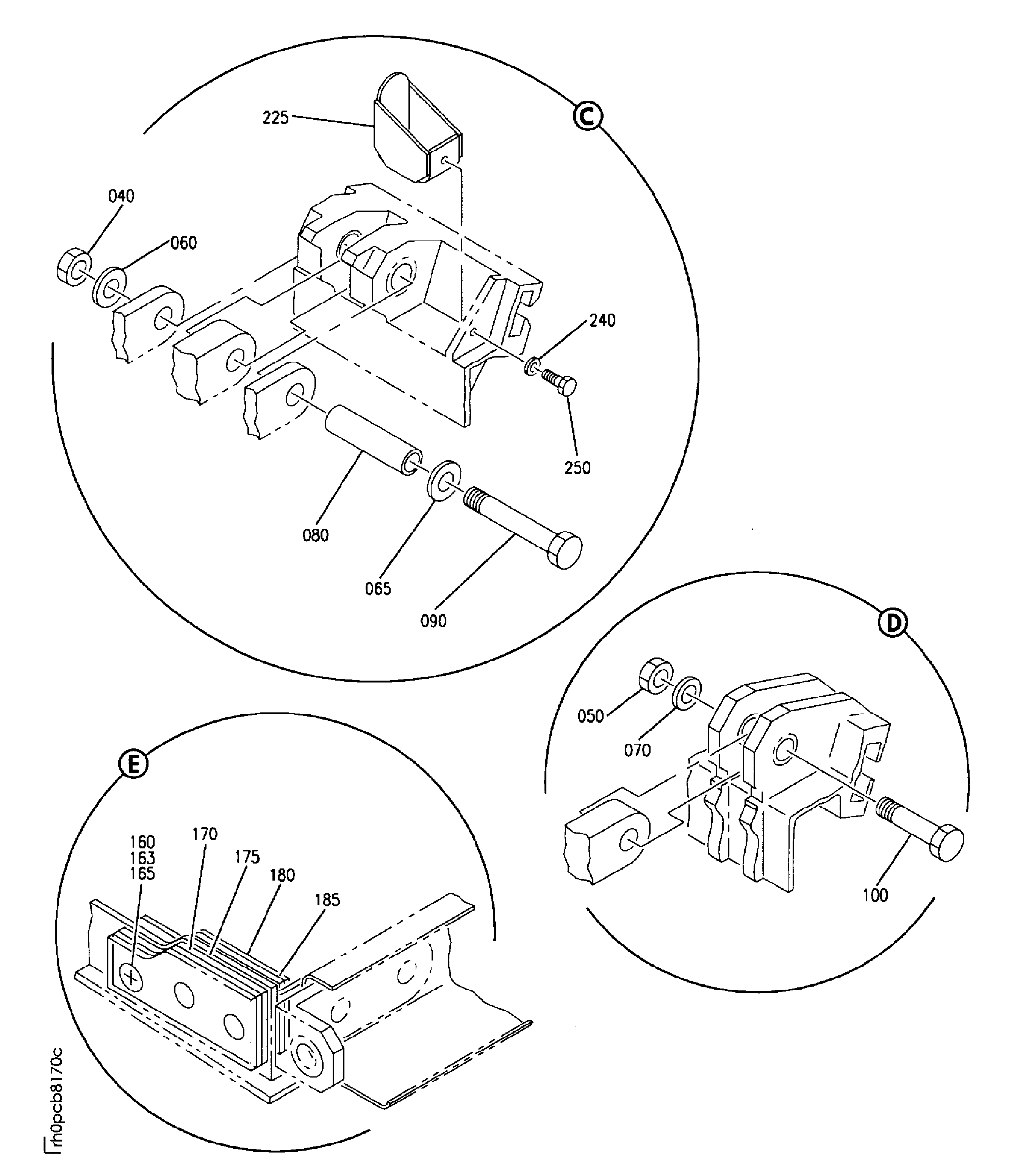

Figure: EXHAUST-LEFT THRUST REVERSER HALF ENG NO.1
FAN REVERSER KIT
FAN REVERSER KIT
FAN REVERSER KIT
