EXHAUST-RIGHT C DUCT FIXED STRUCTURE

DMC:V2500-A1-78-32-79-35A-941A-D|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item
Part No.DescriptionEffect/Model Applic.UPA
35
000B78327935EXHAUST-RIGHT C DUCT FIXED STRUCTURE, PRE SBN70-0772aa
000SBN0772-01EXHAUST-RIGHT C DUCT FIXED STRUCTUREab
-001001740-0226-516SEAL - INSTL,PRESSURE
51563
aa-abREF
-001001A740-0226-506SEAL - INSTL,PRESSURE,(VRS2076)
51563
POST SBN70-0090
*****REF
010010745-0018-502• BLOCK - ASSY,UPPER SEAL
51563
POST SBN70-0772
ab1
010010A745-0018-502• BLOCK - ASSY,UPPER SEAL
51563
POST SBN70-0772
ab1
020020CR3523-6-5• RIVET
81349
POST SBN70-0772
ab2
020020ACR3523-6-5• RIVET
81349
POST SBN70-0772
ab2
040040745-0017-502• BLOCK - ASSY,LOWER SEAL
51563
POST SBN70-0772
ab1
040040A745-0017-502• BLOCK - ASSY,LOWER SEAL
51563
POST SBN70-0772
ab1
050050CR3523-6-5• RIVET
81349
POST SBN70-0772
ab2
050050ACR3523-6-5• RIVET
81349
POST SBN70-0772
ab2
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

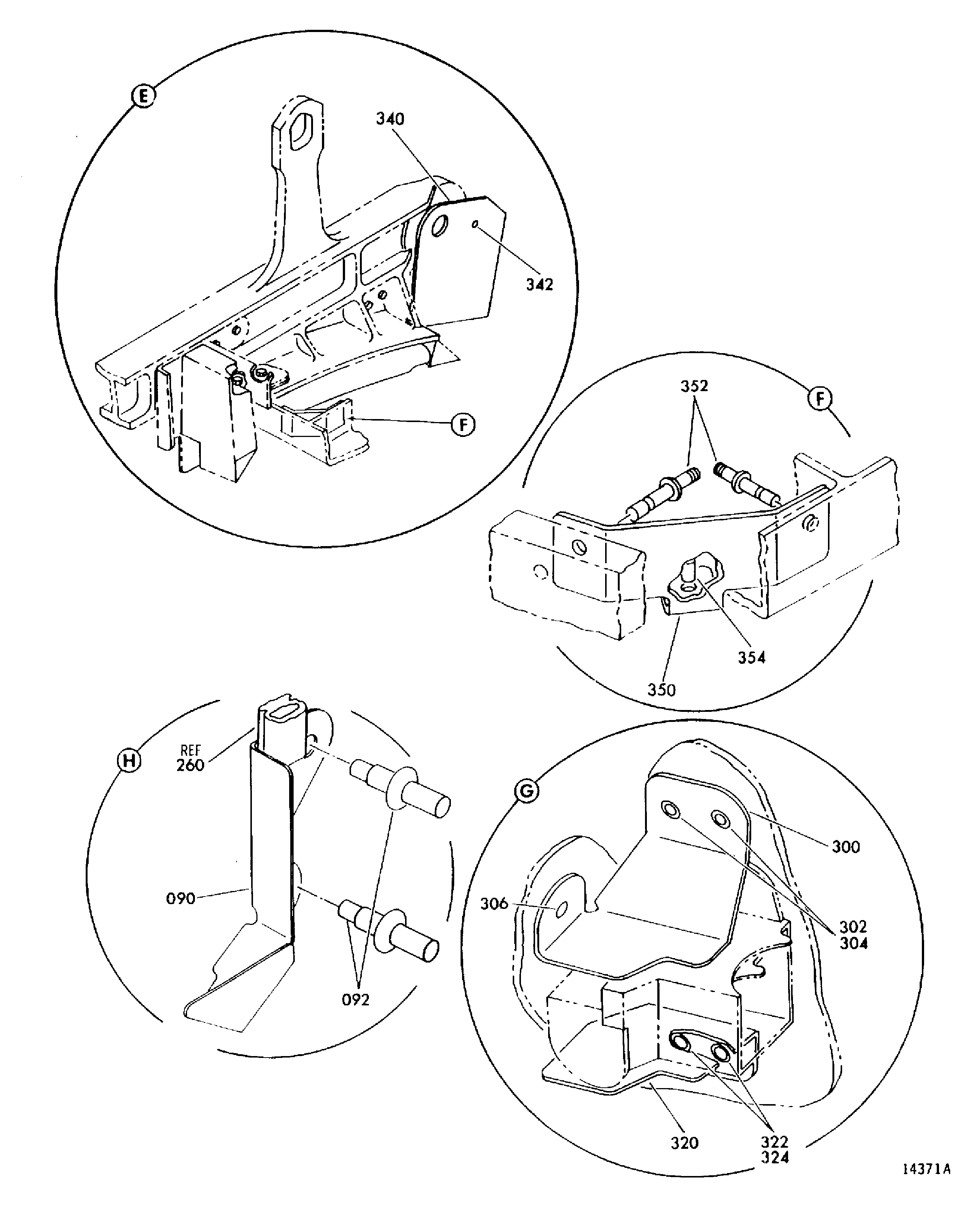

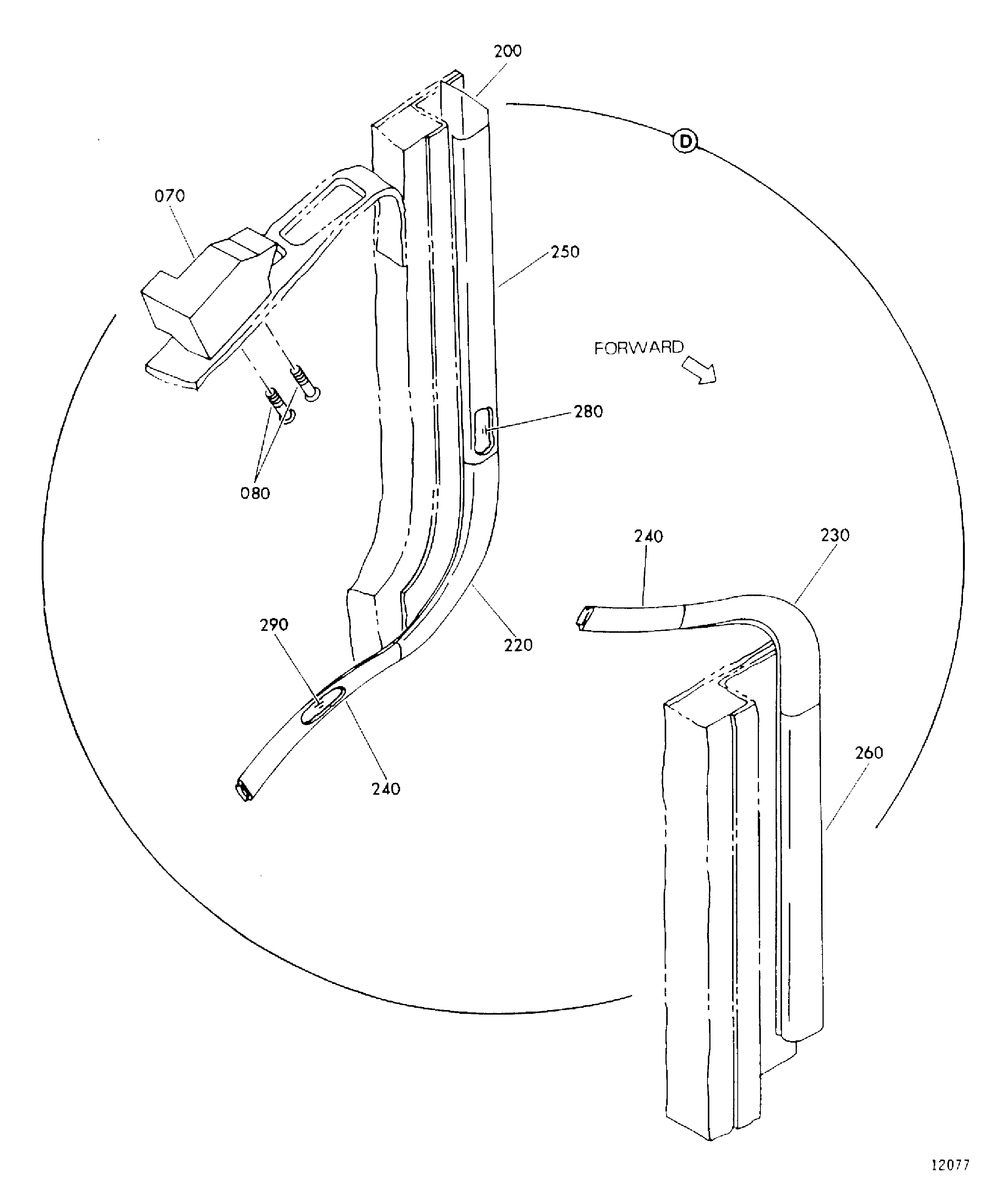

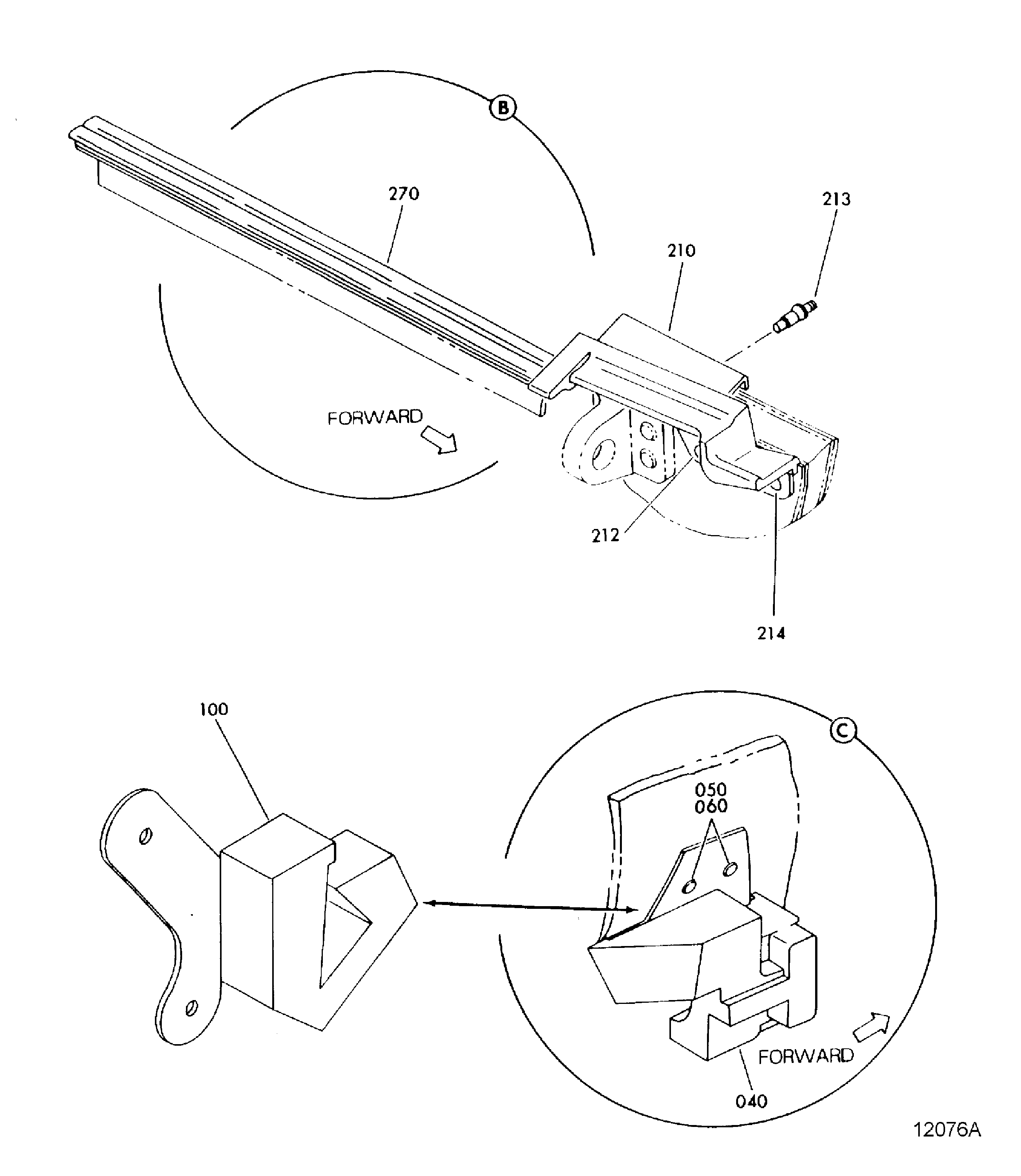

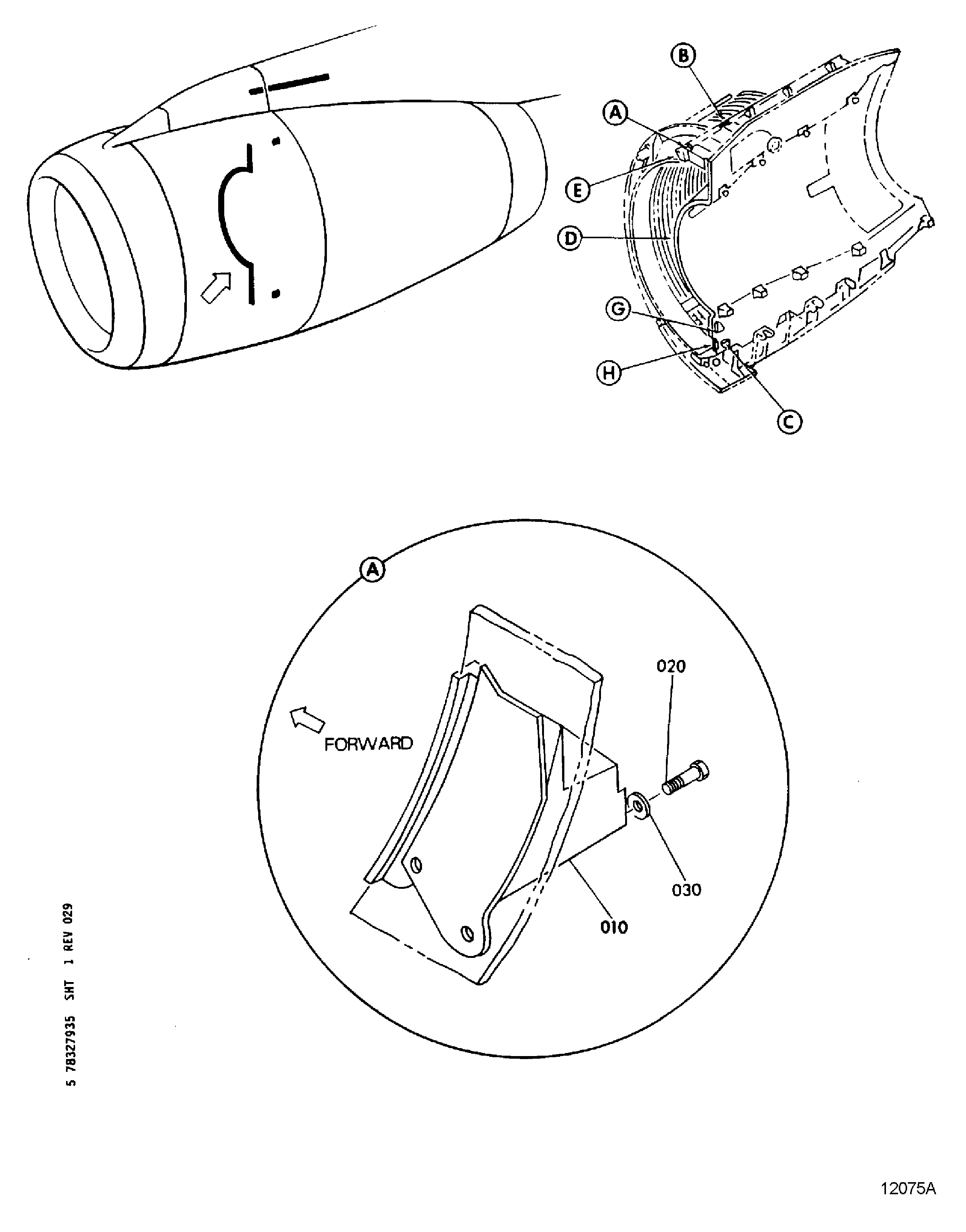

Figure: EXHAUST-RIGHT C DUCT FIXED STRUCTURE

PRESSURE SEAL INSTL RH SIDE

PRESSURE SEAL INSTL RH SIDE

PRESSURE SEAL INSTL RH SIDE

PRESSURE SEAL INSTL RH SIDE

Manufacturer Code:51563
Enterprise Name:ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:ROHR INC, A COLLINS AEROSPACE COMPANY
Street:850 LAGOON DRIVE
City:CHULA VISTA
State:CA
Zip Code:91910-2098
Country:USA
Phone Number:1-619-691-2089
Fax Number:1-619-691-6195
Manufacturer Code:81349
Enterprise Name:DELETED, SEE CAGE CODE 81348
Part Number:740-0226-506
Part Name:SEAL - INSTALL, PRESSURE
Manufacturer Code:51563
Part Number:740-0226-516
Part Name:SEAL - INSTALL, PRESSURE
Manufacturer Code:51563
Part Number:745-0017-502
Part Name:BLOCK - LOWER TRACK, ASSEMBLY OF
Manufacturer Code:51563
Part Number:745-0018-502
Part Name:BLOCK - UPPER TRACK, ASSEMBLY OF
Manufacturer Code:51563
Part Number:CR3523-6-5
Part Name:RIVET
Manufacturer Code:81349
