DMC:V2500-A1-79-21-49-04A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 04 | ||||
| B79214904 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE70-0012 | aa | ||
| SBE0012-01 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE70-0158 | ab | ||
| SBE0158-01 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE73-0040 | ac | ||
| SBE0040-01 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE73-0061 | ad | ||
| SBE0061-01 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE79-0060 | ae | ||
| SBE0060-01 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE70-0568 | af | ||
| SBE0568-01 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE79-0087 | ag | ||
| SBE0087-01 | OIL-PRESSURE OIL TUBES-ENGINE | ah | ||
| 070 | 5W8249 | • BRACKET PRE SBE70-0158 | aa-ah | 2 |
| 070A | 6A4686 | • BRACKET POST SBE70-0158 PRE SBE70-0568 | aa-ah | 2 |
| 070B | 6A4686 | • BRACKET ALT 5W8249 POST SBE70-0568 | aa-ah | 2 |
| 070C | 5W8249 | • BRACKET ALT 6A4686 POST SBE70-0568 | ag-ah | 2 |
| 071 | 4W0002 | • NUT - .250 DIA PRE SBE73-0040 | aa-ac | 4 |
| 071A | 4W0002 | • NUT - .250 DIA POST SBE73-0040 | ad-ah | 2 |
| 074 | 4W0164 | • BOLT - .250 DIA X .625 PRE SBE73-0040 | aa-ac | 4 |
| 074A | 4W0164 | • BOLT - .250 DIA X .625 POST SBE73-0040 | ad-ah | 2 |
| 100 | 5A0245 | • TUBE - ASSY PRE SBE70-0012 | aa-ad | 1 |
| 100A | 5A8777 | • TUBE - ASSY,OIL FCOC POST SBE70-0012 PRE SBE73-0061 | aa-ad | 1 |
| 100B | 6A5347 | • TUBE - A/O -OIL-FCOC TO BRGS POST SBE73-0061 PRE SBE79-0060 | ae-ah | 1 |
| 100C | 6A6176 | • TUBE - ASSY POST SBE79-0060 | ae-ah | 1 |
| 125 | 4W0129 | • BOLT - .190 DIA X 2.250 | aa-ah | 1 |
| 126 | 5W1086 | • WASHER | aa-ah | 1 |
| 128 | 400WSS14 | • CLIP 83930 PRE SBE73-0061 | aa-ad | 1 |
| 128A | AS62414 | • CLIP - 22.22 MM (0.875) U1653 POST SBE73-0061 | aa-ah | 1 |
| 130 | 5W1033 | • SPACER - (25MM) | aa-ah | 1 |
| 131 | 5W1031 | • SPACER - (15MM) | aa-ah | 1 |
| 132 | 4W0043 | • NUT - .190 DIA | aa-ah | 1 |
| 133 | 4W0102 | • BOLT - .190 DIA X .438 | aa-ah | 1 |
| 134 | 5W1086 | • WASHER | aa-ah | 1 |
| 136 | 400WSS12 | • CLIP 83930 PRE SBE73-0061 | aa-ad | 1 |
| 136A | AS62412 | • CLIP - 19.05 MM (0.750) U1653 POST SBE73-0061 | aa-ah | 1 |
| 140 | 4W0043 | • NUT - .190 DIA | aa-ah | 1 |
| 157 | 4W0103 | • BOLT - .190 DIA X .500 POST SBE79-0087 | ah | 1 |
| 158 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ah | 1 |
| 160 | AS62412 | • CLIP - 19.05 MM (0.750) U1653 POST SBE79-0087 | ah | 1 |
| 164 | 4W0001 | • NUT - .190 DIA POST SBE79-0087 | ah | 1 |
| 202 | 5W1278 | • • ADAPTOR - UNION PRE SBE70-0012 | aa | 1 |
| 202A | AS15816 | • • ADAPTOR - STRAIGHT TUBE U1653 POST SBE70-0012 | aa-ah | 1 |
| 210 | 5W8221 | • • ADAPTOR - LUG PRE SBE70-0012 | aa | 1 |
| 210A | 6A5522 | • • ADAPTOR POST SBE70-0012 | aa-ah | 1 |
| 212 | 5A8137 | • • CONNECTR - TEE | aa-ah | 1 |
| 217 | 5W8222 | • • ADAPTOR - LUG PRE SBE70-0012 | aa | 1 |
| 217A | 6A5533 | • • ADAPTOR - LUG POST SBE70-0012 | aa-ah | 1 |
| 218 | 5A8973 | • • CONNECTR - TEE PRE SBE70-0012 | aa | 1 |
| 218A | 5W8132 | • • TEE - PIECE POST SBE70-0012 | aa-ah | 1 |
| 230 | 5W8220 | • • ADAPTOR - LUG | aa-ah | 1 |
| 234 | 6A5532 | • • ADAPTOR - LUG | aa-ah | 1 |
| 240 | AS15783 | • • WIRE - THRUST U1653 | aa-ah | 1 |
| 240A | AS15783 | • • WIRE - THRUST U1653 POST SBE73-0061 | ae-ah | 1 |
| 241 | 5W8478 | • • NUT PRE SBE70-0012 | aa | 1 |
| 241A | AS15707 | • • NUT - TUBE COUPLING U1653 POST SBE70-0012 | ab-ah | 1 |
| 242 | 5W1336 | • • FERRULE PRE SBE70-0012 | aa | 1 |
| 242A | 5W1685 | • • FERRULE POST SBE70-0012 PRE SBE73-0061 | aa-ad | 1 |
| 242B | AS15734 | • • FERRULE - WELDING TUBE U1653 POST SBE73-0061 | aa-ah | 1 |
| 500 | 5A9356 | • TUBE - ASSY, OIL,-F.C.O.C.TO BEARING DISCONN. K0131 PRE SBE73-0061 | aa-ad | 1 |
| 500A | 6A5350 | • TUBE - A/O -OIL-DISCON TO BIF POST SBE73-0061 | ae-ah | 1 |
| 510 | 4W0002 | • NUT - .250 DIA Optional Part 4W0002 | aa-ah | 2 |
| 514 | 4W0163 | • BOLT - .250 DIA X .562 Optional Part 4W0163 | aa-ah | 2 |
| 528 | 400WSS12 | • CLIP 83930 PRE SBE73-0061 | aa-ad | 1 |
| 528A | AS62412 | • CLIP - 19.05 MM (0.750) U1653 POST SBE73-0061 | aa-ah | 1 |
| 552 | AS62412 | • CLIP - 19.05 MM (0.750) U1653 POST SBE79-0087 | ah | 1 |
| 557 | 4W0109 | • BOLT - .190 DIA X .875 POST SBE79-0087 | ah | 1 |
| 558 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ah | 1 |
| 560 | AS62412 | • CLIP - 19.05 MM (0.750) U1653 POST SBE79-0087 | ah | 1 |
| 562 | UP10479 | • SPACER - 10MM POST SBE79-0087 | ah | 1 |
| 564 | 4W0001 | • NUT - .190 DIA POST SBE79-0087 | ah | 1 |
| 602 | 5W1276 | • • ADAPTOR - UNION | aa-ah | 1 |
| 602A | AS15814 | • • ADAPTOR - STRAIGHT TUBE U1653 POST SBE73-0061 | ae-ah | 1 |
| 642 | 5W8032 | • • ADAPTOR - UNION FLANGED | aa-ah | 1 |
| 642A | 5W8024 | • • ADAPTOR - UNION FLANGED POST SBE73-0061 | ae-ah | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

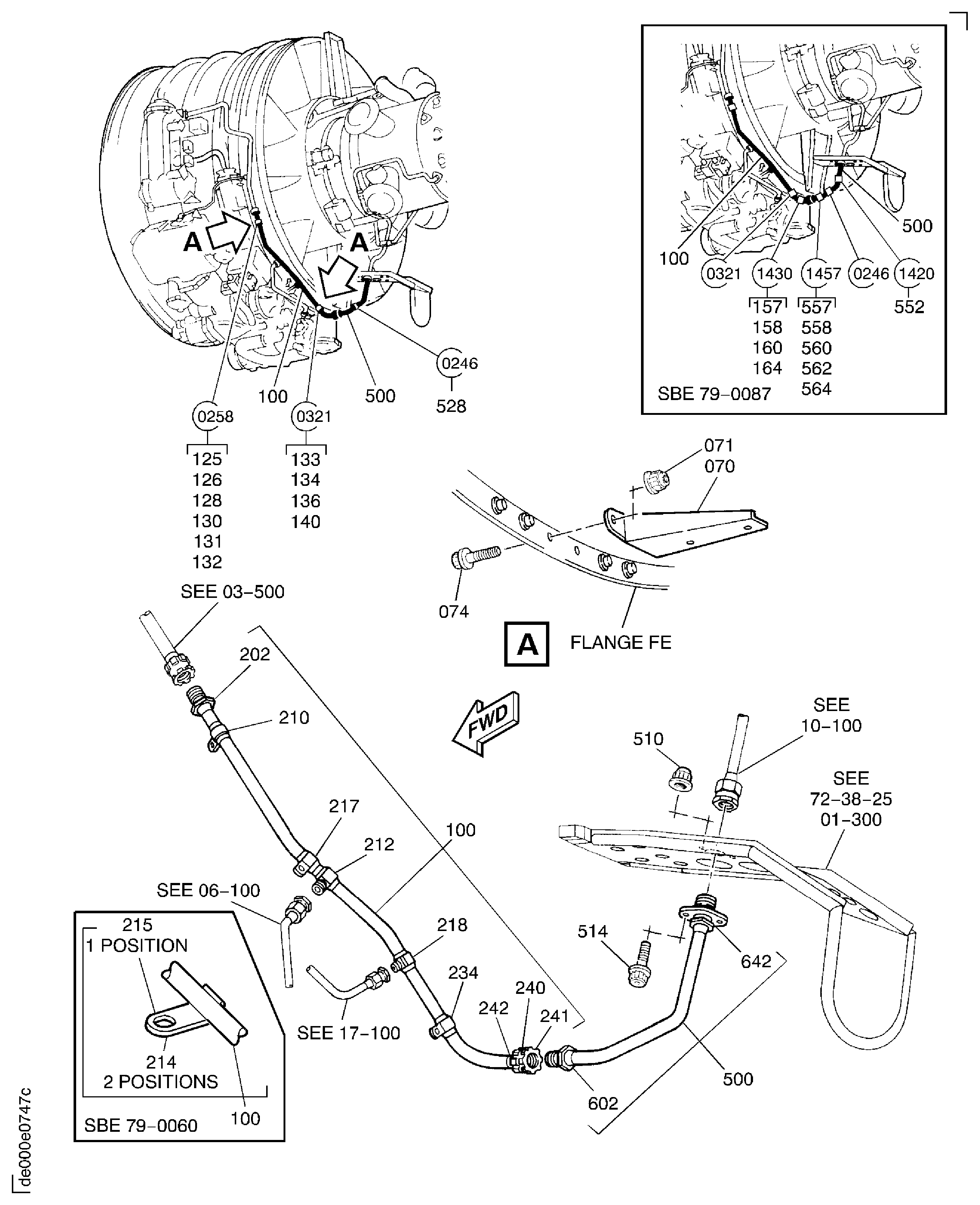

Figure: OIL-PRESSURE OIL TUBES-ENGINE
PRESSURE OIL TUBES ENGINE
