DMC:V2500-A1-79-21-49-06A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 06 | ||||
| B79214906 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE70-0012 | aa | ||
| SBE0012-01 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE70-0158 | ab | ||
| SBE0158-01 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE73-0061 | ac | ||
| SBE0061-01 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE70-0568 | ad | ||
| SBE0568-01 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE79-0070 | ae | ||
| SBE0070-01 | OIL-PRESSURE OIL TUBES-ENGINE | af | ||
| 070 | 5W8447 | • BRACKET PRE SBE70-0158 | aa-af | 1 |
| 070A | 6A4687 | • BRACKET POST SBE70-0158 PRE SBE70-0568 | aa-af | 1 |
| 070B | 6A4687 | • BRACKET ALT 5W8447 POST SBE70-0568 | aa-af | 1 |
| 070C | 5W8447 | • BRACKET ALT 6A4687 POST SBE70-0568 | ae-af | 1 |
| 071 | 4W0002 | • NUT - .250 DIA | aa-af | 2 |
| 074 | 4W0164 | • BOLT - .250 DIA X .625 | aa-af | 2 |
| 100 | 5A0246 | • TUBE - ASSY OIL FEED PRE SBE70-0012 | aa-ac | 1 |
| 100A | 5A8778 | • TUBE - ASSY OIL FEED POST SBE70-0012 PRE SBE73-0061 | aa-ac | 1 |
| 100B | 6A5348 | • TUBE - A/O -OIL-FEED TO GEARBOX POST SBE73-0061 | ad-af | 1 |
| 125 | 4W0102 | • BOLT - .190 DIA X .438 | aa-af | 1 |
| 126 | 5W1086 | • WASHER | aa-af | 1 |
| 128 | 400WSS8 | • CLIP 83930 PRE SBE73-0061 | aa-ac | 1 |
| 128A | AS62408 | • CLIP - 12.70 MM (0.500) U1653 POST SBE73-0061 | aa-af | 1 |
| 132 | 4W0043 | • NUT - .190 DIA | aa-af | 1 |
| 478 | MS16625-4056 | • RING - RETAINING 96906 | aa-af | 1 |
| 481 | 5W8449 | • RESTRCTR PRE SBE79-0070 | aa-ae | 1 |
| 481A | 6A5442 | • RESTRCTR POST SBE79-0070 | af | 1 |
| 500 | 5A0247 | • TUBE - ASSY OIL FEED PRE SBE70-0012 | aa-ac | 1 |
| 500A | 5A8779 | • TUBE - ASSY OIL FEED TO GEAR POST SBE70-0012 PRE SBE73-0061 | aa-ac | 1 |
| 500B | 6A5349 | • TUBE - A/O -OIL-DISCON TO 5 W POST SBE73-0061 | ad-af | 1 |
| 525 | 4W0102 | • BOLT - .190 DIA X .438 | aa-af | 1 |
| 526 | 5W1086 | • WASHER | aa-af | 1 |
| 528 | 400WSS8 | • CLIP 83930 PRE SBE73-0061 | aa-ac | 1 |
| 528A | AS62408 | • CLIP - 12.70 MM (0.500) U1653 POST SBE73-0061 | aa-af | 1 |
| 532 | 4W0043 | • NUT - .190 DIA | aa-af | 1 |
| 602 | 5A8175 | • • HOUSING - RESTRICTOR POST SBE73-0061 | ad-af | 1 |
| 640 | AS15781 | • • WIRE - THRUST U1653 POST SBE73-0061 | ad-af | 1 |
| 641 | AS15705 | • • NUT - TUBE COUPLING U1653 POST SBE73-0061 | ad-af | 1 |
| 642 | 5W8156 | • • FERRULE POST SBE70-0012 PRE SBE73-0061 | ab-ac | 1 |
| 642A | K17416 | • • FERRULE POST SBE73-0061 | ad-af | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

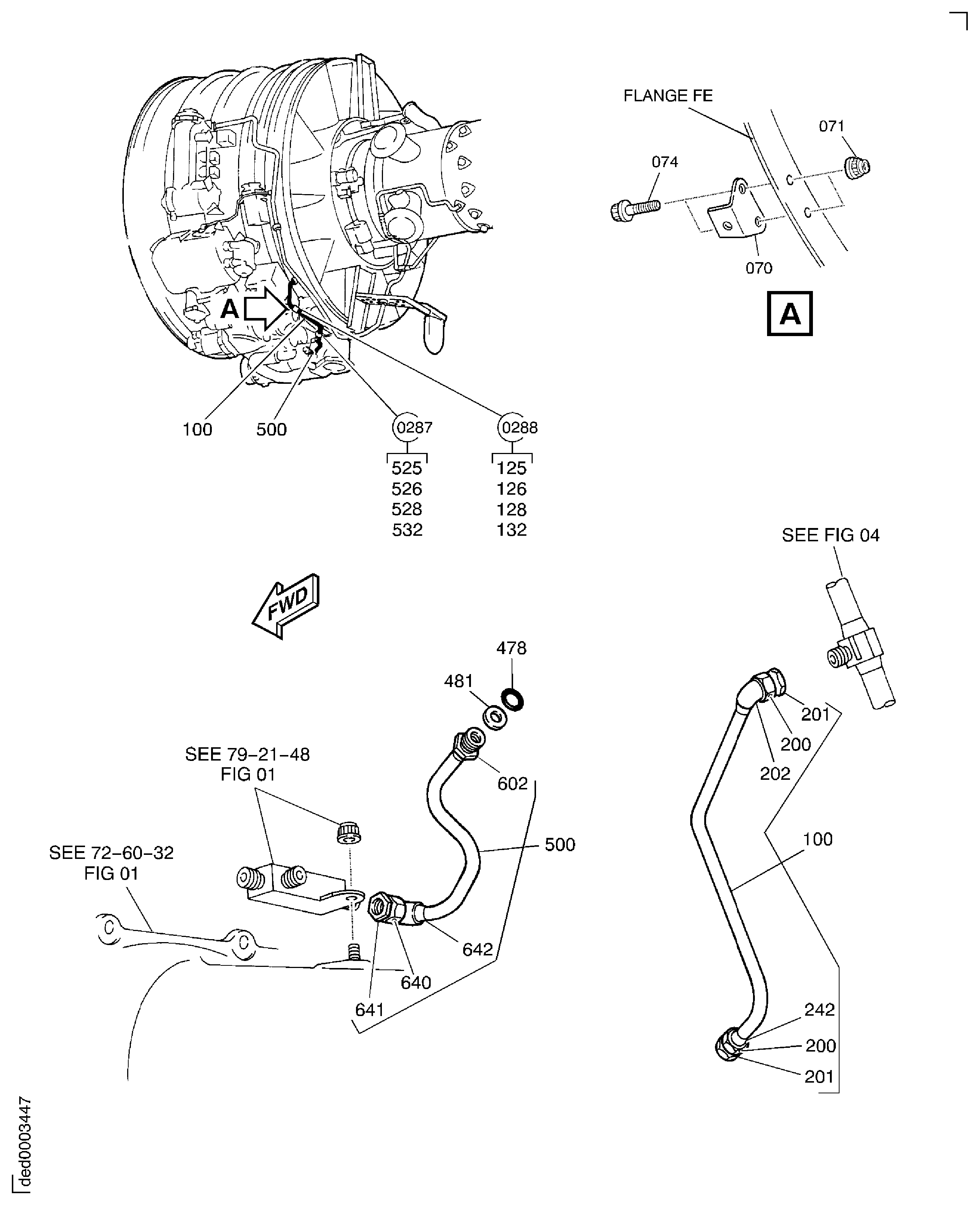

Figure: OIL-PRESSURE OIL TUBES-ENGINE
PRESSURE OIL TUBES ENGINE
