DMC:V2500-A1-79-21-49-14A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 14 | ||||
| B79214914 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE70-0047 | aa | ||
| SBE0047-01 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE73-0061 | ab | ||
| SBE0061-01 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE79-0070 | ac | ||
| SBE0070-01 | OIL-PRESSURE OIL TUBES-ENGINE | ad | ||
| 080 | 5T8065 | • FILTER - ASSY OF PRE SBE79-0070 | aa-ac | 1 |
| 080A | 6A5453 | • FILTER - ASSY OF POST SBE79-0070 | ad | 1 |
| 100 | 5R8223 | • TUBE - A/O NO.4 OIL FEED, .4375O/D X .028T | aa-ad | 1 |
| 141 | 4W0115 | • BOLT - .190 DIA X 1.250 | aa-ad | 1 |
| 142 | 5W1086 | • WASHER | aa-ad | 1 |
| 144 | 400WSS16 | • CLIP 83930 | aa-ad | 1 |
| 146 | 5W1032 | • SPACER - (20MM) | aa-ad | 1 |
| 148 | 4W0043 | • NUT - .190 DIA | aa-ad | 1 |
| 149 | 4W0102 | • BOLT - .190 DIA X .438 | aa-ad | 1 |
| 150 | 5W1086 | • WASHER | aa-ad | 1 |
| 152 | 400WSS7 | • CLIP 83930 | aa-ad | 1 |
| 156 | 4W0043 | • NUT - .190 DIA | aa-ad | 1 |
| 157 | 4W0102 | • BOLT - .190 DIA X .438 | aa-ad | 1 |
| 158 | 5W1086 | • WASHER | aa-ad | 1 |
| 160 | 400WSS7 | • CLIP 83930 PRE SBE73-0061 | aa-ab | 1 |
| 160A | AS62407 | • CLIP - 11.12 MM (0.438) U1653 POST SBE73-0061 | aa-ad | 1 |
| 164 | AS41104 | • NUT - .190 DIA U1653 PRE SBE70-0047 | aa-ad | 1 |
| 164A | 4W0043 | • NUT - .190 DIA POST SBE70-0047 | aa-ad | 1 |
| 202 | 5T8152 | • • HOUSING | aa-ad | 1 |
| 242 | 5T8149 | • • FITTING - ELBOW | aa-ad | 1 |
| -300 | AS43013-121 | • RING - SEALING TOROIDAL, 1.049 I/DIA X .103 U1653 (SEE 79-21-49-13-116) | aa-ad | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

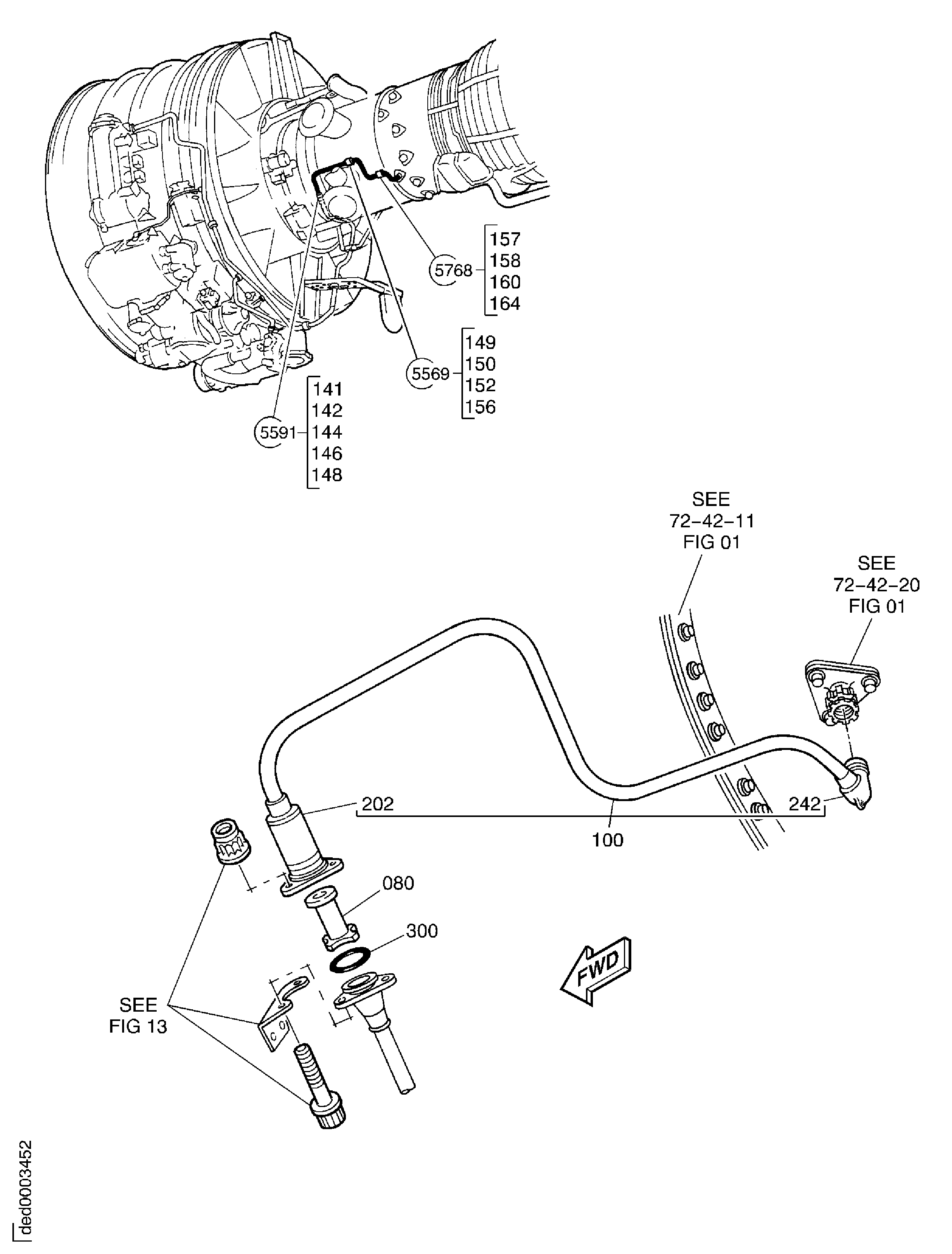

Figure: OIL-PRESSURE OIL TUBES-ENGINE
PRESSURE OIL TUBES ENGINE
