| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 16 | ||||
| B79214916 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE70-0001 | aa | ||
| SBE0001-01 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE79-0012 | ab | ||
| SBE0012-01 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE72-0053 | ac | ||
| SBE0053-01 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE72-0063 | ad | ||
| SBE0063-01 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE70-0857 | ae | ||
| SBE0857-01 | OIL-PRESSURE OIL TUBES-ENGINE | af | ||
| 070 | 5W1816 | • BRACKET - A/O PRE SBE70-0001 | aa | 1 |
| 070A | 5W8384 | • BRACKET - A/O POST SBE70-0001 | ab-af | 1 |
| 072 | 4W0103 | • BOLT - .190 DIA X .500 PRE SBE79-0012 | aa-ab | 2 |
| 072A | 4W1183 | • BOLT - .190 DIA X .500 POST SBE79-0012 | ac-af | 2 |
| 100 | 5R8225 | • TUBE - A/O NO.5 OIL FEED, .3125O/D X .028T PRE SBE72-0053 | aa-ac | 1 |
| 100A | 5R8142 | • TUBE POST SBE72-0053 PRE SBE72-0063 | ad | 1 |
| 100B | 6A5013 | • TUBE - NO.5 BRG OIL FEED IDEN POST SBE72-0063 | ae-af | 1 |
| 110 | 4W0002 | • NUT - .250 DIA PRE SBE72-0063 | aa-ad | 3 |
| 111 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE72-0063 | ae-af | 2 |
| 112 | 4W0107 | • BOLT - .190 DIA X .750 Optional Part 4W0107 POST SBE72-0063 | ae-af | 2 |
| 114 | 4W0168 | • BOLT - .250 DIA X .875 PRE SBE72-0063 | aa-ad | 3 |
| 115 | 1A8420 | • STRAINER - ELEMENT NO.5 BRG POST SBE72-0063 REF SBE72-0660 | ae-af | 1 |
| 116 | AS42704 | • GASKET U1653 PRE SBE72-0063 | aa-af | 1 |
| 116A | AS42704 | • GASKET U1653 POST SBE72-0063 | aa-af | 1 |
| 117 | AS3209-012 | • PACKING - PREFORMED U1653 POST SBE72-0063 PRE SBE70-0857 REF SBE72-0660 | ae-af | 1 |
| 117A | ST1946-012 | • PACKING - PREFORMED 77445 POST SBE70-0857 REF SBE72-0660 | ae-af | 1 |
| 117B | AS3209-012 | • PACKING - PREFORMED U1653 REF SBE72-0660 | aa-af | 1 |
| 125 | 4W0103 | • BOLT - .190 DIA X .500 PRE SBE72-0053 | aa-ac | 1 |
| 126 | 5W1086 | • WASHER PRE SBE72-0053 | aa-ac | 1 |
| 128 | 5W1110 | • CLIP PRE SBE72-0053 | aa-ac | 1 |
| 132 | 4W0001 | • NUT - .190 DIA PRE SBE72-0053 | aa-ac | 1 |
| 133 | 4W0131 | • BOLT - .190 DIA X 2.500 PRE SBE72-0053 | aa-ac | 1 |
| 134 | 5W1086 | • WASHER PRE SBE72-0053 | aa-ac | 2 |
| 136 | 5W1110 | • CLIP PRE SBE72-0053 | aa-ac | 1 |
| 138 | 5W1031 | • SPACER - (15MM) PRE SBE72-0053 | aa-ac | 3 |
| 140 | 4W0001 | • NUT - .190 DIA PRE SBE72-0053 | aa-ac | 1 |
| 141 | 4W0102 | • BOLT - .190 DIA X .438 | aa-af | 1 |
| 142 | 5W1086 | • WASHER | aa-af | 1 |
| 144 | 5W1110 | • CLIP | aa-af | 1 |
| 148 | 4W0043 | • NUT - .190 DIA | aa-af | 1 |
| 149 | 4W0102 | • BOLT - .190 DIA X .438 | aa-af | 1 |
| 150 | 5W1086 | • WASHER | aa-af | 1 |
| 152 | 5W1110 | • CLIP | aa-af | 1 |
| 156 | 4W0043 | • NUT - .190 DIA | aa-af | 1 |
| 157 | 4W0106 | • BOLT - .190 DIA X .688 PRE SBE72-0053 | aa-ac | 1 |
| 157A | 4W0102 | • BOLT - .190 DIA X .438 POST SBE72-0053 | ad-af | 1 |
| 158 | 5W1086 | • WASHER | aa-af | 1 |
| 160 | 5W1110 | • CLIP | aa-af | 1 |
| 162 | 5W1029 | • SPACER - SLEEVE, (5MM) PRE SBE72-0053 | aa-ac | 1 |
| 164 | 4W0043 | • NUT - .190 DIA | aa-af | 1 |
| 202 | AS15804 | • • ADAPTOR - STRAIGHT TUBE U1653 | aa-af | 1 |
| 212 | 5W1098 | • • SLEEVE - HALF PRE SBE72-0053 | aa-ac | 10 |
| 212A | 5W1098 | • • SLEEVE - HALF POST SBE72-0053 | ad-af | 6 |
| -214 | 5W1060 | • • LUG - BRAZED POST SBE72-0053 | ad-af | REF |
| 242 | 5T8151 | • • ADAPTOR - ELBOW PRE SBE72-0053 | aa-ac | 1 |
| 242A | 5T8151 | • • ADAPTOR - ELBOW ALT AS27607 POST SBE72-0053 PRE SBE72-0063 | ad | 1 |
| 242B | AS27607 | • • ADAPTOR - ELBOW TUBE U1653 ALT 6A4393 POST SBE72-0053 PRE SBE72-0053 | ad | 1 |
| -242C | 6A4393 | • • CONNECTR - PIPE END POST SBE72-0063 | ad | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

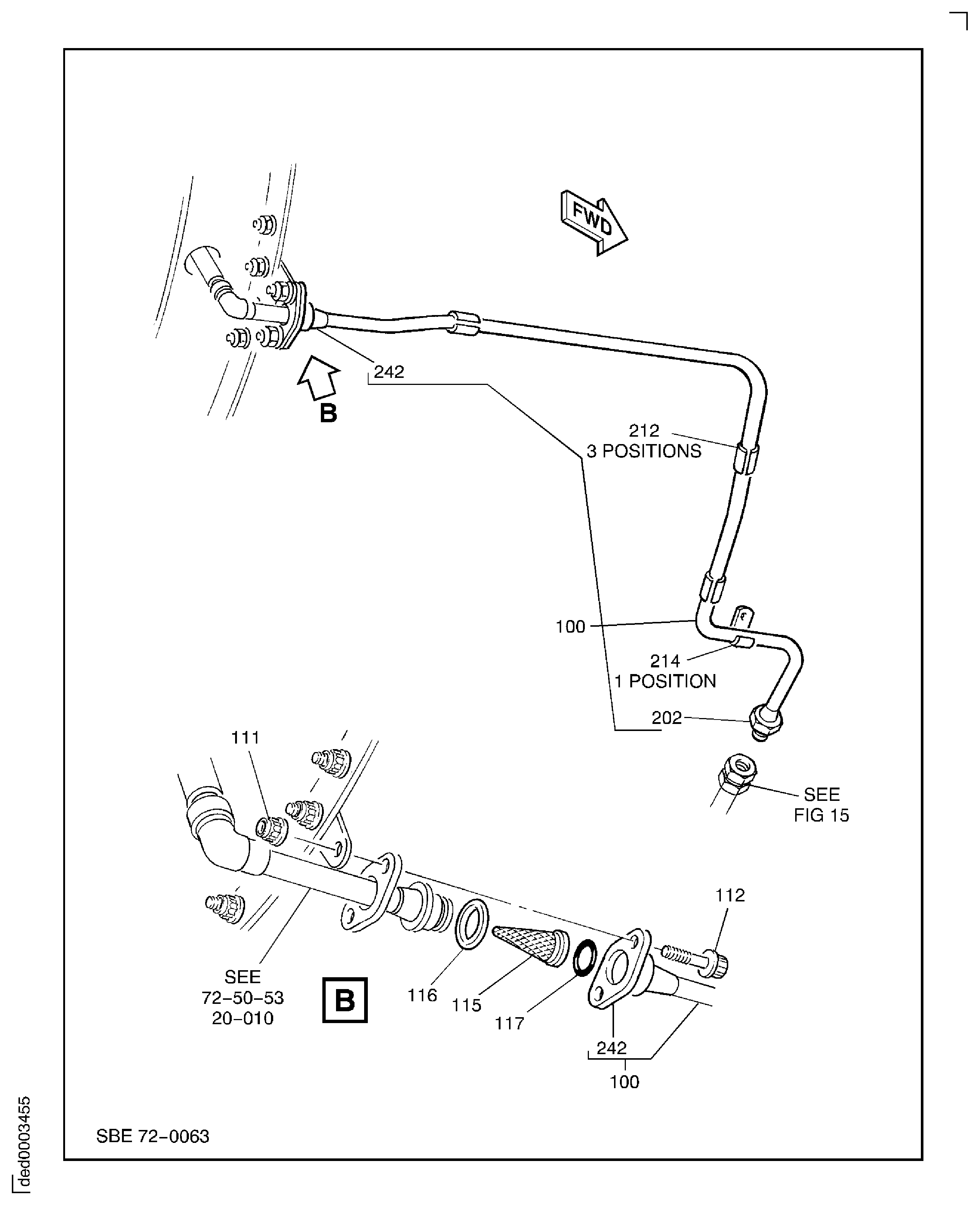

Figure: OIL-PRESSURE OIL TUBES-ENGINE
PRESSURE OIL TUBES ENGINE
PRESSURE OIL TUBES ENGINE
