OIL-SCAVENGE OIL TUBES-GEARBOX

DMC:V2500-A1-79-22-48-05A-941A-D|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
05
000B79224805OIL-SCAVENGE OIL TUBES-GEARBOX, PRE SBE70-0040aa
000SBE0040-01OIL-SCAVENGE OIL TUBES-GEARBOX, PRE SBE70-0054ab
000SBE0054-01OIL-SCAVENGE OIL TUBES-GEARBOX, PRE SBE79-0026ac
000SBE0026-01OIL-SCAVENGE OIL TUBES-GEARBOX, PRE SBE79-0064ad
000SBE0064-01OIL-SCAVENGE OIL TUBES-GEARBOXae
4704705W0090• BRACKET - ASSY
POST SBE70-0040		ab-ae1
5005004B7128• TUBE - A/O
PRE SBE70-0054		aa-ae1
500500A4B7252• TUBE - ,A/O
POST SBE70-0054
PRE SBE79-0026		aa-ae1
500500B4B2262• TUBE - A/O OIL
POST SBE79-0026
PRE SBE79-0064		aa-ae1
500500C4B0324• TUBE
A3460
POST SBE79-0064		aa-ae1
5105104W0165• BOLT - .250 DIA X .688
PRE SBE79-0064		aa-ad3
520520MS9321-10• WASHER
96906
PRE SBE79-0064		aa-ad3
530530AS3209-217• PACKING
U1653
PRE SBE79-0064		aa-ad1
530530A4P0125• PACKING
POST SBE79-0064		ae1
5405404W0165• BOLT - .250 DIA X .688aa-ae3
550550MS9321-10• WASHER
96906		aa-ae1
5555554P7327• COLLAR
A3460
POST SBE79-0064		ae1
560560AS3209-217• PACKING
U1653		aa-ae1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

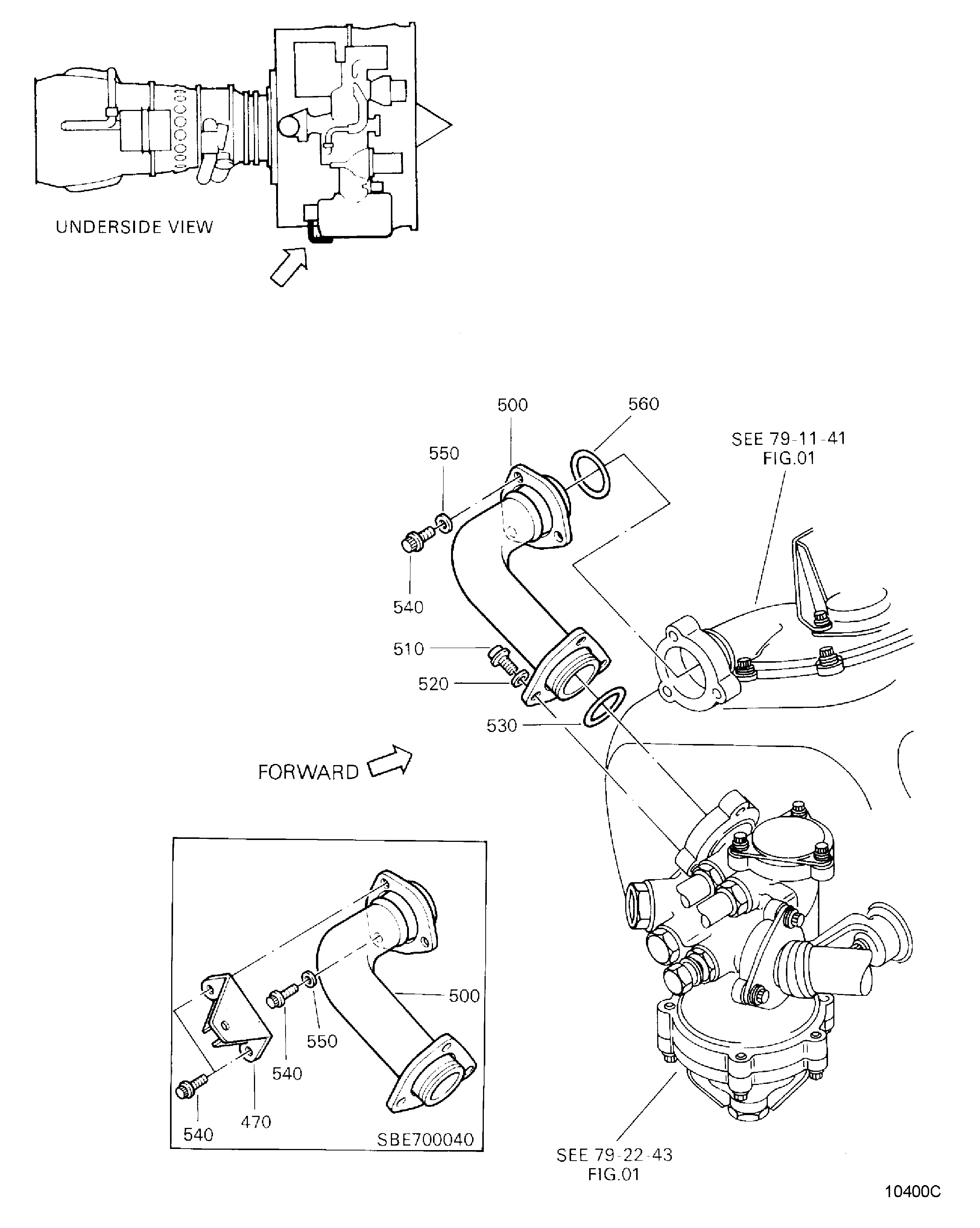

Figure: OIL-SCAVENGE OIL TUBES-GEARBOX

SCAVENGE OIL TUBES GEARBOX

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:A3460
Enterprise Name:DELETED, SEE CAGE CODE U0406
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:4B0324
Part Name:TUBE
Manufacturer Code:A3460
Part Number:4B2262
Part Name:TUBE - OIL, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7128
Part Name:TUBE - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7252
Part Name:TUBE - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4P0125
Part Name:PACKING
Manufacturer Code:0AM53
Part Number:4P7327
Part Name:COLLAR
Manufacturer Code:A3460
Part Number:4W0165
Part Name:BOLT, MACHINE DOUBLE HEX - .250 DIA X .688
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21511BOLT- MACHINE DOUBLE HEX, .250 DIA X .688U1653
Part Number:5W0090
Part Name:BRACKET - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:AS21511
Part Name:BOLT- MACHINE DOUBLE HEX, .250 DIA X .688
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9557-09BOLT, MACHINE DOUBLE HEX96906
Part Number:AS3209-217
Part Name:PACKING
Manufacturer Code:U1653
Part Number:MS9321-10
Part Name:WASHER - FLAT, 0.500 X 0.276 X 0.062
Manufacturer Code:96906
Part Number:MS9557-09
Part Name:BOLT, MACHINE DOUBLE HEX
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
AS21511BOLT- MACHINE DOUBLE HEX, .250 DIA X .688U1653
