DMC:V2500-A1-79-22-49-02A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B79224902 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE73-0019 | aa | ||
| SBE0019-01 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE73-0061 | ab | ||
| SBE0061-01 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE79-0056 | ac | ||
| SBE0056-01 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE79-0087 | ad | ||
| SBE0087-01 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE79-0089 | ae | ||
| SBE0089-01 | OIL-SCAVENGE OIL TUBES-ENGINE | af | ||
| 100 | 5A9085 | • TUBE - A/O PRE SBE79-0087 | aa-ad | 1 |
| 100A | 6A6208 | • TUBE - A/O OIL-NO.5BRG BIF PANEL TO SCAV DISCON POST SBE79-0087 | ae-af | 1 |
| 102 | 4W0002 | • NUT - .250 DIA Optional Part 4W0002 | aa-af | 2 |
| 106 | 4W0163 | • BOLT - .250 DIA X .562 Optional Part 4W0163 | aa-af | 2 |
| 125 | 4W0104 | • BOLT - .190 DIA X .562 PRE SBE79-0087 | aa-ad | 1 |
| 126 | 5W1086 | • WASHER PRE SBE79-0087 | aa-ad | 2 |
| 128 | 400WSS12 | • CLIP 83930 PRE SBE73-0061 | aa-ab | 1 |
| 128A | AS62412 | • CLIP - 19.05 MM (0.750) U1653 POST SBE73-0061 PRE SBE79-0087 | aa-ad | 1 |
| 132 | 4W0001 | • NUT - .190 DIA PRE SBE79-0087 | aa-ad | 1 |
| 133 | 4W0106 | • BOLT - .190 DIA X .688 PRE SBE79-0087 | aa-ad | 1 |
| 134 | 5W1086 | • WASHER PRE SBE79-0087 | aa-ad | 1 |
| 136 | 400WSS12 | • CLIP 83930 PRE SBE79-0087 | aa-ad | 1 |
| 138 | 5W1029 | • SPACER - (5MM) PRE SBE79-0087 | aa-ad | 1 |
| 140 | 4W0001 | • NUT - .190 DIA PRE SBE79-0087 | aa-ad | 1 |
| 141 | 4W0104 | • BOLT - .190 DIA X .562 Optional Part 4W0104 POST SBE73-0019 PRE SBE79-0087 | ab-ad | 1 |
| 142 | 5W1086 | • WASHER POST SBE73-0019 PRE SBE79-0087 | ab-ad | 2 |
| 144 | 400WSS12 | • CLIP - LOOP TYPE 83930 POST SBE73-0019 PRE SBE79-0087 | ab-ad | 1 |
| 148 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE73-0019 PRE SBE79-0087 | ab-ad | 1 |
| 149 | 4W0107 | • BOLT - .190 DIA X .750 POST SBE79-0087 | ae-af | 1 |
| 150 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ae-af | 1 |
| 152 | AS62412 | • CLIP - 19.05 MM (0.750) U1653 POST SBE79-0087 | ae-af | 1 |
| 154 | UP10478 | • SPACER - 5MM POST SBE79-0087 | ae-af | 1 |
| 156 | 4W0001 | • NUT - .190 DIA POST SBE79-0087 | ae-af | 1 |
| 202 | 5A8024 | • • ADAPTOR - UNION FLANGED | aa-af | 1 |
| 214 | UP11157 | • • BRACKET - INTER TUBE SUPPORT POST SBE79-0087 | ae-af | 6 |
| 240 | AS15783 | • • WIRE - THRUST U1653 | aa-af | 1 |
| 241 | AS15707 | • • NUT - TUBE COUPLING U1653 | aa-af | 1 |
| 242 | AS15734 | • • FERRULE - WELDING TUBE U1653 | aa-af | 1 |
| 500 | 5A9086 | • TUBE - A/O PRE SBE79-0056 | aa-ac | 1 |
| 500A | 6A6168 | • TUBE - A/O POST SBE79-0056 | ad-af | 1 |
| 514 | 4W0165 | • BOLT - .250 DIA X .688 | aa-af | 3 |
| 516 | MS9966-10 | • PACKING 96906 PRE SBE79-0089 | aa-af | 1 |
| 516A | AS43003-910 | • RING U1653 POST SBE79-0089 | aa-af | 1 |
| 525 | 4W0106 | • BOLT - .190 DIA X .688 PRE SBE79-0056 | aa-ac | 1 |
| 525A | 4W0102 | • BOLT - .190 DIA X .438 POST SBE79-0056 | ad-af | 1 |
| 526 | 5W1086 | • WASHER PRE SBE79-0056 | aa-ac | 1 |
| 528 | 400WSS12 | • CLIP 83930 PRE SBE79-0056 | aa-ac | 1 |
| 528A | AS62412 | • CLIP - 19.05 MM (0.750) U1653 POST SBE79-0056 | ad-af | 1 |
| 530 | 5W1029 | • SPACER - (5MM) PRE SBE79-0056 | aa-ac | 1 |
| 532 | 4W0043 | • NUT - .190 DIA PRE SBE79-0056 | aa-ac | 1 |
| 532A | 4W0001 | • NUT - .190 DIA POST SBE79-0056 | ad-af | 1 |
| 533 | 4W0115 | • BOLT - .190 DIA X 1.250 Optional Part 4W0115 POST SBE79-0056 | ad-af | 1 |
| 536 | AS62412 | • CLIP - 19.05 MM (0.750) U1653 POST SBE79-0056 | ad-af | 1 |
| 538 | UP10481 | • SPACER - 20MM POST SBE79-0056 | ad-af | 1 |
| 540 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE79-0056 | ad-af | 1 |
| 602 | AS15814 | • • ADAPTOR - STRAIGHT TUBE U1653 | aa-af | 1 |
| 618 | 5A8669 | • • HOUSING - CHIP DETECTOR | aa-af | 1 |
| 641 | 5W1695 | • • COLLAR - RETAINING PRE SBE79-0056 | aa-ac | 1 |
| 641A | 6A6442 | • • COLLAR POST SBE79-0056 | ad-af | 1 |
| 642 | 5W1005 | • • CONNECTR - SWIVEL | aa-af | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

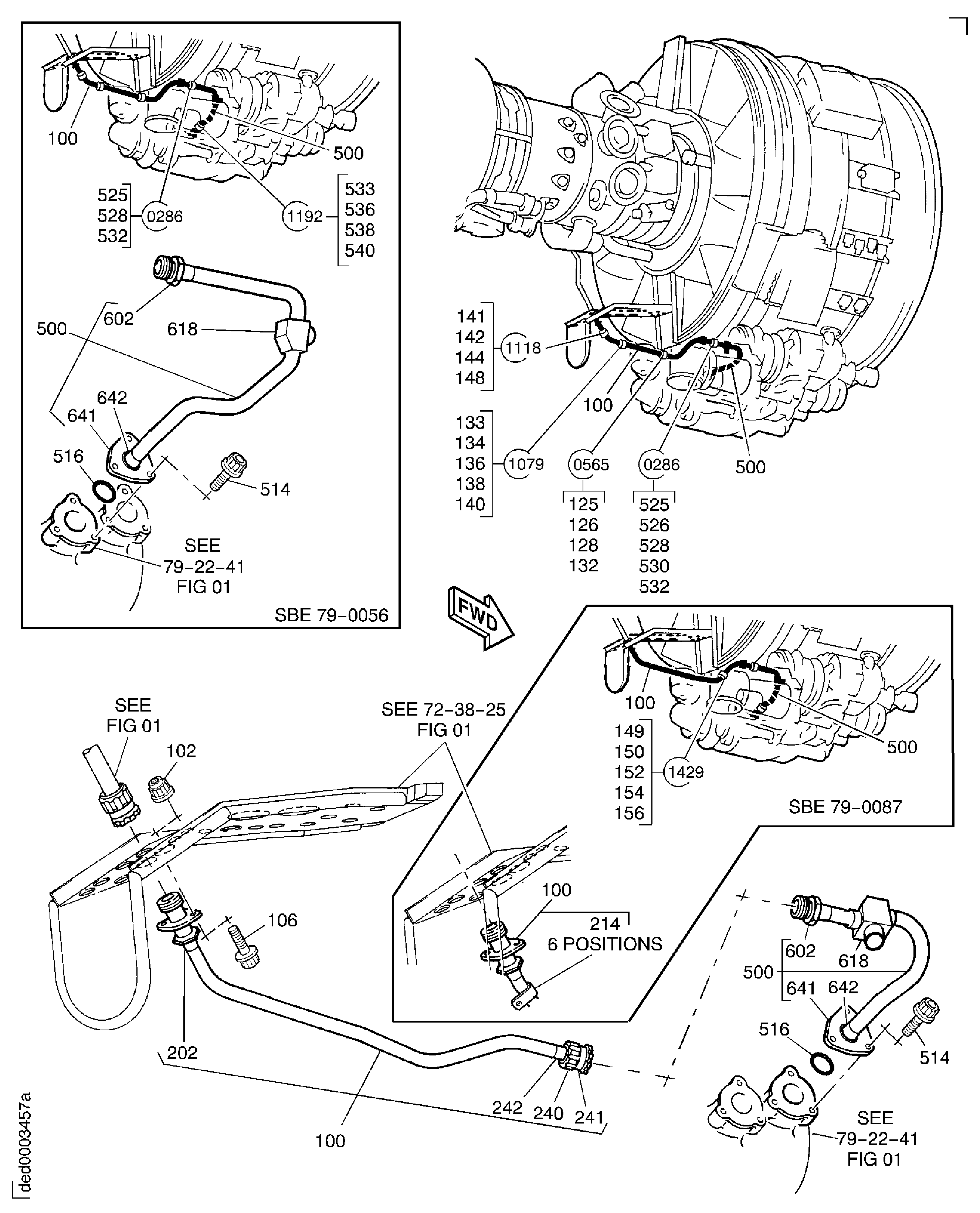

Figure: OIL-SCAVENGE OIL TUBES-ENGINE
SCAVENGE OIL TUBES-ENGINE
