DMC:V2500-A1-79-22-49-07A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 07 | ||||
| B79224907 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE70-0442 | aa | ||
| SBE0442-01 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE79-0089 | ab | ||
| SBE0089-01 | OIL-SCAVENGE OIL TUBES-ENGINE | ac | ||
| 080 | 5A9133 | • FILTER | aa-ac | 1 |
| 096 | AS43013-123 | • RING - SEALING TOROIDAL U1653 | aa-ac | 1 |
| 098 | AS43013-153 | • RING - SEALING TOROIDAL U1653 | aa-ac | 2 |
| 100 | 5A8751 | • TUBE - ASSY OIL SCAVENGE PRE SBE70-0442 | aa-ac | 1 |
| 100A | 6A5896 | • TUBE - ASSY OF OIL SCAVENGE POST SBE70-0442 | aa-ac | 1 |
| 202 | 5A9031 | • • ADAPTOR | aa-ac | 1 |
| 218 | 5A9370 | • • CONNECTR | aa-ac | 1 |
| 242 | 5A9030 | • • HOUSING - A/O FILTER OIL SCAV PRE SBE70-0442 | aa-ac | 1 |
| 242A | 6A5897 | • • HOUSING POST SBE70-0442 | aa-ac | 1 |
| 245 | AS27858 | • • NUT - SELF LOCKING SHANK, .250 DIA U1653 | aa-ac | 4 |
| 500 | 5A8750 | • TUBE - ASSY OIL SCAV.1,2,3 | aa-ac | 1 |
| 506 | 4W0173 | • BOLT - .250 DIA X 1.188 | aa-ac | 4 |
| 514 | 4W0165 | • BOLT - .250 DIA X .688 | aa-ac | 3 |
| 516 | MS9967-218 | • RING 96906 PRE SBE79-0089 | aa-ac | 1 |
| 516A | AS43013-218 | • RING - 31.34 MM I/DIA X 3,53 U1653 POST SBE79-0089 | aa-ac | 1 |
| 602 | 5A9132 | • • HOUSING - FILTER OIL SCAVENGE | aa-ac | 1 |
| 618 | 5A9372 | • • HOUSING | aa-ac | 1 |
| 642 | 5A9135 | • • ADAPTOR | aa-ac | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

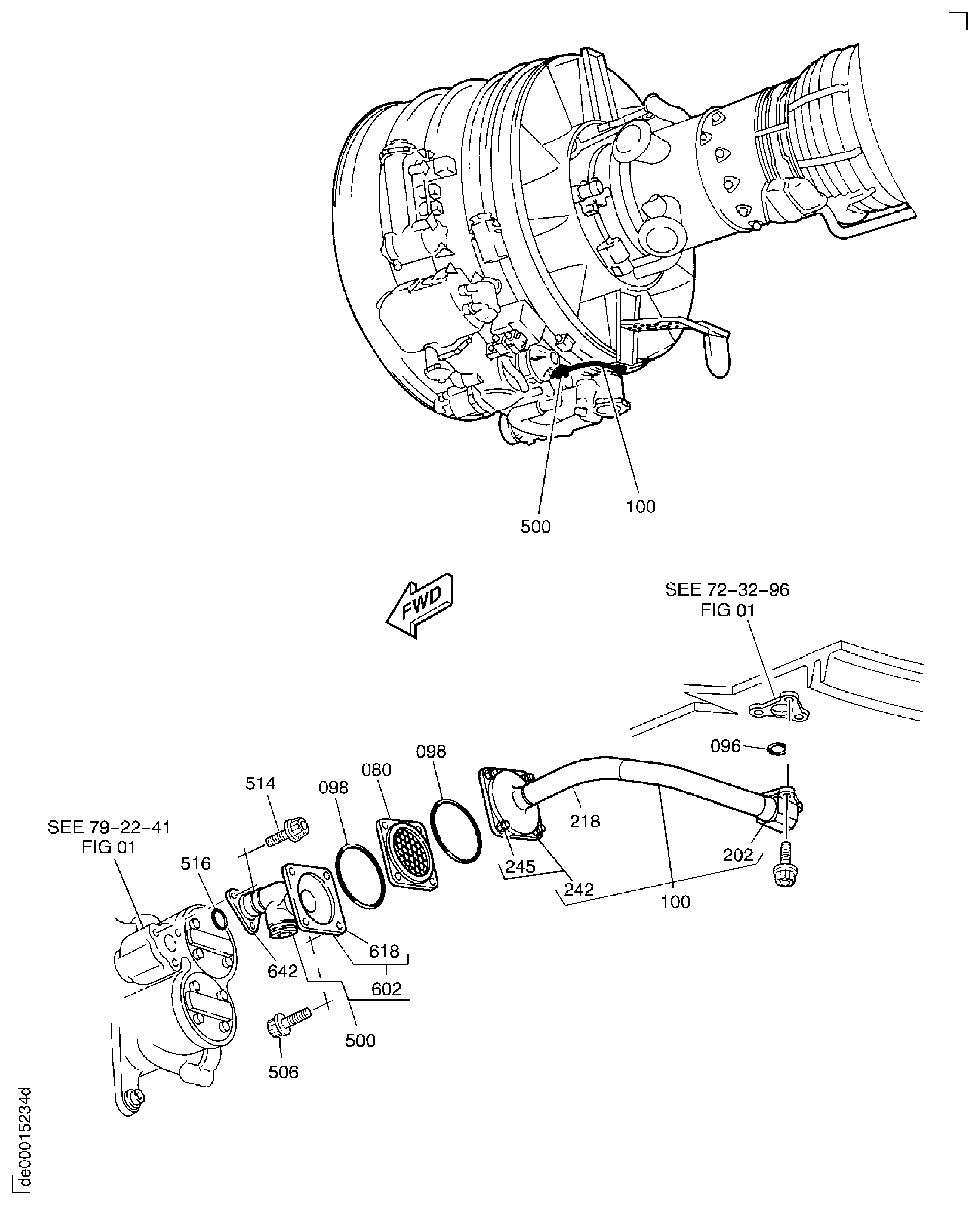

Figure: OIL-SCAVENGE OIL TUBES-ENGINE
SCAVENGE OIL TUBES ENGINE
