OIL-SCAVENGE OIL TUBES-ENGINE

DMC:V2500-A1-79-22-49-14A-941A-D|Issue No:001|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
14
000	B79224914	OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBN70-0143	aa
000	SBN0143-01	OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE75-0010	ab
000	SBE0010-01	OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE70-0962	ac
000	SBE0962-01	OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE70-0302	ad
000	SBE0302-01	OIL-SCAVENGE OIL TUBES-ENGINE	ae
-005005	740-5019-503	ARRGT - OIL SYSTEM INDIC 51563	aa-ae	REF
-005005A	740-5019-515	ARRGT - OIL SYSTEM INDICATING 51563	aa-ae	REF
-005005B	740-5019-517	ARRGT - OIL SYSTEM INDICATING 51563 PRE SBN70-0143	aa	REF
-005005C	740-5019-519	ARRGT - OIL SYSTEM INDICATING 51563 POST SBN70-0143	ab-ae	REF
-005005D	740-5019-521	ARRGT - OIL SYSTEM INDICATING 51563 POST SBE75-0010 PRE SBE70-0962	ac	REF
-005005E	740-5019-529	ARRNGMNT 51563 POST SBE70-0962	ad-ae	REF
100100	740-5751-507	• TUBE - ASSY OIL SCAVENGE 51563	aa-ae	1
100100A	740-5751-507	• TUBE - ASSY OIL SCAVENGE 51563 PRE SBN70-0143	aa-ae	1
100100B	740-5751-509	• TUBE - ASSY OIL PRESSURE 51563 POST SBN70-0143	aa-ae	1

110110	MS21902-04S	• UNION 96906	aa-ae	1
114114	AS43003-904	• RING - 8.92 MM X 1.83 MM U1653	aa-ae	1
125125	4W0104	• BOLT - .190 DIA X .562	aa-ae	1
126126	SP154D	• WASHER - .190 DIA K7766	aa-ae	2
128128	400WSS4	• CLIP 83930	aa-ae	1
132132	4W0001	• NUT - .190 DIA	aa-ae	1
136136	400WSS4	• CLIP 83930	aa-ae	1
141141	4W0103	• BOLT - .190 DIA X .500	aa-ae	1
142142	SP154D	• WASHER - .190 DIA K7766	aa-ae	1
144144	400WSS4	• CLIP 83930	aa-ae	1
152152	400WSS4	• CLIP 83930	aa-ae	1

500500	740-5747-505	• TUBE - ASSY OIL SCAVENGE 51563	aa-ae	1
500500A	740-5747-505	• TUBE - ASSY OIL SCAVENGE 51563 PRE SBN70-0143	aa-ae	1
500500B	740-5747-507	• TUBE - ASSY OIL PRESSURE 51563 POST SBN70-0143	aa-ae	1

510510	MS21902-04S	• UNION 96906	aa-ae	1
514514	AS43003-904	• RING - 8.92 MM X 1.83 MM U1653	aa-ae	1
528528	400WSS4	• CLIP 83930	aa-ae	1
536536	400WSS4	• CLIP 83930	aa-ae	1
544544	400WSS4	• CLIP 83930	aa-ae	1

880880	740-5615-503	• ANGLE - ATTACHMENT 51563	aa-ae	1

881881	NAS1291C4M	• NUT 80205	aa-ae	2
-881881A	H42-4	• NUT - .250 DIA 15653 ALT NAS1291C4M	aa-ae	REF
882882	SP155E	• WASHER K7766	aa-ae	2
883883	740-5923-501	• PACKING 51563	aa-ae	1
884884	NAS7204U6	• BOLT 80205	aa-ae	2

900900	740-5611-503	• RAFT 51563	aa-ae	1

901901	NAS1291C4M	• NUT 80205	aa-ae	1
903903	4W0164	• BOLT - .250 DIA X .625 PRE SBE70-0302	aa-ae	1
903903A	4W0167	• BOLT - .250 DIA X .812 POST SBE70-0302	aa-ae	1
904904	4W0162	• BOLT - .250 DIA X .500	aa-ae	2

- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	15653
Enterprise Name:	ALCOA FASTENING SYSTEMS
BU Name:	ALCOA FASTENING SYSTEMS
Department:	FULLERTON OPERATIONS PLANT 1
Street:	800 S.STATE COLLEGE BOULEVARD
City:	FULLERTON
State:	CA
Zip Code:	92831
Country:	USA
Phone Number:	1-714-871-1550
Fax Number:	1-714-680-0175
Internet:	www.alcoa.com

Manufacturer Code:	51563
Enterprise Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
Street:	850 LAGOON DRIVE
City:	CHULA VISTA
State:	CA
Zip Code:	91910-2098
Country:	USA
Phone Number:	1-619-691-2089
Fax Number:	1-619-691-6195

Manufacturer Code:	80205
Enterprise Name:	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
BU Name:	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	83930
Enterprise Name:	TRANSDIGM INC
BU Name:	TRANSDIGM INC
Department:	ADEL FASTENERS
Building:	SANDWELL INDUSTRIAL ESTATE
Street:	5000 TRIGGS STREET
City:	LOS ANGELES
State:	WEST MIDLANDS
Zip Code:	B66 1QJ
Country:	USA

OIL-SCAVENGE OIL TUBES-ENGINE

Export Control

Copyright

Applicability

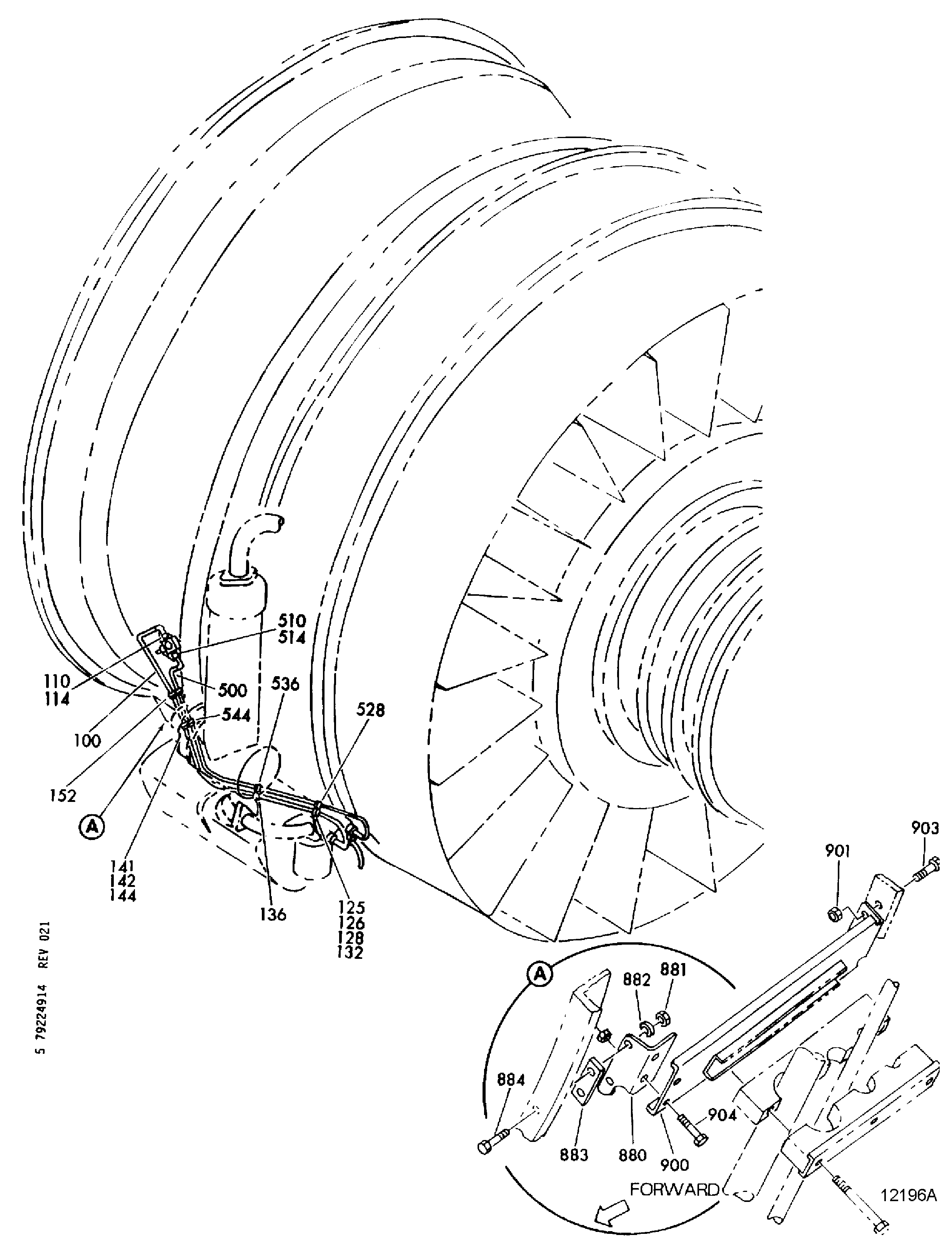

Figure: OIL-SCAVENGE OIL TUBES-ENGINE

SCAVENGE OIL TUBES ENGINE

Manufacturer Code:	96906
Enterprise Name:	MILITARY STANDARDS MANUAL 4120 3-M
BU Name:	MILITARY STANDARDS MANUAL 4120 3-M
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	K7766
Enterprise Name:	K7766
BU Name:	British Standards Institution
Street:	2 Park Street
City:	London
Zip Code:	AW1A 2BS
Country:	England

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Part Number:	4W0162
Part Name:	BOLT, MACHINE DOUBLE HEX - .250 DIA X .500
Manufacturer Code:	0AM53

Part Number:	AS20624
Part Name:	NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:	U1653
