FIRE PROTECTION-CORE ZONE FIRE DETECTOR

DMC:V2500-A5-26-12-17-01A-941A-D|Issue No:003.00|Issue Date:2021-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
000B26121701FIRE PROTECTION - CORE ZONE FIRE DETECTOR, PRE SBN26-0013aa
000SBN0013-01FIRE PROTECTION - CORE ZONE FIRE DETECTOR, PRE SBN71-0273ab
000SBN0273-01FIRE PROTECTION - CORE ZONE FIRE DETECTOR, PRE SBN71-0295ac
000SBN0295-01FIRE PROTECTION - CORE ZONE FIRE DETECTOR, PRE SBN70-0589ad
000SBN0589-01FIRE PROTECTION - CORE ZONE FIRE DETECTORae
1001007827-02• DETECTOR - FIRE, ASSEMBLY OF
25693
PRE SBN71-0295
PRE SBN70-0589		aa-ac1
100100A473873-2• DETECTOR, FIRE (CORE)
61423
POST SBN70-0589		ae1
100100B7827-03• DETECTOR - FIRE, ASSEMBLY OF
25693
POST SBN71-0295		ad-ae1
125125AS21408• BOLT - .190 DIA X .500
U1653		aa-ae1
125125AAS21408• BOLT - .190 DIA X .500
U1653
ALT MS9556-06		aa-ae1
-125125BMS9556-06• BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500
96906
ALT AS21408		aa-aeREF
126126C10GT3-08• CLAMP - ASSEMBLY OF
83930
POST SBN26-0013		ab-ae1
127127471-8• CLIP
26940
PRE SBN26-0013		aa1
128128BACC10GT2-08• CLAMP
81205
PRE SBN26-0013		aa1
129129SP155D• WASHER - FLAT
K7766		aa-ae1
131131AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa-ae1
132132AS21408• BOLT - .190 DIA X .500
U1653		aa-ae1
132132AAS21408• BOLT - .190 DIA X .500
U1653
ALT MS9556-06		aa-ae1
-132132BMS9556-06• BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500
96906
ALT AS21408		aa-aeREF
133133471-8• CLIP
26940
PRE SBN26-0013		aa1
134134BACC10GT2-08• CLAMP
81205
PRE SBN26-0013		aa1
135135SP155D• WASHER - FLAT
K7766		aa-ae1
137137AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa-ae1
138138C10GT3-08• CLAMP - ASSEMBLY OF
83930
POST SBN26-0013		ab-ae1
140140AS21408• BOLT - .190 DIA X .500
U1653		aa-ae1
140140AAS21408• BOLT - .190 DIA X .500
U1653
ALT MS9556-06		aa-ae1
-140140BMS9556-06• BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500
96906
ALT AS21408		aa-aeREF
141141471-8• CLIP
26940
PRE SBN26-0013		aa1
142142BACC10GT2-08• CLAMP
81205
PRE SBN26-0013		aa1
143143SP155D• WASHER - FLAT
K7766		aa-ae1
145145AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa-ae1
146146C10GT3-08• CLAMP - ASSEMBLY OF
83930
POST SBN26-0013		ab-ae1
148148AS21408• BOLT - .190 DIA X .500
U1653		aa-ae1
148148AAS21408• BOLT - .190 DIA X .500
U1653
ALT MS9556-06		aa-ae1
-148148BMS9556-06• BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500
96906
ALT AS21408		aa-aeREF
149149471-8• CLIP
26940
PRE SBN26-0013		aa1
150150BACC10GT2-08• CLAMP
81205
PRE SBN26-0013		aa1
151151SP155D• WASHER - FLAT
K7766		aa-ae1
153153AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa-ae1
154154C10GT3-08• CLAMP - ASSEMBLY OF
83930
POST SBN26-0013		ab-ae1
156156AS21420• BOLT - 0.19 DIA X 1.250
U1653
PRE SBN26-0004		*****1
157157ST1698D50• SPACER
K4585
PRE SBN26-0004		*****1
158158C10GT3-08• CLAMP - ASSEMBLY OF
83930
POST SBN26-0013		ab-ae1
159159471-8• CLIP
26940
PRE SBN26-0013		aa1
160160BACC10GT2-08• CLAMP
81205
PRE SBN26-0013		aa1
161161SP155D• WASHER - FLAT
K7766
PRE SBN26-0004		*****1
163163AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653
PRE SBN26-0004		*****1
170170C10GT3-08• CLAMP - ASSEMBLY OF
83930
POST SBN26-0013		ab-ae1
190190740-5287-501• BRACKET
51563
PRE SBN71-0273		aa-ab1
192192AS21418• BOLT - MACHINE, DOUBLE HEXAGON - 0.190 DIA X 1.125
U1653
PRE SBN71-0273		aa-ab1
194194SP155D• WASHER - FLAT
K7766
PRE SBN71-0273		aa-ab1
1961964W0001• NUT, OPTION - .190 DIA
Optional Part
AS20624
PRE SBN71-0273		aa-ab1
198198AS21428• BOLT - 0.190 DIA X 1.750
U1653
PRE SBN71-0273		aa-ab1
200200ST1698D50• SPACER
77445
PRE SBN71-0273		aa-ab1
202202ST1698D48• SPACER (10MM)
K4585
PRE SBN71-0273		aa-ab1
204204TA025074-03• CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
84971
ALT AS61933
PRE SBN71-0273		aa-ab1
-204204AAS61933• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-03
PRE SBN71-0273		aa-abREF
206206SP155D• WASHER - FLAT
K7766
PRE SBN71-0273		aa-ab1
2082084W0001• NUT, OPTION - .190 DIA
Optional Part
AS20624
PRE SBN71-0273		aa-ab1
210210AS21418• BOLT - MACHINE, DOUBLE HEXAGON - 0.190 DIA X 1.125
U1653
PRE SBN71-0273		aa-ab1
212212SP155D• WASHER - FLAT
K7766
PRE SBN71-0273		aa-ab1
2142144W0001• NUT, OPTION - .190 DIA
Optional Part
AS20624
PRE SBN71-0273		aa-ab1
2162164W0106• BOLT - .190 DIA X .688
PRE SBN71-0273		aa-ab1
217217ST1698D47• SPACER (5MM)
K4585
PRE SBN71-0273		aa-ab1
218218SP155D• WASHER - FLAT
K7766
PRE SBN71-0273		aa-ab1
2202204W0001• NUT, OPTION - .190 DIA
Optional Part
AS20624
PRE SBN71-0273		aa-ab1
230230AS21408• BOLT - .190 DIA X .500
U1653
POST SBN71-0273		ac-ae1
230230AAS21408• BOLT - .190 DIA X .500
U1653
ALT MS9556-06		aa-ae1
-230230BMS9556-06• BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500
96906
ALT AS21408		aa-aeREF
231231SP155D• WASHER - FLAT
K7766
POST SBN71-0273		ac-ae1
233233C10GT3-08• CLAMP - ASSEMBLY OF
83930
POST SBN71-0273		ac-ae1
2372374W0001• NUT, OPTION - .190 DIA
Optional Part
AS20624
POST SBN71-0273		ac-ae1
240240AS48022• BOLT - DOUBLE HEXAGON, 0.190-32 UNJF-3A
U1653
POST SBN71-0273
PRE SBN71-0295		ac1
240240AAS21420• BOLT - 0.19 DIA X 1.250
U1653
POST SBN71-0295		ad-ae1
241241SP155D• WASHER - FLAT
K7766
POST SBN71-0273		ac-ae1
246246AN960C10• WASHER - FLAT
88044
POST SBN71-0273
PRE SBN71-0295		ac2
2472474W0001• NUT, OPTION - .190 DIA
Optional Part
AS20624
POST SBN71-0273		ac-ae1
250250AS48022• BOLT - DOUBLE HEXAGON, 0.190-32 UNJF-3A
U1653
POST SBN71-0273
PRE SBN71-0295		ac1
250250AAS21420• BOLT - 0.19 DIA X 1.250
U1653
POST SBN71-0295		ad-ae1
251251SP155D• WASHER - FLAT
K7766
POST SBN71-0273		ac-ae1
256256AN960C10• WASHER - FLAT
88044
POST SBN71-0273
PRE SBN71-0295		ac2
2572574W0001• NUT, OPTION - .190 DIA
Optional Part
AS20624
POST SBN71-0273		ac-ae1
900900740-5035-501• BRACKET
51563		aa-ae3
902902AS21408• BOLT - .190 DIA X .500
U1653		aa-ae6
902902AAS21408• BOLT - .190 DIA X .500
U1653
ALT MS9556-06		aa-ae6
-902902BMS9556-06• BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500
96906
ALT AS21408		aa-aeREF
904904SP155D• WASHER - FLAT
K7766		aa-ae6
905905AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa-ae6
-910910740-5286-501• BRACKET
51563		aa-aeREF
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

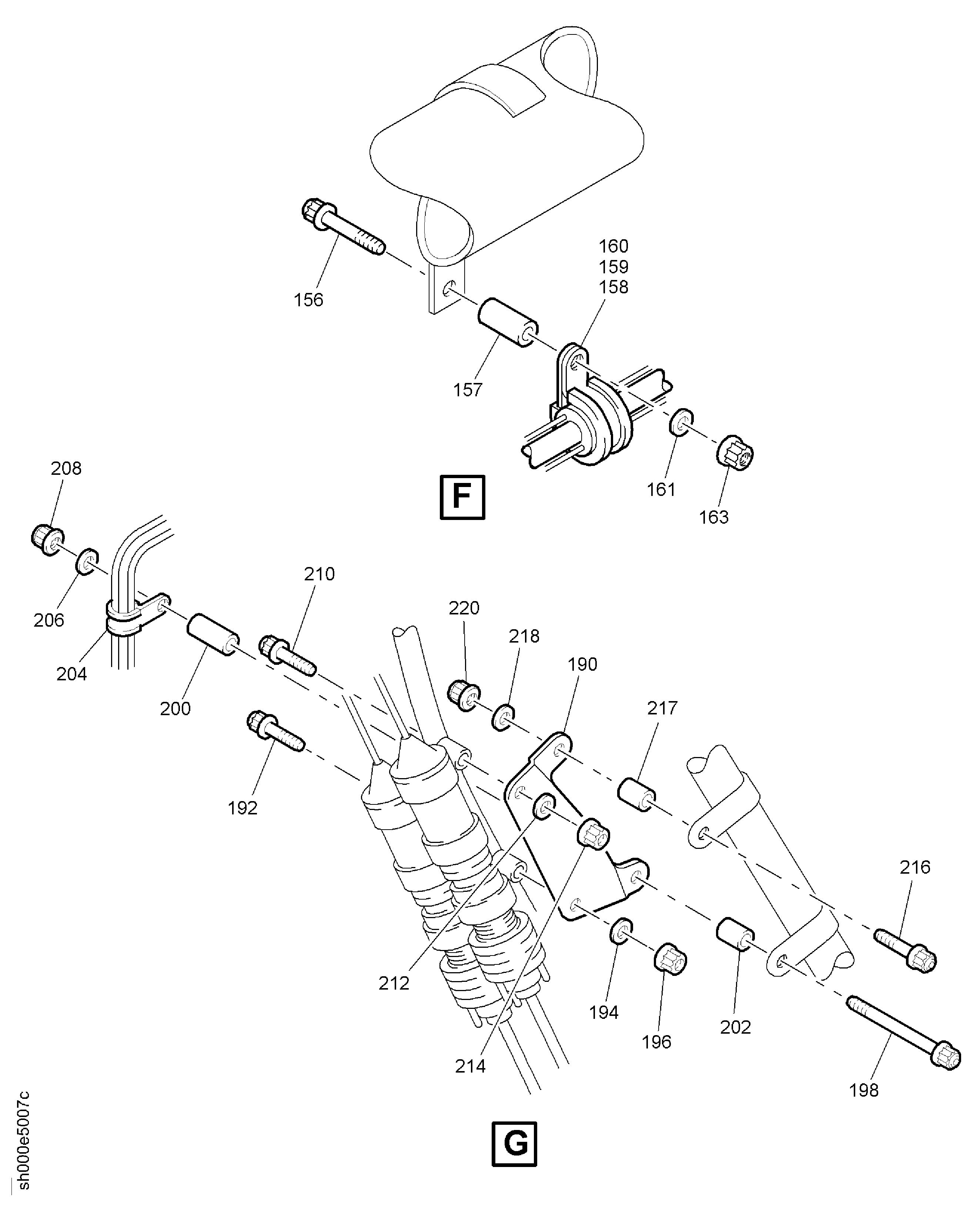

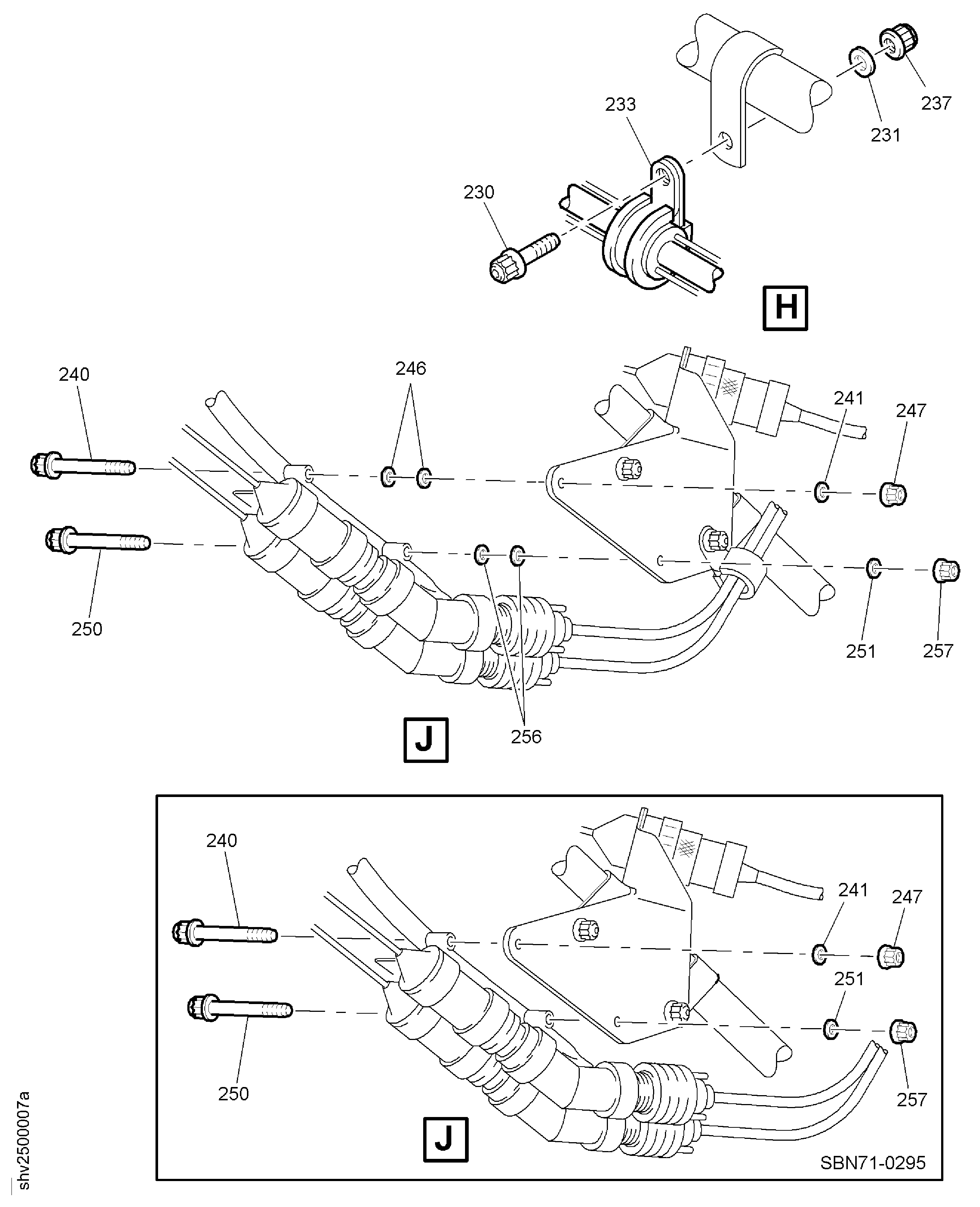

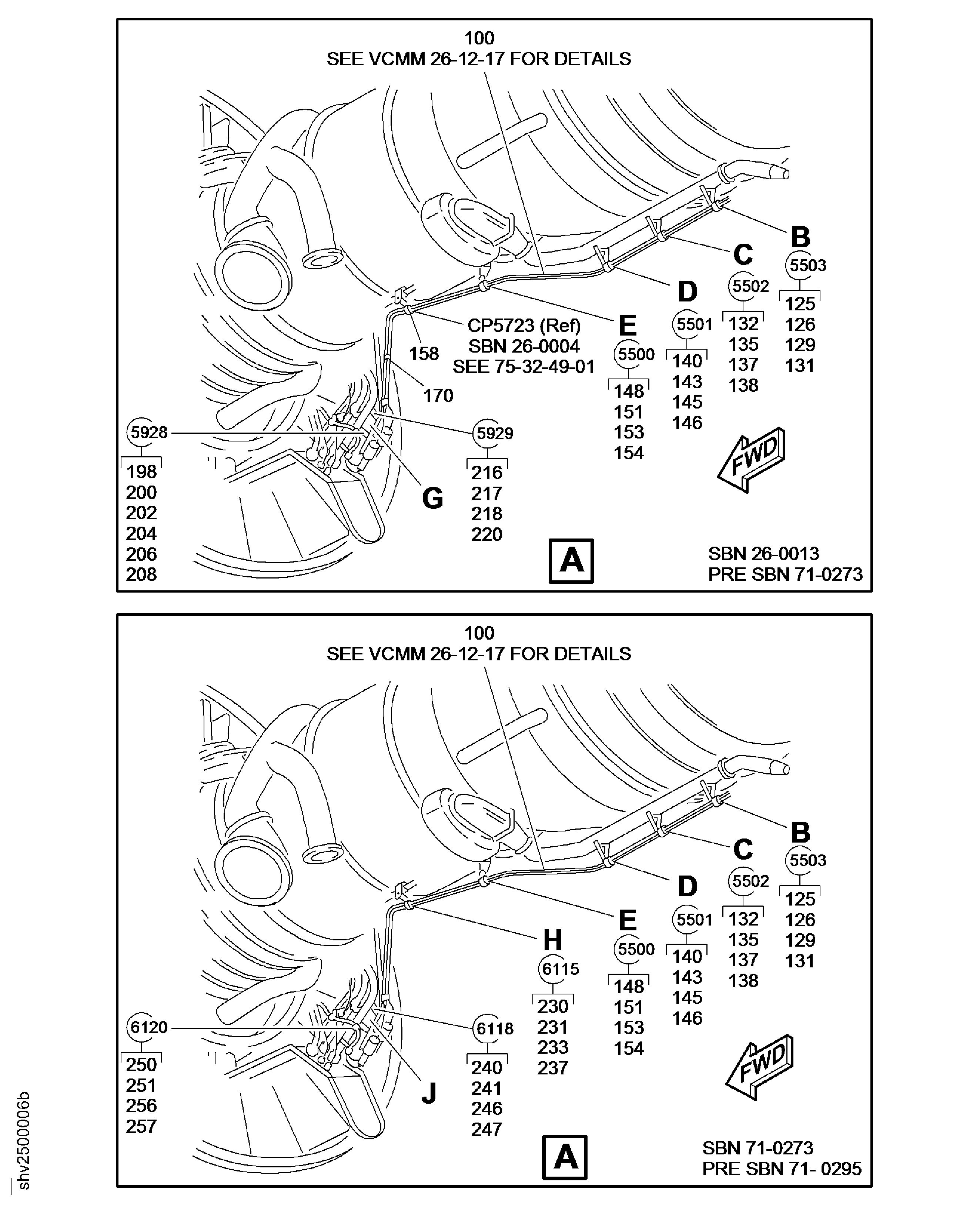

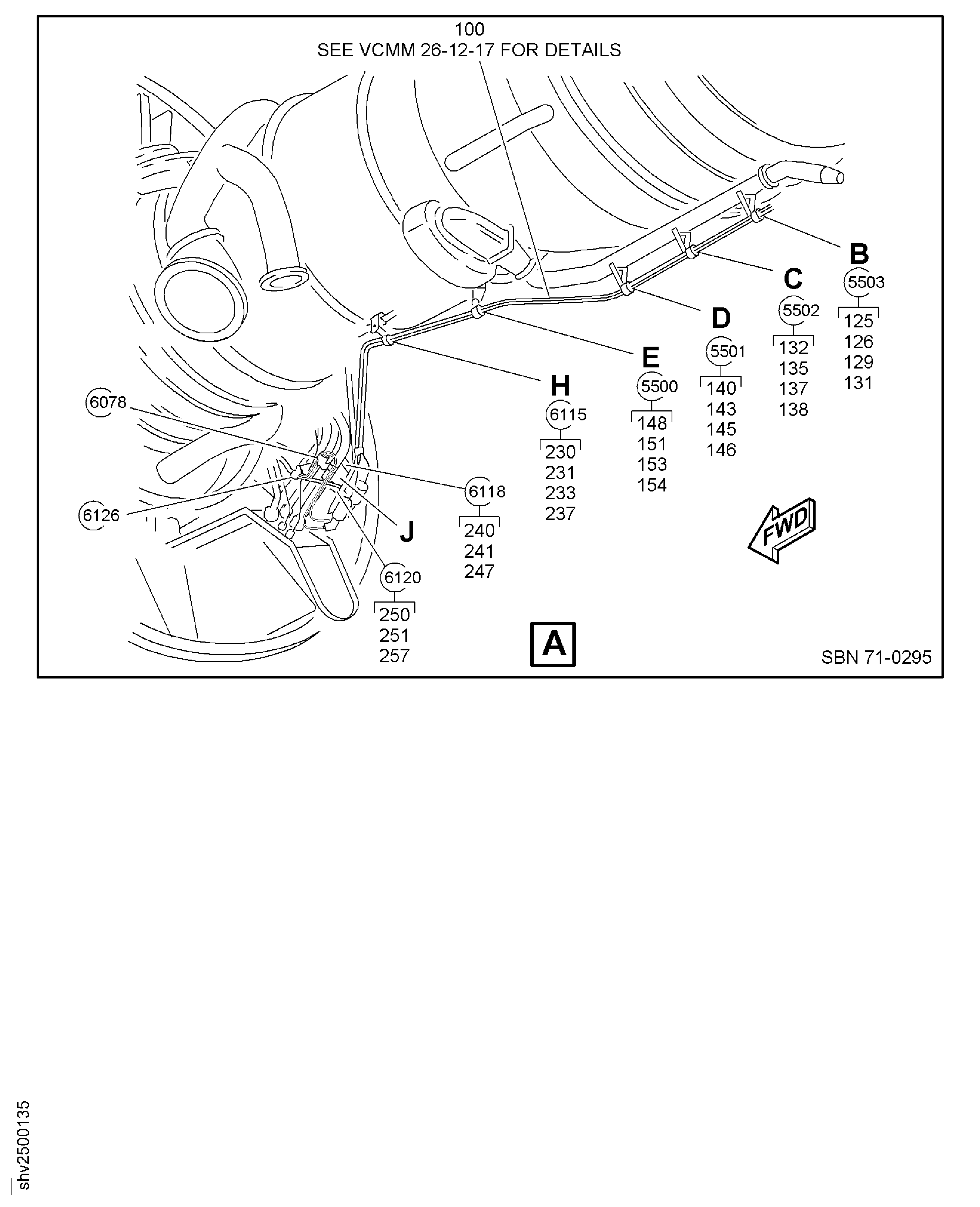

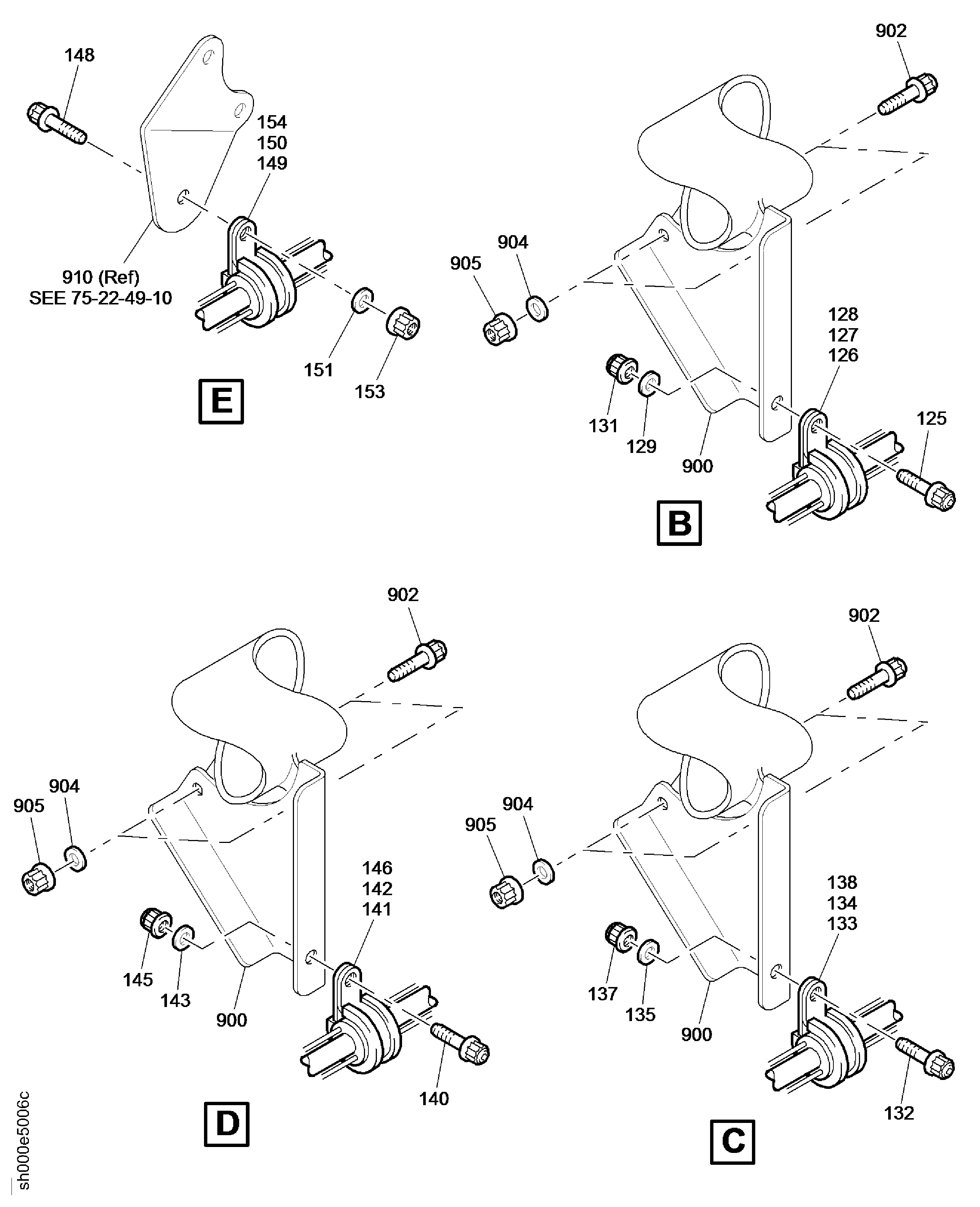

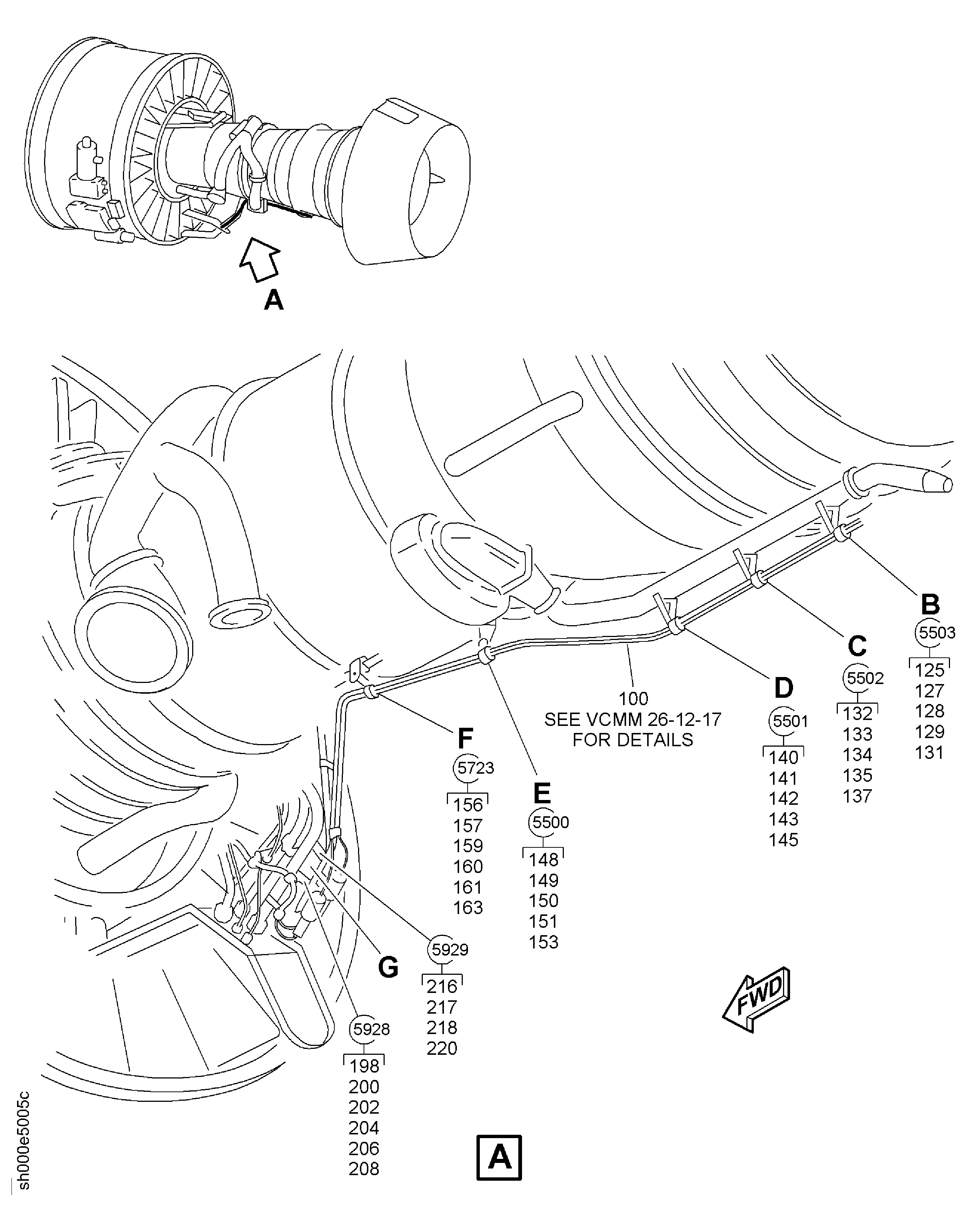

Figure: FIRE PROTECTION-CORE ZONE FIRE DETECTOR

DETECTOR FIRE CORE

DETECTOR FIRE CORE

DETECTOR FIRE CORE

DETECTOR FIRE CORE

DETECTOR FIRE CORE

DETECTOR FIRE CORE

Change Type:

Deleted Incorrect SB Reference.

Change Type:

Corrected Effectivity.

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:25693
Enterprise Name:MEGGITT - SAFETY SYSTEMS INC
BU Name:MEGGITT - SAFETY SYSTEMS INC
Street:1915 VOYAGER AVENUE
City:SIMI VALLEY
State:CALIFORNIA
Zip Code:93063-3349
Country:USA
Manufacturer Code:26940
Enterprise Name:MICRO-OHM CORP
BU Name:MICRO-OHM CORP
Street:1088 HAMILTON ROAD
City:DUARTE
State:CALIFORNIA
Country:USA
Manufacturer Code:51563
Enterprise Name:ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:ROHR INC, A COLLINS AEROSPACE COMPANY
Street:850 LAGOON DRIVE
City:CHULA VISTA
State:CA
Zip Code:91910-2098
Country:USA
Phone Number:1-619-691-2089
Fax Number:1-619-691-6195
Manufacturer Code:61423
Enterprise Name:61423
Manufacturer Code:77445
Enterprise Name:PRATT AND WHITNEY
BU Name:PRATT & WHITNEY
Street:400 MAIN STREET
City:EAST HARTFORD
Country:USA
Phone Number:8605657700
Manufacturer Code:81205
Enterprise Name:BOEING SPARES DEPT
BU Name:BOEING SPARES DEPT
Street:MAILSTOP 36-65
P.O. Box:3707
City:SEATTLE
State:WA
Zip Code:98124
Country:USA
Manufacturer Code:83930
Enterprise Name:TRANSDIGM INC
BU Name:TRANSDIGM INC
Department:ADEL FASTENERS
Building:SANDWELL INDUSTRIAL ESTATE
Street:5000 TRIGGS STREET
City:LOS ANGELES
State:WEST MIDLANDS
Zip Code:B66 1QJ
Country:USA
Manufacturer Code:84971
Enterprise Name:KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
BU Name:KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
Department:TA MFG LTD
Street:28065 WEST FRANKLIN PARKWAY,VALENCIA
City:SANTA CLARITA
State:CALIFORNIA
Zip Code:GL1 2BS
Country:USA
Manufacturer Code:88044
Enterprise Name:AERONAUTICAL STANDARD GROUP NAVY AND AIR FORCE
BU Name:AERONAUTICAL STANDARD GROUP NAVY AND AIR FORCE
Street:NA
City:NA
Country:USA
Phone Number:NA
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:K4585
Enterprise Name:SHORT BROS PLC
BU Name:NULL
Street:AIRPORT ROAD
P.O. Box:PO BOX 241 BT3
City:QUEENS ISLAND
State:BELFAST
Zip Code:9DZ
Country:UNITED KINGDOM
Manufacturer Code:K7766
Enterprise Name:K7766
BU Name:British Standards Institution
Street:2 Park Street
City:London
Zip Code:AW1A 2BS
Country:England
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:471-8
Part Name:CLIP
Manufacturer Code:26940
Part Number:473873-2
Part Name:DETECTOR, FIRE (CORE)
Manufacturer Code:61423
Part Number:4W0001
Part Name:NUT, OPTION - .190 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS20624NUT, SELF LOCKING DBL HEX - .190 DIAU1653
Part Number:4W0106
Part Name:BOLT - .190 DIA X .688
Manufacturer Code:0AM53
Part Number:740-5035-501
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5286-501
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5287-501
Part Name:BRACKET
Manufacturer Code:51563
Part Number:7827-02
Part Name:DETECTOR - FIRE, ASSEMBLY OF
Manufacturer Code:25693
Part Number:7827-03
Part Name:DETECTOR - FIRE, ASSEMBLY OF
Manufacturer Code:25693
Part Number:AN960C10
Part Name:WASHER - FLAT
Manufacturer Code:88044
Part Number:AS20624
Part Name:NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:U1653
Part Number:AS21408
Part Name:BOLT - 0.19 DIA X 0.500
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
MS9556-06BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.50096906
Part Number:AS21418
Part Name:BOLT - MACHINE, DOUBLE HEXAGON - 0.190 DIA X 1.125
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
MS9556-16BOLT - DOUBLE HEXAGON96906
Part Number:AS21420
Part Name:BOLT, 0.19 DIA X 1.250
Manufacturer Code:U1653
Part Number:AS21428
Part Name:BOLT - 0.190 DIA X 1.750
Manufacturer Code:U1653
Part Number:AS48022
Part Name:BOLT - DOUBLE HEXAGON, 0.190-32 UNJF-3A
Manufacturer Code:U1653
Part Number:AS61933
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
TA025074-03CLAMP - LOOP, CUSHION, 4.78 MM (0.188)84971
Part Number:BACC10GT2-08
Part Name:CLAMP
Manufacturer Code:81205
Part Number:C10GT3-08
Part Name:CLAMP - ASSY
Manufacturer Code:83930
Part Number:MS9556-06
Part Name:BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500
Manufacturer Code:96906
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS21408BOLT - 0.19 DIA X 0.500U1653
Part Number:MS9556-16
Part Name:BOLT - DOUBLE HEXAGON
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
AS21418BOLT - MACHINE, DOUBLE HEXAGON - 0.190 DIA X 1.125U1653
Part Number:SP155D
Part Name:WASHER - FLAT
Manufacturer Code:K7766
Part Number:ST1698D47
Part Name:SPACER (5MM)
Manufacturer Code:K4585
Part Number:ST1698D48
Part Name:SPACER (10MM)
Manufacturer Code:K4585
Part Number:ST1698D50
Part Name:SPACER
Manufacturer Code:77445
Link not Found
Part Number:TA025074-03
Part Name:CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
Manufacturer Code:84971
Optional Parts
Part NumberPart NameManufacturer
AS61933CLAMP - LOOP, CUSHIONU1653
