DMC:V2500-A5-36-11-41-01A-941A-DIssue No:002.00Issue Date:2020-02-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B36114101 | PNEUMATIC-IP BLEED AIR CHECK VALVE, PRE SBE70-0670 | aa | ||
| SBE0670-01 | PNEUMATIC-IP BLEED AIR CHECK VALVE, PRE SBN70-0619 | ab | ||
| SBN0619-01 | PNEUMATIC-IP BLEED AIR CHECK VALVE, PRE SBN70-0760 | ac | ||
| SBN0760-01 | PNEUMATIC-IP BLEED AIR CHECK VALVE, PRE SBN70-0872 | ad | ||
| SBN0872-01 | PNEUMATIC - IP BLEED AIR CHECK VALVE | ae | ||
| 050 | 2290A02 | • CHECK - VALVE,IP BLEED F0230 PRE SBN70-0619 | aa-ab | 1 |
| 050A | 2290A03 | • VALVE - IP BLEED F0230 POST SBN70-0619 | aa-ae | 1 |
| 050B | 2290A05 | • VALVE - CHECK, IP BLEED F0230 POST SBN70-0619 | ac-ae | 1 |
| 050C | 2290A050000 | • VALVE - IP BLEED F0230 POST SBN70-0619 PRE SBN70-0760 | ac-ae | 1 |
| 050D | 2293B010000 | • VALVE - IP BLEED CHECK F0230 POST SBN70-0760 PRE SBN70-0872 | ac-ae | 1 |
| 050E | 2293B020000 | • VALVE - IP BLEED CHECK F0230 POST SBN70-0872 | ac-ae | 1 |
| 100 | 6299258-0400 | • COUPLING K6712 | aa-ae | 2 |
| 110 | NK103102-0400 | • SEAL 00624 PRE SBE70-0670 | aa | 2 |
| 110A | NK103102-0400 | • SEAL 00624 POST SBE70-0670 | ab-ae | 2 |
| 110B | S2347-400 | • SEAL 51563 POST SBE70-0670 | ab-ae | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

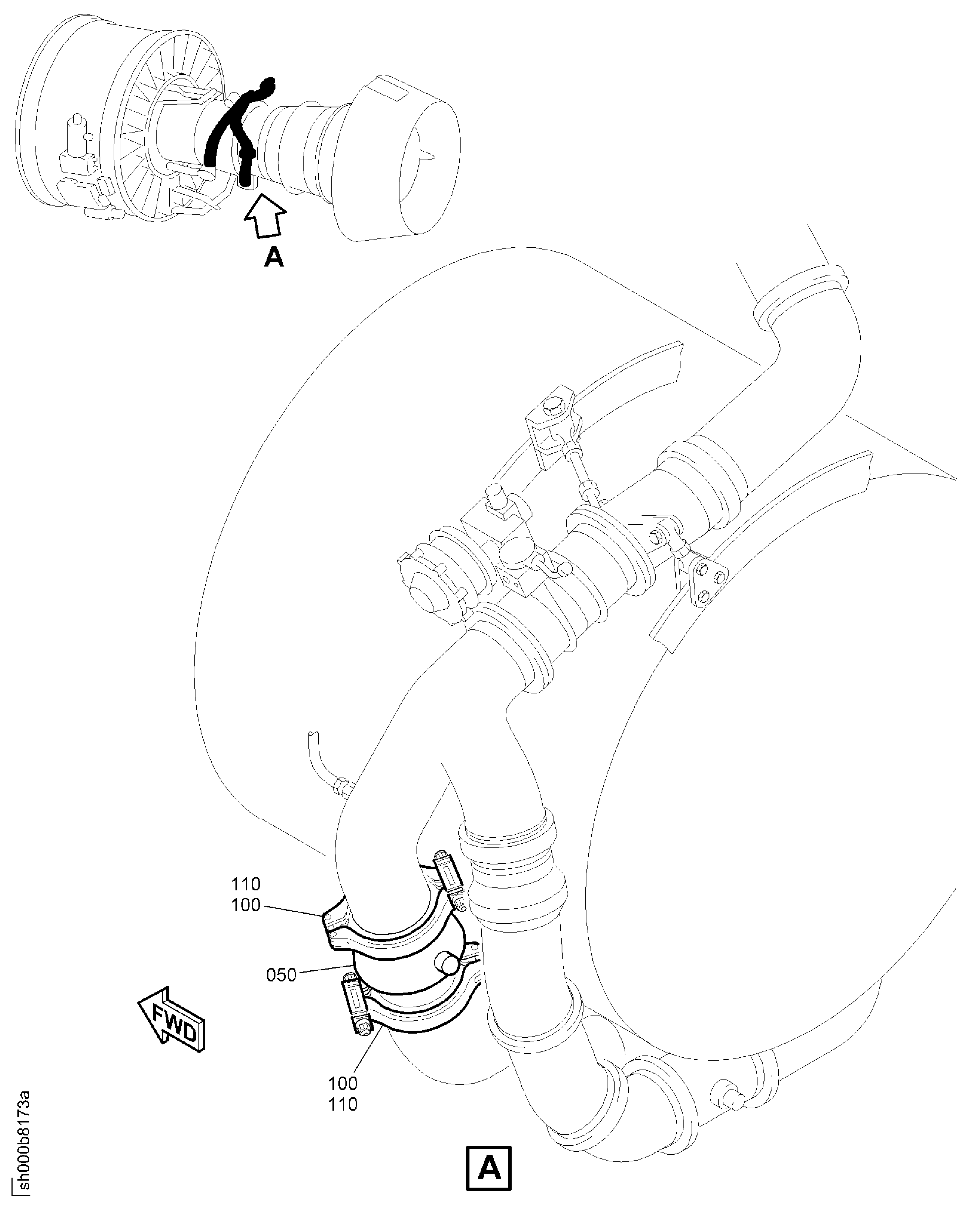

Figure: PNEUMATIC-IP BLEED AIR CHECK VALVE
VALVE IP BLEED CHECK
