DMC:V2500-A5-71-00-0200-14B-720A-B|Issue No:001|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Common Information

TASK 71-00-02-400-015-B00 (A5-PPBU) - Install The Fire Detection Harnesses, The Nacelle Temperature And Cabin Services Harnesses And The Core Overheat Detector, Installation-015

General

Transportation covers/blanks must be removed immediately before the installation of components and tubes.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.

For standard torque data and procedures refer to the SPM TASK 70-41-01-400-501 and SPM TASK 70-41-02-400-501.

Special torque data is identified with the symbol * after the torque value.

Lubricate all threads and abutment faces of nuts and bolts with CoMat 10-077 APPROVED ENGINE OILS unless other lubricants are referred to in the procedure.

After assembly apply CoMat 07-038 AIR DRYING ENAMEL to any damaged surface protection, joint flanges and attach parts. Use the correct color of air drying enamel. Refer to SPM TASK 70-38-21-380-501.

The number for each radial location must be identified in a clockwise direction. These start at the engine top position when you look from the rear of the engine, unless stated differently in the procedure.

Refer to the V2500 Illustrated Tool and Equipment Manual (ITEM-V2500-1IA) for the illustrations of the special tools given in this procedure.

Do not remove the special plastic caps from the electrical connectors until immediately before they are installed. This will give protection from unwanted fluids and materials.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

Name	Manufacturer	Part Number / Identification	Quantity	Remark
CoMat 07-038 AIR DRYING ENAMEL	K3504	CoMat 07-038
CoMat 10-077 APPROVED ENGINE OILS	LOCAL	CoMat 10-077

Spares

NONE

Safety Requirements

NONE

Procedure

1. Refer to Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure and Figure.
2. 1. Put the harness in the correct position for installation.
  2. Connect the electrical connector 4001HA-A to the pressure regulator valve. Tighten the connector with your fingers plus a one-eighth turn.
  3. Install the clips, the washers, the spacers, the bolts and the nuts at clip positions 5913, 5925 and 5924. Torque the nuts to 36 to 45 lbf.in (4 to 5 Nm).
  4. Attach the four earth leads to the bracket HPC Assembly (72-41-00, 03-760) with the four bolts and the four washers. Torque the nuts to 36 to 44 lbf.in (4 to 5 Nm).
  5. Install the clips, the washers, the spacers, the bolts and the nuts at clip positions 5919, 5920, 5766, 5918, 5901 and 5804. Torque the nuts to 36 to 45 lbf.in (4 to 5 Nm).
  6. Connect the electrical connector 4000HA-A to the high pressure bleed valve. Tighten the connector with your fingers plus a one-eighth turn.
  7. Install the clips, the washers, the spacers, the bolts and the nuts at clip positions 5919, 5920, 5766, 5918, 5901 and 5804. Torque the nuts to 36 to 45 lbf.in (4 to 5 Nm).
1. Refer to Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure.
2. 1. Put the harness in the correct position for installation.
  2. Connect the electrical connector 4001HA-A to the pressure regulator valve. Tighten the connector with your fingers plus a one-eighth turn.
  3. Install the clips, the washers, the spacers, the bolts and the nuts at the clip positions 5913, 5925 and 5924.
  4. Attach the four earth leads to the bracket HPC Assembly (72-41-00, 03-760) with the four bolts and the four washers. Torque the nuts to 36 to 44 lbf.in (4 to 5 Nm).
  5. Install the clips, the washers, the spacers, the bolts and the nuts at clip positions 5922, 6066, 5923, 6064, 5921, 5652, 5763, 5764, 5905 and 5648. Torque the nuts to 36 to 45 lbf.in (4 to 5 Nm).
  6. Connect the electrical connector 4000HA-A to the high pressure bleed valve. Tighten the connector with your fingers plus a one-eighth turn.
  7. Install the clips, the washers, the spacers, the bolts and the nuts at clips positions 6098, 5940, 5766, 6112, 6088, 6084, 6079 and 6075.
1. Refer to Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure.
2. 1. Put the harness in the correct position for installation.
  2. Connect the electrical connector 4001HA-A to the pressure regulator valve. Tighten the connector with your fingers plus a one-eighth turn.
  3. Install the clips, the washers, the spacers, the bolts and the nuts at clip positions 5913, 5925 and 5924. Torque the nuts to 36 to 45 lbf.in (4 to 5 Nm).
  4. Attach the four earth leads to the bracket HPC Assembly (72-41-00, 03-760) with the four bolts and the four washers. Torque the nuts to 36 to 44 lbf.in (4 to 5 Nm).
  5. Install the clips, the washers, the spacers, the bolts and the nuts at clip positions 5922, 6066, 5923, 6064, 5921, 5652, 5763, 5764, 5765 and 5648. Torque the nuts to 36 to 45 lbf.in (4 to 5 Nm).
  6. Connect the electrical connector 4000HA-A to the high pressure bleed valve. Tighten the connector with your fingers plus a one-eighth turn.
  7. Install the clips, the washers, the spacers, the bolts and the nuts at clip positions 5941, 6098, 5940, 5766, 5939 and 5938. Torque the nuts to 36 to 45 lbf.in (4 to 5 Nm).
1. Refer to Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, and Figure.
2. 1. Put the harness in the correct position for installation.
  2. Connect the electrical connector 4001HA-A to the pressure regulator valve. Tighten the connector with your fingers plus a one-eighth turn.
  3. Install the clips, the washers, the spacers, the bolts and the nuts at the clip positions 5913, 5925 and 5924. Torque the nuts to 36 to 45 lbf.in (4 to 5 Nm).
  4. Attach the four earth leads to the bracket HPC Assembly (72-41-00, 03-760) with the four bolts and the four washers. Torque the nuts to 36 to 44 lbf.in (4 to 5 Nm).
  5. Install the clips, the washers, the spacers, the bolts and the nuts at clip positions 5922, 6066, 5923, 6064, 5921, 5652, 5763, 5764, 5765 and 5648. Torque the nuts to 36 to 45 lbf.in (4 to 5 Nm).
  6. Connect the electrical connector 4000HA-A to the high pressure bleed valve. Tighten the connector with your fingers plus a one-eighth turn.
  7. Install the clips, the washers, the spacers, the bolts and the nuts at clip positions 6098, 5940, 5766, 6112, 6088, 6084, 6079 and 6075. Torque the nuts to 36 to 45 lbf.in (4 to 5 Nm).
1. Refer to Figure, Figure, Figure, Figure, Figure, Figure , Figure, Figure, Figure, Figure, Figure, Figure and Figure.
2. 1. Put the harness in the correct position for installation.
  2. Connect the electrical connector 4001HA-A to the pressure regulator valve. Tighten the connector with your fingers plus a one-eighth turn.
  3. Install the clips, the washers, the spacers, the bolts and the nuts at clip positions 5990, 5924 and 5925. Torque the nuts to 36 to 45 lbf.in (4 to 5 Nm).
  4. Attach the four earth leads to the bracket HPC Assembly (72-41-00, 03-760) with the four bolts and the four washers. Torque the nuts to 36 to 44 lbfin. (4 to 5 Nm).
  5. Install the clips, the washers, the spacers, the bolts and the nuts at clip positions 5922, 6066, 5923, 6064, 5921, 5652, 6107, 6058, 5747 and 5904.
  6. Connect the electrical connector 4000HA-A to the high pressure bleed valve. Tighten the connector with your fingers plus a one-eighth turn.
  7. Install the clips, the washers, the spacers, the bolts and the nuts at clip positions 5919, 5920, 5766, 5918, 5901 and 5804. Torque the nuts to 36 to 45 lbf.in (4 to 5 Nm).
1. Refer to Figure, Figure, Figure, Figure, Figure , Figure, Figure, Figure, Figure, Figure, Figure, Figure and Figure.
2. 1. Put the harness in the correct position for installation.
  2. Connect the electrical connector 4001HA-A to the pressure regulator valve. Tighten the connector with your fingers plus a one-eighth turn.
  3. Install the clips, the washers, the spacers, the bolts and the nuts at clip positions 5990, 5924 and 5925. Torque the nuts to 36 to 45 lbf.in (4 to 5 Nm).
  4. Attach the four earth leads to the bracket HPC Assembly (72-41-00, 03-760) with the four bolts and the four washers. Torque the nuts to 36 to 44 lbf.in (4 to 5 Nm).
  5. Install the clips, the washers, the spacers, the bolts and the nuts at clip positions 5922, 6066, 5923, 6064, 5921, 5652, 6107, 6058, 5747 and 5648.
  6. Connect the electrical connector 4000HA-A to the high pressure bleed valve. Tighten the connector with your fingers plus a one-eighth turn.
  7. Install the clips, the washers, the spacers, the bolts and the nuts at clip positions 6098, 5940, 5766, 6112, 6088, 6084, 6079 and 6075. Torque the nuts to 36 to 45 lbf.in (4 to 5 Nm).

Sheet 1

Sheet 2

Sheet 3

Sheet 4

Sheet 5

Sheet 6

Sheet 7

Sheet 8

Sheet 9

Sheet 10

Sheet 11

Sheet 12

Sheet 13

Sheet 14

Sheet 15

Sheet 16

Sheet 17

Sheet 18

Sheet 19

Sheet 20

Sheet 21

Requirements After Job Completion

Follow-On Conditions

NONE

Manufacturer Code:	K3504
Enterprise Name:	INDESTRUCTIBLE PAINT CO LTD
BU Name:	NULL
Street:	25 PENTOS DRIVE
City:	SPARKHILL
Province:	BIRMINGHAM
Zip Code:	B11 3TA
Country:	GREAT BRITAIN
Phone Number:	44-121-7022485
Fax Number:	44-121-7784338
Email:	sales@indestructible.co.uk
Internet:	www.indestructible.co.uk

Manufacturer Code:	LOCAL
Enterprise Name:	LOCALLY SUPPLIED

TASK 71-00-02-400-015-B00 (A5-PPBU) - Install The Fire Detection Harnesses, The Nacelle Temperature And Cabin Services Harnesses And The Core Overheat Detector, Installation-015

Export Control

Copyright

Applicability

Common Information

TASK 71-00-02-400-015-B00 (A5-PPBU) - Install The Fire Detection Harnesses, The Nacelle Temperature And Cabin Services Harnesses And The Core Overheat Detector, Installation-015

General

NOTE

Preliminary Requirements

Pre-Conditions

Support Equipment

Consumables, Materials and Expendables

Spares

Safety Requirements

Procedure

SUBTASK 71-00-02-420-034-A00 Install the Fire Detection Harnesses, the Nacelle Temperature and Cabin Services Harnesses and the Core Overheat Detector (Pre SBE 72-0189 and Pre SBN 71-0273)

NOTE

SUBTASK 71-00-02-420-034-B00 Install the Fire Detection Harnesses, the Nacelle Temperature and Cabin Services Harnesses and the Core Overheat Detector (Pre SBE 72-0189 and SBN 71-0273)

SUBTASK 71-00-02-420-034-C00 Install the Fire Detection Harnesses, the Nacelle Temperature and Cabin Services Harnesses and the Core Overheat Detector (SBE 72-0189, Pre SBE 75-0081 and Pre SBN 71-0273)

SUBTASK 71-00-02-420-034-D00 Install the Fire Detection Harnesses, the Nacelle Temperature and Cabin Services Harnesses and the Core Overheat Detector (SBE 72-0189, SBN 71-0273 and Pre SBE 75-0081)

SUBTASK 71-00-02-420-034-E00 Install the Fire Detection Harnesses, the Nacelle Temperature and Cabin Services Harnesses and the Core Overheat Detector (SBE 75-0081, SBE 72-0189 and Pre SBN 71-0273)

SUBTASK 71-00-02-420-072-F00 Install the Fire Detection Harnesses, the Nacelle Temperature and Cabin Services Harnesses and the Core Overheat Detector (SBE 75-0081, SBE 72-0189 and SBN 71-0273)

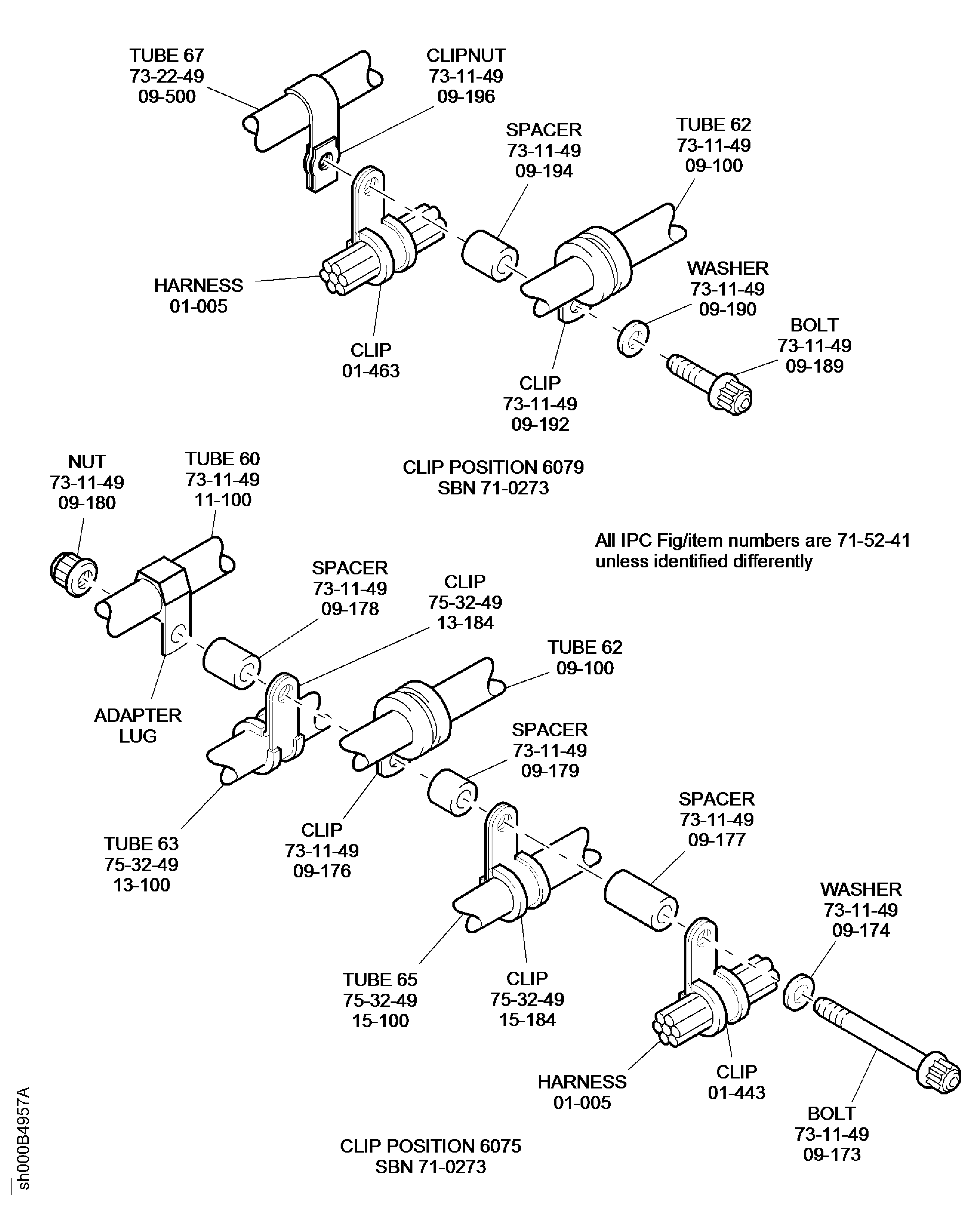

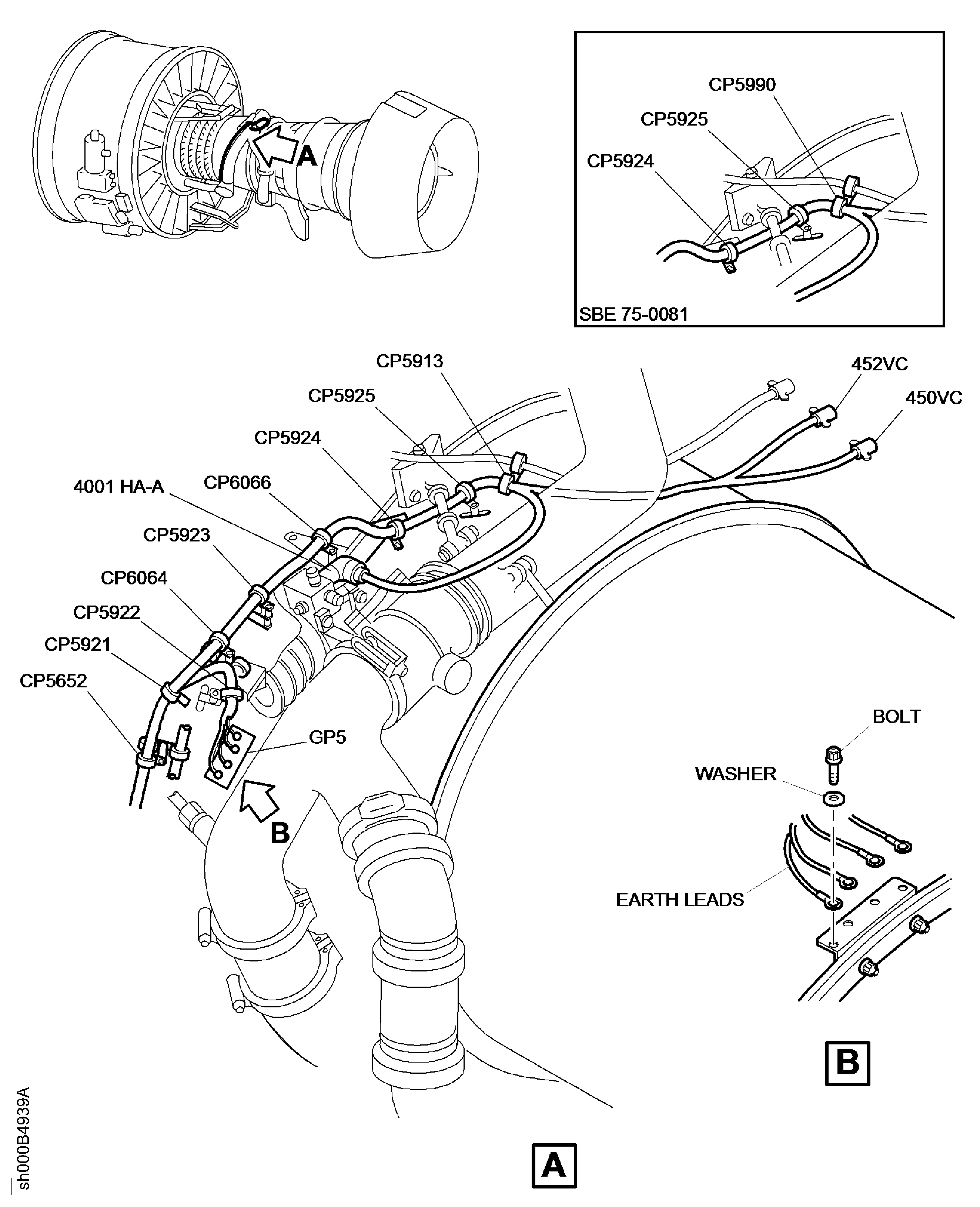

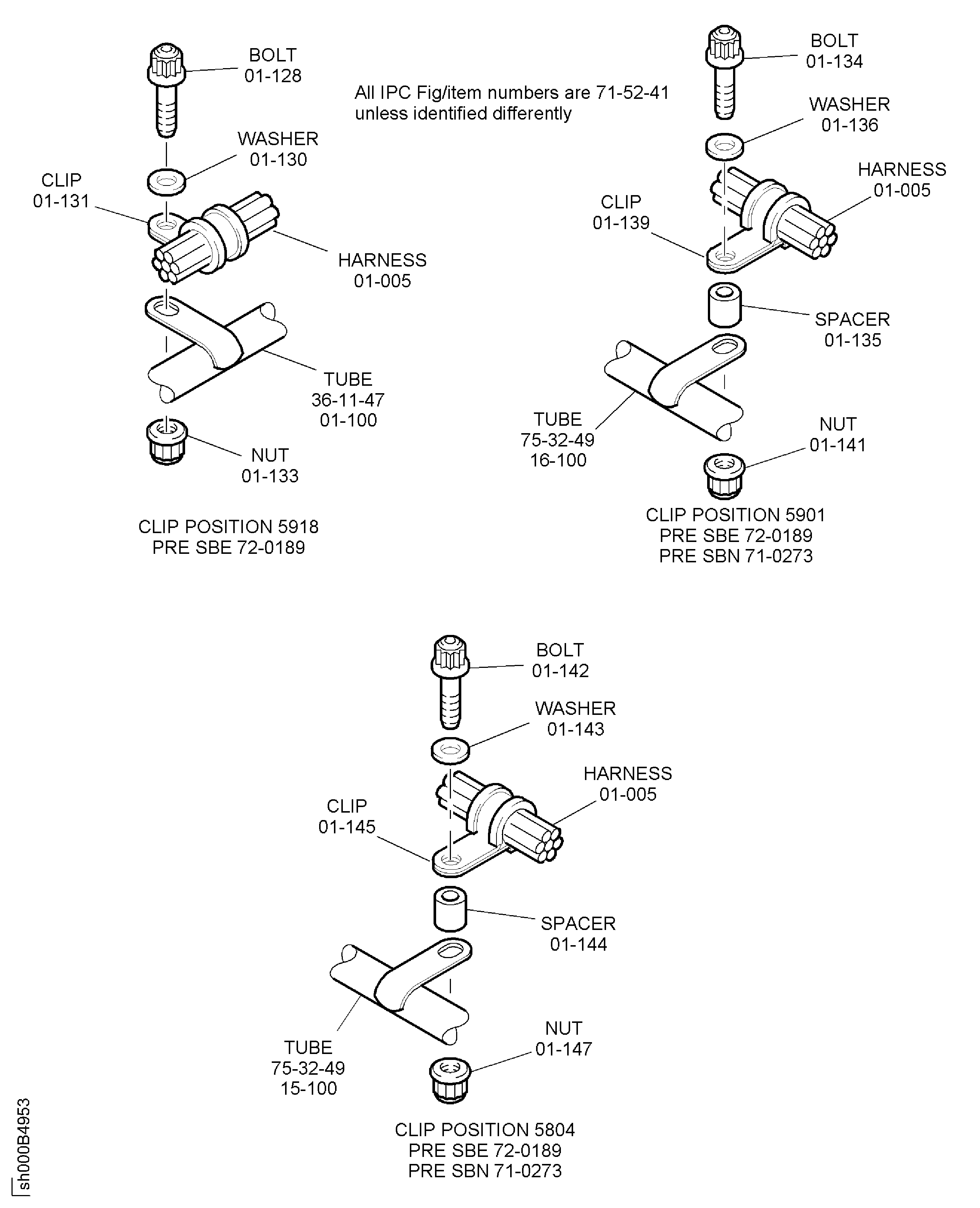

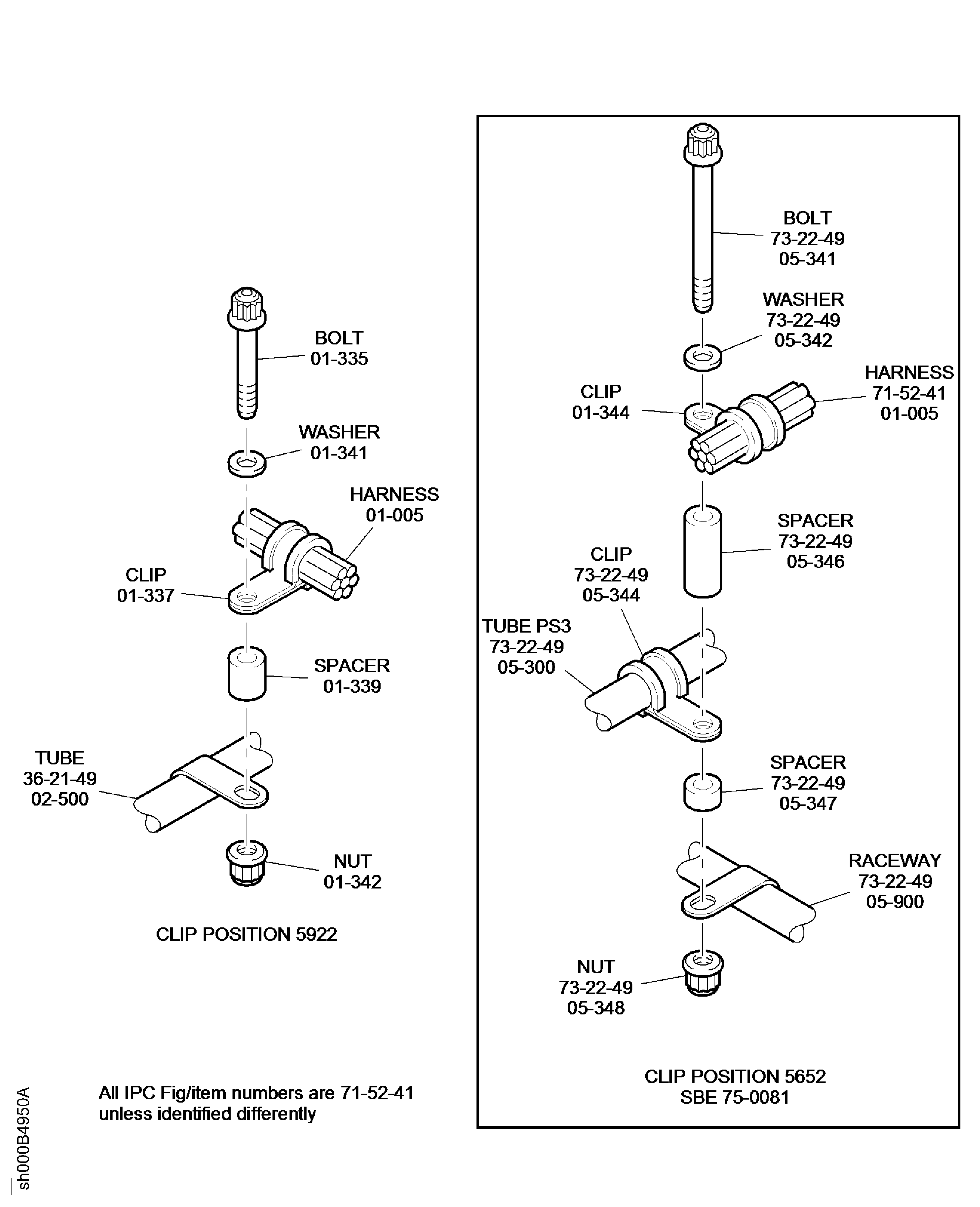

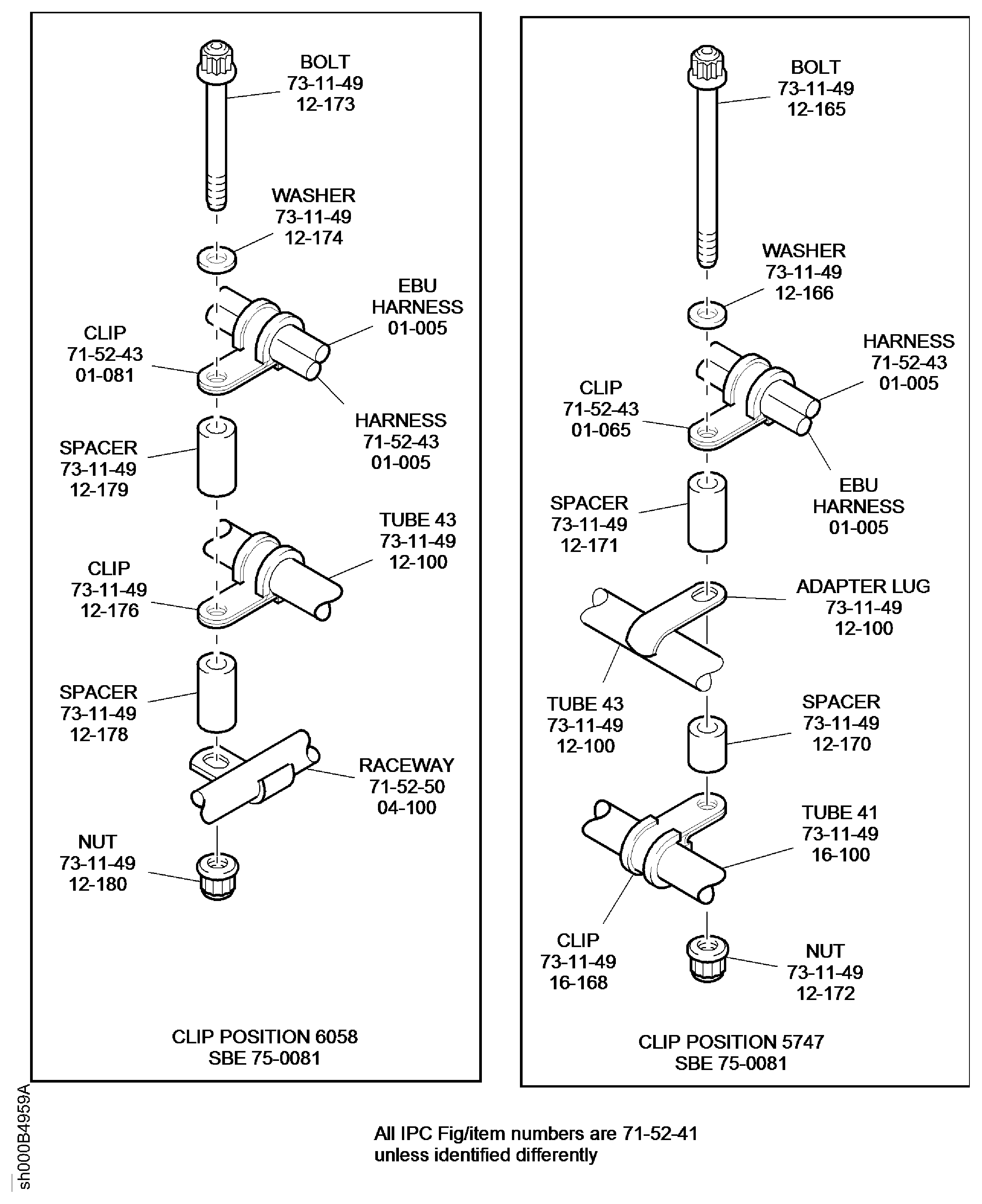

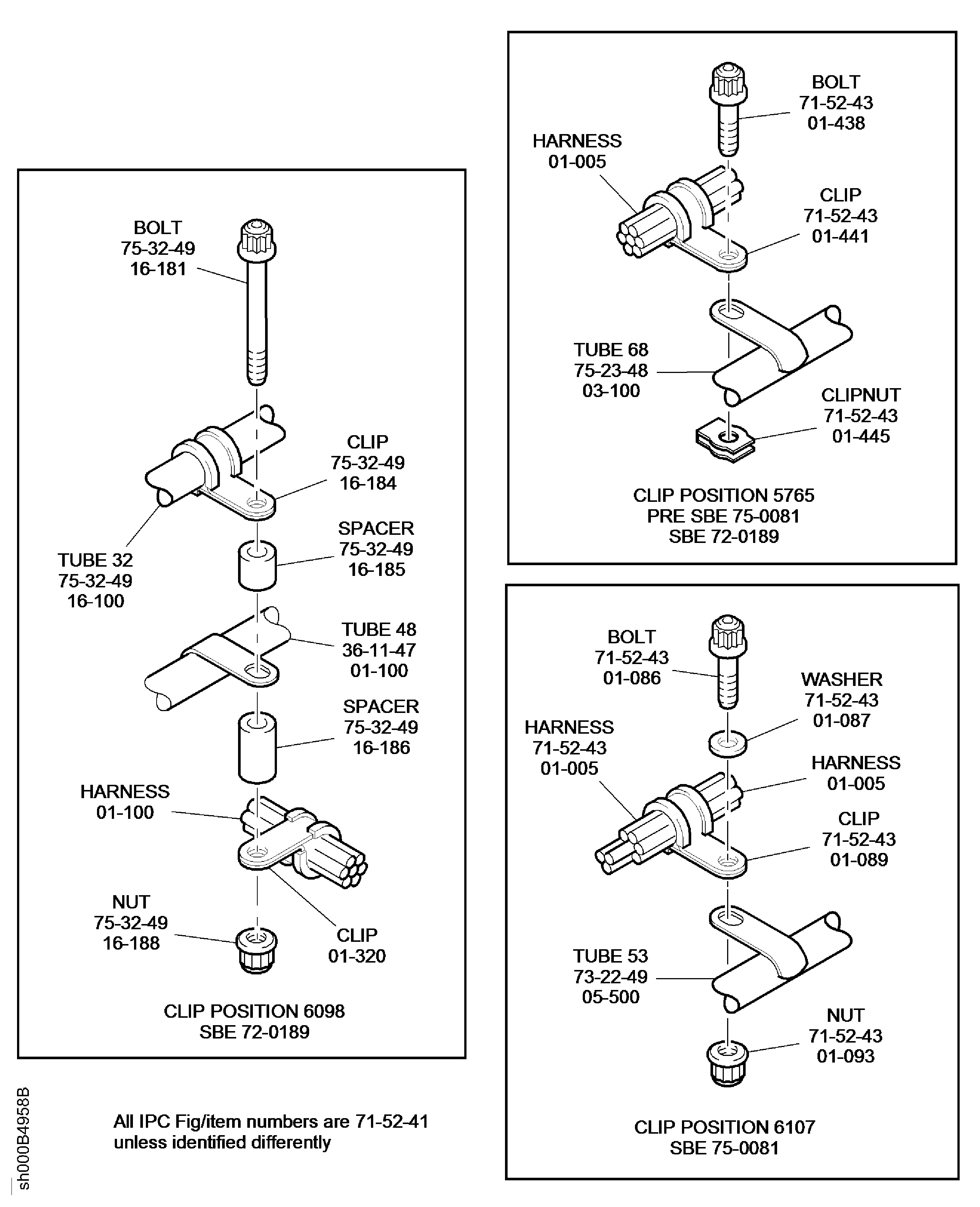

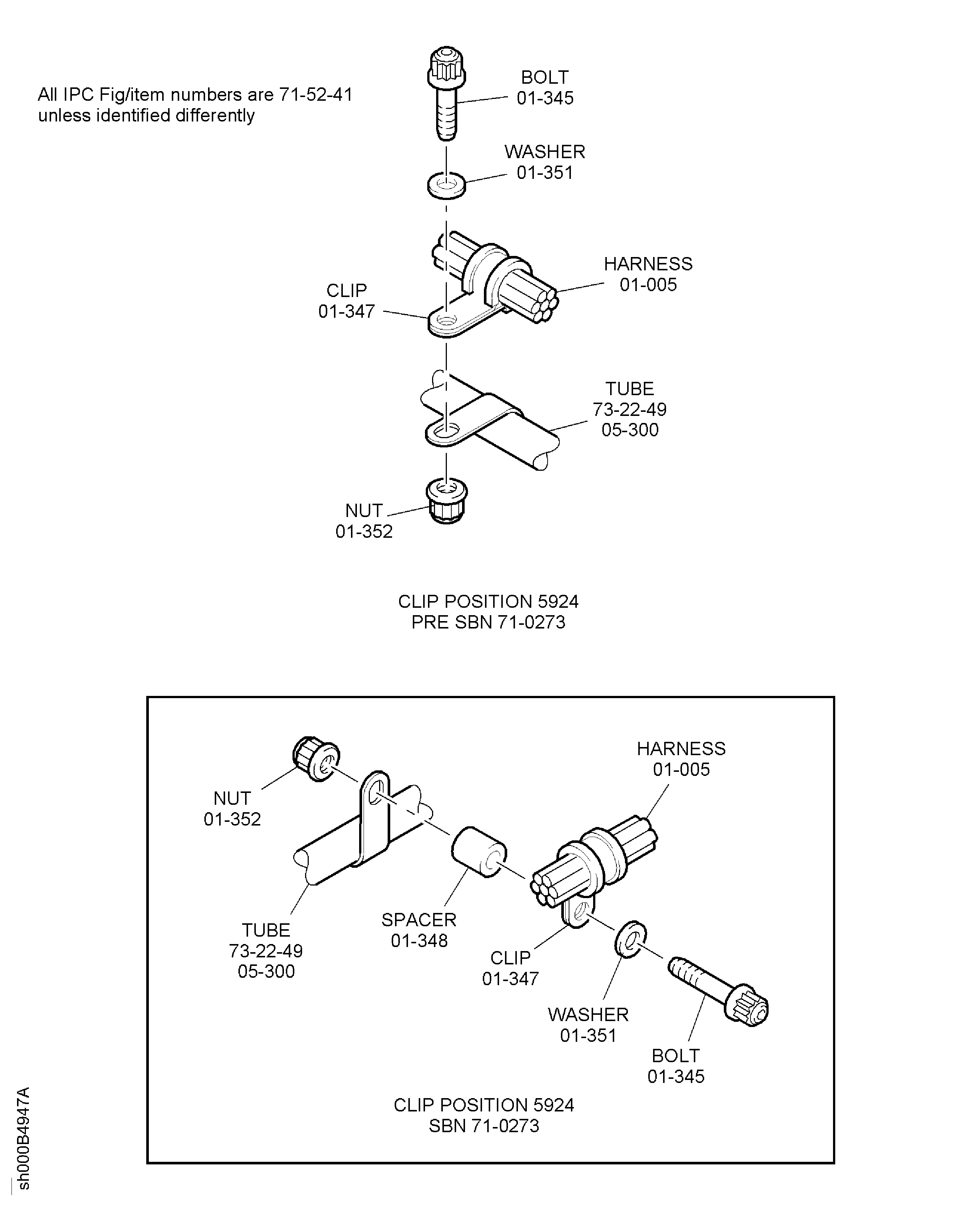

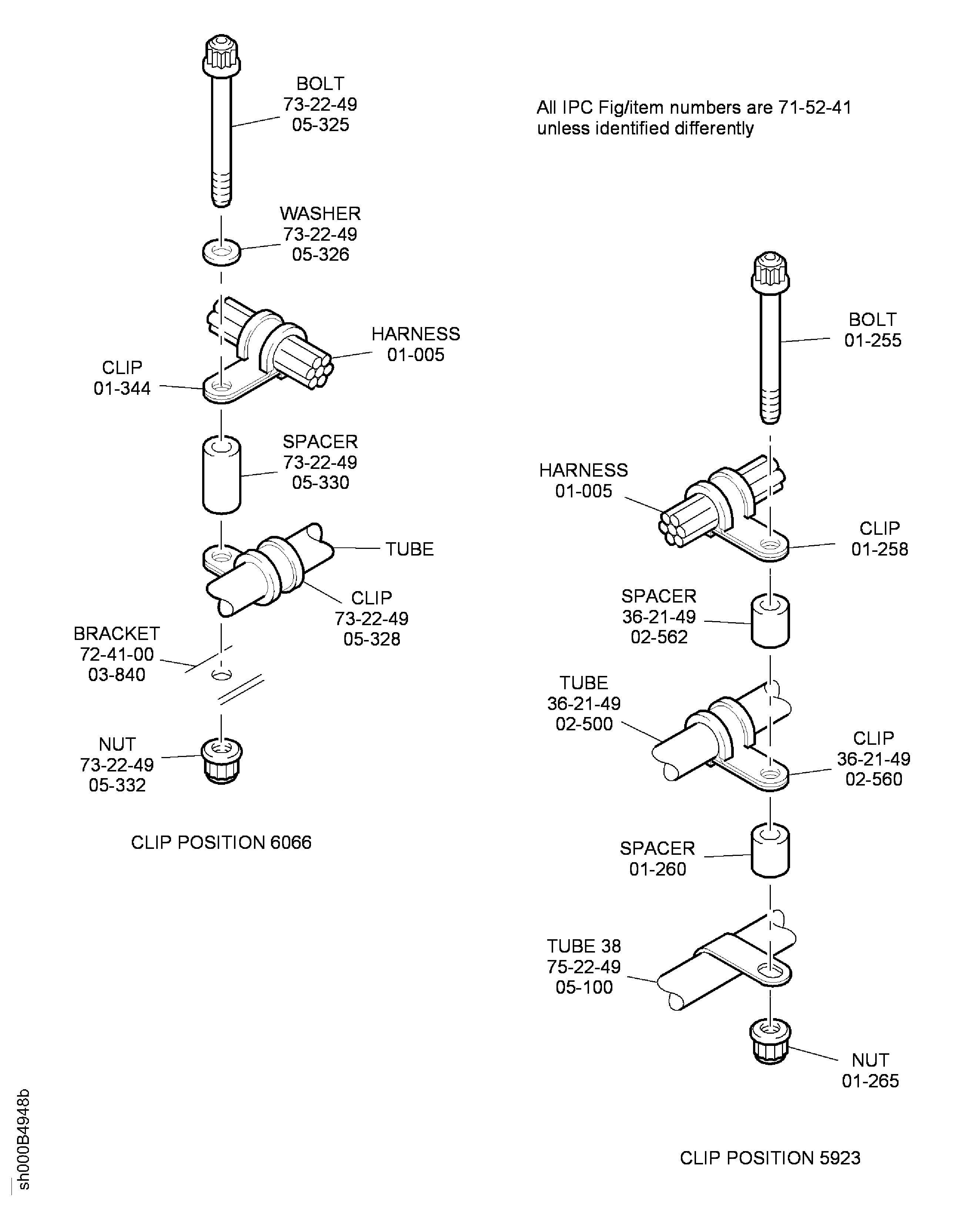

Figure: Install the Fire Detection, the Nacelle Temperature and the Cabin Services Harnesses
