V2500-A5
Common Information
TASK 71-00-02-000-018-B00 (A5-PPBU) - Remove The Accessory Zone Fire Detector, Removal-018
General
Fig/item numbers in parentheses in the procedure agree with those used in the IPC.Only primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.
For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.
Apply the approved CoMat 10-058 PENETRATING OIL before the removal of threaded parts. Let the parts soak before removal.
When electrical connectors are disconnected special plastic caps must be installed.
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 10-058 PENETRATING OIL | 0AM53 | CoMat 10-058 |
Spares
NONESafety Requirements
NONEProcedure
Disconnect the electrical connectors 4000WD1-A and 4000WD2-A from the responders ACCESSORY ZONE FIRE DETECTOR-RIGHT (26-12-15, 01-100).
Pre SBN 71-0273: Remove the bolts, washers, clipnuts, nuts and clips from the clip positions that follow:
1183, 1184, 0955, 0956, 0957, 0958, 0941, 0959, 0960, 0961, 0962, 0974, 0975 and 0976.
SBN 71-0273: Remove the bolts, washers, clipnuts, nuts and clips from the clip positions that follow:
1183, 1184, 0955, 0956, 0957, 0958, 0941, 0959, 0960, 0961, 0962, 1437, 1423 and 1410.
Remove the two bolts and washers that attach the two responders ACCESSORY ZONE FIRE DETECTOR-RIGHT (26-12-15, 01-100) to the bracket ACCESSORY ZONE FIRE DETECTOR-RIGHT (26-12-15, 05-120). Remove the bolts, washers, nut, clipnut and clips from clip positions 0933 and 0957 and remove the detector assembly.
NOTE
The accessory zone fire detector must have its maintenance completed, as given in the Systron Donner Component Maintenance Manual (26-12-15).Remove the two bolts that attach the bracket ACCESSORY ZONE FIRE DETECTOR-RIGHT (26-12-15, 05-120) to the raft General Services Harness (71-51-43, 05-950) and remove the bracket.
SUBTASK 71-00-02-020-046 Remove the Accessory Zone Fire Detector (Pre SBN 71-0273 and SBN 71-0273)

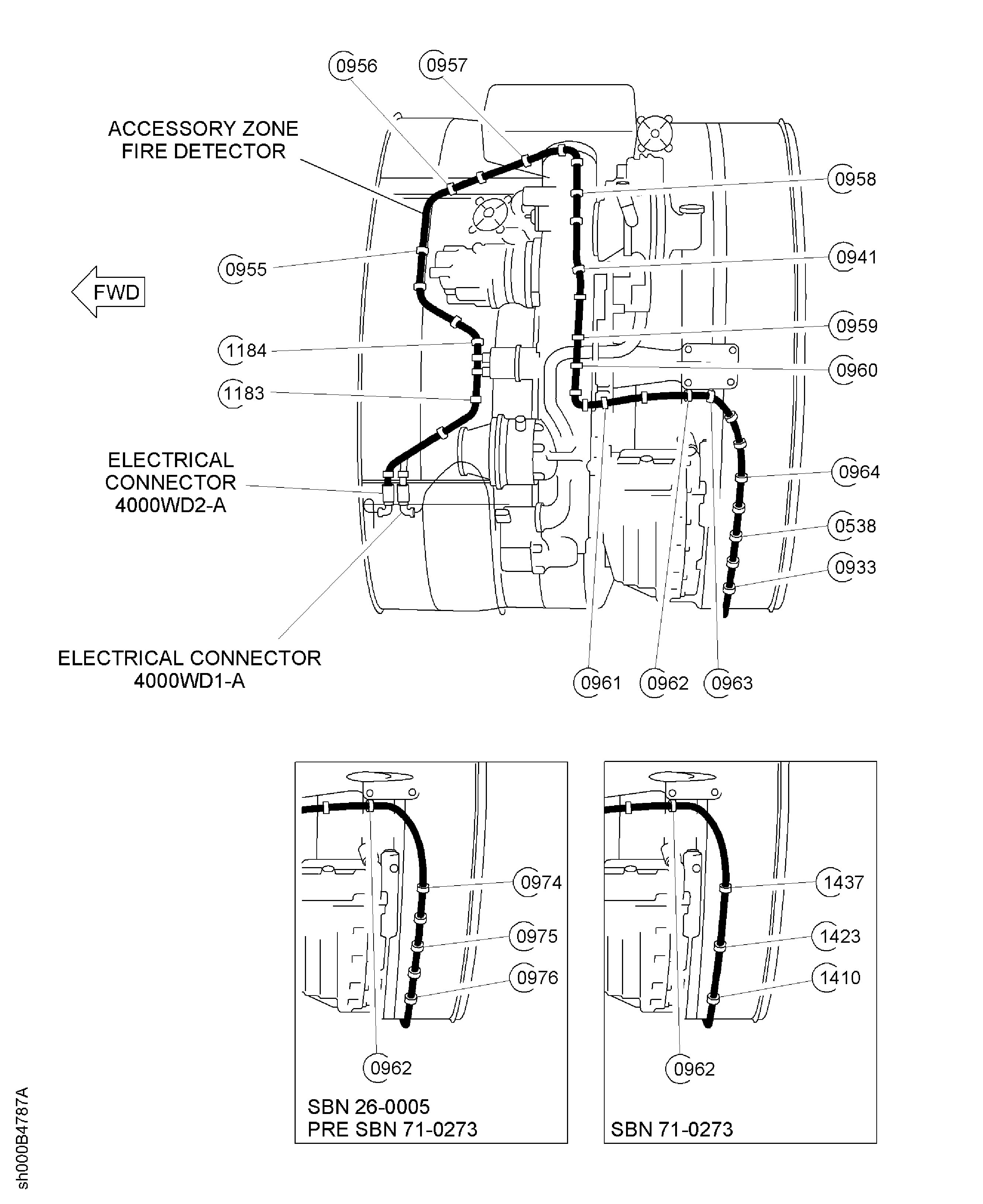

Figure: Remove the Accessory Zone Fire Detector
Sheet 1
Figure: Remove the Accessory Zone Fire Detector
Sheet 2
Figure: Remove the Accessory Zone Fire Detector
Sheet 3
Figure: Remove the Accessory Zone Fire Detector
Sheet 4
Figure: Remove the Accessory Zone Fire Detector
Sheet 5
Figure: Remove the Accessory Zone Fire Detector
Sheet 6
Figure: Remove the Accessory Zone Fire Detector
Sheet 7
