DMC:V2500-A5-71-51-41-03A-941A-DIssue No:002.00Issue Date:2014-08-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 03 | ||||

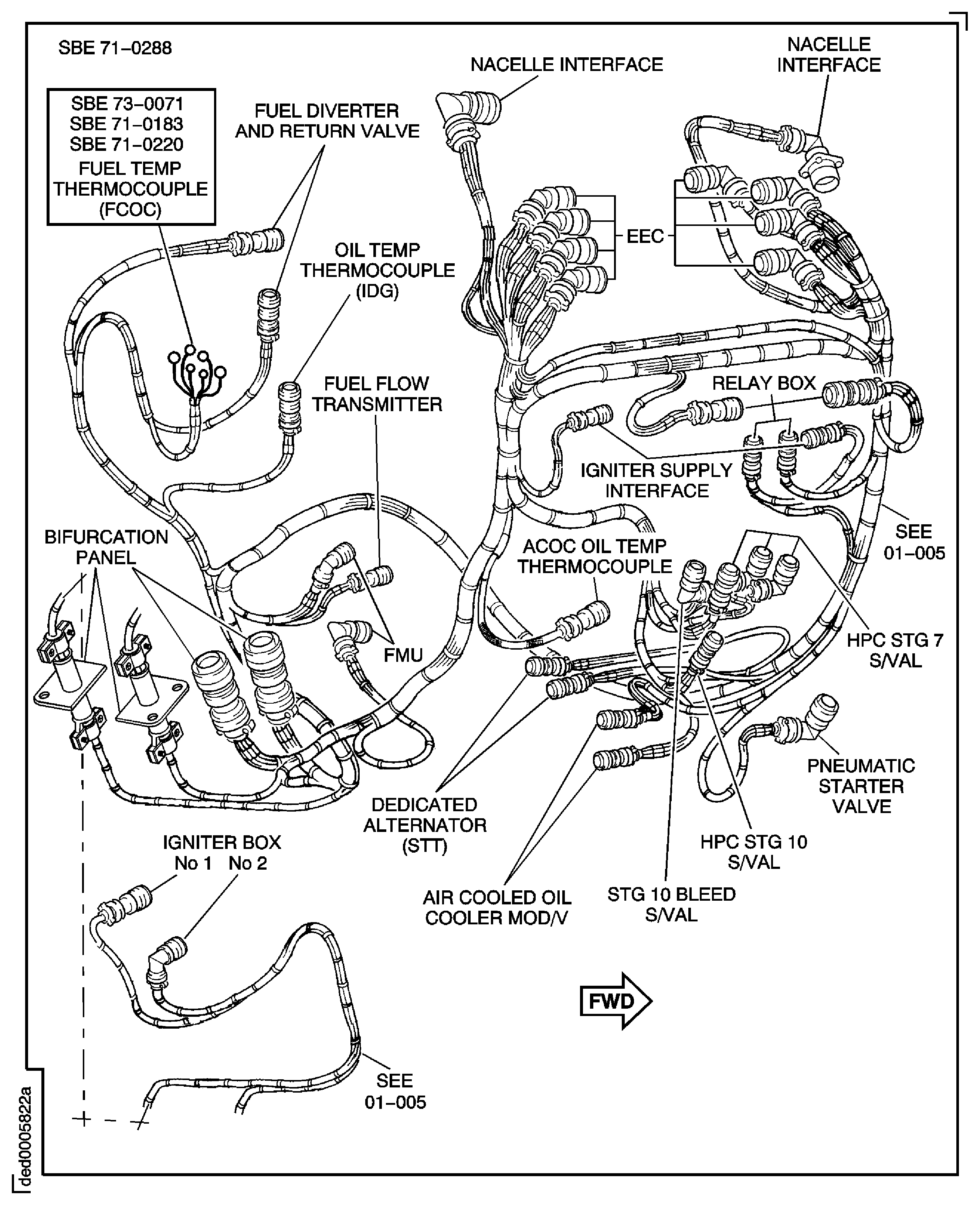

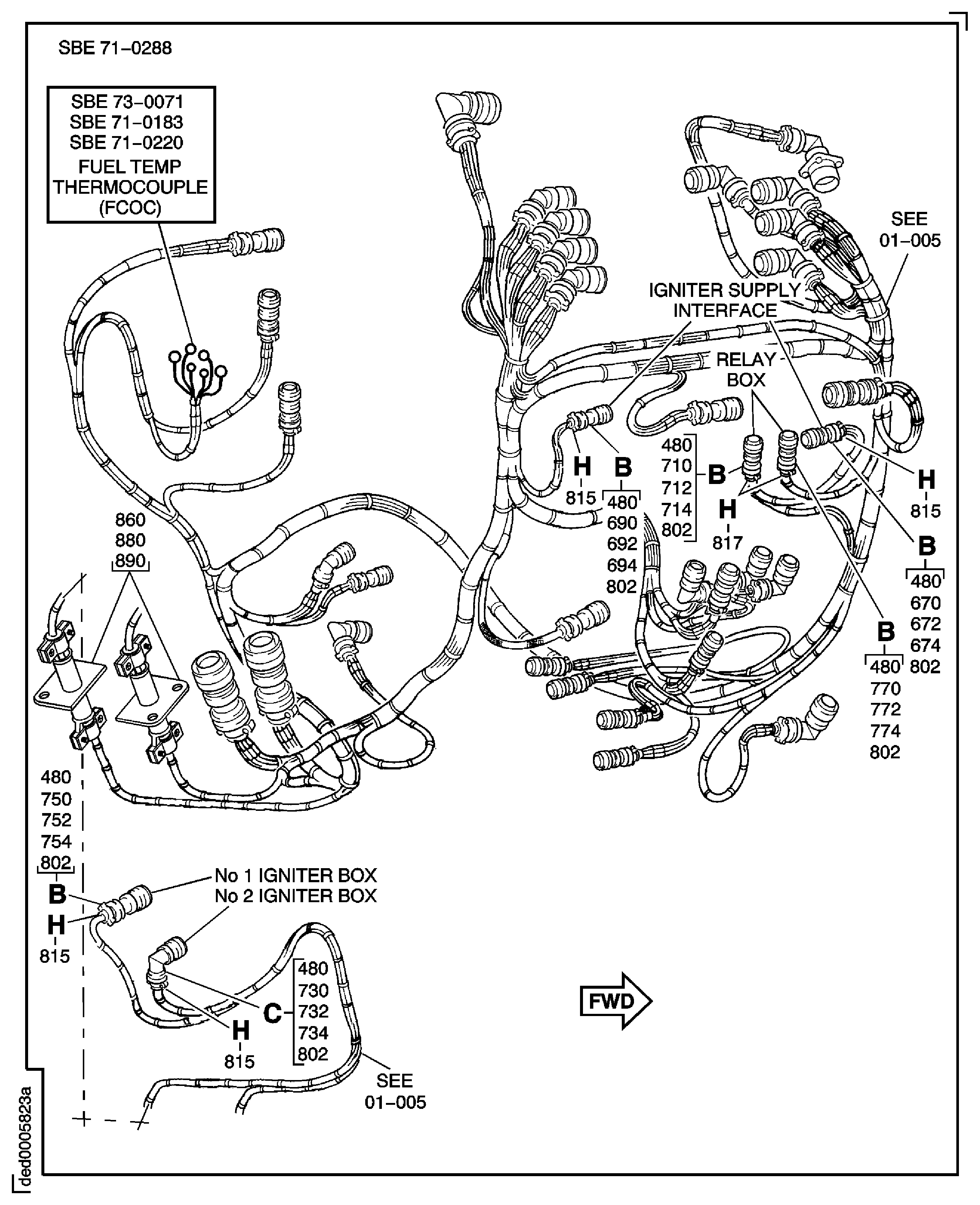

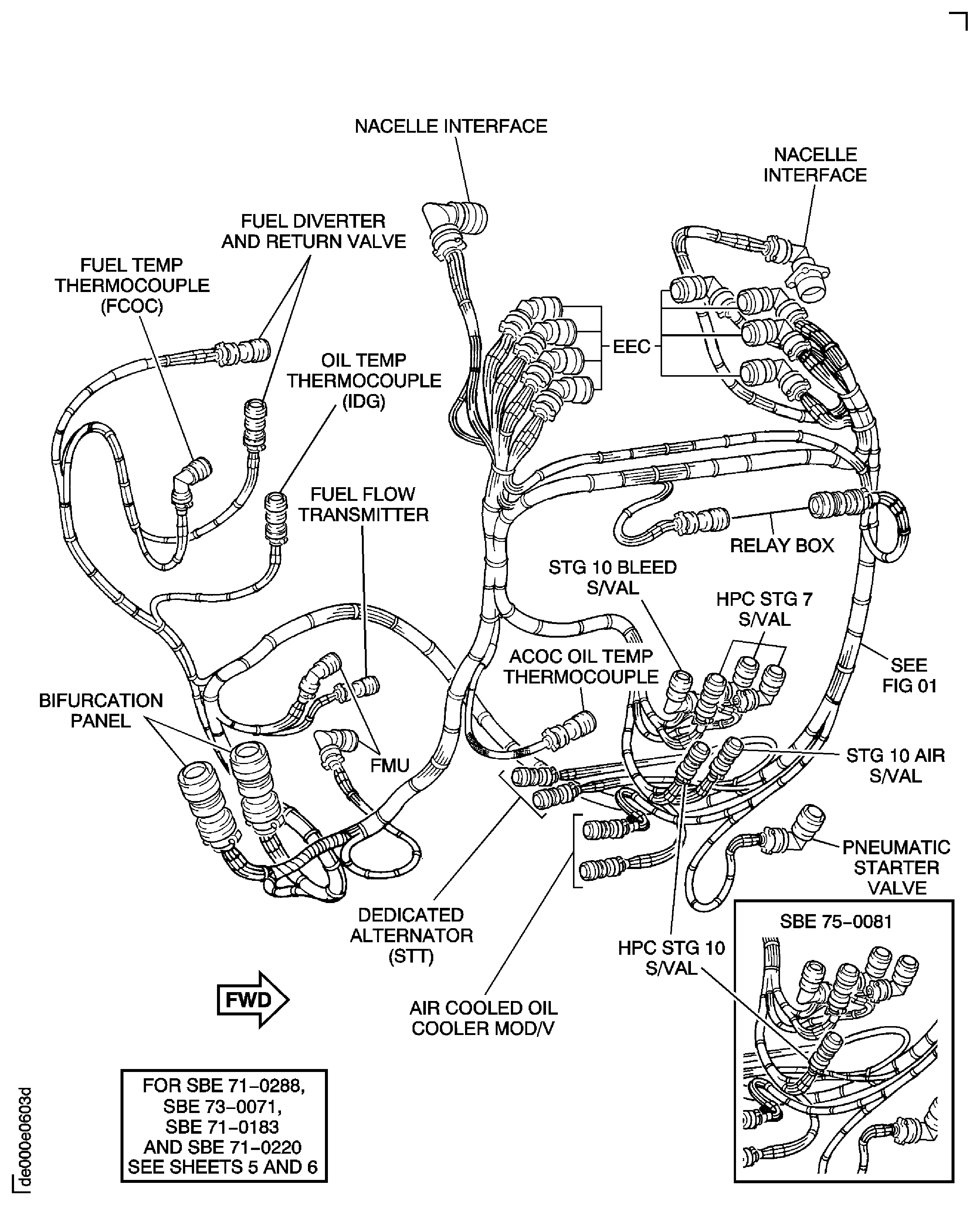

| - | B71514103 | POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE70-0367 | aa | |
| - | SBE0367-01 | POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE73-0071 | ab | |
| - | SBE0071-01 | POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0183 | ac | |
| - | SBE0183-01 | POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE70-0638 | ad | |
| - | SBE0638-01 | POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE70-0642 | ae | |
| - | SBE0642-01 | POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0219 | af | |
| - | SBE0219-01 | POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0220 | ag | |
| - | SBE0220-01 | POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE75-0081 | ah | |
| - | SBE0081-01 | POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE70-0721 | ai | |
| - | SBE0721-01 | POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0288 | aj | |
| - | SBE0288-01 | POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE70-0978 | ak | |
| - | SBE0978-01 | POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE70-0982 | al | |
| - | SBE0982-01 | POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN | am | |

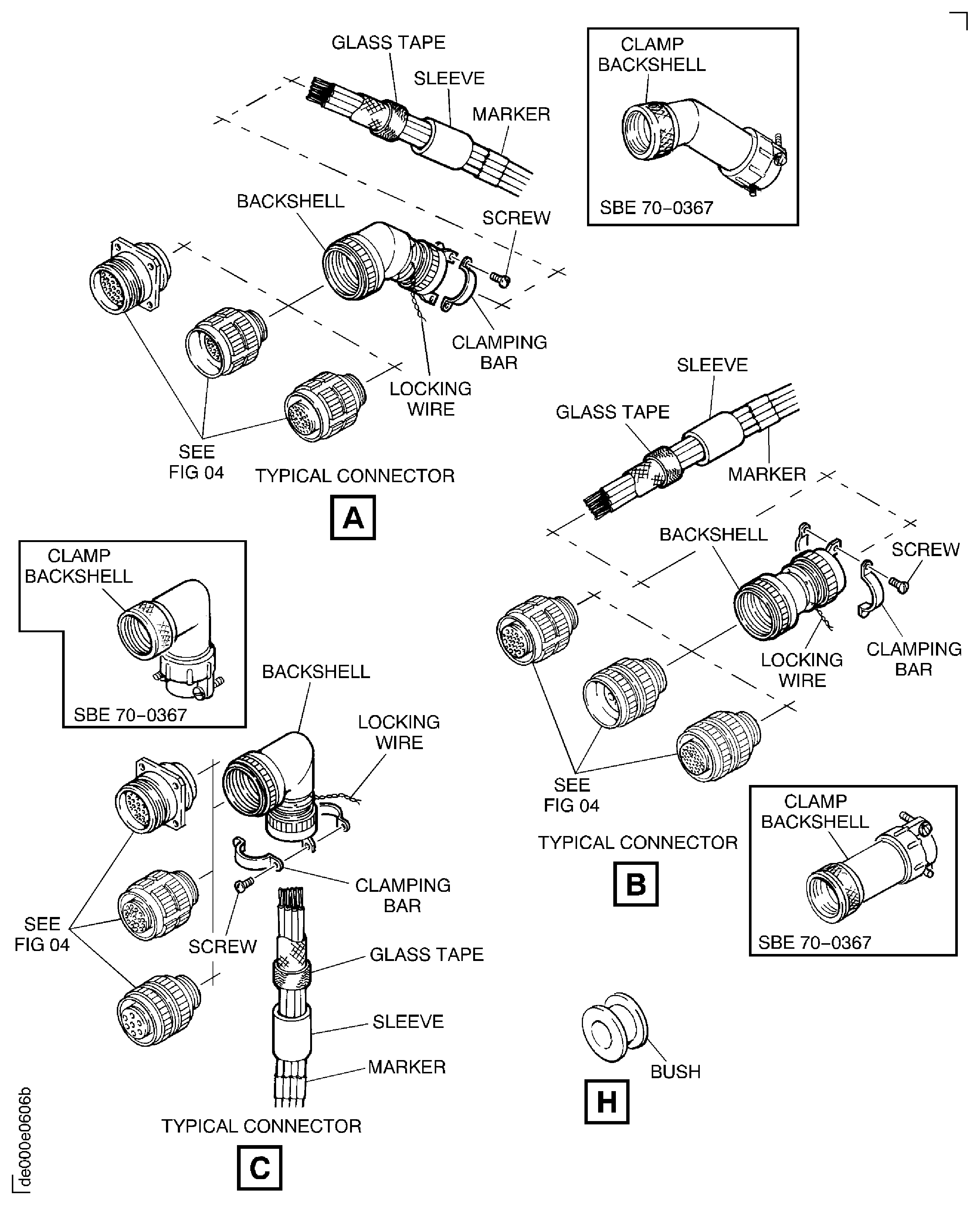

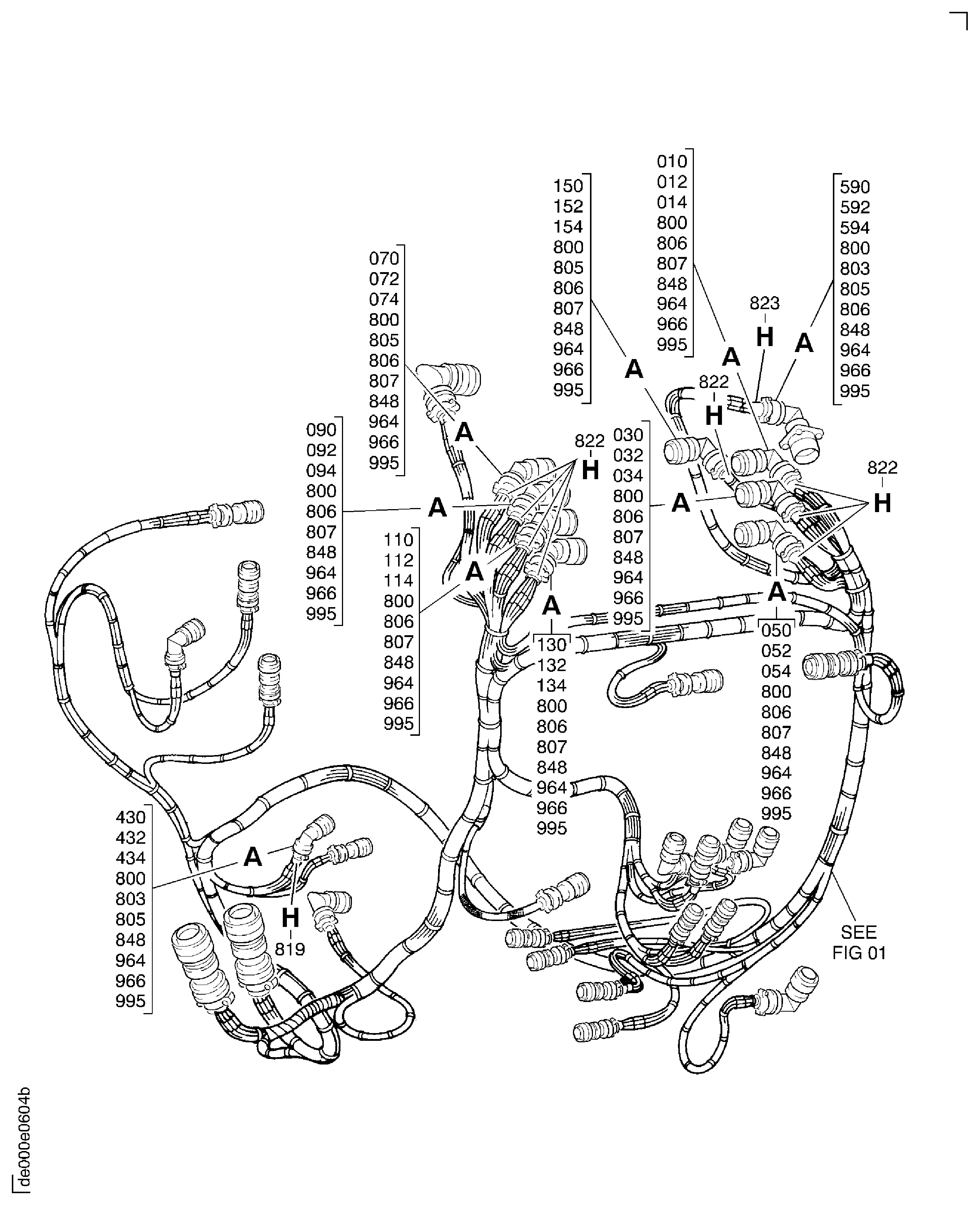

| 010 | 5A9217 | • • CONNECTOR, BACKSHELL, ASSEMBLY PRE SBE70-0367 | aa/01 | 1 |
| 010A | 92H2-21-8JCCAD | • • CLAMP - BACKSHELL ASSY U5792 ALT 388HJ104E21 | aa-am/01 | 1 |
| 010B | 92H2-21-8JCCAD | • • CLAMP - BACKSHELL ASSY U5792 ALT 388HJ104E21 POST SBE70-0367 | ab-am/02 | 1 |
| -010C | 388HJ104E21 | • • CLAMP - BACKSHELL ASSY U0419 ALT 274E21 | aa-am/01 | REF |
| -010D | 388HJ104E21 | • • CLAMP - BACKSHELL ASSY U0419 ALT 274E21 POST SBE70-0367 | ab-am/02 | REF |
| -010E | 274E21 | • • CLAMP - BACKSHELL ASSY U2824 ALT 92H2-21-8JCCAD | aa-am/01 | REF |
| -010F | 274E21 | • • CLAMP - BACKSHELL ASSY U2824 ALT 92H2-21-8JCCAD POST SBE70-0367 | ab-am/02 | REF |
| 012 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 014 | 20-91400-24 | • • • CLAMPING, BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 030 | 5A9217 | • • CONNECTOR, BACKSHELL, ASSEMBLY PRE SBE70-0367 | aa/01 | 1 |
| 030A | 92H2-21-8JCCAD | • • CLAMP - BACKSHELL ASSY U5792 ALT 388HJ104E21 | aa-am/01 | 1 |
| 030B | 92H2-21-8JCCAD | • • CLAMP - BACKSHELL ASSY U5792 ALT 388HJ104E21 POST SBE70-0367 | ab-am/02 | 1 |
| -030C | 388HJ104E21 | • • CLAMP - BACKSHELL ASSY U0419 ALT 274E21 | aa-am/01 | REF |
| -030D | 388HJ104E21 | • • CLAMP - BACKSHELL ASSY U0419 ALT 274E21 POST SBE70-0367 | ab-am/02 | REF |
| -030E | 274E21 | • • CLAMP - BACKSHELL ASSY U2824 ALT 92H2-21-8JCCAD | aa-am/01 | REF |
| -030F | 274E21 | • • CLAMP - BACKSHELL ASSY U2824 ALT 92H2-21-8JCCAD POST SBE70-0367 | ab-am/02 | REF |
| 032 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 034 | 20-91400-24 | • • • CLAMPING, BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 050 | 5A9217 | • • CONNECTOR, BACKSHELL, ASSEMBLY PRE SBE70-0367 | aa/01 | 1 |
| 050A | 92H2-21-8JCCAD | • • CLAMP - BACKSHELL ASSY U5792 ALT 388HJ104E21 | aa-am/01 | 1 |
| 050B | 92H2-21-8JCCAD | • • CLAMP - BACKSHELL ASSY U5792 ALT 388HJ104E21 POST SBE70-0367 | ab-am/02 | 1 |
| -050C | 388HJ104E21 | • • CLAMP - BACKSHELL ASSY U0419 ALT 274E21 | aa-am/01 | REF |
| -050D | 388HJ104E21 | • • CLAMP - BACKSHELL ASSY U0419 ALT 274E21 POST SBE70-0367 | ab-am/02 | REF |
| -050E | 274E21 | • • CLAMP - BACKSHELL ASSY U2824 ALT 92H2-21-8JCCAD | aa-am/01 | REF |
| -050F | 274E21 | • • CLAMP - BACKSHELL ASSY U2824 ALT 92H2-21-8JCCAD POST SBE70-0367 | ab-am/02 | REF |
| 052 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 054 | 20-91400-24 | • • • CLAMPING, BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 070 | 5A9217 | • • CONNECTOR, BACKSHELL, ASSEMBLY PRE SBE70-0367 | aa/01 | 1 |
| 070A | 92H2-21-8JCCAD | • • CLAMP - BACKSHELL ASSY U5792 ALT 388HJ104E21 | aa-am/01 | 1 |
| 070B | 92H2-21-8JCCAD | • • CLAMP - BACKSHELL ASSY U5792 ALT 388HJ104E21 POST SBE70-0367 | ab-am/02 | 1 |
| -070C | 388HJ104E21 | • • CLAMP - BACKSHELL ASSY U0419 ALT 274E21 | aa-am/01 | REF |
| -070D | 388HJ104E21 | • • CLAMP - BACKSHELL ASSY U0419 ALT 274E21 POST SBE70-0367 | ab-am/02 | REF |
| -070E | 274E21 | • • CLAMP - BACKSHELL ASSY U2824 ALT 92H2-21-8JCCAD | aa-am/01 | REF |
| -070F | 274E21 | • • CLAMP - BACKSHELL ASSY U2824 ALT 92H2-21-8JCCAD POST SBE70-0367 | ab-am/02 | REF |
| 072 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 074 | 20-91400-24 | • • • CLAMPING, BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 090 | 5A9217 | • • CONNECTOR, BACKSHELL, ASSEMBLY PRE SBE70-0367 | aa/01 | 1 |
| 090A | 92H2-21-8JCCAD | • • CLAMP - BACKSHELL ASSY U5792 ALT 388HJ104E21 | aa-am/01 | 1 |
| 090B | 92H2-21-8JCCAD | • • CLAMP - BACKSHELL ASSY U5792 ALT 388HJ104E21 POST SBE70-0367 | ab-am/02 | 1 |
| -090C | 388HJ104E21 | • • CLAMP - BACKSHELL ASSY U0419 ALT 274E21 | aa-am/01 | REF |
| -090D | 388HJ104E21 | • • CLAMP - BACKSHELL ASSY U0419 ALT 274E21 POST SBE70-0367 | ab-am/02 | REF |
| -090E | 274E21 | • • CLAMP - BACKSHELL ASSY U2824 ALT 92H2-21-8JCCAD | aa-am/01 | REF |
| -090F | 274E21 | • • CLAMP - BACKSHELL ASSY U2824 ALT 92H2-21-8JCCAD POST SBE70-0367 | ab-am/02 | REF |
| 092 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 094 | 20-91400-24 | • • • CLAMPING, BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 110 | 5A9217 | • • CONNECTOR, BACKSHELL, ASSEMBLY PRE SBE70-0367 | aa/01 | 1 |
| 110A | 92H2-21-8JCCAD | • • CLAMP - BACKSHELL ASSY U5792 ALT 388HJ104E21 | aa-am/01 | 1 |
| 110B | 92H2-21-8JCCAD | • • CLAMP - BACKSHELL ASSY U5792 ALT 388HJ104E21 POST SBE70-0367 | ab-am/02 | 1 |
| -110C | 388HJ104E21 | • • CLAMP - BACKSHELL ASSY U0419 ALT 274E21 | aa-am/01 | REF |
| -110D | 388HJ104E21 | • • CLAMP - BACKSHELL ASSY U0419 ALT 274E21 POST SBE70-0367 | ab-am/02 | REF |
| -110E | 274E21 | • • CLAMP - BACKSHELL ASSY U2824 ALT 92H2-21-8JCCAD | aa-am/01 | REF |
| -110F | 274E21 | • • CLAMP - BACKSHELL ASSY U2824 ALT 92H2-21-8JCCAD POST SBE70-0367 | ab-am/02 | REF |
| 112 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 114 | 20-91400-24 | • • • CLAMPING, BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 130 | 5A9217 | • • CONNECTOR, BACKSHELL, ASSEMBLY PRE SBE70-0367 | aa/01 | 1 |
| 130A | 92H2-21-8JCCAD | • • CLAMP - BACKSHELL ASSY U5792 ALT 388HJ104E21 | aa-am/01 | 1 |
| -130B | 274E21 | • • CLAMP - BACKSHELL ASSY U2824 ALT 92H2-21-8JCCAD POST SBE70-0367 | ab-am/02 | REF |
| 130C | 92H2-21-8JCCAD | • • CLAMP - BACKSHELL ASSY U5792 ALT 388HJ104E21 POST SBE70-0367 | ab-am/02 | 1 |
| -130D | 388HJ104E21 | • • CLAMP - BACKSHELL ASSY U0419 ALT 274E21 | aa-am/01 | REF |
| -130E | 388HJ104E21 | • • CLAMP - BACKSHELL ASSY U0419 ALT 274E21 POST SBE70-0367 | aa-am/02 | REF |
| -130F | 274E21 | • • CLAMP - BACKSHELL ASSY U2824 ALT 92H2-21-8JCCAD | aa-am/01 | REF |
| 132 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 134 | 20-91400-24 | • • • CLAMPING, BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 150 | 5A9217 | • • CONNECTOR, BACKSHELL, ASSEMBLY PRE SBE70-0367 | aa/01 | 1 |
| 150A | 92H2-21-8JCCAD | • • CLAMP - BACKSHELL ASSY U5792 ALT 388HJ104E21 | aa-am/01 | 1 |
| 150B | 92H2-21-8JCCAD | • • CLAMP - BACKSHELL ASSY U5792 ALT 388HJ104E21 POST SBE70-0367 | ab-am/02 | 1 |
| -150C | 388HJ104E21 | • • CLAMP - BACKSHELL ASSY U0419 ALT 274E21 | aa-am/01 | REF |
| -150D | 388HJ104E21 | • • CLAMP - BACKSHELL ASSY U0419 ALT 274E21 POST SBE70-0367 | ab-am/02 | REF |
| -150E | 274E21 | • • CLAMP - BACKSHELL ASSY U2824 ALT 92H2-21-8JCCAD | aa-am/01 | REF |
| -150F | 274E21 | • • CLAMP - BACKSHELL ASSY U2824 ALT 92H2-21-8JCCAD POST SBE70-0367 | ab-am/02 | REF |
| 152 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 154 | 20-91400-24 | • • • CLAMPING, BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 170 | 5A9224 | • • CONNECTOR, BACKSHELL, ASSEMBLY PRE SBE70-0367 | aa/01 | 1 |
| 170A | 1018876 | • • CLAMP, BACKSHELL, ASSEMBLY ALT 388AS167Z128-07 | aa-am/01 | 1 |
| 170B | 1018876 | • • CLAMP, BACKSHELL, ASSEMBLY ALT 388AS167Z128-07 POST SBE70-0367 | ab-am/02 | 1 |
| -170C | 388AS167Z128-07 | • • CLAMP - BACKSHELL ASSY U0419 ALT 559-1-00388E | aa-am/01 | REF |
| -170D | 388AS167Z128-07 | • • CLAMP - BACKSHELL ASSY U0419 ALT 559-1-00388E POST SBE70-0367 | ab-am/02 | REF |
| -170E | 559-1-00388E | • • CLAMP - BACKSHELL ASSY U2824 ALT 1018876 | aa-am/01 | REF |
| -170F | 559-1-00388E | • • CLAMP - BACKSHELL ASSY U2824 ALT 1018876 POST SBE70-0367 | ab-am/02 | REF |
| 172 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 174 | 20-91400-24 | • • • CLAMPING, BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 190 | 5A9224 | • • CONNECTOR, BACKSHELL, ASSEMBLY PRE SBE70-0367 | aa/01 | 1 |
| 190A | 1018876 | • • CLAMP, BACKSHELL, ASSEMBLY ALT 559-1-00388E (100P252-28-24-8-J) | aa-am/01 | 1 |
| 190B | 1018876 | • • CLAMP, BACKSHELL, ASSEMBLY ALT 559-1-00388E (100P252-28-24-8-J) POST SBE70-0367 | ab-am/02 | 1 |
| -190C | 388AS167Z128-07 | • • CLAMP - BACKSHELL ASSY U0419 ALT 1018876 | aa-am/01 | REF |
| -190D | 388AS167Z128-07 | • • CLAMP - BACKSHELL ASSY U0419 ALT 1018876 POST SBE70-0367 | ab-am/02 | REF |
| -190E | 559-1-00388E | • • CLAMP - BACKSHELL ASSY U2824 ALT 388AS167Z128-07 | aa-am/01 | REF |
| -190F | 559-1-00388E | • • CLAMP - BACKSHELL ASSY U2824 ALT 388AS167Z128-07 POST SBE70-0367 | ab-am/02 | REF |
| 192 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 194 | 20-91400-24 | • • • CLAMPING, BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |

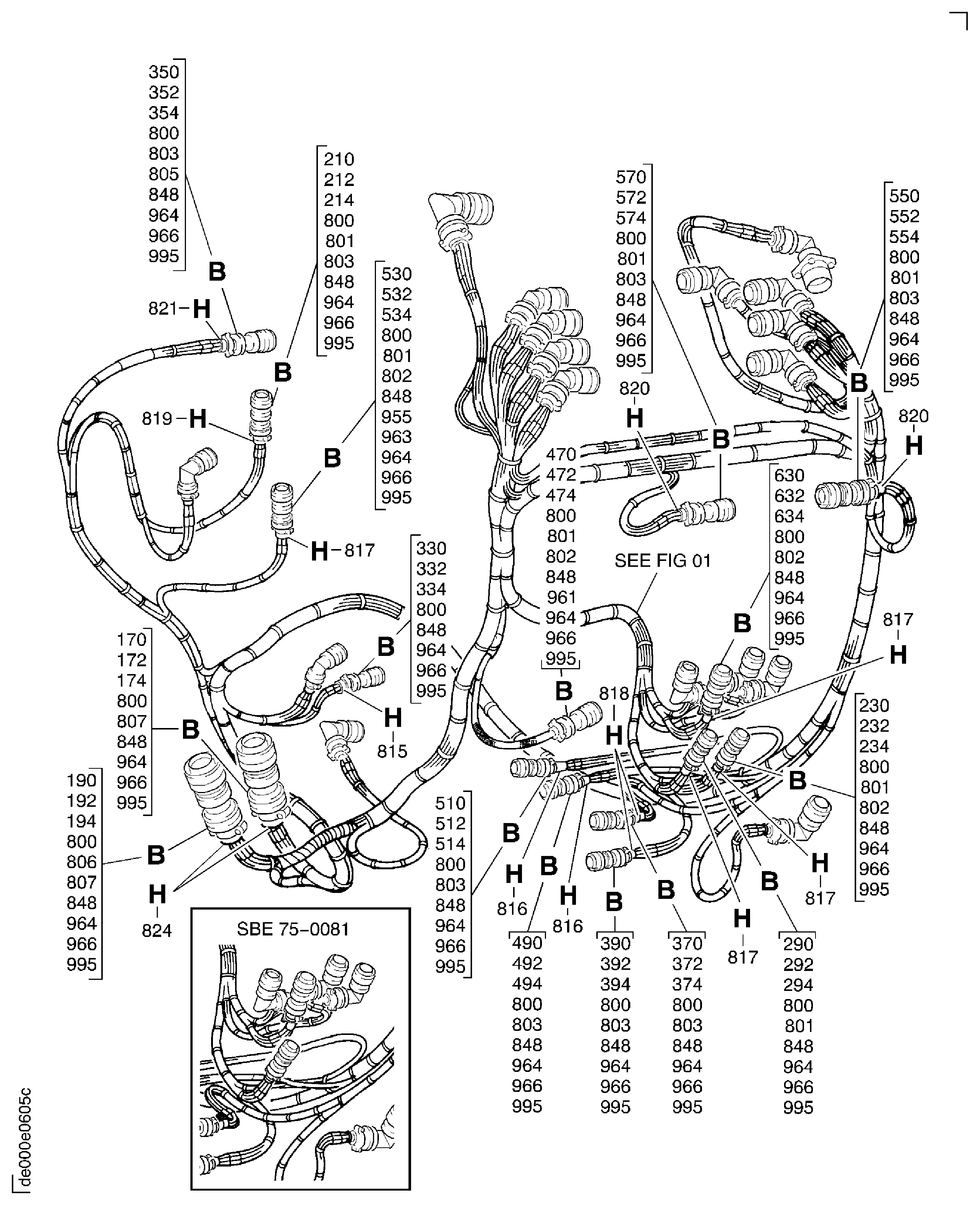

| 210 | 5A9227 | • • CONNECTOR, BACKSHELL, ASSEMBLY PRE SBE70-0367 | aa/01 | 1 |
| 210A | 388HS104E15 | • • CLAMP - BACKSHELL ASSY U0419 ALT 272E15 | aa-am/01 | 1 |
| 210B | 388HS104E15 | • • CLAMP - BACKSHELL ASSY U0419 ALT 272E15 POST SBE70-0367 | ab-am/02 | 1 |
| -210C | 272E15 | • • CLAMP - BACKSHELL ASSY U2824 ALT 92H1-15-8JCCAD | aa-am/01 | REF |
| -210D | 272E15 | • • CLAMP - BACKSHELL ASSY U2824 ALT 92H1-15-8JCCAD POST SBE70-0367 | ab-am/02 | REF |
| -210E | 92H1-15-8JCCAD | • • CLAMP - BACKSHELL ASSY U5792 ALT 388HS104E15 | aa-am/01 | REF |
| -210F | 92H1-15-8JCCAD | • • CLAMP - BACKSHELL ASSY U5792 ALT 388HS104E15 POST SBE70-0367 | ab-am/02 | REF |
| 212 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 214 | 20-91400-12 | • • • CLAMPING - BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 230 | 5A9221 | • • BACKSHELL, ASSEMBLY PRE SBE70-0367 | aa/01 | 1 |
| 230A | ESC65E14 | • • CLAMP - BACKSHELL PRE SBE75-0081 | aa-ah/01 | 1 |
| 230B | ESC65E14 | • • CLAMP - BACKSHELL POST SBE70-0367 PRE SBE75-0081 | ab-ah/02 | 1 |
| 232 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 234 | 20-91400-10 | • • • CLAMPING, BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |

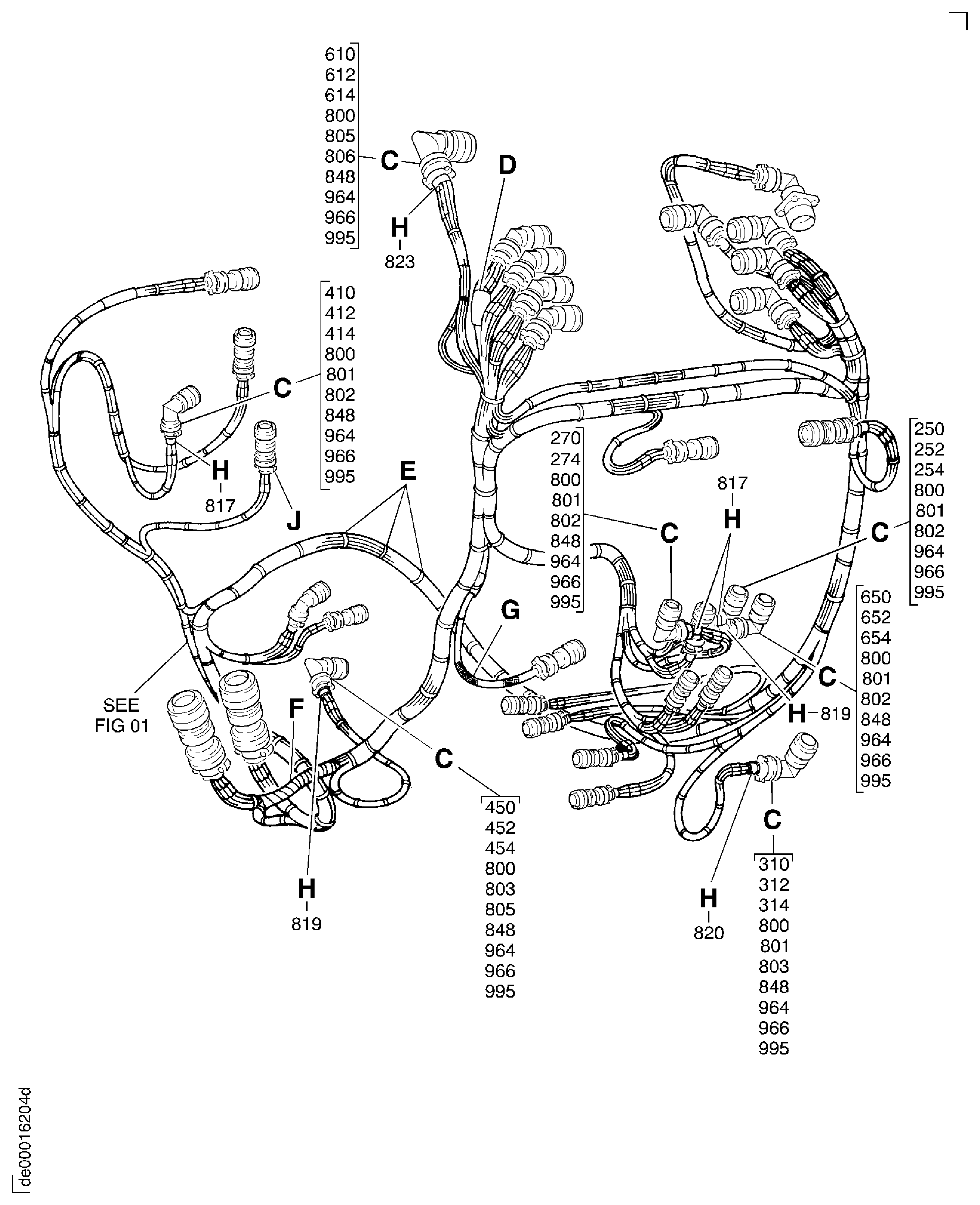

| 250 | 5A9230 | • • BACKSHELL, ASSEMBLY PRE SBE70-0367 | aa/01 | 1 |
| 250A | ESC66E14 | • • CLAMP - BACKSHELL POST SBE70-0367 | ab-am/01 | 1 |
| 250B | ESC66E14 | • • CLAMP - BACKSHELL | aa-am/02 | 1 |
| 252 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 254 | 20-91400-10 | • • • CLAMPING, BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 270 | 5A9230 | • • BACKSHELL, ASSEMBLY PRE SBE70-0367 | aa/01 | 1 |
| 270A | ESC66E14 | • • CLAMP - BACKSHELL POST SBE70-0367 | ab-am/01 | 1 |
| 270B | ESC66E14 | • • CLAMP - BACKSHELL | aa-am/02 | 1 |
| 272 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 274 | 20-91400-10 | • • • CLAMPING, BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 290 | 5A9221 | • • BACKSHELL, ASSEMBLY PRE SBE70-0367 | aa/01 | 1 |
| 290A | ESC65E14 | • • CLAMP - BACKSHELL POST SBE70-0367 | ab-am/01 | 1 |
| 290B | ESC65E14 | • • CLAMP - BACKSHELL | aa-am/02 | 1 |
| 292 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 294 | 20-91400-10 | • • • CLAMPING, BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 310 | 5A9231 | • • CONNECTOR, BACKSHELL, ASSEMBLY PRE SBE70-0367 | aa/01 | 1 |
| 310A | ESC66E16 | • • CLAMP, BACKSHELL POST SBE70-0367 | ab-am/01 | 1 |
| 310B | ESC66E16 | • • CLAMP, BACKSHELL POST SBE70-0367 PRE SBE70-0978 | ab-ak/02 | 1 |
| 310C | ESC66E16 | • • CLAMP, BACKSHELL POST SBE70-0978 | al-am/03 | 1 |
| 310D | RRGC3-16-8J | • • CLAMP, BACKSHELL U5792 POST SBE70-0978 | al-am/03 | 1 |
| 310E | ESC66E16 | • • CLAMP, BACKSHELL | aa-am/03 | 1 |
| 312 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 314 | 20-91400-12 | • • • CLAMPING - BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 330 | 5A9220 | • • BACKSHLL - ASSY PRE SBE70-0367 | aa/01 | 1 |
| 330A | ESC65E12 | • • CLAMP - BACKSHELL POST SBE70-0367 | ab-am/01 | 1 |
| 330B | ESC65E12 | • • CLAMP - BACKSHELL | aa-am/02 | 1 |
| 332 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 334 | 20-91400-8 | • • • CLAMPING - BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 350 | 5A9228 | • • CONNECTOR, BACKSHELL, ASSEMBLY PRE SBE70-0367 | aa/01 | 1 |
| 350A | 92H1-17-8JCCAD | • • CLAMP - BACKSHELL ASSY U5792 ALT 388HS104E17 | aa-am/01 | 1 |
| 350B | 92H1-17-8JCCAD | • • CLAMP - BACKSHELL ASSY U5792 ALT 388HS104E17 POST SBE70-0367 | ab-am/02 | 1 |
| -350C | 388HS104E17 | • • CLAMP - BACKSHELL ASSY U0419 ALT 272E17 | aa-am/01 | REF |
| -350D | 388HS104E17 | • • CLAMP - BACKSHELL ASSY U0419 ALT 272E17 POST SBE70-0367 | ab-am/02 | REF |
| -350E | 272E17 | • • CLAMP - BACKSHELL ASSY U2824 ALT 92H1-17-8JCCAD | aa-am/01 | REF |
| -350F | 272E17 | • • CLAMP - BACKSHELL ASSY U2824 ALT 92H1-17-8JCCAD POST SBE70-0367 | ab-am/02 | REF |
| 352 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 354 | 20-91400-16 | • • • CLAMPING, BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 370 | 5A9222 | • • BACKSHLL - ASSY PRE SBE70-0367 | aa/01 | 1 |
| 370A | ESC65E14 | • • CLAMP - BACKSHELL POST SBE70-0367 | ab-am/01 | 1 |
| 370B | ESC65E14 | • • CLAMP - BACKSHELL | aa-am/02 | 1 |
| 372 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 PRE SBE70-0367 | aa/01 | 2 |
| 374 | 20-91400-12 | • • • CLAMPING - BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 390 | 5A9222 | • • BACKSHLL - ASSY | aa/01 | 1 |
| 390A | ESC65E14 | • • CLAMP - BACKSHELL POST SBE70-0367 | ab-am/01 | 1 |
| 390B | ESC65E14 | • • CLAMP - BACKSHELL | aa-am/02 | 1 |
| 392 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 394 | 20-91400-12 | • • • CLAMPING - BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 410 | 5A9230 | • • BACKSHELL, ASSEMBLY PRE SBE70-0367 | aa/01 | 1 |
| 410A | ESC66E14 | • • CLAMP - BACKSHELL | aa-am/01 | 1 |
| 410B | ESC66E14 | • • CLAMP - BACKSHELL POST SBE70-0367 | ab-am/01 | 1 |
| 410C | ESC66E14 | • • CLAMP - BACKSHELL POST SBE70-0367 PRE SBE71-0183 | ab-ac/01 | 1 |
| 412 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 414 | 20-91400-10 | • • • CLAMPING, BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 430 | 5A9218 | • • CONNECTOR, BACKSHELL, ASSEMBLY PRE SBE70-0367 | aa/01 | 1 |
| 430A | 92H2-15-8JCCAD | • • CLAMP - BACK SHELL U5792 ALT 388HJ104E15 | aa-am/01 | 1 |
| 430B | 92H2-15-8JCCAD | • • CLAMP - BACK SHELL U5792 ALT 388HJ104E15 POST SBE70-0367 | ab-am/02 | 1 |
| -430C | 388HJ104E15 | • • CLAMP, BACKSHELL U0419 ALT 274E15 | aa-am/01 | REF |
| -430D | 388HJ104E15 | • • CLAMP, BACKSHELL U0419 ALT 274E15 POST SBE70-0367 | ab-am/02 | REF |
| -430E | 274E15 | • • CLAMP - BACKSHELL U2824 ALT 92H2-15-8JCCAD | aa-am/01 | REF |
| -430F | 274E15 | • • CLAMP - BACKSHELL U2824 ALT 92H2-15-8JCCAD POST SBE70-0367 | ab-am/02 | REF |
| 432 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 434 | 20-91400-16 | • • • CLAMPING, BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 450 | 5A9235 | • • CONNECTOR, BACKSHELL, ASSEMBLY PRE SBE70-0367 | aa/01 | 1 |
| 450A | 92H3-15-8JCCAD | • • CLAMP - BACK SHELL U5792 ALT 388HH104E15 PRE SBE70-0978 | aa-ak/01 | 1 |
| 450B | 92H3-15-8JCCAD | • • CLAMP - BACK SHELL U5792 ALT 388HH104E15 POST SBE70-0367 PRE SBE70-0978 | ab-ak/02 | 1 |
| 450C | 92H3-15-8JCCAD | • • CLAMP - BACK SHELL U5792 ALT 388HH104E15 POST SBE70-0367 | ab-am/03 | 1 |
| 450D | 92H3-15-8JCCAD | • • CLAMP - BACK SHELL U5792 ALT 388HH104E15 | aa-am/03 | 1 |
| -450E | 388HH104E15 | • • CLAMP, BACKSHELL U0419 ALT 273E15 PRE SBE70-0978 | aa-ak/01 | REF |
| -450F | 388HH104E15 | • • CLAMP, BACKSHELL U0419 ALT 273E15 POST SBE70-0367 PRE SBE70-0978 | ab-ak/02 | REF |
| -450G | 388HH104E15 | • • CLAMP, BACKSHELL U0419 ALT 273E15 POST SBE70-0367 | ab-am/03 | REF |
| -450H | 388HH104E15 | • • CLAMP, BACKSHELL U0419 ALT 273E15 | aa-am/03 | 1 |
| -450I | 273E15 | • • CLAMP - BACKSHELL U2824 ALT 92H3-15-8JCCAD PRE SBE70-0978 | aa-ak/01 | REF |
| -450J | 273E15 | • • CLAMP - BACKSHELL U2824 ALT 388HH104E15 POST SBE70-0367 PRE SBE70-0978 | ab-ak/02 | REF |
| -450K | 273E15 | • • CLAMP - BACKSHELL U2824 ALT 388HH104E15 POST SBE70-0367 | ab-am/03 | REF |
| -450L | 273E15 | • • CLAMP - BACKSHELL U2824 ALT 92H3-15-8JCCAD | aa-am/03 | REF |
| -450M | 92H3-15-8JCCAD | • • CLAMP - BACK SHELL U5792 POST SBE70-0978 | al-am/03 | REF |
| 450N | 388HH104E15 | • • CLAMP, BACKSHELL U0419 ALT 273E15 POST SBE70-0978 | al-am/03 | 1 |
| 450O | 273E15 | • • CLAMP - BACKSHELL U2824 ALT RRGH3-15-8J POST SBE70-0978 | al-am/03 | 1 |
| 450P | RRGH3-15-8J | • • CLAMP, BACKSHELL U5792 ALT 92H3-15-8JCCAD POST SBE70-0978 | al-am/03 | 1 |
| 452 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 454 | 20-91400-16 | • • • CLAMPING, BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 470 | 5A9221 | • • BACKSHELL, ASSEMBLY PRE SBE70-0367 | aa/01 | 1 |
| 470A | ESC65E14 | • • CLAMP - BACKSHELL POST SBE70-0367 | ab-am/01 | 1 |
| 470B | ESC65E14 | • • CLAMP - BACKSHELL | aa-am/02 | 1 |
| 472 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 474 | 20-91400-10 | • • • CLAMPING, BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 490 | 5A9226 | • • CONNECTOR, BACKSHELL, ASSEMBLY PRE SBE70-0367 | aa/01 | 1 |
| 490A | 92H1-13-8JCCAD | • • CLAMP - BACKSHELL ASSY U5792 ALT 388HS104E13 PRE SBE71-0220 | aa-ag/01 | 1 |
| 490B | 92H1-13-8JCCAD | • • CLAMP - BACKSHELL ASSY U5792 ALT 388HS104E13 POST SBE70-0367 PRE SBE71-0220 | ab-ag/02 | 1 |
| -490C | 388HS104E13 | • • CLAMP - BACKSHELL ASSY U0419 ALT 272E13 PRE SBE71-0220 | aa-ag/01 | REF |
| -490D | 388HS104E13 | • • CLAMP - BACKSHELL ASSY U0419 ALT 272E13 POST SBE70-0367 PRE SBE71-0220 | ab-ag/02 | REF |
| -490E | 272E13 | • • CLAMP - BACKSHELL ASSY U2824 ALT 92H1-13-8JCCAD PRE SBE71-0220 | aa-ag/01 | REF |
| -490F | 272E13 | • • CLAMP - BACKSHELL ASSY U2824 ALT 92H1-13-8JCCAD POST SBE70-0367 PRE SBE71-0220 | ab-ag/02 | REF |
| 490G | ESC65E12 | • • CLAMP - BACKSHELL POST SBE71-0219 | ag-am/03 | 1 |
| 492 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 494 | 20-91400-12 | • • • CLAMPING - BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 510 | 5A9226 | • • CONNECTOR, BACKSHELL, ASSEMBLY PRE SBE70-0367 | aa/01 | 1 |
| 510A | 92H1-13-8JCCAD | • • CLAMP - BACKSHELL ASSY U5792 ALT 272E13 PRE SBE71-0220 | aa-ag/01 | 1 |
| 510B | 92H1-13-8JCCAD | • • CLAMP - BACKSHELL ASSY U5792 ALT 272E13 POST SBE70-0367 PRE SBE71-0220 | ab-ag/02 | 1 |
| -510C | 388HS104E13 | • • CLAMP - BACKSHELL ASSY U0419 ALT 92H1-13-8JCCAD PRE SBE71-0220 | aa-ag/01 | REF |
| -510D | 388HS104E13 | • • CLAMP - BACKSHELL ASSY U0419 ALT 92H1-13-8JCCAD POST SBE70-0367 PRE SBE71-0220 | ab-ag/02 | REF |
| -510E | 272E13 | • • CLAMP - BACKSHELL ASSY U2824 ALT 388HS104E13 | aa-am/01 | REF |
| -510F | 272E13 | • • CLAMP - BACKSHELL ASSY U2824 ALT 388HS104E13 POST SBE70-0367 PRE SBE70-0367 | ****/02 | REF |
| 510G | ESC65E12 | • • CLAMP - BACKSHELL POST SBE71-0219 | ag-am/03 | 1 |
| 512 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 514 | 20-91400-12 | • • • CLAMPING - BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 530 | 5A9221 | • • BACKSHELL, ASSEMBLY PRE SBE70-0367 | aa/01 | 1 |
| 530A | ESC65E14 | • • CLAMP - BACKSHELL POST SBE70-0367 | ab-am/01 | 1 |
| 530B | ESC65E14 | • • CLAMP - BACKSHELL | aa-am/02 | 1 |
| 532 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 534 | 20-91400-10 | • • • CLAMPING, BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 550 | 5A9301 | • • CONNECTOR, BACKSHELL, ASSEMBLY PRE SBE70-0367 | aa/01 | 1 |
| 550A | ESC65E16 | • • CLAMP - BACKSHELL POST SBE70-0367 | ab-am/01 | 1 |
| 550B | ESC65E16 | • • CLAMP - BACKSHELL | aa-am/02 | 1 |
| 552 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 554 | 20-91400-12 | • • • CLAMPING - BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 570 | 5A9301 | • • CONNECTOR, BACKSHELL, ASSEMBLY PRE SBE70-0367 | aa/01 | 1 |
| 570A | ESC65E16 | • • CLAMP - BACKSHELL POST SBE70-0367 | ab-am/01 | 1 |
| 570B | ESC65E16 | • • CLAMP - BACKSHELL | aa-am/02 | 1 |
| 572 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 574 | 20-91400-12 | • • • CLAMPING - BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 590 | 5A9219 | • • BACKSHELL, ASSEMBLY PRE SBE70-0367 | aa/01 | 1 |
| 590A | ESC67E24 | • • CLAMP, BACKSHELL POST SBE70-0367 | ab-am/01 | 1 |
| 590B | ESC67E24 | • • CLAMP, BACKSHELL | aa-am/02 | 1 |
| 592 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 594 | 20-91400-20 | • • • CLAMPING, BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 610 | 5A9233 | • • CONNECTOR, BACKSHELL, ASSEMBLY PRE SBE70-0367 | aa/01 | 1 |
| 610A | ESC66E24 | • • CLAMP, BACKSHELL POST SBE70-0367 | ab-am/01 | 1 |
| 610B | ESC66E24 | • • CLAMP, BACKSHELL | aa-am/02 | 1 |
| 612 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 614 | 20-91400-22 | • • • CLAMPING, BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 630 | 5A9221 | • • BACKSHELL, ASSEMBLY PRE SBE70-0367 | aa/01 | 1 |
| 630A | ESC65E14 | • • CLAMP - BACKSHELL POST SBE70-0367 | ab-am/01 | 1 |
| 630B | ESC65E14 | • • CLAMP - BACKSHELL | aa-am/02 | 1 |
| 632 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 634 | 20-91400-10 | • • • CLAMPING, BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 650 | 5A9230 | • • BACKSHELL, ASSEMBLY PRE SBE70-0367 | aa/01 | 1 |
| 650A | ESC66E14 | • • CLAMP - BACKSHELL POST SBE70-0367 | ab-am/01 | 1 |
| 650B | ESC66E14 | • • CLAMP - BACKSHELL | aa-am/02 | 1 |
| 652 | 20-91460-608 | • • • SCREW 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 654 | 20-91400-10 | • • • CLAMPING, BAR 0ABG9 PRE SBE70-0367 | aa/01 | 2 |
| 670 | ESC65E12 | • • CLAMP - BACKSHELL POST SBE71-0288 | ak-am/03 | 1 |
| 672 | 20-91460-608 | • • • SCREW 0ABG9 POST SBE71-0288 | ak-am/03 | 2 |
| 674 | 20-91400-8 | • • • CLAMPING - BAR 0ABG9 POST SBE71-0288 | ak-am/03 | 2 |
| 690 | ESC65E12 | • • CLAMP - BACKSHELL POST SBE71-0288 | ak-am/03 | 1 |
| 692 | 20-91460-608 | • • • SCREW 0ABG9 POST SBE71-0288 | ak-am/03 | 2 |
| 694 | 20-91400-8 | • • • CLAMPING - BAR 0ABG9 POST SBE71-0288 | ak-am/03 | 2 |
| 710 | ESC65E14 | • • CLAMP - BACKSHELL POST SBE71-0288 | ak-am/03 | 1 |
| 712 | 20-91460-608 | • • • SCREW 0ABG9 POST SBE71-0288 | ak-am/03 | 2 |
| 714 | 20-91400-12 | • • • CLAMPING - BAR 0ABG9 POST SBE71-0288 | ak-am/03 | 2 |
| 730 | ESC66E12 | • • CLAMP - BACKSHELL POST SBE71-0288 | ak-am/03 | 1 |
| 732 | 20-91460-608 | • • • SCREW 0ABG9 POST SBE71-0288 | ak-am/03 | 2 |
| 734 | 20-91400-8 | • • • CLAMPING - BAR 0ABG9 POST SBE71-0288 | ak-am/03 | 2 |
| 742 | 2A1442 | • • SEPERATOR POST SBE71-0220 | ak-am/03 | 2 |
| 743 | 2A1443 | • • SLEEVE POST SBE71-0220 | ak-am/03 | 8 |
| 750 | ESC65E12 | • • CLAMP - BACKSHELL POST SBE71-0288 | ak-am/03 | 1 |
| 752 | 20-91460-608 | • • • SCREW 0ABG9 POST SBE71-0288 | ak-am/03 | 2 |
| 754 | 20-91400-8 | • • • CLAMPING - BAR 0ABG9 POST SBE71-0288 | ak-am/03 | 2 |
| 770 | ESC65E14 | • • CLAMP - BACKSHELL POST SBE71-0288 | ak-am/03 | 1 |
| 772 | 20-91460-608 | • • • SCREW 0ABG9 POST SBE71-0288 | ak-am/03 | 2 |
| 774 | 20-91400-12 | • • • CLAMPING - BAR 0ABG9 POST SBE71-0288 | ak-am/03 | 2 |
| 800 | RT1146-3-8 | • • TUBING - HEAT SHRINKABLE, SIZE 3/8" DIA. K1010 PRE SBE70-0367 | aa/01 | 1 |
| 800A | U323943 | • • SLEEVING - .375 DIA ALT HS095WE POST SBE70-0367 PRE SBE70-0982 | ab-al/01 | 1 |
| 800B | U323943 | • • SLEEVING - .375 DIA ALT HS095WE PRE SBE70-0982 | aa-al/02 | 1 |
| 800C | U323943 | • • SLEEVING - .375 DIA POST SBE70-0982 | am/03 | 1 |
| -800D | HS095WE | • • SLEEVE - IDENT WHITE K1860 ALT HS095WE POST SBE70-0367 PRE SBE70-0982 | ab-al/01 | REF |
| -800E | HS095WE | • • SLEEVE - IDENT WHITE K1860 ALT U323943 PRE SBE70-0982 | am/02 | REF |
| -800F | TMSSCE3-8-2-0-9 | • • SLEEVE - IDENT K1010 ALT U323943 POST SBE70-0982 | am/03 | REF |
| 801 | RT1146-1-2 | • • TUBING - HEAT SHRINKABLE, SIZE 1/2" DIA. K1010 PRE SBE70-0367 | aa/01 | 1 |
| 801A | U323944 | • • SLEEVING - WHITE-CONNECTOR ID, .500 DIA ALT HS127WE PRE SBE70-0982 | aa-al/01 | 1 |
| 801B | U323944 | • • SLEEVING - WHITE-CONNECTOR ID, .500 DIA ALT HS127WE POST SBE70-0367 PRE SBE70-0982 | ab-al/02 | 1 |
| 801C | U323944 | • • SLEEVING - WHITE-CONNECTOR ID, .500 DIA POST SBE70-0982 | am/03 | 1 |
| -801D | HS127WE | • • SLEEVE - IDENT WHITE CONNECTO K1860 ALT TMSSCE1-2-2-0-9 PRE SBE70-0982 | aa-al/01 | REF |
| -801E | HS127WE | • • SLEEVE - IDENT WHITE CONNECTO K1860 ALT HS127WE POST SBE70-0367 PRE SBE70-0982 | ab-al/02 | REF |
| -801F | HS127WE | • • SLEEVE - IDENT WHITE CONNECTO K1860 ALT U323944 POST SBE70-0982 | am/03 | REF |
| -801G | TMSSCE1-2-2-0-9 | • • SLEEVE - SHRINK, WHITE - 12.70 MM DIA K1010 ALT U323944 POST SBE70-0982 | am/03 | REF |
| 802 | RT1146-5-8 | • • TUBING - HEAT SHRINKABLE, SIZE 5/8" DIA. K1010 PRE SBE70-0367 | aa/01 | 1 |
| 802A | U323090 | • • SLEEVE - .375 DIA POST SBE70-0982 | am/03 | 1 |
| -802B | HTSCE3-8-2-0-9 | • • SLEEVE - SHRINK K1010 POST SBE70-0982 | am/03 | REF |
| 803 | RT1146-3-4 | • • TUBING - HEAT SHRINKABLE, SIZE 3/4" DIA. K1010 PRE SBE70-0367 | aa/01 | 1 |
| 803A | HS190WE | • • SLEEVE - IDENT WHITE CONNECTOR K1860 ALT U323945 PRE SBE70-0982 | aa-al/03 | 1 |
| 803B | HS190WE | • • SLEEVE - IDENT WHITE CONNECTOR K1860 POST SBE70-0982 | am/03 | 1 |
| -803C | TMSSCE3-4-2-0-9 | • • SLEEVE, SHRINK, WHITE 19.05MM DIA K1010 ALT HS190WE POST SBE70-0982 | am/03 | REF |
| -803D | U323945 | • • SLEEVING, WHITE - CONNECTOR, ID, 0.750 DIA ALT HS190WE POST SBE70-0982 | am/03 | REF |
| 803E | U323945 | • • SLEEVING, WHITE - CONNECTOR, ID, 0.750 DIA ALT U323945 POST SBE70-0367 PRE SBE70-0367 | ****/03 | 1 |
| -803F | U323945 | • • SLEEVING, WHITE - CONNECTOR, ID, 0.750 DIA ALT TMSSCE3-4-2-0-9 | aa-am/03 | REF |
| 804 | U440271 | • • SLEEVE, 30ME,100FT REEL ALT U323940 (BULK STK U323940) POST SBE71-0220 PRE SBE70-0982 | ah-al/03 | 1 |
| -804A | U323940 | • • SLEEVE , .125 DIA, SLEEVING,.125 DIA INDEF ALT U440272 POST SBE71-0220 PRE SBE70-0982 | ah-al/03 | REF |
| 804B | U440272 | • • SLEEVE, 30ME,100FT REEL ALT HS032WE (BULK STK HS032WE) POST SBE71-0220 PRE SBE70-0982 | ah-al/03 | 1 |
| -804C | HS032WE | • • SLEEVE K1860 ALT U323940 POST SBE71-0220 PRE SBE70-0982 | ah-al/03 | REF |
| 804D | TMSSCE1-8-2-0-9 | • • SLEEVE - SHRINK, WHITE 3.18MM DIA POST SBE70-0982 | am/03 | 1 |
| -804E | U323940 | • • SLEEVE , .125 DIA, SLEEVING,.125 DIA INDEF ALT U440271 POST SBE70-0982 | am/03 | REF |
| -804F | HS032WE | • • SLEEVE K1860 POST SBE70-0982 | am/03 | REF |

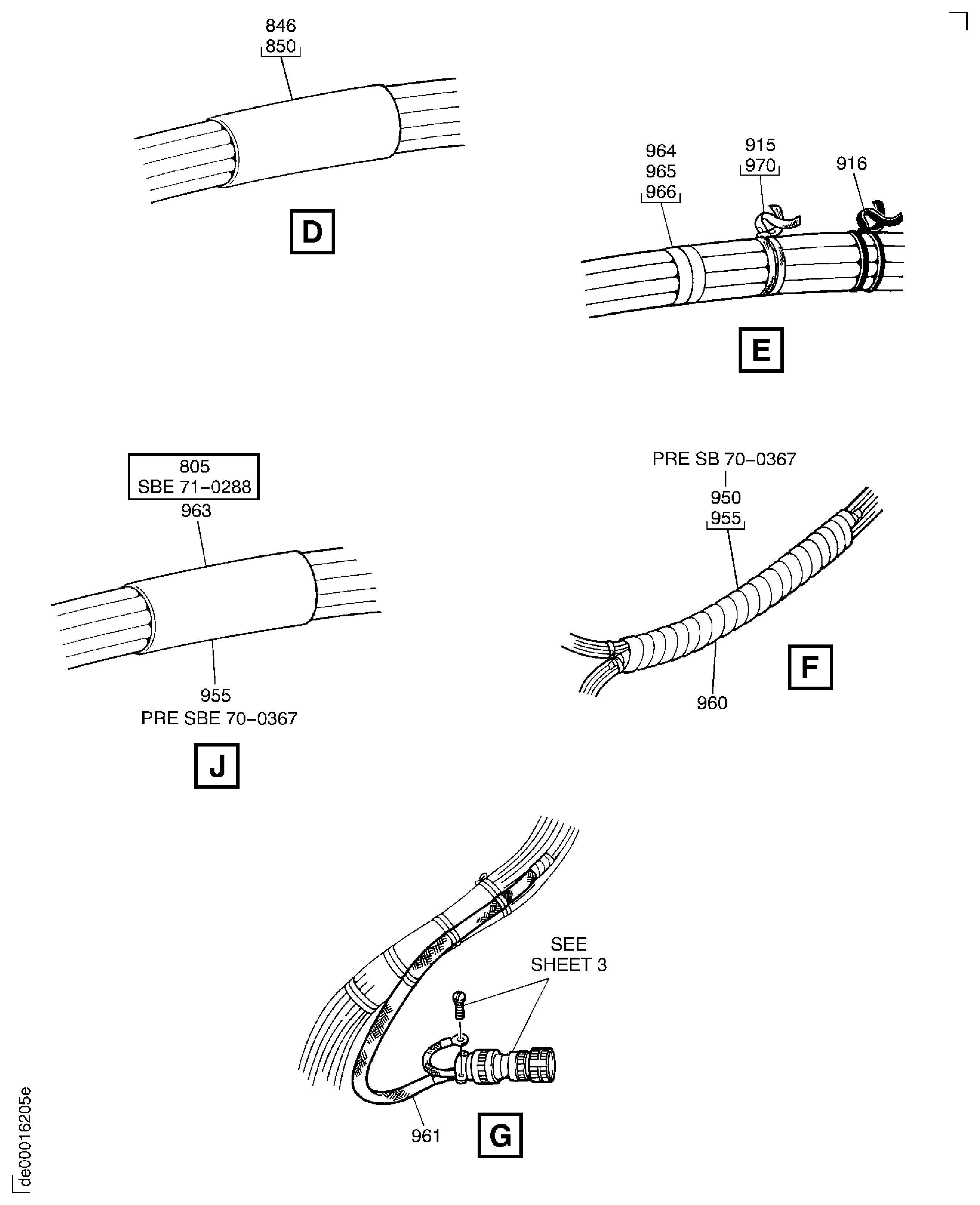

| 805 | RT1146-1 | • • TUBING - HEAT SHRINKABLE, SIZE 1" DIA. K1010 PRE SBE70-0367 | aa/01 | 1 |
| -805A | SVT95 | • • SLEEVE - SHRINK K0720 POST SBE71-0288 | ak-am/03 | REF |
| 806 | RT1146-1-1-4 | • • TUBING - HEAT SHRINKABLE, SIZE 1.1/4" DIA K1010 PRE SBE70-0367 | aa/01 | 1 |
| 807 | RT1146-1-1-2 | • • TUBING - HEAT SHRINKABLE, SIZE 1.1/2" DIA. K1010 PRE SBE70-0367 | aa/01 | 1 |
| 807A | U323097 | • • SLEEVING - COLOUR WHITE CONNE ALT HS381WE PRE SBE70-0982 | aa-al/01 | 1 |
| 807B | U323097 | • • SLEEVING - COLOUR WHITE CONNE ALT HS381WE POST SBE70-0367 PRE SBE70-0982 | ab-al/02 | 1 |
| -807C | HS381WE | • • SLEEVE - IDENT WHITE K1860 ALT TMSSCE1-8-2-0-9 POST SBE70-0367 PRE SBE70-0982 | ab-al/01 | REF |
| -807D | HS381WE | • • SLEEVE - IDENT WHITE K1860 ALT U323097 POST SBE70-0982 | am/02 | REF |
| 807E | U323097 | • • SLEEVING - COLOUR WHITE CONNE POST SBE70-0982 | am/03 | 1 |
| -807F | TMSSCE1-8-2-0-9 | • • SLEEVE - SHRINK, WHITE 3.18MM DIA ALT U323097 POST SBE70-0982 | am/03 | REF |
| 808 | U440052 | • • SLEEVING, 30ME, 100FT REEL ALT TFER1-4X (BLK STK TFER1-4X) POST SBE71-0220 | ah-am/03 | 1 |
| -808A | TFER1-4X | • • SLEEVE, SHRINK, CLEAR - 6,4MM DIA K1010 ALT U440273 POST SBE71-0220 | ah-am/03 | REF |
| 808B | U440273 | • • SLEEVE, 30ME,100FT REEL ALT 3106065 (BLK STK 3106065), SPOE64 POST SBE71-0220 | ah-am/03 | 1 |
| -808C | 3106065 | • • SLEEVE, TRANSLUCENT, SPOE64 ALT U440052 SPOE64 POST SBE71-0220 | ah-am/03 | REF |
| 810 | U440266 | • • SLEEVING, 15ME, 50FT REEL, TFE-R 3/8-X ALT TFER3-8X (BLK STK TFER3-8X), TFE-R 3/8-X POST SBE71-0220 | ah-am/03 | 1 |
| -810A | TFER3-8X | • • SLEEVE, SHRINK, CLEAR - 9.5MM DIA K1010 ALT U440274 POST SBE71-0220 | ah-am/03 | REF |
| 810B | U440274 | • • SLEEVE, 30ME,100FT REEL ALT U324097 (BLK STK U324097) SPOE95 POST SBE71-0220 | ah-am/03 | 1 |
| -810C | U324097 | • • SLEEVING, TRANSLUCENT ALT U440266 SPOE95 POST SBE71-0220 | ah-am/03 | REF |
| 815 | ESC53-25 | • • BUSHING POST SBE70-0367 PRE SBE70-0642 | ab-ae/01 | 1 |
| 815A | ESC53-25 | • • BUSHING PRE SBE70-0642 | aa-ae/02 | 1 |
| 815B | SF11 | • • BUSHING K7823 ALT ESC53-25 POST SBE70-0642 PRE SBE71-0288 | af-aj/03 | 1 |
| 815C | ESC53-25 | • • BUSHING ALT SF11 POST SBE70-0642 PRE SBE70-0642 | ****/03 | 1 |
| 815D | ESC53-25 | • • BUSHING ALT SF11 POST SBE70-0642 | af-am/03 | 1 |
| 815E | SF11 | • • BUSHING K7823 POST SBE71-0288 | ak-am/03 | 5 |
| -815F | ESC53-25 | • • BUSHING POST SBE71-0288 | ak-am/03 | REF |
| 816 | ESC53-27 | • • BUSHING POST SBE70-0367 PRE SBE70-0642 | ab-ae/01 | 2 |
| 816A | ESC53-27 | • • BUSHING PRE SBE70-0642 | aa-ae/02 | 2 |
| 816B | SF13 | • • BUSHING K7823 ALT ESC53-27 POST SBE70-0642 | af-am/03 | 2 |
| 816C | ESC53-27 | • • BUSHING ALT SF13 POST SBE70-0642 | af-am/03 | 2 |
| 817 | ESC53-28 | • • BUSHING POST SBE70-0367 PRE SBE71-0183 | ab-ac/01 | 9 |
| 817A | ESC53-28 | • • BUSHING PRE SBE70-0642 | aa-ae/02 | 8 |
| 817B | ESC53-28 | • • BUSHING POST SBE71-0183 PRE SBE70-0642 | ad-ae/03 | 8 |
| 817C | SF15 | • • BUSHING K7823 ALT ESC53-28 POST SBE70-0642 PRE SBE75-0081 | af-ah/03 | 8 |
| 817D | ESC53-28 | • • BUSHING ALT SF15 POST SBE70-0642 PRE SBE75-0081 | af-ah/03 | 8 |
| 817E | SF15 | • • BUSHING K7823 ALT ESC53-29 POST SBE75-0081 PRE SBE71-0288 | ai-aj/03 | 7 |
| 817F | ESC53-28 | • • BUSHING ALT SF15 POST SBE75-0081 PRE SBE75-0081 | ****/03 | 7 |
| 817G | SF15 | • • BUSHING K7823 ALT ESC53-28 POST SBE71-0288 | ak-am/03 | 9 |
| 817H | ESC53-28 | • • BUSHING ALT SF15 POST SBE71-0288 | ak-am/03 | 9 |
| 818 | ESC53-30 | • • BUSHING POST SBE70-0367 PRE SBE70-0642 | ab-ae/01 | 2 |
| 818A | ESC53-30 | • • BUSHING PRE SBE70-0642 | aa-ae/02 | 2 |
| 818B | SF16 | • • BUSHING K7823 ALT ESC53-30 POST SBE70-0642 | af-am/03 | 2 |
| 818C | ESC53-30 | • • BUSHING ALT SF16 POST SBE70-0642 | af-am/03 | 2 |
| 819 | ESC53-31 | • • BUSHING POST SBE70-0367 PRE SBE70-0642 | ab-ae/01 | 3 |
| 819A | ESC53-31 | • • BUSHING PRE SBE70-0642 | aa-ae/02 | 3 |
| 819B | SF13 | • • BUSHING K7823 ALT ESC53-31 POST SBE70-0642 | af-am/03 | 3 |
| 819C | ESC53-31 | • • BUSHING ALT SF13 POST SBE70-0642 | af-am/03 | 3 |
| 820 | ESC53-32 | • • BUSHING POST SBE70-0367 PRE SBE70-0642 | ab-ae/01 | 3 |
| 820A | ESC53-32 | • • BUSHING PRE SBE70-0642 | aa-ae/02 | 3 |
| 820B | SF56 | • • BUSHING K7823 ALT ESC53-32 POST SBE70-0642 | af-am/03 | 3 |
| 820C | ESC53-32 | • • BUSHING ALT SF56 POST SBE70-0642 | af-am/03 | 3 |
| 821 | ESC53-33 | • • BUSHING POST SBE70-0367 PRE SBE70-0642 | ab-ae/01 | 1 |
| 821A | ESC53-33 | • • BUSHING PRE SBE70-0642 | aa-ae/02 | 1 |
| 821B | SF58 | • • BUSHING K7823 ALT ESC53-33 POST SBE70-0642 | af-am/03 | 1 |
| 821C | ESC53-33 | • • BUSHING ALT SF58 POST SBE70-0642 | af-am/03 | 1 |
| 822 | ESC53-38 | • • BUSHING POST SBE70-0367 PRE SBE70-0642 | ab-ae/01 | 8 |
| 822A | ESC53-38 | • • BUSHING PRE SBE70-0642 | aa-ae/02 | 8 |
| 822B | SF62 | • • BUSHING K7823 ALT ESC53-38 POST SBE70-0642 | af-am/03 | 8 |
| 822C | ESC53-38 | • • BUSHING ALT SF62 POST SBE70-0642 | af-am/03 | 8 |
| 823 | ESC53-39 | • • BUSHING POST SBE70-0367 PRE SBE70-0642 | ab-ae/01 | 2 |
| 823A | ESC53-39 | • • BUSHING PRE SBE70-0642 | aa-ae/02 | 2 |
| 823B | SF24 | • • BUSHING K7823 ALT ESC53-39 POST SBE70-0642 | af-am/03 | 2 |
| 823C | ESC53-39 | • • BUSHING ALT SF24 POST SBE70-0642 | af-am/03 | 2 |
| 824 | ESC53-40 | • • BUSHING POST SBE70-0367 PRE SBE70-0642 | ab-ae/01 | 2 |
| 824A | ESC53-40 | • • BUSHING PRE SBE70-0642 | aa-ae/02 | 2 |
| 824B | SF25 | • • BUSHING K7823 ALT ESC53-40 POST SBE70-0642 | af-am/03 | 2 |
| 824C | ESC53-40 | • • BUSHING ALT SF25 POST SBE70-0642 | af-am/03 | 2 |
| 840 | TMSSCE1-8-2-0-9 | • • SLEEVE - SHRINK, WHITE 3.18MM DIA POST SBE70-0982 | am/03 | 1 |
| -840A | U323097 | • • SLEEVING - COLOUR WHITE CONNE POST SBE70-0982 | am/03 | REF |
| -840B | HS381WE | • • SLEEVE - IDENT WHITE K1860 POST SBE70-0982 | am/03 | REF |
| 846 | 5A9246 | • • MARKER, NAMEPLATE PRE SBE70-0367 | aa/01 | 1 |
| 846A | U323097 | • • SLEEVING - COLOUR WHITE CONNE ALT HS381WE PRE SBE70-0982 | aa-al/01 | 1 |
| 846B | U323097 | • • SLEEVING - COLOUR WHITE CONNE ALT HS381WE POST SBE70-0367 PRE SBE70-0982 | ab-al/02 | 1 |
| 846C | U323097 | • • SLEEVING - COLOUR WHITE CONNE POST SBE70-0982 | am/03 | 1 |
| -846D | HS381WE | • • SLEEVE - IDENT WHITE K1860 ALT HS381WE POST SBE70-0367 PRE SBE70-0982 | ab-al/01 | REF |
| -846E | HS381WE | • • SLEEVE - IDENT WHITE K1860 ALT U323097 POST SBE70-0982 | am/02 | REF |
| -846F | TMSSCE1-8-2-0-9 | • • SLEEVE - SHRINK, WHITE 3.18MM DIA ALT U323097 POST SBE70-0982 | am/03 | REF |
| 848 | 5A9248 | • • MARKER - 3/8 PRE SBE70-0367 | aa/01 | 1 |
| 850 | U323097 | • • SLEEVING - COLOUR WHITE CONNE ALT HS381WE POST SBE70-0367 PRE SBE70-0982 | ab-al/01 | 1 |
| 850A | U323097 | • • SLEEVING - COLOUR WHITE CONNE ALT HS381WE PRE SBE70-0982 | aa-al/02 | 1 |
| 850B | U323097 | • • SLEEVING - COLOUR WHITE CONNE POST SBE70-0982 | am/03 | 1 |
| -850C | HS381WE | • • SLEEVE - IDENT WHITE K1860 ALT HS381WE POST SBE70-0367 PRE SBE70-0982 | ab-al/01 | REF |
| -850D | HS381WE | • • SLEEVE - IDENT WHITE K1860 POST SBE70-0982 | am/02 | REF |
| -850E | TMSSCE1-8-2-0-9 | • • SLEEVE - SHRINK, WHITE 3.18MM DIA ALT U323097 POST SBE70-0982 | am/03 | REF |
| 860 | 6A8285 | • • FIREWALL, CABLE FEEDTHROUGH POST SBE71-0288 | ak-am/03 | 2 |
| 880 | T700-08CCASSY | • • CLAMP, CABLE,ASSY U5792 POST SBE71-0288 | ak-am/03 | 4 |
| 890 | ESC53-23 | • • BUSHING POST SBE71-0288 | ak-am/03 | 4 |
| 915 | 5A9215 | • • TAPE - LACING (WHITE) (WHITE) PRE SBE70-0367 | aa/01 | 1 |
| 915A | 718G | • • TAPE - LACING (SPARE IS U440198) K7F94 (SPARE IS U440198) PRE SBE70-0642 | aa-ae/01 | 1 |
| 915B | 718G | • • TAPE - LACING (SPARE IS U440198) K7F94 (SPARE IS U440198) POST SBE70-0367 PRE SBE73-0071 | ab/02 | 1 |
| 915C | 718G | • • TAPE - LACING (SPARE IS U440198) K7F94 (SPARE IS U440198) POST SBE73-0071 PRE SBE70-0642 | ac-ae/03 | 1 |
| 915D | U440036 | • • TAPE - 33ME,108FT REEL ALT U322742 (BULK STOCK U322742) POST SBE70-0642 | af-am/03 | 1 |
| 915E | U440198 | • • TAPE - 457ME,1500FT REEL ALT 718G POST SBE70-0642 | af-am/03 | 1 |
| -915F | U322742 | • • TAPE - WHITE - 0.500 WIDE ALT U440198 (SPARE IS U440036), SCOTCH BOY 69 POST SBE70-0642 | af-am/03 | REF |
| 915G | U440198 | • • TAPE - 457ME,1500FT REEL ALT 718G (BULK STOCK 718G) POST SBE70-0642 | af-am/03 | 1 |
| -915H | 718G | • • TAPE - LACING (SPARE IS U440198) K7F94 ALT U440036 (SPARE IS U440198) POST SBE70-0642 | af-am/03 | REF |
| -916 | T085 | • BRAID, LACING (SPARE IS U440068) PRE SBE70-0638 | aa-ad/01 | REF |
| 916A | 5A9216 | • TAPE - LACING (BLACK) (BLACK) PRE SBE70-0367 | aa/01 | 1 |
| -916B | 3100631 | • BRAID (SPARE IS U440068) POST SBE70-0367 PRE SBE73-0071 | ab/01 | REF |
| -916C | T085 | • BRAID, LACING (SPARE IS U440068) POST SBE73-0071 PRE SBE70-0638 | ac-ad/02 | REF |
| 916D | U440068 | • BRAID - 100ME,330FT REEL ALT T085 POST SBE70-0638 PRE SBE70-0642 | ae/03 | 1 |
| -916E | T085 | • BRAID, LACING ALT U440068 (SPARE IS U440068) POST SBE70-0638 PRE SBE70-0642 | ae/03 | REF |
| 916F | U440254 | • TAPE - 450ME,1500FT REEL ALT ESW1900 (BULK STOCK ESW1900) ESW1900 POST SBE70-0642 | af-am/03 | 1 |
| -916G | ESW1900 | • TAPE ALT U440068 POST SBE70-0642 | af-am/03 | REF |
| 916H | U440068 | • BRAID - 100ME,330FT REEL ALT T085 (BULK T085/3100631) POST SBE70-0642 | af-am/03 | 1 |
| -916I | T085 | • BRAID, LACING ALT U440254 POST SBE70-0642 | af-am/03 | REF |
| 950 | 5A0276 | • • WRAPPING, SPIRAL PRE SBE70-0367 | aa/01 | 1 |
| 955 | RT1146-5-8 | • • TUBING - HEAT SHRINKABLE, SIZE 5/8" DIA. K1010 ALT 5A0277 PRE SBE70-0367 | aa/01 | 1 |
| -955A | 5A0277 | • • WRAPPING - SPIRAL PRE SBE70-0367 | aa/01 | REF |
| 960 | SPIRATEMP2P | • • SLEEVING - SPIRAL K0720 | aa-am/03 | 1 |
| 961 | 5A9361 | • • BRAID, ASSEMBLY | aa-am/03 | 1 |
| 963 | U322769 | • • TUBING TO RK6014 ALT SVT127 POST SBE70-0367 | ab-am/01 | 1 |
| 963A | U322769 | • • TUBING TO RK6014 ALT SVT127 | aa-am/02 | 1 |
| -963B | SVT127 | • • SLEEVE, SHRINK K0720 ALT U322769 POST SBE70-0367 | ab-am/01 | REF |
| -963C | SVT127 | • • SLEEVE, SHRINK K0720 ALT U322769 | aa-am/02 | REF |
| 964 | U440239 | • • TAPE ALT 1019412 (BULK STOCK 1019412) POST SBE70-0721 | aj-am/03 | 1 |
| -964A | 1019412 | • • TAPE, ELECTRICAL ALT 3105002 POST SBE70-0721 | aj-am/03 | REF |
| 964B | 3105002 | • • TAPE, 0.75 WIDE X 0.01 ALT U440250 SP1771 INDEF POST SBE70-0721 | aj-am/03 | 1 |
| 964C | U440250 | • • TAPE ALT 100P323 (BULK STOCK 100P323) 100P323 POST SBE70-0721 | aj-am/03 | 1 |
| -964D | 100P323 | • • TAPE U5792 ALT U440248 POST SBE70-0721 | aj-am/03 | REF |
| 964E | U440248 | • • TAPE ALT RL6000SA (BULK STOCK RL6000SA) RL6000SA POST SBE70-0721 | aj-am/03 | 1 |
| -964F | RL6000SA | • • TAPE - COLOUR - ORANGE K0388 ALT U440239 POST SBE70-0721 | aj-am/03 | REF |
| 965 | U322742 | • TAPE - WHITE - 0.500 WIDE (SPARE IS U440036) SCOTCH BOY 69 POST SBE73-0071 PRE SBE70-0638 | ac-ad/01 | 1 |
| 965A | U322742 | • TAPE - WHITE - 0.500 WIDE (SPARE IS U440036) SCOTCH BOY 69 PRE SBE70-0638 | aa-ad/01 | 1 |
| -965B | U322742 | • TAPE - WHITE - 0.500 WIDE ALT U440036 (SPARE IS U440036) SCOTCH BOY 69 POST SBE70-0638 | ae-am/02 | REF |
| 965C | U440036 | • TAPE - 33ME,108FT REEL ALT U322742 (BULK STOCK U322742) SCOTCH BOY 69 POST SBE70-0638 | ae-am/03 | 1 |
| 966 | U440030 | • • TAPE ALT U320585 (BULK STOCK U320585) SCOTCH BOY 69 POST SBE73-0071 | aj-am/03 | 1 |
| -966A | U320585 | • • TAPE, WHITE - 1.000 WIDE X 0.006 SCOTCH BOY 69 POST SBE73-0071 | aj-am/03 | REF |
| 970 | 718G | • TAPE - LACING (SPARE IS U440198) K7F94 (SPARE IS U440198) PRE SBE70-0642 | aa-ae/01 | 1 |
| -970A | 718G | • TAPE - LACING (SPARE IS U440198) K7F94 ALT U440036 (SPARE IS U440198) POST SBE70-0642 | af-am/02 | REF |
| 970B | U440036 | • TAPE - 33ME,108FT REEL ALT U322742 (BULK STOCK U322742) POST SBE70-0642 | af-am/03 | 1 |
| -970C | U322742 | • TAPE - WHITE - 0.500 WIDE ALT U440198 (SPARE IS U440036), SCOTCH BOY 69 POST SBE70-0642 | af-am/03 | REF |
| 970D | U440198 | • TAPE - 457ME,1500FT REEL ALT 718G (BULK STOCK 718G) POST SBE70-0642 | af-am/03 | 1 |
| 995 | MS20995C20 | • • WIRE - LOCKING 96906 PRE SBE70-0367 | aa/01 | 1 |
| 995A | AS44725-1 | • • WIRE - LOCKING, 0.5 MM DIA U1653 | aa-am/01 | 1 |
| 995B | AS44725-1 | • • WIRE - LOCKING, 0.5 MM DIA U1653 POST SBE70-0367 | ab-am/02 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||
Figure: EEC Fan Harness
EEC Fan Harness
EEC Fan Harness
EEC Fan Harness
EEC Fan Harness
EEC Fan Harness
EEC Fan Harness
EEC Fan Harness
EEC Fan Harness
