DMC:V2500-A5-71-52-43-04A-941A-DIssue No:003.00Issue Date:2020-08-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA | |
|---|---|---|---|---|---|
| 04 | |||||
| - | B71524304 | ELECTRICAL HARNESS - LIGHT DUTY - EEC HARNESS - CORE, PRE SBE71-0111 | aa | ||
| - | SBE0111-01 | ELECTRICAL HARNESS - LIGHT DUTY - EEC HARNESS - CORE, PRE SBE70-0374 | ab | ||
| - | SBE0374-01 | ELECTRICAL HARNESS - LIGHT DUTY - EEC HARNESS - CORE, PRE SBE70-0638 | ac | ||
| - | SBE0638-01 | ELECTRICAL HARNESS - LIGHT DUTY - EEC HARNESS - CORE, PRE SBE75-0081 | ad | ||
| - | SBE0081-01 | ELECTRICAL HARNESS - LIGHT DUTY - EEC HARNESS - CORE | ae | ||
| - | SBE0290-01 | ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE73-0250 | af | ||
| - | SBE0250-01 | ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE | ag | ||
| 010 | ESC10KE02842PN0 | • • CONNECTOR (FIN 4008VC) | aa-ae/01 | 1 | |
| 015 | ESC30P16BC | • • CONTACT - PLUG U1653 | aa-ae/01 | 38 | |
| 027 | ESC30P16NC | • • CONTACT U1653 | aa-ae/01 | 2 | |
| 028 | ESC30P16NA | • • CONTACT U1653 | aa-ae/01 | 2 | |
| 029 | MS27488-16 | • • PLUG - SEALING 96906 PRE SBE75-0081 | aa-ad/01 | 16 | |
| 029A | MS27488-16 | • • PLUG - SEALING 96906 POST SBE75-0081 | ae/01 | 18 | |
| 030 | ESC10KE02842P60 | • • CONNECTR U1653 (FIN 4009VC) | aa-ae/01 | 1 | |
| 035 | ESC30P16BC | • • CONTACT - PLUG U1653 | aa-ae/01 | 36 | |
| 047 | ESC30P16NC | • • CONTACT U1653 | aa-ae/01 | 3 | |
| 048 | ESC30P16NA | • • CONTACT U1653 | aa-ae/01 | 3 | |
| 049 | MS27488-16 | • PLUG - SEALING 96906 PRE SBE75-0081 | aa-ad/01 | 12 | |
| 049A | MS27488-16 | • PLUG - SEALING 96906 POST SBE75-0081 | ae/01 | 14 | |
| 050 | ESC10SE62219SN0 | • • CONNECTOR U1653 (FIN 4027KS-A) | aa-ae/01 | 1 | |
| 055 | ESC30S16BC | • • CONTACT - SOCKET U1653 | aa-ae/01 | 19 | |
| 069 | MS27488-16 | • • PLUG - SEALING 96906 | aa-ae/01 | 7 | |
| 070 | T3K1213-98SN | • • PLUG 49367 ALT MT938T13K98SN | aa-ae/01 | 1 | |
| -070A | MT938T13K98SN | • • CONNECTOR 14283 ALT T3K1213-98SN | aa-ae/01 | REF | |
| -070B | MT938T13K98SN | • • CONNECTOR 14283 ALT T3K1213-98SN (FIN 4021KS-A) | aa-ae/01 | REF | |
| 075 | X | T3-4120-36LD | • • • CONTACT - SOCKET 49367 ALT 5100-101-0120 PRE SBE73-0250 | aa-af/01 | 10 |
| -075A | 5100-101-0120 | • • • CONTACT - SOCKET 14283 ALT T3-4120-36LD PRE SBE73-0250 | aa-af/01 | REF | |
| -075B | M39029-56-351 | • • • CONTACT - SOCKET 81349 POST SBE73-0250 | ag/01 | REF | |
| 089 | MS27488-20 | • • PLUG - SEALING 96906 | aa-ae/01 | 2 | |
| 090 | T3K1211-98SN | • • PLUG 49367 ALT MT938T11K98SN (FIN 4021KS-B) | aa-ae/01 | 1 | |
| -090A | MT938T11K98SN | • • CONNECTOR - ASSEMBLY OF 14283 ALT T3K1211-98SN (FIN 4021KS-B) | aa-ae/01 | REF | |
| 095 | X | T3-4120-36LD | • • • CONTACT - SOCKET 49367 ALT 5100-101-0120 PRE SBE73-0250 | aa-af/01 | 6 |
| -095A | 5100-101-0120 | • • • CONTACT - SOCKET 14283 ALT T3-4120-36LD PRE SBE73-0250 | aa-af/01 | REF | |
| -095B | M39029-56-351 | • • • CONTACT - SOCKET 81349 POST SBE73-0250 | ag/01 | REF | |
| 109 | MS27488-20 | • • PLUG - SEALING 96906 | aa-ae/01 | 2 | |
| 110 | T3K1211-98SB | • • PLUG 49367 ALT MT938T11K98SB PRE SBE71-0111 | aa/02 | 1 | |
| -110A | MT938T11K98SB | • • PLUG - ASSEMBLY OF 14283 ALT T3K1211-98SB PRE SBE71-0111 | aa/02 | REF | |
| -110B | MT938T11K98SB | • • PLUG - ASSEMBLY OF 14283 ALT T3K121198SB1259 PRE SBE71-0111 | aa/02 | REF | |
| 110C | T3K121198SB1259 | • • CONNECTR - ASSY (FIN 4022KS-A) 49367 ALT 1017687 POST SBE71-0111 | ab-ae/02 | 1 | |
| -110D | 1017687 | • • CONNECTOR - ASSEMBLY OF ALT T3K121198SB1259 (FIN 4022KS-A), MT938T11K98SB901 | aa-ae/02 | REF | |
| 110E | T3K121198SB1259 | • • CONNECTR - ASSY (FIN 4022KS-A) 49367 ALT 1017687 (FIN 4022KS-A) | aa-ae/03 | 1 | |
| -110F | 1017687 | • • CONNECTOR - ASSEMBLY OF ALT T3K1211-98SB (FIN 4022KS-A, MT938T11K98SB901) POST SBE71-0111 | ab-ae/01 | REF | |
| -110G | 1017687 | • • CONNECTOR - ASSEMBLY OF (FIN 4022KS-A), MT938T11K98SB901 POST SBE71-0111 | ab-ae/01 | REF | |
| 115 | X | T3-4120-36LD | • • • CONTACT - SOCKET 49367 ALT 5100-101-0120 PRE SBE73-0250 | aa-af/01 | 6 |
| -115A | 5100-101-0120 | • • • CONTACT - SOCKET 14283 ALT T3-4120-36LD PRE SBE73-0250 | aa-af/01 | REF | |
| -115B | M39029-56-351 | • • • CONTACT - SOCKET 81349 POST SBE73-0250 | ag/01 | REF | |
| 129 | MS27488-20 | • • PLUG - SEALING 96906 | aa-ae/01 | 2 | |
| 130 | T3K1211-98SA | • • PLUG 49367 ALT MT938T11K98SA PRE SBE71-0111 | aa/02 | 1 | |
| -130A | MT938T11K98SA | • • PLUG - ASSEMBLY OF 14283 ALT T3K1211-98SA PRE SBE71-0111 | aa/02 | REF | |
| -130B | MT938T11K98SA | • • PLUG - ASSEMBLY OF 14283 ALT T3K121198SA1259 PRE SBE71-0111 | aa/02 | REF | |
| 130C | T3K121198SA1259 | • • CONNECTR - ASSY (FIN 4022KS-D) 49367 ALT 1017685 POST SBE71-0111 | ab-ae/02 | 1 | |
| -130D | 1017685 | • • CONNECTOR - ASSEMBLY OF ALT T3K121198SA1259 (FIN 4022KS-D), MT938T11K98SA901 | aa-ae/02 | REF | |
| 130E | T3K121198SA1259 | • • CONNECTR - ASSY (FIN 4022KS-D) 49367 ALT 1017685 | aa-ae/03 | 1 | |
| -130F | 1017685 | • • CONNECTOR - ASSEMBLY OF ALT T3K1211-98SA (FIN 4022KS-D), MT938T11K98SA901 POST SBE71-0111 | ab-ae/01 | REF | |
| -130G | 1017685 | • • CONNECTOR - ASSEMBLY OF (FIN 4022KS-D), MT938T11K98SA901 POST SBE71-0111 | ab-ae/01 | REF | |
| 135 | X | T3-4120-36LD | • • • CONTACT - SOCKET 49367 ALT 5100-101-0120 PRE SBE73-0250 | aa-af/01 | 6 |
| -135A | 5100-101-0120 | • • • CONTACT - SOCKET 14283 ALT T3-4120-36LD PRE SBE73-0250 | aa-af/01 | REF | |
| -135B | M39029-56-351 | • • • CONTACT - SOCKET 81349 POST SBE73-0250 | ag/01 | REF | |
| 145 | MS27488-20 | • • PLUG - SEALING 96906 | aa-ae/01 | 2 | |
| 150 | T3K1209-98SN | • • PLUG 49367 ALT MT938T09K98SN PRE SBE71-0111 | aa/02 | 1 | |
| -150A | MT938T09K98SN | • • CONNECTOR 14283 ALT T3K1209-98SN POST SBE71-0111 | aa/02 | REF | |
| -150B | MT938T09K98SN | • • CONNECTOR 14283 ALT T3K120998SN1259 PRE SBE71-0111 | aa/02 | REF | |
| 150C | T3K120998SN1259 | • • CONNECTR - ASSY (FIN 4022KS-C) 49367 ALT MT938T09K98S901 POST SBE71-0111 | ab-ae/02 | 1 | |
| -150D | MT938T09K98S901 | • • CONNECTOR - ASSEMBLY OF 14283 ALT T3K120998SN1259 | aa-ae/02 | REF | |
| 150E | T3K120998SN1259 | • • CONNECTR - ASSY (FIN 4022KS-C) 49367 ALT MT938T09K98S901 | aa-ae/03 | 1 | |
| -150F | MT938T09K98S901 | • • CONNECTOR - ASSEMBLY OF 14283 ALT T3K1209-98SN POST SBE71-0111 | ab-ae/01 | REF | |
| -150G | MT938T09K98S901 | • • CONNECTOR - ASSEMBLY OF 14283 POST SBE71-0111 | ab-ae/01 | REF | |
| 155 | X | T3-4120-36LD | • • • CONTACT - SOCKET 49367 ALT 5100-101-0120 PRE SBE73-0250 | aa-af/01 | 3 |
| -155A | 5100-101-0120 | • • • CONTACT - SOCKET 14283 ALT T3-4120-36LD PRE SBE73-0250 | aa-af/01 | REF | |
| -155B | M39029-56-351 | • • • CONTACT - SOCKET 81349 POST SBE73-0250 | ag/01 | REF | |
| 169 | MS27488-20 | • • PLUG - SEALING 96906 | aa-ae/01 | 1 | |
| 170 | T3K1209-98SA | • • PLUG 49367 ALT MT938T09K98SA PRE SBE71-0111 | aa/02 | 1 | |
| -170A | MT938T09K98SA | • • PLUG - ASSEMBLY OF 14283 ALT T3K1209-98SA PRE SBE71-0111 | aa/02 | REF | |
| -170B | MT938T09K98SA | • • PLUG - ASSEMBLY OF 14283 ALT T3K120998SA1259 PRE SBE71-0111 | aa/02 | REF | |
| 170C | T3K120998SA1259 | • • CONNECTR - ASSY (FIN 4022KS-B) 49367 ALT 1017684 POST SBE71-0111 | ab-ae/02 | 1 | |
| -170D | 1017684 | • • CONNECTOR - ASSEMBLY OF ALT T3K120998SA1259 (FIN 4022KS-B), MT938T09K98SA901 | aa-ae/02 | REF | |
| 170E | T3K120998SA1259 | • • CONNECTR - ASSY (FIN 4022KS-B) 49367 ALT 1017684 | aa-ae/03 | 1 | |
| -170F | 1017684 | • • CONNECTOR - ASSEMBLY OF ALT T3K1209-98SA (FIN 4022KS-B), MT938T09K98SA901 POST SBE71-0111 | ab-ae/01 | REF | |
| -170G | 1017684 | • • CONNECTOR - ASSEMBLY OF (FIN 4022KS-B), MT938T09K98SA901 POST SBE71-0111 | ab-ae/01 | REF | |
| 175 | X | T3-4120-36LD | • • • CONTACT - SOCKET 49367 ALT 5100-101-0120 PRE SBE73-0250 | aa-af/01 | 3 |
| -175A | 5100-101-0120 | • • • CONTACT - SOCKET 14283 ALT T3-4120-36LD PRE SBE73-0250 | aa-af/01 | REF | |
| -175B | M39029-56-351 | • • • CONTACT - SOCKET 81349 POST SBE73-0250 | ag/01 | REF | |
| 189 | MS27488-20 | • • PLUG - SEALING 96906 | aa-ae/01 | 1 | |
| 190 | ESC10SE61610SN0 | • • CONNECTOR U1653 (FIN 4006VC-A) | aa-ae/01 | 1 | |
| 195 | ESC30S16BC | • • CONTACT - SOCKET U1653 | aa-ae/01 | 6 | |
| 207 | ESC30S16NC | • • CONTACT - SOCKET U1653 | aa-ae/01 | 2 | |
| 208 | ESC30S16NA | • • CONTACT - SOCKET U1653 | aa-ae/01 | 2 | |
| 209 | MS27488-16 | • • PLUG - SEALING 96906 PRE SBE75-0081 | aa-ad/01 | 2 | |
| 209A | MS27488-16 | • • PLUG - SEALING 96906 POST SBE75-0081 | ae/01 | 6 | |
| 210 | ESC10SE61407SN0 | • • CONNECTOR U1653 (FIN 4007VC-A) | aa-ae/01 | 1 | |
| 215 | ESC30S16BC | • • CONTACT - SOCKET U1653 | aa-ae/01 | 3 | |
| 227 | ESC30S16NC | • • CONTACT - SOCKET U1653 PRE SBE71-0290 | aa-ae/02 | 2 | |
| 227A | 097-0266-16 | • • CONTACT - SOCKET D3309 POST SBE71-0290 | af/02 | 2 | |
| 228 | ESC30S16NA | • • CONTACT - SOCKET U1653 PRE SBE71-0290 | aa-ae/02 | 2 | |
| 228A | 097-0267-16 | • • CONTACT - SOCKET D3309 POST SBE71-0290 | af/02 | 2 | |
| 229 | MS27488-16 | • • PLUG - SEALING 96906 | aa-ae/01 | 3 | |
| 740 | 2A1440 | • • TERMINAL - CR | aa-ae/01 | 1 | |
| 741 | 2A1441 | • • TERMINAL - AL | aa-ae/01 | 1 | |
| 750 | 323750 | • • TERMINAL K1636 | aa-ae/01 | 4 | |
| 760 | 321893 | • • TERMINAL - NO. 8 59364 | aa-ae/01 | 4 | |
| 761 | 322873 | • • TERMINAL - NO. 6 K1636 | aa-ae/01 | 2 | |
| 864 | 2A0764 | • • CABLE PRE SBE70-0374 | aa-ae/02 | 1 | |
| -864A | ESW1202-022-006 | • • CABLE - ELECTRICAL U1653 (SPARE IS U440176) POST SBE70-0374 PRE SBE70-0638 | aa-ae/02 | REF | |
| -864B | ESW1202-022-006 | • • CABLE - ELECTRICAL U1653 ALT U440176 (SPARE IS U440176) POST SBE70-0638 | ad-ae/03 | REF | |
| 864C | U440176 | • • CABLE ALT ESW1202-022-006 POST SBE70-0638 | ad-ae/01 | 1 | |
| -864D | ESW1202-022-006 | • • CABLE - ELECTRICAL U1653 (SPARE IS U440176) PRE SBE70-0638 | aa-aec/01 | REF | |
| 864E | U440176 | • • CABLE ALT ESW1202-022-006 (BLK ESW1202-022-006) POST SBE70-0638 | ad-ae/01 | 1 | |
| 866 | 2A0766 | • • • CABLE - AL CR PRE SBE70-0374 | aa-ae/02 | 1 | |
| 866A | ESW1602-022-010 | • • • CABLE - ELECTRICAL U1653 POST SBE70-0374 | ac-ae/02 | 1 | |
| 866B | ESW1602-022-010 | • • • CABLE - ELECTRICAL U1653 | aa-ae/03 | 1 | |
| 883 | 2A1463 | • • WIRE - STEEL, 18 - 8 | aa-ae/01 | 1 | |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | |||||

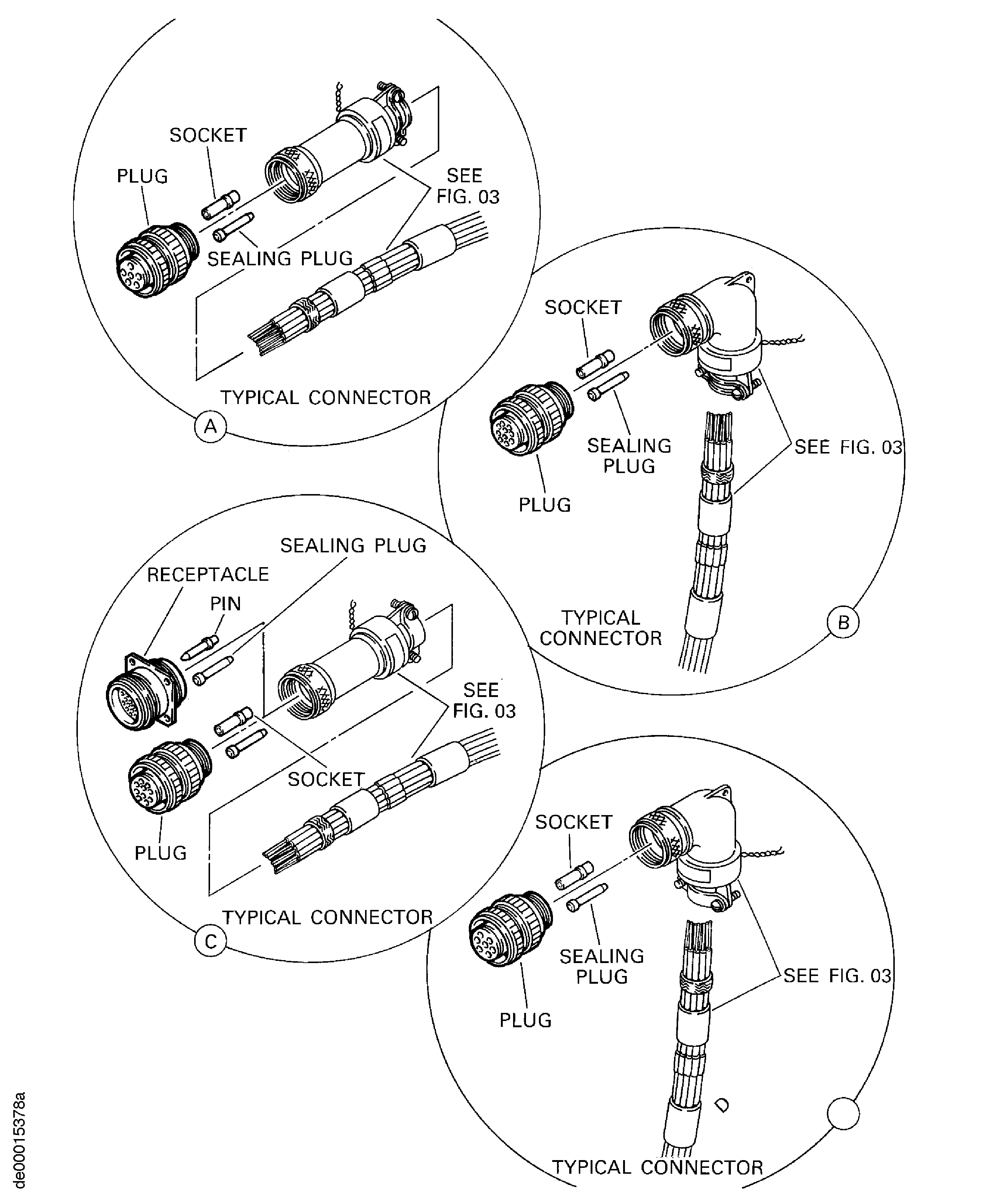

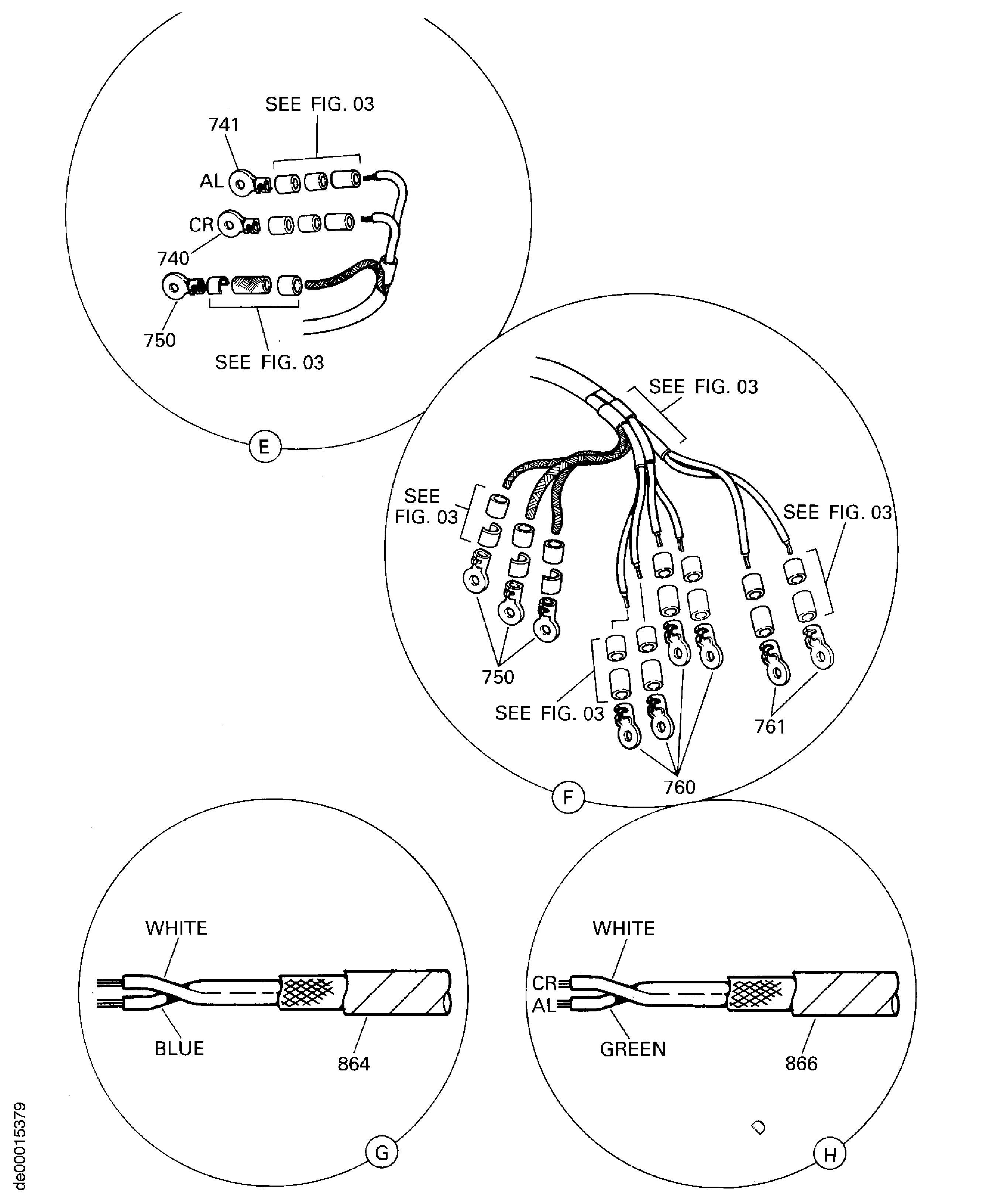

Figure: EEC Core Harness And Voltage Divider Harness Assembly
EEC Core Harness And Voltage Divider Harness Assembly
EEC Core Harness And Voltage Divider Harness Assembly
EEC Core Harness And Voltage Divider Harness Assembly
