OIL,HYDRAULIC AND WATER DRAIN TUBES-POWER PLANT

DMC:V2500-A5-71-73-48-03A-941A-D|Issue No:002.00|Issue Date:2018-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
03
000B71734803OIL - HYDRAULIC AND WATER DRAIN TUBES - POWER PLANT, PRE SBN71-0169aa
000SBN0169-01OIL - HYDRAULIC AND WATER DRAIN TUBES - POWER PLANTab
100100740-5265-505• TUBE - DRAIN ACOC ACTUATOR, ASSEMBLY OF
51563		aa-ab1
500500740-5267-507• TUBE - DRAIN, ASSEMBLY OF
51563		aa-ab1
500500A745-5267-501• TUBE - DRAIN, ASSEMBLY OF
51563
POST SBN71-0169		ab1
525525AS21408• BOLT - .190 DIA X .500
U1653		aa-ab1
525525AAS21408• BOLT - .190 DIA X .500
U1653
ALT MS9556-06		aa-ab1
-525525BMS9556-06• BOLT
96906
ALT AS21408		abREF
527527400WSS4• CLIP
83930		aa-ab1
529529SP154D• WASHER - 0.190 DIA
K7766		aa-ab1
531531AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa-ab1
533533AS21408• BOLT - .190 DIA X .500
U1653		aa-ab1
533533AAS21408• BOLT - .190 DIA X .500
U1653
ALT MS9556-06		aa-ab1
-533533BMS9556-06• BOLT
96906
ALT AS21408		abREF
535535400WSS4• CLIP
83930		aa-ab1
537537SP154D• WASHER - 0.190 DIA
K7766		aa-ab1
539539AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa-ab1
541541AS21408• BOLT - .190 DIA X .500
U1653		aa-ab1
541541AAS21408• BOLT - .190 DIA X .500
U1653
ALT MS9556-06		aa-ab1
-541541BMS9556-06• BOLT
96906
ALT AS21408		abREF
543543400WSS4• CLIP
83930		aa-ab1
545545SP154D• WASHER - 0.190 DIA
K7766		aa-ab1
547547AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa-ab1
549549AS21408• BOLT - .190 DIA X .500
U1653
PRE SBN71-0169		aa1
549549AAS21411• BOLT, .190 DIA X .688
U1653
POST SBN71-0169		aa-ab1
549549BAS21411• BOLT, .190 DIA X .688
U1653
ALT MS9556-09		aa-ab1
-549549CMS9556-09• BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.688
96906
ALT AS21411		abREF
550550ST1698D47• SPACER (5MM)
K4585
POST SBN71-0169		ab1
551551400WSS4• CLIP
83930		aa-ab1
553553SP154D• WASHER - 0.190 DIA
K7766		aa-ab1
-555555740-5713-503• BRACKET
51563		aa-abREF
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

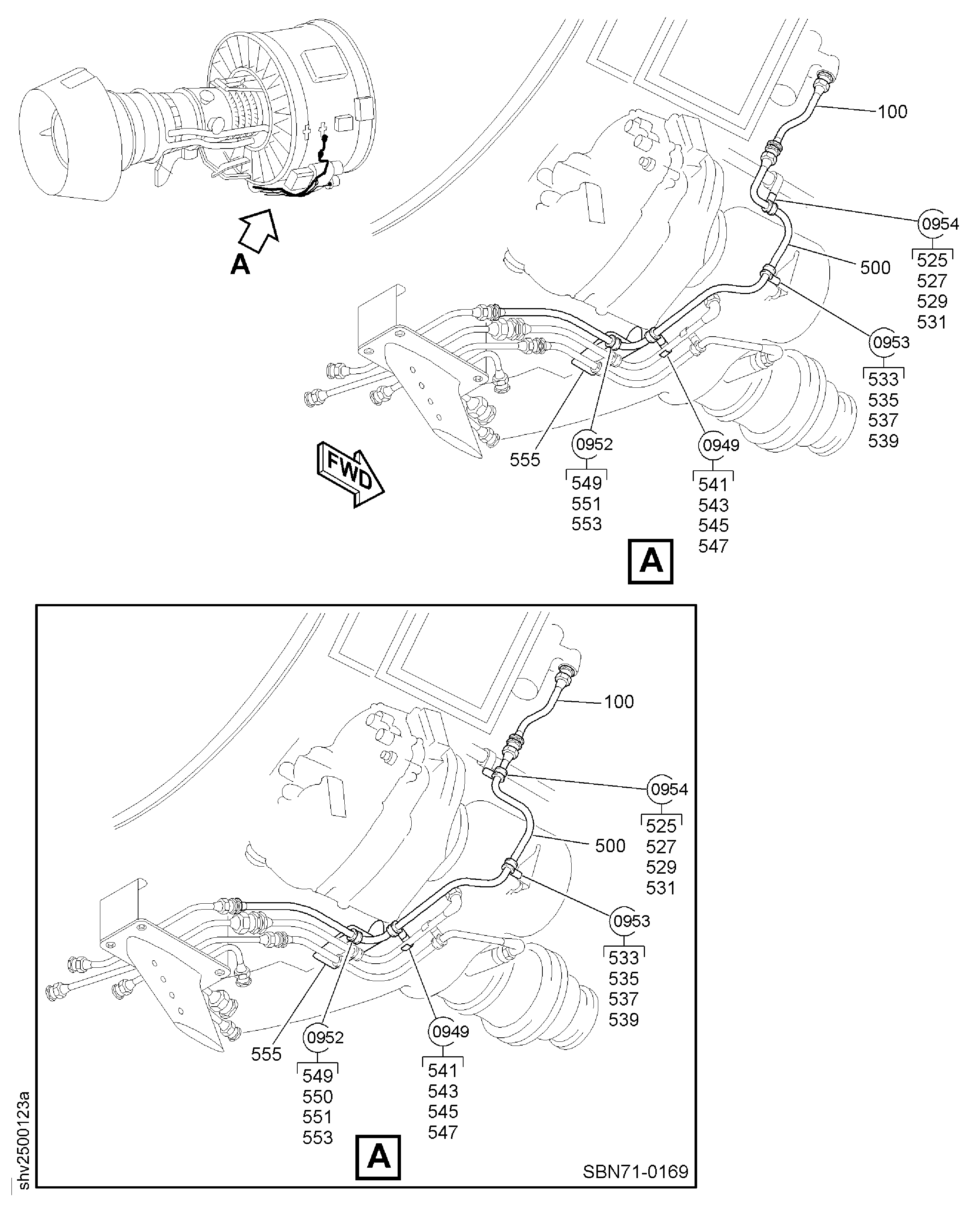

Figure: OIL,HYDRAULIC AND WATER DRAIN TUBES-POWER PLANT

TUBES OIL HYDRAULIC WATER

Change Type:

Removed Incorrect SB Reference And Corrected Applicability.

Manufacturer Code:51563
Enterprise Name:ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:ROHR INC, A COLLINS AEROSPACE COMPANY
Street:850 LAGOON DRIVE
City:CHULA VISTA
State:CA
Zip Code:91910-2098
Country:USA
Phone Number:1-619-691-2089
Fax Number:1-619-691-6195
Manufacturer Code:83930
Enterprise Name:TRANSDIGM INC
BU Name:TRANSDIGM INC
Department:ADEL FASTENERS
Building:SANDWELL INDUSTRIAL ESTATE
Street:5000 TRIGGS STREET
City:LOS ANGELES
State:WEST MIDLANDS
Zip Code:B66 1QJ
Country:USA
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:K4585
Enterprise Name:SHORT BROS PLC
BU Name:NULL
Street:AIRPORT ROAD
P.O. Box:PO BOX 241 BT3
City:QUEENS ISLAND
State:BELFAST
Zip Code:9DZ
Country:UNITED KINGDOM
Manufacturer Code:K7766
Enterprise Name:K7766
BU Name:British Standards Institution
Street:2 Park Street
City:London
Zip Code:AW1A 2BS
Country:England
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:400WSS4
Part Name:CLIP
Manufacturer Code:83930
Optional Parts
Part NumberPart NameManufacturer
AS62404CLIP - 6.35 MM (0.250)U1653
Part Number:740-5265-505
Part Name:TUBE - ASSY DRAIN ACOC ACTUATOR
Manufacturer Code:51563
Part Number:740-5267-507
Part Name:TUBE - DRAIN, ASSEMBLY OF
Manufacturer Code:51563
Part Number:740-5713-503
Part Name:BRACKET
Manufacturer Code:51563
Part Number:745-5267-501
Part Name:TUBE - ASSY DRAIN
Manufacturer Code:51563
Part Number:AS20624
Part Name:NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:U1653
Part Number:AS21408
Part Name:BOLT - 0.19 DIA X 0.500
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
MS9556-06BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.50096906
Part Number:AS21411
Part Name:BOLT - 0.19 DIA X 0.688
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
MS9556-09BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.68896906
Part Number:AS62404
Part Name:CLIP - 6.35 MM (0.250)
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
400WSS4CLIP83930
Part Number:MS9556-06
Part Name:BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500
Manufacturer Code:96906
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS21408BOLT - 0.19 DIA X 0.500U1653
Part Number:MS9556-09
Part Name:BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.688
Manufacturer Code:96906
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS21411BOLT - 0.19 DIA X 0.688U1653
Part Number:SP154D
Part Name:WASHER - 0.190 DIA
Manufacturer Code:K7766
Part Number:ST1698D47
Part Name:SPACER (5MM)
Manufacturer Code:K4585
