DMC:V2500-A5-72-32-21-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72322101 | ENGINE-NO.3 BEARING HOUSING, PRE SBE70-0822 | aa | ||
| SBE0822-01 | ENGINE-NO.3 BEARING HOUSING | ab | ||
| 010 | 2A0425 | • SEAL - RING PRE SBE70-0822 | aa | 2 |
| 010A | 2A3803 | • RING - SEAL POST SBE70-0822 | ab | 2 |
| 011 | 2A3803P10 | • RING - SEAL POST SBE70-0822 | ab | 2 |
| 012 | 2A3803P20 | • RING - SEAL POST SBE70-0822 | ab | 2 |
| 013 | 2A3803P30 | • RING - SEAL POST SBE70-0822 | ab | 2 |
| 020 | 2A1208 | • HOUSING - ASSY NO.3 BRG | aa-ab | 1 |
| 040 | 2A2205 | • • PIN - SLAB | aa-ab | 2 |
| 060 | 4023116 | • NUT - OPTION 77445 ALT ST2113-10 | aa-ab | 18 |
| -060A | ST2113-10 | • NUT - SELF-LOCKING DBL HEX 77445 ALT ST2118-10 | aa-ab | REF |
| -060B | ST2118-10 | • NUT - SELF-LOCKING DOUBLE HEX 77445 ALT ST2119-10 | aa-ab | REF |
| -060C | ST2119-10 | • NUT - SELF-LOCKING DOUBLE HEX 77445 ALT ST1334-10 | aa-ab | REF |
| -060D | ST1334-10 | • NUT - SELF-LOCKING DOUBLE HEX 77445 ALT 4023116 | aa-ab | REF |
| 080 | 2A1167 | • STUD - SHOULDER | aa-ab | 18 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

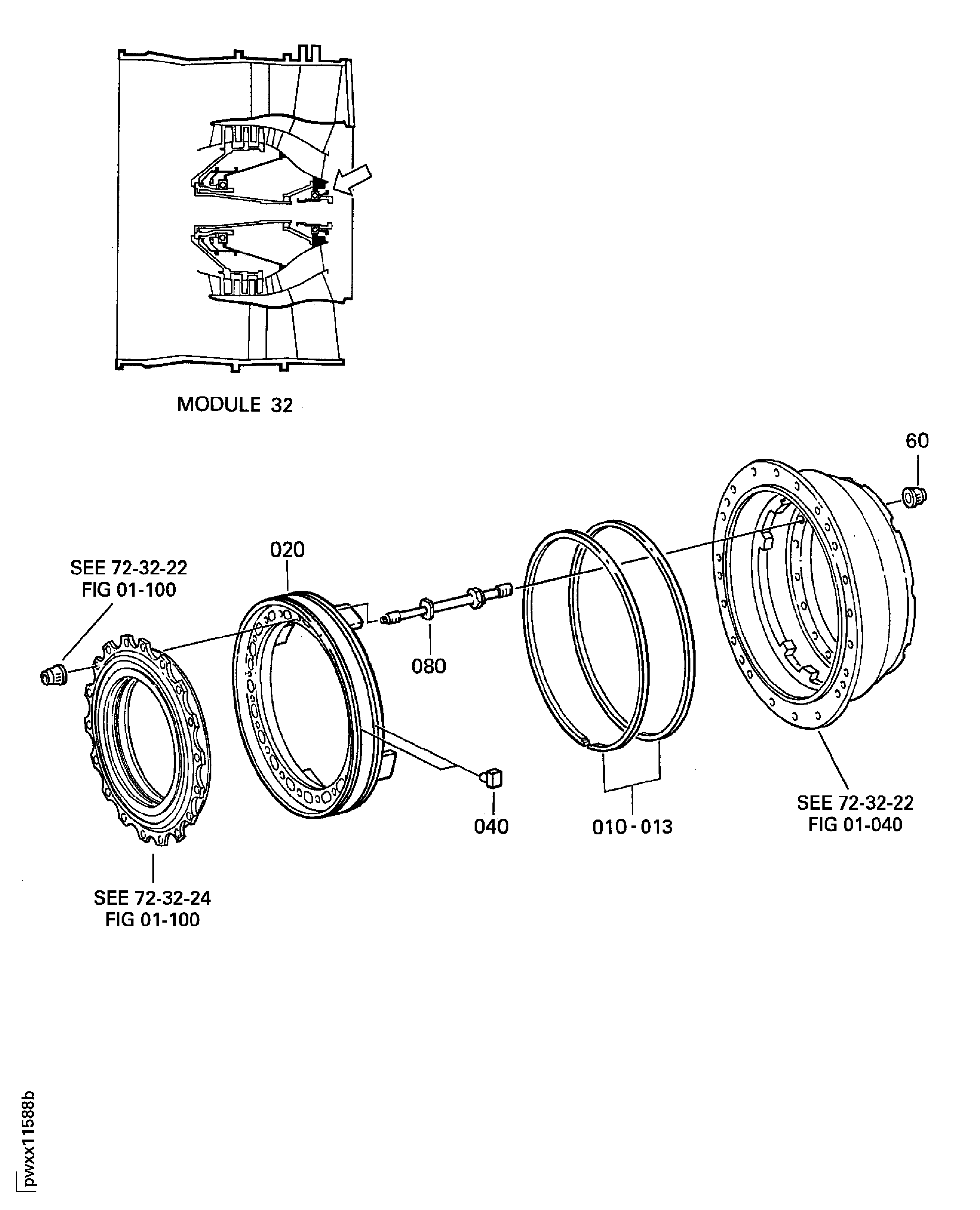

Figure: ENGINE-NO.3 BEARING HOUSING
NUMBER THREE BEARING HOUSING ASSEMBLY
