DMC:V2500-A5-72-32-23-01A-941A-DIssue No:002.00Issue Date:2016-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B72322301 | ENGINE-NO.3 BEARING ROTOR CENTRE, PRE SBE72-0421 | aa | |
| - | SBE0421-01 | ENGINE-NO.3 BEARING ROTOR CENTRE, PRE SBE70-0827 | ab | |
| - | SBE0827-01 | ENGINE-NO.3 BEARING ROTOR CENTRE | ac | |
| 700 | 6A4468 | • SHAFT, & SEAL ASSY FRONT-HPC PRE SBE72-0421 | aa-ac/01 | 1 |
| 700A | 6A8082 | • SHAFT, & SEAL ASSY FRONT, HP COMPRESSOR ALT 6A8093 POST SBE72-0421 | ab-ac/01 | 1 |
| 700B | 6A8093 | • SHAFT, & SEAL ASSY FRONT, HP COMPRESSOR ALT 6A8082 POST SBE72-0421 | ab-ac/01 | 1 |
| 712 | AS21013 | • • BOLT, BIHEX HD, .250 DIA X .812 U1653 | aa-ac/01 | 18 |
| 713 | K8833 | • • WASHER, FLAT | aa-ac/01 | 18 |
| 715 | 6A3901 | • • PLATE | aa-ac/01 | 1 |
| 718 | 4W0002 | • • NUT - .250 DIA Optional Part AS20625 | aa-ac/01 | 18 |
| 720 | 6A4469 | • • CARRIER, ASSY RING-SEAL | aa-ac/01 | 1 |
| 724 | 6A1450 | • • • RETAINER, RING SEAL (VRS6113) POST SBE70-0353 | *****/01 | 1 |
| 724A | 6A1450 | • • • RETAINER, RING SEAL POST SBE70-0827 | ac/01 | 1 |
| 726 | UP10892 | • • • RING, SEAL (VRS6113) POST SBE70-0353 | *****/01 | 1 |
| 726A | UP10893 | • • • RING, SEAL | aa-ac/01 | 1 |
| 726B | 5A1879 | • • • RING, SEALING POST SBE70-0827 | ac/01 | 1 |
| -728 | 6A4470 | • • • CARRIER POST SBE70-0827 | ac/01 | REF |
| 745 | 6A4147 | • • SHAFT, BALANCING AND ASSY PRE SBE72-0421 | aa-ac/01 | 1 |
| 745A | 6A8083 | • • SHAFT, BALANCING AND ASSY FRONT, HP COMPRESSOR ALT 6A8094 POST SBE72-0421 | ab-ac/01 | 1 |
| 745B | 6A8094 | • • SHAFT, BALANCING AND ASSY FRONT, HP COMPRESSOR ALT 6A8083 POST SBE72-0421 | ab-ac/01 | 4 |
| 748 | 4W0002 | • • • NUT - .250 DIA Optional Part AS20625 | aa-ac/01 | 4 |
| 749 | UP11050 | • • • WASHER PRE SBE70-0827 | aa-ac/01 | 4 |
| 749A | 5A1876 | • • • WASHER POST SBE70-0827 | ac/01 | 4 |
| 750 | UP10762 | • • • BOLT, LOCATING PRE SBE70-0827 | aa-ac/01 | 4 |
| 750A | 5A1878 | • • • BOLT, LOCATING POST SBE70-0827 | ac/01 | 4 |
| 760 | UP11051 | • • • SPACER PRE SBE70-0827 | aa-ab/01 | 20 |
| 760A | 5A1877 | • • • SPACER POST SBE70-0827 | ac/01 | 20 |
| 762 | 6A4372 | • • • SPACER | aa-ac/01 | 20 |
| 763 | 6A4373 | • • • SPACER | aa-ac/01 | 20 |
| 770 | 6A4148 | • • • SHAFT, FRONT-HPC PRE SBE72-0421 | aa-ac/01 | 1 |
| 770A | 6A8084 | • • • SHAFT, FRONT, HP COMPRESSOR ALT 6A8095 POST SBE72-0421 | ab-ac/01 | 1 |
| 770B | 6A8095 | • • • SHAFT, BALANCING AND ASSY FRONT, HP COMPRESSOR ALT 6A8084 POST SBE72-0421 | ab-ac/01 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

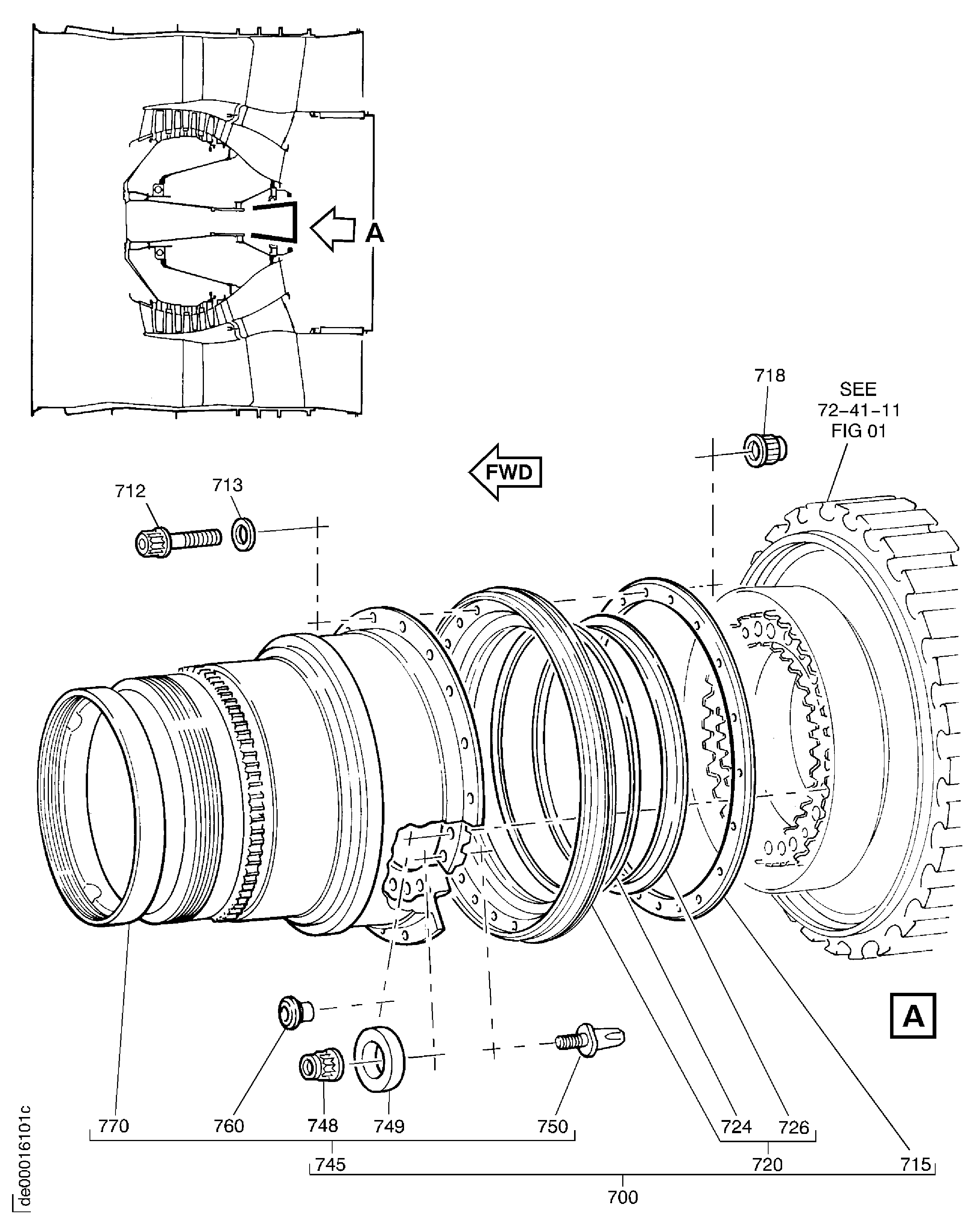

Figure: HPC Front Shaft And Seal Carrier Assembly
HPC Front Shaft And Seal Carrier Assembly
