DMC:V2500-A5-72-32-52-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B72325201 | ENGINE-NO.2 BEARING, PRE SBE70-0418 | aa | |
| - | SBE0418-01 | ENGINE-NO.2 BEARING | ab | |
| 100 | 5R6002 | • BEARING, NO. 2, ROLLER PRE SBE70-0418 | aa-ab/01 | 1 |
| 100A | 5R6002 | • BEARING, NO. 2, ROLLER ALT 5R6004 POST SBE70-0418 | aa-ab/01 | 1 |
| -100B | 5R6004 | • BEARING, NO. 2, ROLLER ALT 5R6002 POST SBE70-0418 | ab/01 | REF |
| 100C | 5R6002 | • BEARING, NO. 2, ROLLER | aa/02 | 1 |
| 160 | 5R6003 | • BEARING, NO. 2, ROLLER PRE SBE70-0418 | aa-ab/01 | 1 |
| 160A | 5R6003 | • BEARING, NO. 2, ROLLER ALT 5R6005 POST SBE70-0418 | aa-ab/01 | 1 |
| -160B | 5R6005 | • BEARING, NO. 2, ROLLER ALT 5R6003 POST SBE70-0418 | ab/01 | REF |
| 160C | 5R6003 | • BEARING, NO. 2, ROLLER | aa/02 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

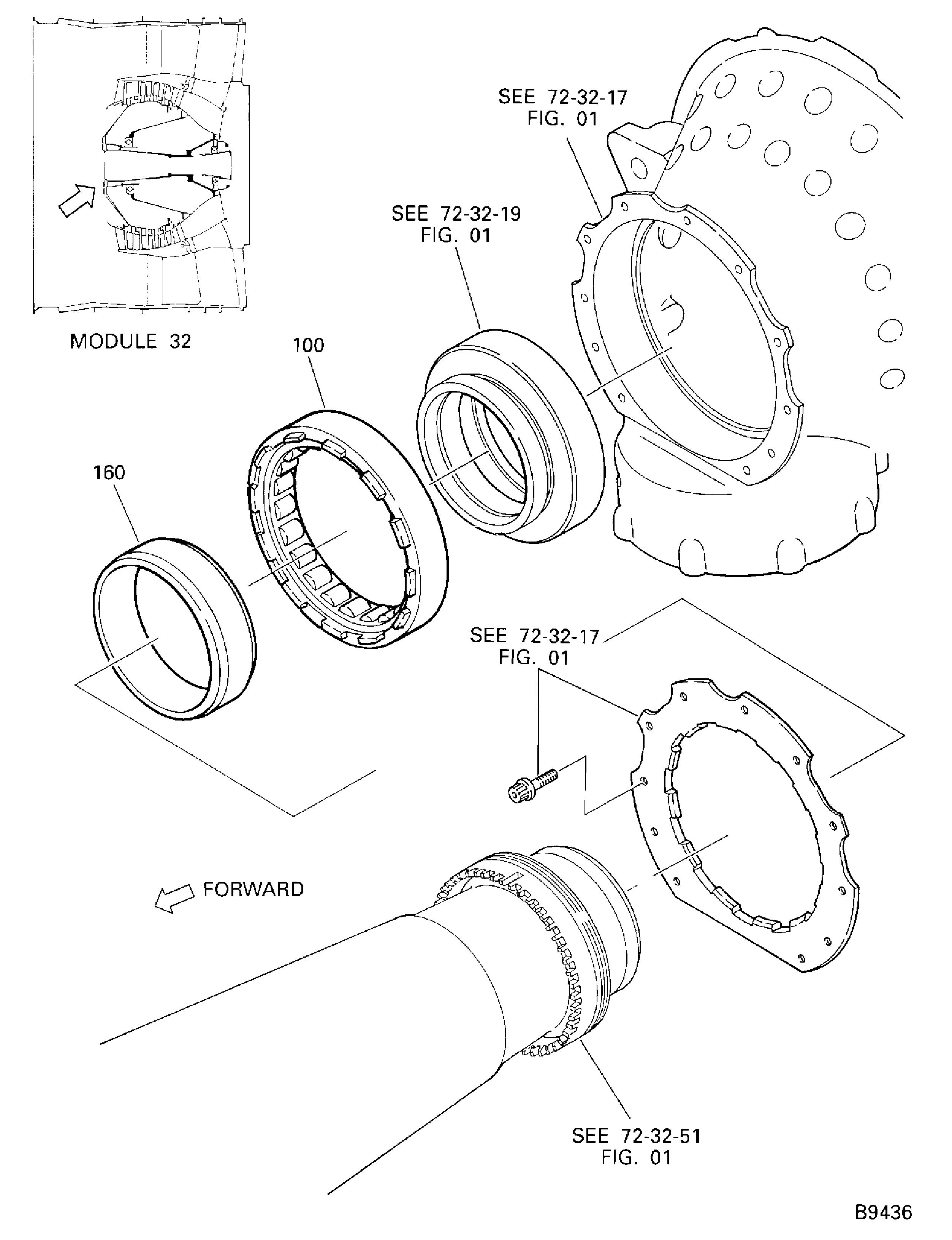

Figure: No. 2 Bearing
No. 2 Bearing
