DMC:V2500-A5-72-32-60-01A-941A-DIssue No:002.00Issue Date:2015-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B72326001 | ENGINE-BOOSTER STAGE BLEED VALVE OUTLET CASE, PRE SBE72-0155 | aa | |
| - | SBE0155-01 | ENGINE-BOOSTER STAGE BLEED VALVE OUTLET CASE, PRE SBE70-0363 | ab | |
| - | SBE0363-01 | ENGINE-BOOSTER STAGE BLEED VALVE OUTLET CASE, PRE SBE70-0631 | ac | |
| - | SBE0631-01 | ENGINE-BOOSTER STAGE BLEED VALVE OUTLET CASE, PRE SBE72-0485 | ad | |
| - | SBE0485-01 | ENGINE-BOOSTER STAGE BLEED VALVE OUTLET CASE, PRE SBE70-0983 | ae | |
| - | SBE0983-01 | ENGINE-BOOSTER STAGE BLEED VALVE OUTLET CASE | af | |
| 100 | 5W2230 | • RETAINER, SEAL PRE SBE72-0155 | aa/02 | 2 |
| 100A | 5W2270 | • RETAINER, SEAL POST SBE72-0155 | ab-af/02 | 2 |
| 100B | 5W2270 | • RETAINER, SEAL | aa-af/03 | 2 |
| 110 | 5W2106 | • SEAL | aa-af/01 | 2 |
| 120 | 4W0163 | • BOLT - .250 DIA X .562 PRE SBE72-0155 | aa/02 | 4 |
| 120A | 4W0162 | • BOLT - .250 DIA X .500 POST SBE72-0155 | ab-af/02 | 4 |
| 120B | 4W0162 | • BOLT - .250 DIA X .500 | aa-af/03 | 4 |
| 130 | MS9321-10 | • WASHER - FLAT 96906 PRE SBE72-0155 | aa/02 | 4 |
| 250 | 5W2231 | • DUCT, A/O LPC BLEED PRE SBE72-0155 | aa/02 | 1 |
| 250A | 5W2268 | • DUCT PRE SBE70-0631 | aa/02 | 1 |
| 250B | 5W2268 | • DUCT POST SBE72-0155 PRE SBE70-0631 | ab-ac/03 | 1 |
| 250C | 5W2318 | • DUCT POST SBE70-0631 | ad-af/01 | 1 |
| -250D | 5W2331 | • DUCT, A/O LPC BLEED POST SBE72-0485 | ae-af/01 | REF |
| -250E | 5W2332 | • DUCT, A/O LPC BLEED POST SBE72-0485 | ae-af/01 | REF |
| 256 | MS21076L3 | • • NUT, ANCHOR 96906 PRE SBE72-0155 | aa/02 | 18 |
| 256A | MS21076L3 | • • NUT, ANCHOR 96906 POST SBE72-0155 | ab-af/03 | 20 |
| 257 | CCR264CS3-4 | • • RIVET - BLIND CSK HD,(VRS2808) 11815 PRE SBE72-0155 | aa/02 | 36 |
| 257A | CCR264CS3-4 | • • RIVET - BLIND CSK HD,(VRS2808) 11815 POST SBE72-0155 | ab-af/02 | 40 |
| 257B | CCR264CS3-4 | • • RIVET - BLIND CSK HD,(VRS2808) 11815 | aa-af/03 | 40 |
| 260 | NAS1394-4L | • • INSERT 80205 POST SBE70-0983 | aa-af/01 | 4 |
| 260A | MS51830-202L | • • INSERT 96906 PRE SBE70-0983 | af/01 | 4 |
| 264 | MS21209C0410 | • • INSERT, SCREW THREAD 96906 PRE SBE70-0631 | aa-ac/01 | 15 |
| 268 | 5W2220 | • • SEAL PRE SBE70-0631 | aa-ac/01 | 1 |
| 268A | 5W2320 | • • SEAL POST SBE70-0631 | ad-af/01 | 1 |
| 270 | 5W2194 | • • PIN | aa-af/01 | 20 |
| 330 | 5W2195 | • SCREEN, A/O PRE SBE70-0363 | aa-ac/02 | 5 |
| 330A | 5W2291 | • FRAME, SCREEN, A/O POST SBE70-0363 PRE SBE70-0631 | ac/02 | 5 |
| 330B | 5W2291 | • FRAME, SCREEN, A/O PRE SBE70-0631 | aa/03 | 5 |
| 345 | 5W2249 | • • RETAINER, SCREW PRE SBE70-0631 | aa-ac/01 | 3 |
| 350 | NAS1101E04-3 | • • SCREW 80205 PRE SBE70-0631 | aa-ac/01 | 3 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

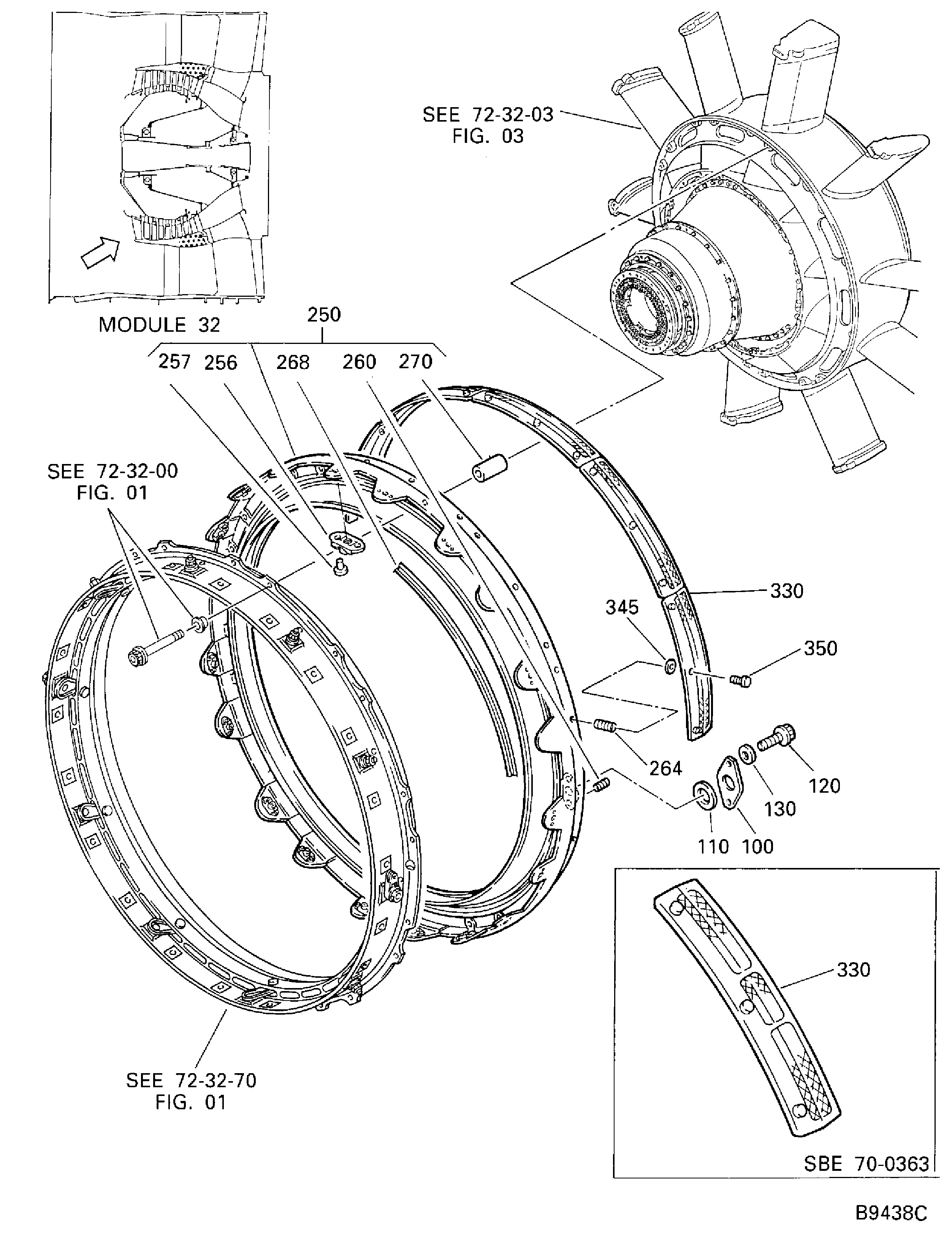

Figure: LPC Bleed Duct And Related Parts
LPC Bleed Duct And Related Parts
LPC Bleed Duct And Related Parts
