TASK 72-32-70-200-003-C00 LPC Bleed Valve Arm Pins - Examine, Inspection-003

DMC:V2500-A5-72-32-7001-02C-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Common Information

TASK 72-32-70-200-003-C00 LPC Bleed Valve Arm Pins - Examine, Inspection-003

Effectivity

FIG/ITEM

PART NO.

02-240

5A1820

General

This TASK gives the procedure for the inspection of the pins. For the other booster stage bleed valve and actuating mechanism parts, refer to TASK 72-32-70-200-000.

The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.

All the parts must be cleaned before any part is examined. Refer to the SPM TASK 70-32-70-100-000.

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the test before the parts are visually examined.

Do not discard any parts until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which must be discarded can be held although no repair is available. The repair of discarded parts could be shown as necessary at a later date.

All the parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by TASK numbers are in the SPM.

Reference

Refer to the SPM for data on these items:

Definition of Damages, SPM TASK 70-02-02-350-501.

Inspection of parts, SPM TASK 70-20-00-200-501.

Some data on these items are contained in this TASK. For more data on these items refer to the SPM.

Method of testing for Crack Indications

Chemical Process

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-70-230-059 Examine the Pin for Cracks

    1. Clean the parts. Refer to TASK 72-32-70-100-000 (CLEANING-000).

      2. Do the test for cracks on the parts given below. Use applicable fluorescent penetrant procedure.

        PART IDENT

        TASK/SUBTASK

        Pin

        1. Cracked

        1. Reject

    2. SUBTASK 72-32-70-220-092 Examine the Pin Surface

    1. Refer to Figure.

      2. Examine all the surface (except plating area at location 1).

        1. Galled.

          1. Up to 0.005 in. (0.12 mm) in depth

          1. Repair, VRS1739 TASK 72-32-70-300-004 (REPAIR-004)

          2. More than 0.005 in. (0.12 mm) in depth

          1. Reject

        2. Scratched.

          1. Up to 0.005 in. (0.12 mm) in depth

          1. Repair, VRS1739 TASK 72-32-70-300-004 (REPAIR-004)

          2. More than 0.005 in. (0.12 mm) in depth

          1. Reject

        3. Corroded

        1. Reject

    3. SUBTASK 72-32-70-220-093 Examine the Pin Diameter

    1. Refer to: Figure

      2. Examine the diameter at location 0480.

        1. Worn.

          1. If the diameter is between 0.3112 in. (7.902 mm) and 03116 in. (7.917 mm)

          1. Accept

        2. Write down the dimension of the diameter

          3. If the diameter is less than 0.3112 in. (7.902 mm)

          1. Reject

    4. SUBTASK 72-32-70-220-094 Examine the Pin Plating

    1. Refer to Figure.

      2. Examine the plating area at location 1.

        1. Peeled

        1. Reject

        2. Chipped

        1. Reject

      3. Galled

        4. Up to 0.002 in. (0.05 mm) in depth

        1. Repair, VRS1739 TASK 72-32-70-300-004 (REPAIR-004)

        5. More than 0.002 in. (0.05 mm) in depth

        1. Reject

        6. Scratched.

          1. Up to 0.002 in. (0.05 mm) in depth

          1. Repair, VRS1739 TASK 72-32-70-300-004 (REPAIR-004)

          2. More than 0.002 in. (0.05 mm) in depth

          1. Reject

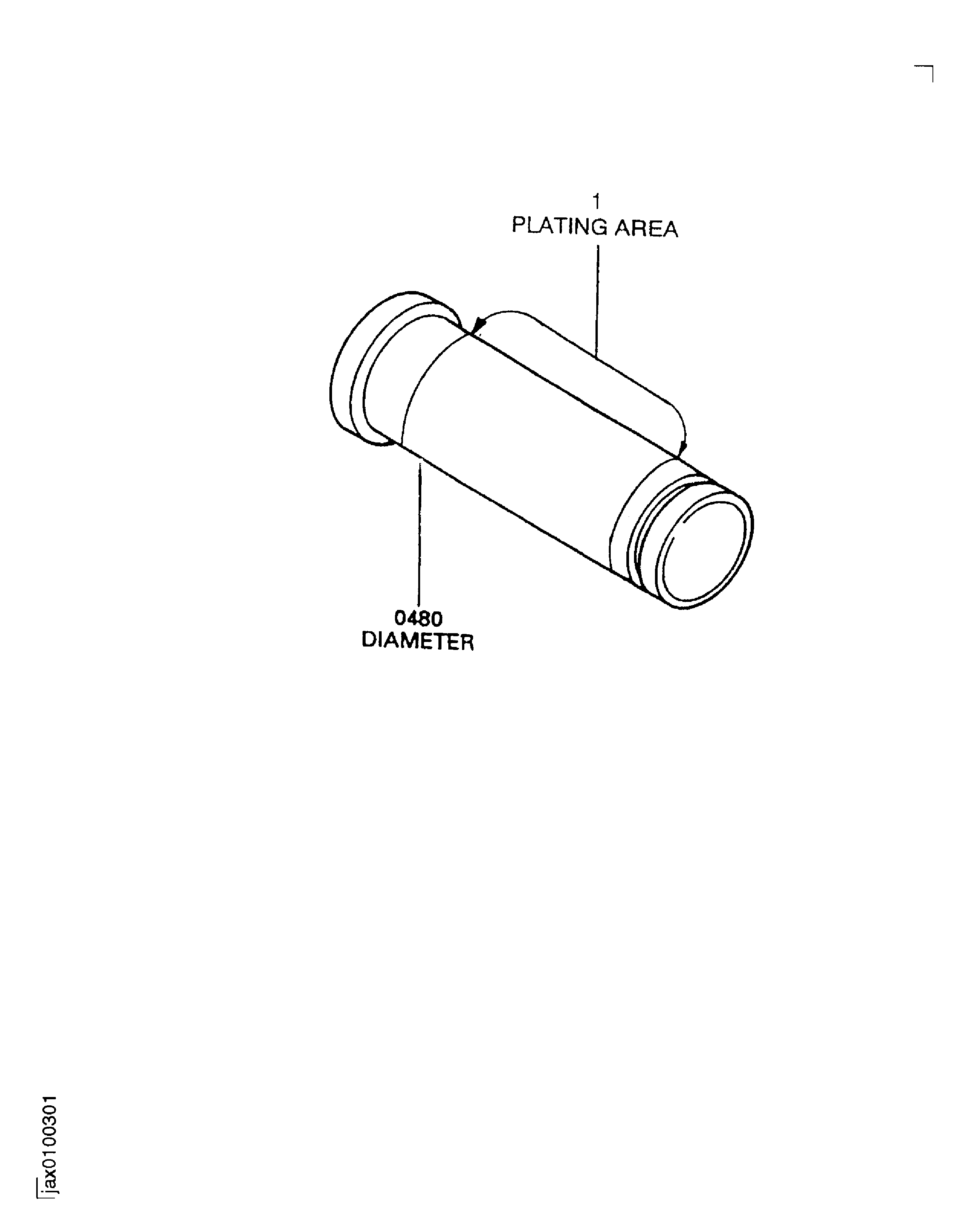

    5. Figure: Loactions on the Pin

    Loactions on the Pin

Requirements After Job Completion

Follow-On Conditions

NONE
