TASK 72-32-82-300-016 LPC Stage 1.5 Blade - Blend Repair, Repair-016 (VRS1867)

DMC:V2500-A5-72-32-8215-01A-649A-C|Issue No:004.00|Issue Date:2018-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Common Information

TASK 72-32-82-300-016 LPC Stage 1.5 Blade - Blend Repair, Repair-016 (VRS1867)

Effectivity

FIG/ITEM

PART NO.

02-400

5A1445

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

LPC stage 1.5 blade

Titanium alloy

General

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Price and availability - none

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment
Glass bead peening equipmentLOCALGlass bead peening equipment
Shot peening equipmentLOCALShot peening equipment
IAE 3J12779 Glass peening fixture0AM53IAE 3J127791
IAE 3J12780 Glass peening fixture0AM53IAE 3J127801
IAE 3J12781 Shot peening fixture0AM53IAE 3J127811

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-293 GLASS BEADSLOCALCoMat 01-293
CoMat 02-003 ADHESIVE TAPE BLACK WATERPROOFLOCALCoMat 02-003
CoMat 05-006 GLASS BEADSLOCALCoMat 05-006
CoMat 05-019 WATERPROOF SILICON CARBIDELOCALCoMat 05-019
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021
CoMat 05-030 CAST STEEL SHOT DELETED0AM53CoMat 05-030

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-82-350-088 Remove the Damage from the LPC Stage 1.5 Blades

    1. Refer to Figure.

      2. CAUTION

        WHEELS, STONES AND ABRASIVE PAPERS USED TO DRESS, MAKE SMOOTH OR POLISH A TITANIUM COMPONENT MUST BE OF THE SILICON CARBIDE TYPE. ALUMINUM OXIDE TYPES MUST NOT BE USED.

        CAUTION

        THE MATERIAL WILL OXIDIZE AND CRACK IF MECHANICAL CUTTERS ARE USED HEAVILY. THIS HAS OCCURRED IF THE COMPONENT SHOWS DARK STRAW TO BLUE DISCOLORATION. IF AT ANY TIME THIS DISCOLORATION OCCURS THE COMPONENT MUST BE REJECTED.

        Scallop, make smooth and/or hand polish to remove nicks, scratches and/or damage.

        1. Use abrasive stone or papers and/or fine file.

        1. Use light pressure to prevent any risk of overheating material.

        2. Any polish marks must be made in a radial direction from root to tip of the blades.

        3. The surface finish of the repair area must be the same as the adjacent area.

      3. Hand polish the blade leading and/or trailing edge radius and the blade profile to make a smooth shape.

        1. Remove the minimum quantity of material necessary to give the correct radius.

        2. Refer to the SPM TASK 70-35-03-300-501.

    2. SUBTASK 72-32-82-220-111 Examine the LPC Stage 1.5 Blades

      1. Do a visual and dimensional inspection of the blades.

        1. Visually examine the repaired area for nicks, scratches and/or damage.

        1. Use a 10X magnifying glass.

        2. Refer to TASK 72-32-82-200-000 (INSPECTION-000).

    3. SUBTASK 72-32-82-230-067 Do a Crack Test

      1. Do a penetrant crack test.

        1. Refer to the SPM TASK 70-23-03-230-501.

        1. Refer to TASK 72-32-82-200-000 (INSPECTION-000).

        2. Cracks are not permitted.

        3. Use penetrant crack test equipment.

    4. SUBTASK 72-32-82-350-089 Glass Bead Peen the LPC Stage 1.5 Blades

    1. Refer to Figure.

    2. Glass bead peen if the airfoil has been repaired.

      3. Apply the adhesive tape.

      1. Apply CoMat 02-003 ADHESIVE TAPE BLACK WATERPROOF to the areas which are not to be given glass bead peening.

      4. Install the blades in to the glass peening fixture.

      5. Glass bead peen the airfoil.

        1. Use CoMat 01-293 GLASS BEADS or CoMat 05-006 GLASS BEADS at an intensity of 7N-11N.

        1. Use IAE 3J12779 Glass peening fixture 1 off to hold an Almen test strip.

        2. Refer to the SPM TASK 70-38-04-300-503.

    6. Remove the blades from the fixture and remove the masking tape.

      7. Remove the glass beads.

        1. Use a clean dry air blast or a soft brush.

        1. Use a vacuum assisted brush to make sure that all the glass beads are removed.

      8. Examine the blades.

        1. Visually examine the peened surface for uniform coverage and complete over-lapping of the shot impressions.

        1. Refer to the SPM TASK 70-38-04-300-503.

    5. SUBTASK 72-32-82-380-062 Shot Peen the LPC Stage 1.5 Blades

    1. Refer to Figure.

    2. Shot peen if the areas below the platform of the airfoil have been repaired.

      3. Apply the adhesive tape.

        1. Apply the adhesive tape to the areas which are not to be given shot peening.

      4. Install the blades in to the shot peening fixture.

      5. Shot peen the repaired area of the blade shank.

        1. Use CoMat 05-030 CAST STEEL SHOT DELETED at an intensity of 6A-9A.

        1. Refer to the SPM TASK 70-38-04-300-503.

    6. Remove the blade from the fixture and remove the adhesive tape.

      7. Remove the steel shots.

        1. Use a clean dry air blast or a soft brush.

        1. Use a vacuum assisted brush to make sure that all the steel shots are removed.

      8. Examine the blades.

        1. Visually examine the peened surface for uniform coverage and complete over-lapping of the shot impressions.

        1. Refer to the SPM TASK 70-38-04-300-503.

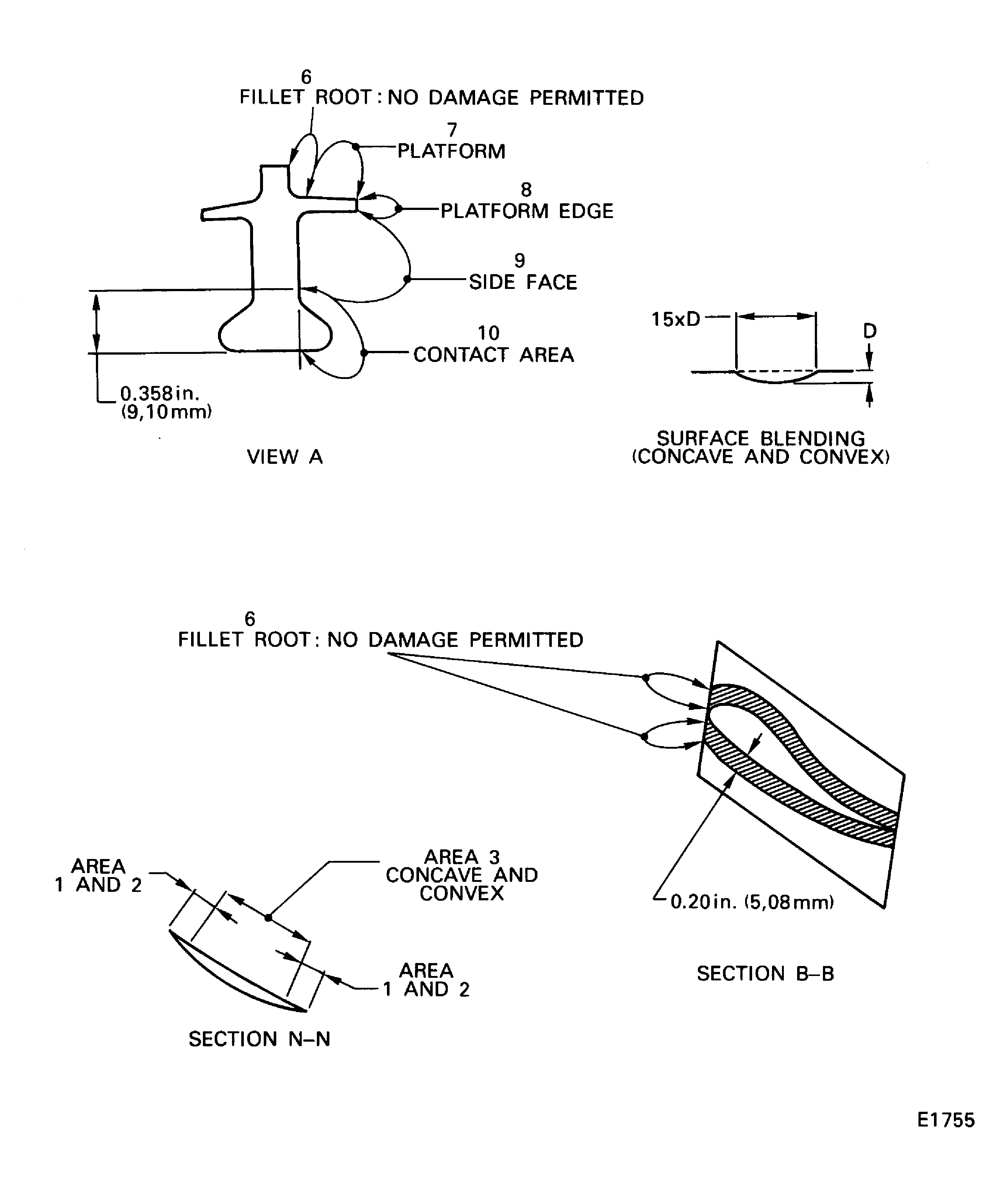

    6. Figure: LP Compressor Stage 1.5 Blades, Dressing Dimensions

    Sheet 1

    Legend
    LP compressor stage 1.5 blades, dressing dimensions

    Sheet 1

    Close

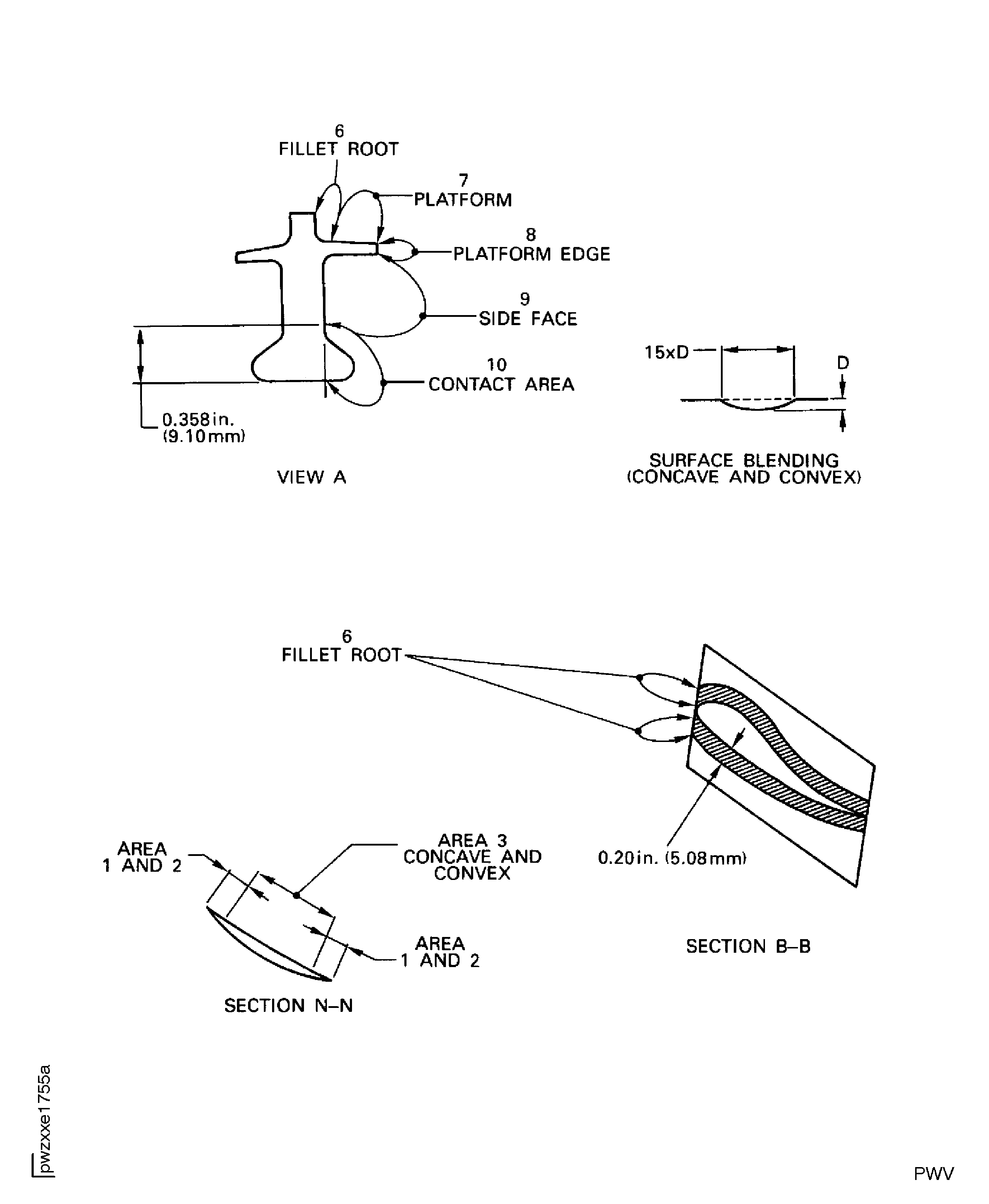

    Figure: LP Compressor Stage 1.5 Blades, Dressing Dimensions

    Sheet 2

    LP Compressor Stage 1.5 Blades, Dressing Dimensions

    Legend
    LP compressor stage 1.5 blades, dressing dimensions

    Sheet 2

    Close

    Figure: LP Compressor Stage 1.5 Blades, Dressing Dimensions

    Sheet 3

    Legend
    LP compressor stage 1.5 blades, dressing dimensions

    Sheet 3

    Close

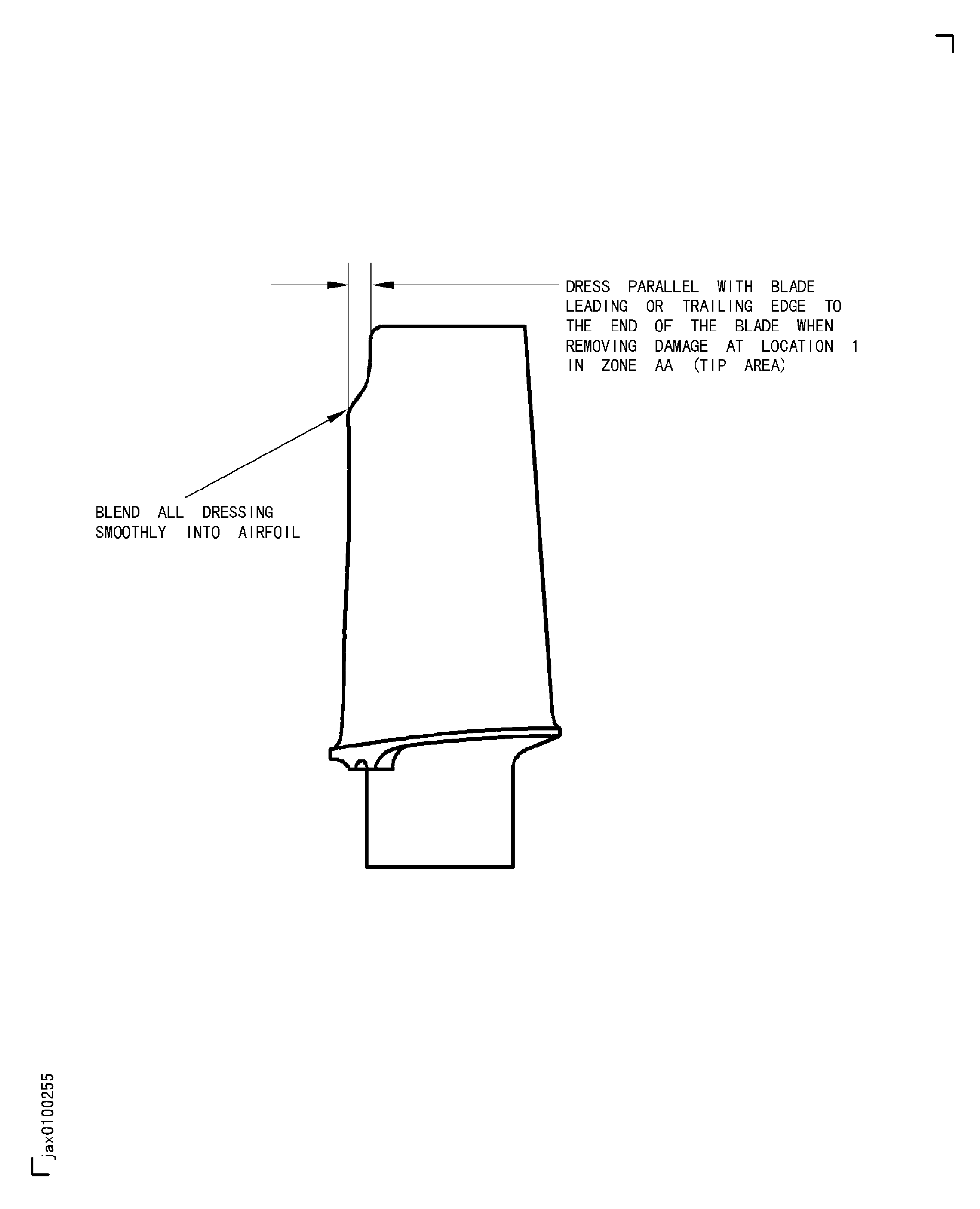

    Figure: LP Compressor Stage 1.5 Blades, Dressing Dimensions

    Sheet 4

    Legend
    LP compressor stage 1.5 blades, dressing dimensions

    Sheet 4

    Close

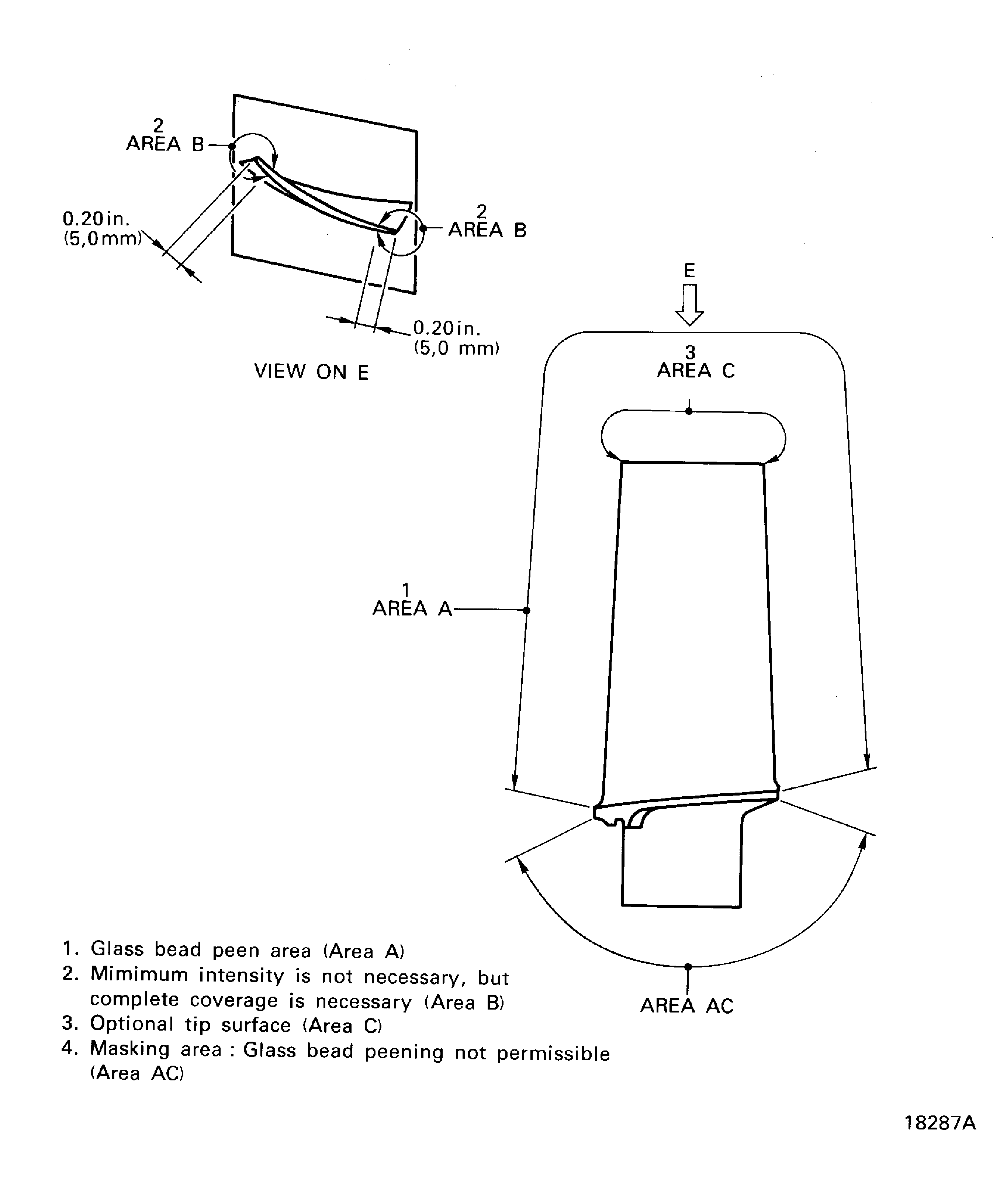

    Figure: LP Compressor Stage 1.5 Blades - Glass Bead Peening Area

    LP Compressor Stage 1.5 Blades - Glass Bead Peening Area

    Figure: LP Compressor Stage 1.5 Blades - Shot Peening Area

    LP Compressor Stage 1.5 Blades - Shot Peening Area

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised figure 1 and figure 2. (92VJ831C)
