TASK 72-32-83-300-022 LPC Rear Case - Replace The Nut, Repair-022 (VRS1593)

DMC:V2500-A5-72-32-8340-02A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Common Information

TASK 72-32-83-300-022 LPC Rear Case - Replace The Nut, Repair-022 (VRS1593)

Effectivity

FIG/ITEM

PART NO.

02-900

5W2196

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

LPC rear case assembly

A1-5Si-1.3Cu-0.5Mg

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

For the method to clean the parts, refer to TASK 72-32-83-100-000.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Rivet gunLOCALRivet gun

Consumables, Materials and Expendables

NONE

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Nut, anchorMS21076L362
Rivet, blind, CSK HDCCR264CS3-3124

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-83-350-065 Remove the Nut from the LPC Rear Case Assembly

    1. Remove the two rivets that attach the nut to the LPC rear case assembly.

    2. CAUTION

      DO NOT REMOVE PARENT MATERIAL FROM THE LPC REAR CASE ASSEMBLY.

      Remove the nut from the LPC rear case assembly.

    2. SUBTASK 72-32-83-350-066 Install the New Nut to the LPC Rear Case Assembly

    1. Refer to Figure.

    2. Put a new nut on the LPC rear case assembly.

      3. Install new rivets into the hole in the LPC rear case assembly.

        1. Use rivet gun.

        1. Refer to the SPM TASK 70-39-03-390-501.

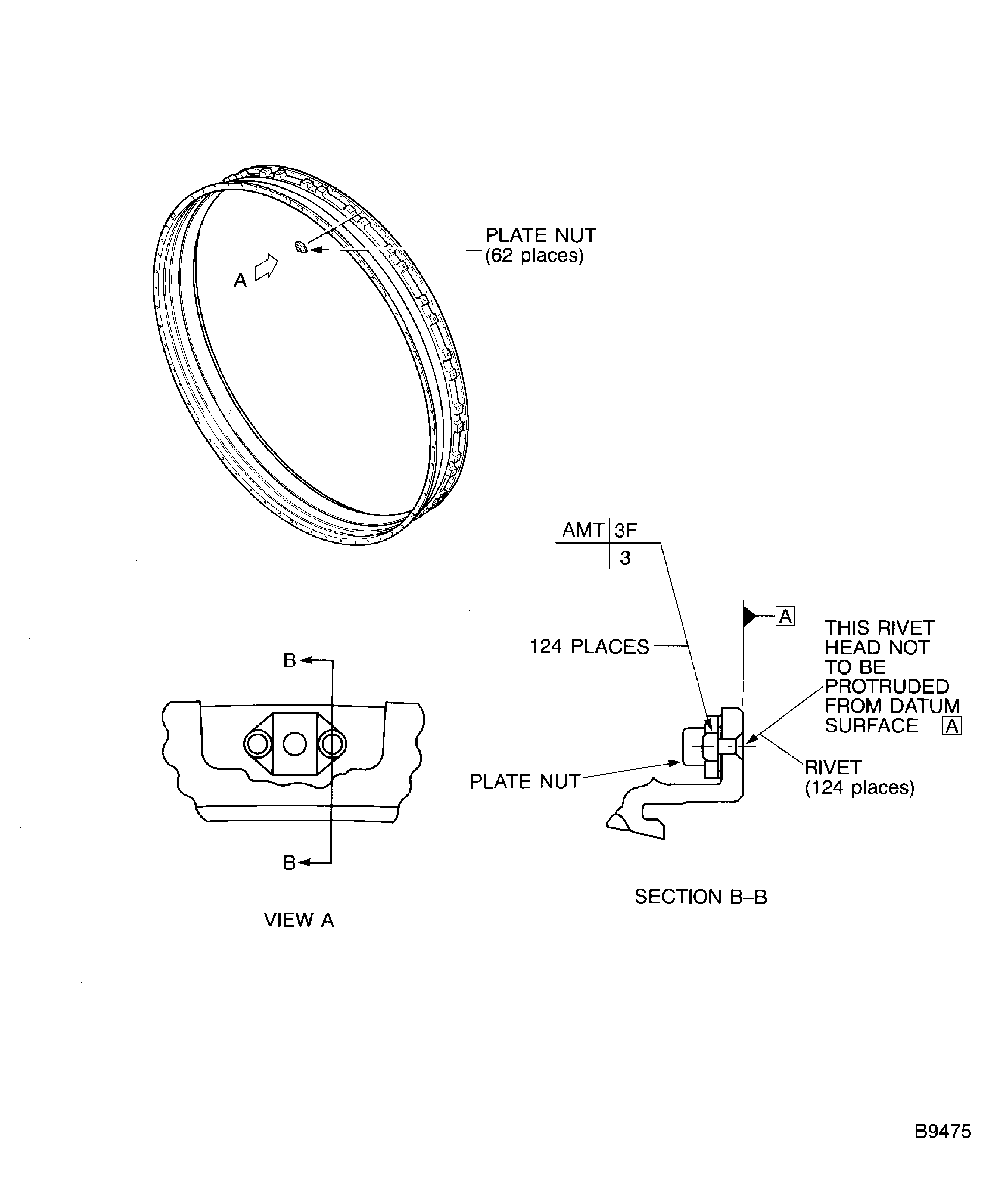

    3. Figure: Replacement of the nut

    Replacement of the nut

Requirements After Job Completion

Follow-On Conditions

NONE
