TASK 72-32-83-300-024 LPC Rear Case - Replace The Boss, Repair-024 (VRS1590)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK number are in the SPM.
For the method to clean the parts, refer to TASK 72-32-83-100-000.
Preliminary Requirements
Pre-Conditions
NONEConsumables, Materials and Expendables
NONESpares
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Boss, LPC borescope | 5W2202 | 1 | ||
| Rivet | MS20427M4-7 | 4 |
Safety Requirements
NONEProcedure
Refer to Figure.
Refer to the SPM TASK 70-39-03-390-501.
Use rivet gun.
Install new rivets into the hole in the LPC rear case assembly.
SUBTASK 72-32-83-350-064 Install the New Boss to the LPC Rear Case Assembly

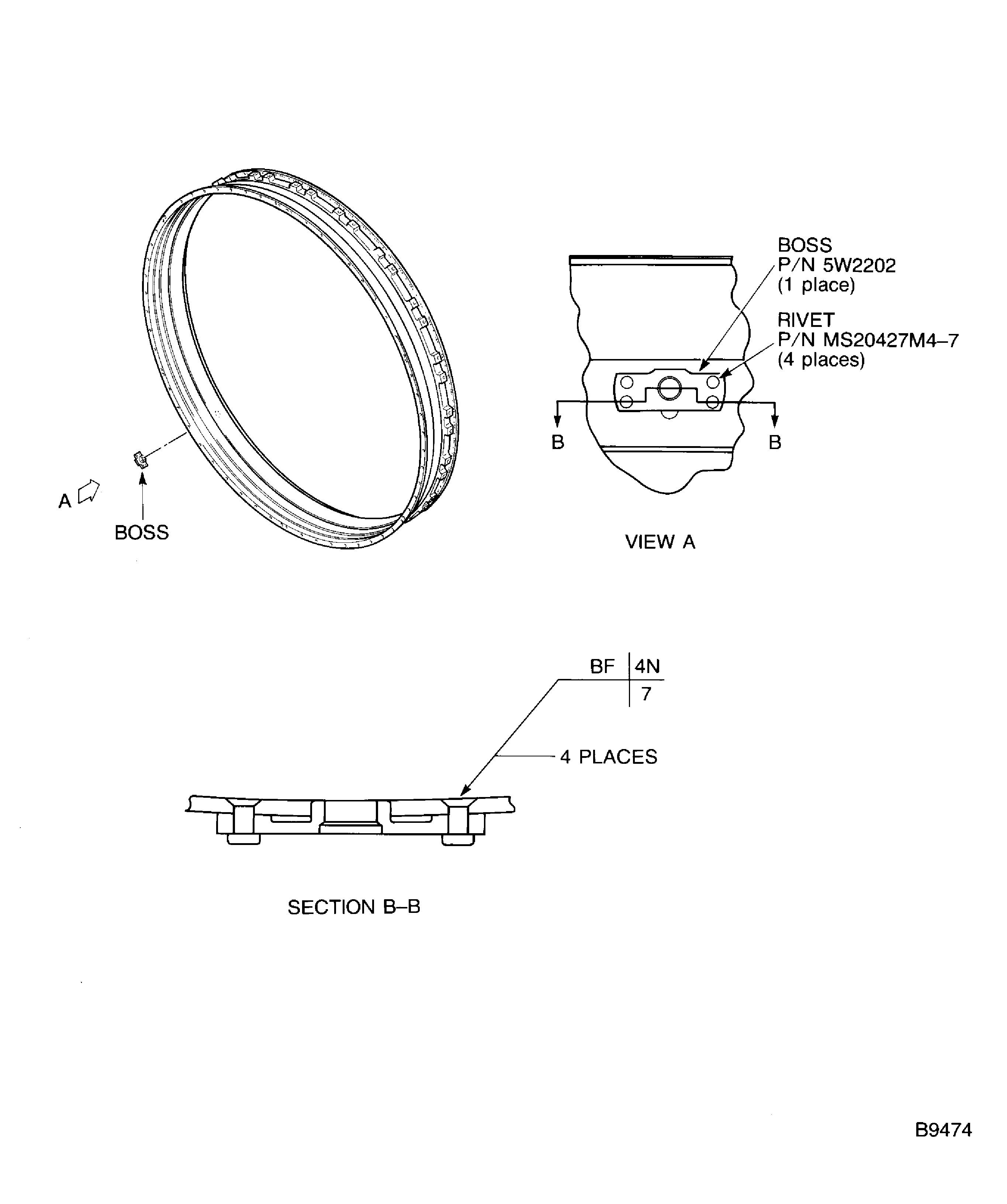

Figure: Replacement of the Boss
Replacement of the Boss
