DMC:V2500-A5-72-32-86-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B72328601 | ENGINE-INTERMEDIATE STRUCTURE REAR FAIRING, PRE SBE70-0381 | aa | |
| - | SBE0381-01 | ENGINE-INTERMEDIATE STRUCTURE REAR FAIRING, PRE SBE70-0577 | ab | |
| - | SBE0577-01 | ENGINE-INTERMEDIATE STRUCTURE REAR FAIRING, PRE SBE70-0951 | ac | |
| - | SBE0951-01 | ENGINE-INTERMEDIATE STRUCTURE REAR FAIRING | ad | |
| 100 | 5A1370 | • FAIRING, A/O REAR PRE SBE70-0381 | aa-ad/01 | 1 |
| 100A | 5A1688 | • FAIRING, A/O REAR POST SBE70-0381 PRE SBE70-0577 | ab/02 | 1 |
| 100B | 5A1755 | • FAIRING, A/O REAR POST SBE70-0577 | ac-ad/02 | 1 |
| 125 | 5A1925 | • • BLOCK POST SBE70-0951 | ad/02 | 1 |
| 127 | 5A1512 | • • WASHER, DIMPLE ALT 5A0925 POST SBE70-0381 | ab-ad/02 | 20 |
| -127A | 5A0925 | • • WASHER, DIMPLE ALT 5A1512 POST SBE70-0381 | ab-ad/02 | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

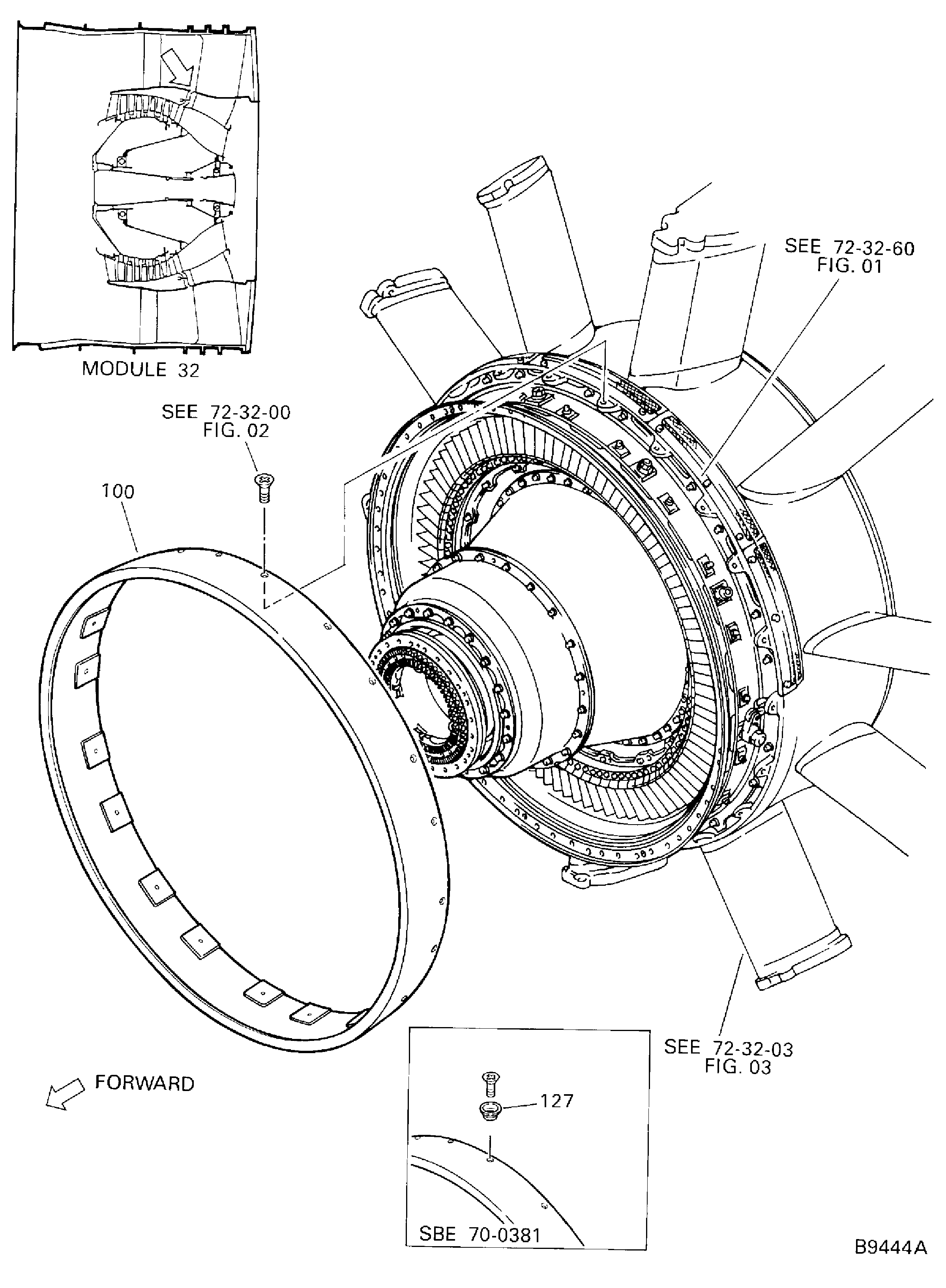

Figure: Intermediate Structure Rear Fairing
Intermediate Structure Rear Fairing
