| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| - | B72328702 | ENGINE-FAN CASE REAR PANELS, PRE SBE70-0452 | aa | |
| - | SBE0452-01 | ENGINE-FAN CASE REAR PANELS | ab | |
| 100 | 5A0809 | • PANEL, LINER, TYPE A, REAR, ASSEMBLY OF PRE SBE70-0452 | aa/01 | 1 |
| 100A | 5A1622 | • PANEL POST SBE70-0452 | ab/01 | 1 |
| 100B | 5A1622 | • PANEL | aa-ab/02 | 1 |
| 150 | 5A0809 | • PANEL, LINER, TYPE A, REAR, ASSEMBLY OF PRE SBE70-0452 | aa/01 | 1 |
| 150A | 5A1622 | • PANEL POST SBE70-0452 | ab/01 | 1 |
| 150B | 5A1622 | • PANEL | aa-ab/02 | 1 |
| 200 | 5A0814 | • PANEL, LINER, TYPE B, REAR, ASSEMBLY OF PRE SBE70-0452 | aa/01 | 1 |
| 200A | 5A1623 | • PANEL POST SBE70-0452 | ab/01 | 1 |
| 200B | 5A1623 | • PANEL | aa-ab/02 | 1 |
| 250 | 5A0817 | • PANEL, LINER, TYPE D, REAR, ASSEMBLY OF PRE SBE70-0452 | aa/01 | 1 |
| 250A | 5A1625 | • PANEL, LINER, TYPE D, REAR, ASSEMBLY OF POST SBE70-0452 | aa-ab/03 | 1 |
| 290 | 5A0815 | • PANEL, LINER, MID,ASSEMBLY OF PRE SBE70-0452 | aa/01 | 1 |
| 290A | 5A1626 | • PANEL, LINER, MID, ASSEMBLY OF POST SBE70-0452 | aa-ab/03 | 1 |
| 300 | 5A0818 | • PANEL, LINER, TYPE C, REAR, ASSEMBLY OF PRE SBE70-0452 | aa/01 | 1 |
| 300A | 5A1624 | • PANEL POST SBE70-0452 | ab/01 | 1 |
| 300B | 5A1624 | • PANEL | aa-ab/02 | 1 |
| 350 | 5A0809 | • PANEL, LINER, TYPE A, REAR, ASSEMBLY OF PRE SBE70-0452 | aa/01 | 1 |
| 350A | 5A1622 | • PANEL POST SBE70-0452 | ab/01 | 1 |
| 350B | 5A1622 | • PANEL | aa-ab/02 | 1 |
| 400 | 5A0814 | • PANEL, LINER, TYPE B, REAR, ASSEMBLY OF PRE SBE70-0452 | aa/01 | 1 |
| 400A | 5A1623 | • PANEL POST SBE70-0452 | ab/01 | 1 |
| 400B | 5A1623 | • PANEL | aa-ab/02 | 1 |
| 450 | 5A0814 | • PANEL, LINER, TYPE B, REAR, ASSEMBLY OF PRE SBE70-0452 | aa/01 | 1 |
| 450A | 5A1623 | • PANEL POST SBE70-0452 | ab/01 | 1 |
| 450B | 5A1623 | • PANEL | aa-ab/02 | 1 |
| 500 | 5A0818 | • PANEL, LINER, TYPE C, REAR, ASSEMBLY OF PRE SBE70-0452 | aa/01 | 1 |
| 500A | 5A1624 | • PANEL POST SBE70-0452 | ab/01 | 1 |
| 500B | 5A1624 | • PANEL | aa-ab/02 | 1 |
| 550 | 5A0818 | • PANEL, LINER, TYPE C, REAR, ASSEMBLY OF PRE SBE70-0452 | aa/01 | 1 |
| 550A | 5A1624 | • PANEL POST SBE70-0452 | ab/01 | 1 |
| 550B | 5A1624 | • PANEL | aa-ab/02 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

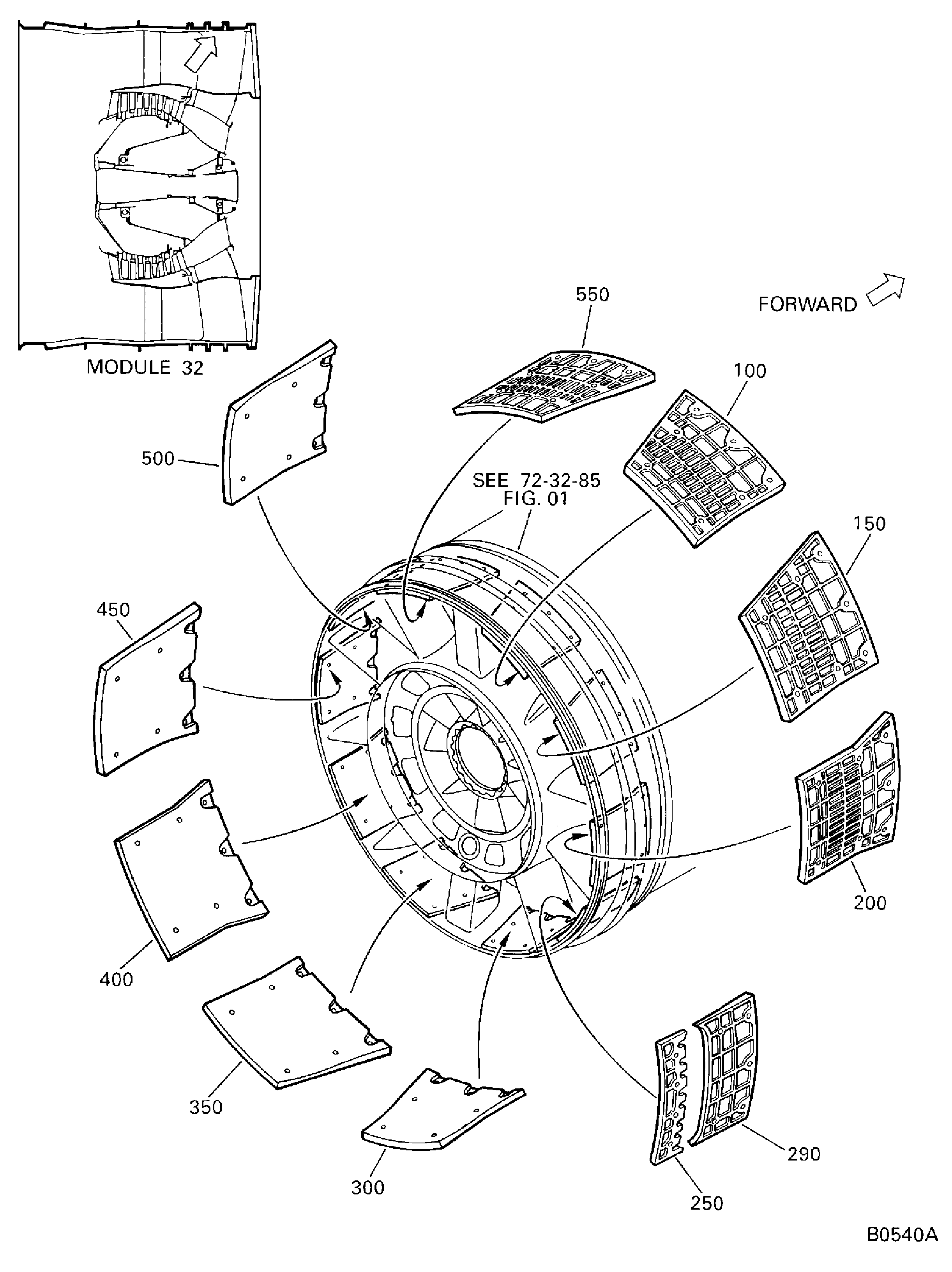

Figure: Fan Case Liner Panels And Related Parts
Fan Case Liner Panels And Related Parts
