DMC:V2500-A5-72-41-23-02A-941A-DIssue No:003.00Issue Date:2019-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| - | B72412302 | ENGINE - HP COMPRESSOR REAR OUTER CASE, PRE SBE70-0368 | aa | |
| - | SBE0368-01 | ENGINE - HP COMPRESSOR REAR OUTER CASE, PRE SBE72-0263 | ab | |
| - | SBE0263-01 | ENGINE - HP COMPRESSOR REAR OUTER CASE, PRE SBE72-0440 | ac | |
| - | SBE0440-01 | ENGINE - HP COMPRESSOR REAR OUTER CASE, PRE SBE72-0627 | ad | |
| - | SBE0627-01 | ENGINE - HP COMPRESSOR REAR OUTER CASE | ae | |
| 100 | 6A4180 | • COVER - BLANKING, BORESCOPE STAGE | aa-ae/01 | 1 |
| 102 | 4W0165 | • BOLT, MACHINE DOUBLE HEX - .250 DIA X .688 | aa-ae/01 | 3 |
| 108 | 6A4181 | • GASKET | aa-ae/01 | 1 |
| 220 | 6A2251 | • SEGMENT - CROSSKEY PRE SBE72-0263 | aa/01 | 12 |
| 220A | 6A5685 | • SEGMENT - CROSS KEY, LOCATION POST SBE72-0263 | ac-ae/01 | 6 |
| 250 | 6A1861 | • HOUSING - SEAL, REAR PRE SBE72-0263 | aa-ab/01 | 1 |
| 400 | 6A4154 | • CASE - HPC, REAR, OUTER, ASSEMBLY OF PRE SBE70-0368 | aa/01 | 1 |
| 400A | 6A5495 | • CASE - HPC, OUTER, REAR, ASSEMBLY OF PRE SBE72-0263 | aa-ab/01 | 1 |
| 400B | 6A5682 | • CASE- ASSEMBLY OF POST SBE72-0263 PRE SBE72-0440 | ac/01 | 1 |
| 400C | 6A8162 | • CASE - HPC, REAR, OUTER POST SBE72-0440 PRE SBE72-0627 | ad/01 | 1 |
| 400D | 6B1427 | • CASE - REAR OUTER, ASSEMBLY OF POST SBE72-0627 | ae/02 | 1 |
| 432 | AS52761 | • • INSERT - SCREW THREAD U1653 | aa-ae/01 | 80 |
| 433 | AS52762 | • • INSERT - SCREW THREAD U1653 | aa-ae/01 | 20 |
| 455 | AS20763 | • • RING - RETAINING U1653 (VRS6278) POST SBE70-0353 | *****/01 | 1 |
| 456 | LK54570 | • • PIN (VRS6278) POST SBE70-0353 | *****/01 | 1 |
| -550 | 6A5683 | • • CASE POST SBE72-0263 PRE SBE72-0440 | aa-ac/01 | REF |
| -550A | 6A5496 | • • CASE - HPC, REAR, OUTER POST SBE72-0263 | ac-ae/01 | REF |
| -550B | 6A5683 | • • CASE POST SBE72-0263 PRE SBE72-0440 | ac/01 | REF |
| -550C | 6A8163 | • • CASE - HPC, REAR, OUTER POST SBE72-0440 PRE SBE72-0627 | ad/01 | REF |
| -550D | 6B1428 | • • CASE - REAR OUTER POST SBE72-0627 | ae/02 | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

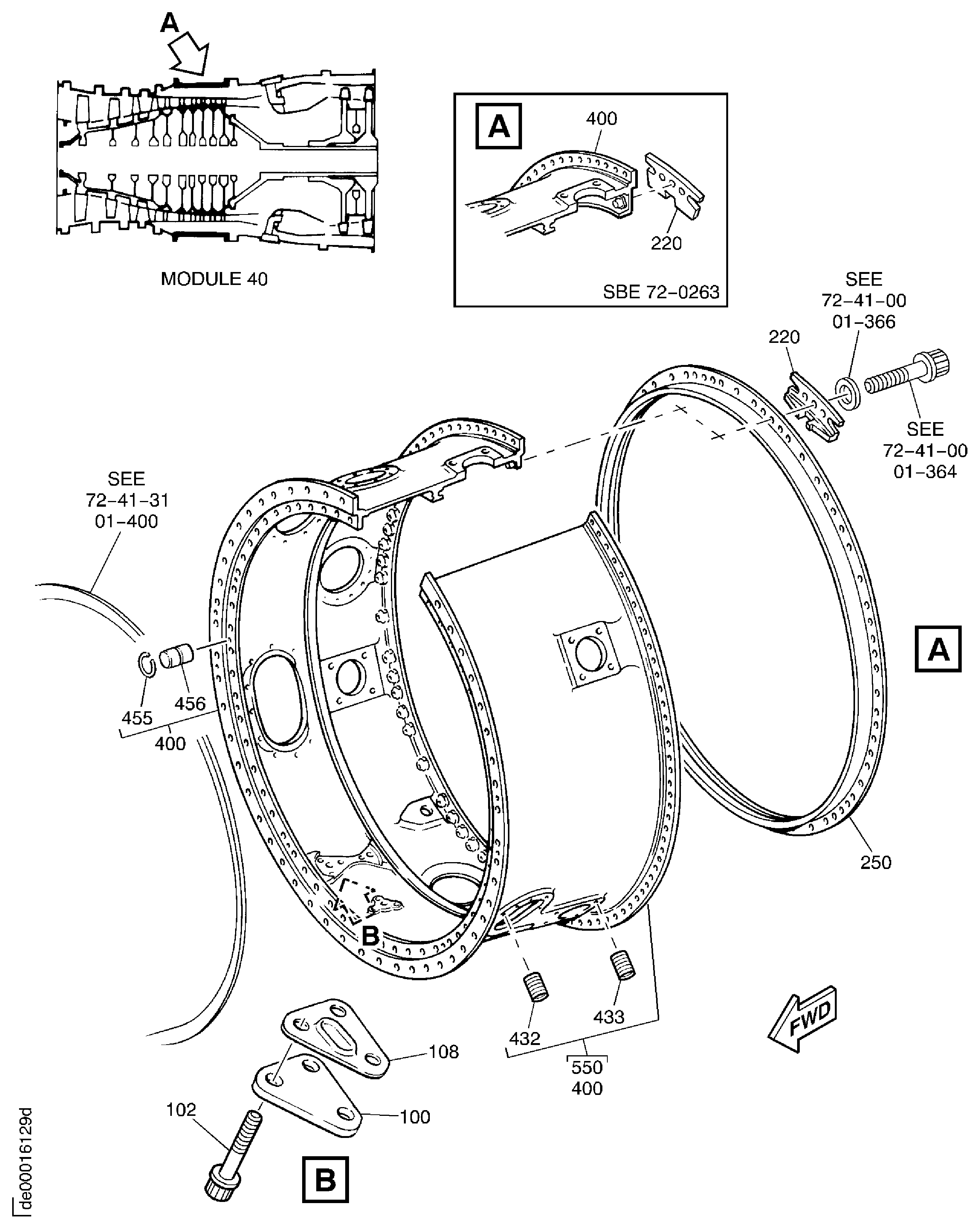

Figure: HPC Rear Outer Case And Related Parts
HPC Rear Outer Case And Related Parts
