TASK 72-41-34-040-001-D00 HPC Variable Stator Vane Actuation System - Disassemble The Front Bearing Housing Assembly From The Crankshaft, Disassembly-001 - SBE 72-0564 (SelectOne Production Standard)

DMC:V2500-A5-72-41-3410-00D-530A-B|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

Post SBE 72-0564 (SELECTONE PRODUCTION STANDARD)

Common Information

TASK 72-41-34-040-001-D00 HPC Variable Stator Vane Actuation System - Disassemble The Front Bearing Housing Assembly From The Crankshaft, Disassembly-001 - SBE 72-0564 (SelectOne Production Standard)

General

This TASK gives the procedure to remove the front bearing housing and spherical bearing assembly from the VSV crankshaft assembly only for engines, which have SBE 72-0564 (SelectOne Production Standard) incorporated.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

Apply the approved CoMat 10-058 PENETRATING OIL before the removal of threaded parts and parts with an interference fit. Let the parts soak before removal.

Refer to Figure for a view of the VSV crankshaft assembly.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 1R19570 Extractor0AM53IAE 1R195701
RCH-121 Cylinder0AM53ENERPAC1

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 10-058 PENETRATING OIL0AM53CoMat 10-058

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-34-040-057 Remove the Front Bearing Housing Assembly from the VSV Crankshaft

    1. Refer to Figure and Figure.

    2. Remove the retaining ring V2500-A5-72-41-34-01A-941A-D (72-41-34, 01-636) that secures the front bearing housing assembly to the VSV crankshaft.

    3. Unstake the hole which secures the straight headless pin V2500-A5-72-41-34-01A-941A-D (72-41-34, 01-638), refer to the view at A, Figure. Refer to the SPM TASK 70-42-06-400-501.

    4. NOTE

      Keep the VSV crankshaft and front bearing housing assembly together as a set.

      Remove the front bearing housing assembly and the straight headless pin from the VSV crankshaft.

    2. SUBTASK 72-41-34-040-058 Remove the Front Spherical Bearing Assembly from the VSV Crankshaft

    1. Refer to Figure, Figure and Figure.

    2. Remove the retaining ring V2500-A5-72-41-34-01A-941A-D (72-41-34,01-623) that secures the spherical bearing assembly to the crankshaft.

      3. NOTE

        Install the extractor in position over the VSV crankshaft from top side of the component.

        Install the IAE 1R19570 Extractor to the crankshaft.

      1. Locate the extractor collar over the outer bearing race.

      2. Attach the clamp over the bearing race.

      4. Remove the spherical bearing.

      1. If necessary attach and secure the hydraulic supply to the ENERPAC RCH-121 cylinder.

      2. CAUTION

        YOU MUST NOT EXCEED THE RECOMMENDED HYDRAULIC OPERATING SUPPLY PRESSURE TO THE HYDRAULIC CYLINDER OR DAMAGE TO THE TOOLING AND COMPONENT COULD OCCUR.

        Operate the hydraulic pump to supply the cylinder with an operating supply pressure of 2,800 PSI (193 BAR) and slowly remove the spherical bearing from the crankshaft.

      3. Release the pump pressure and if necessary disconnect the supply from the ENERPAC hydraulic cylinder. If necessary remove the ENERPAC RCH-121 cylinder from the extractor.

      4. Remove the extractor from the VSV crankshaft and store the tooling in the special wooden storage box provided.

      5. Remove the spherical bearing from the crankshaft.

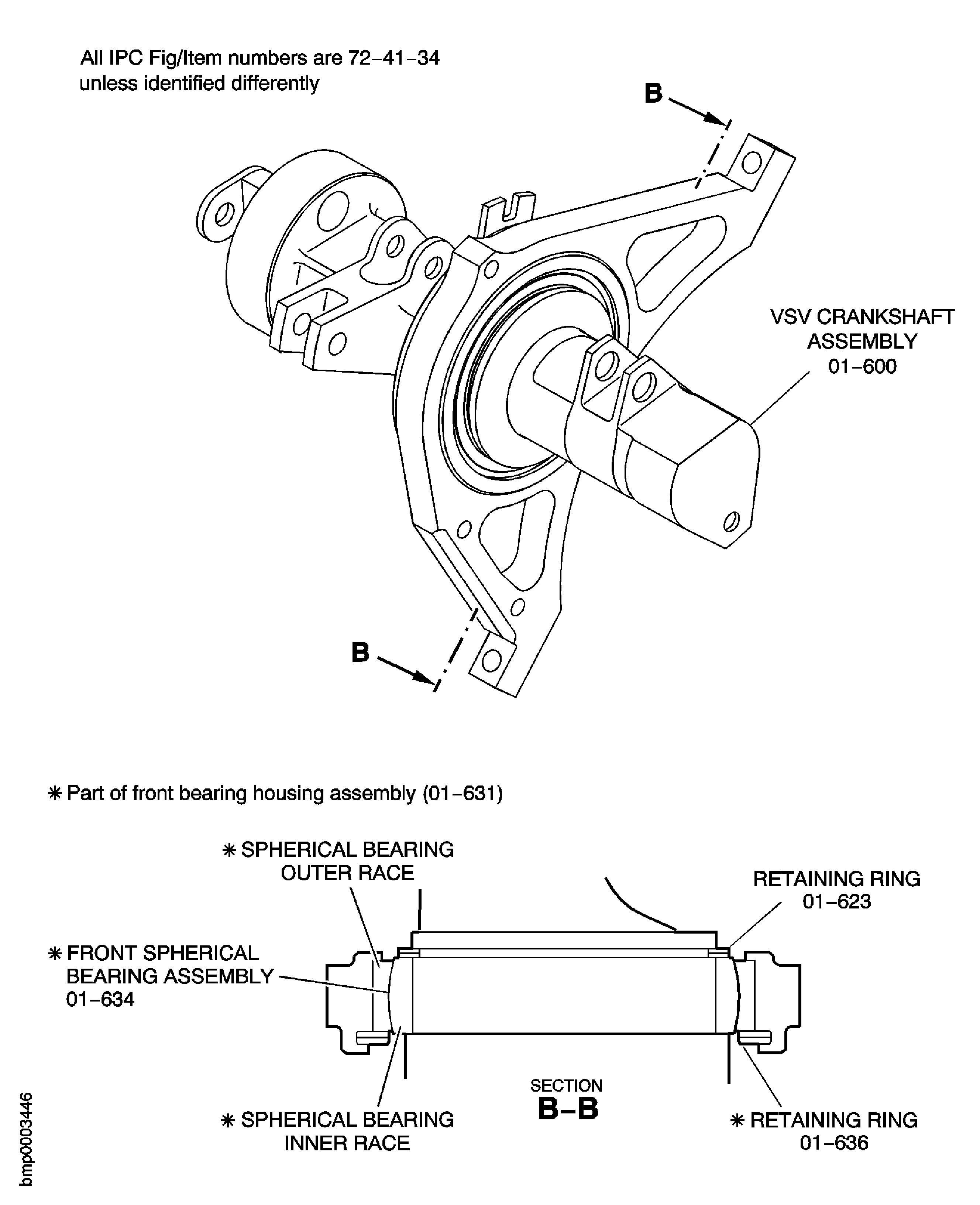

    3. Figure: View Showing the Front Bearing Housing Assembly

    View Showing the Front Bearing Housing Assembly

    Figure: Remove the Front Bearing Housing Assembly

    Remove the Front Bearing Housing Assembly

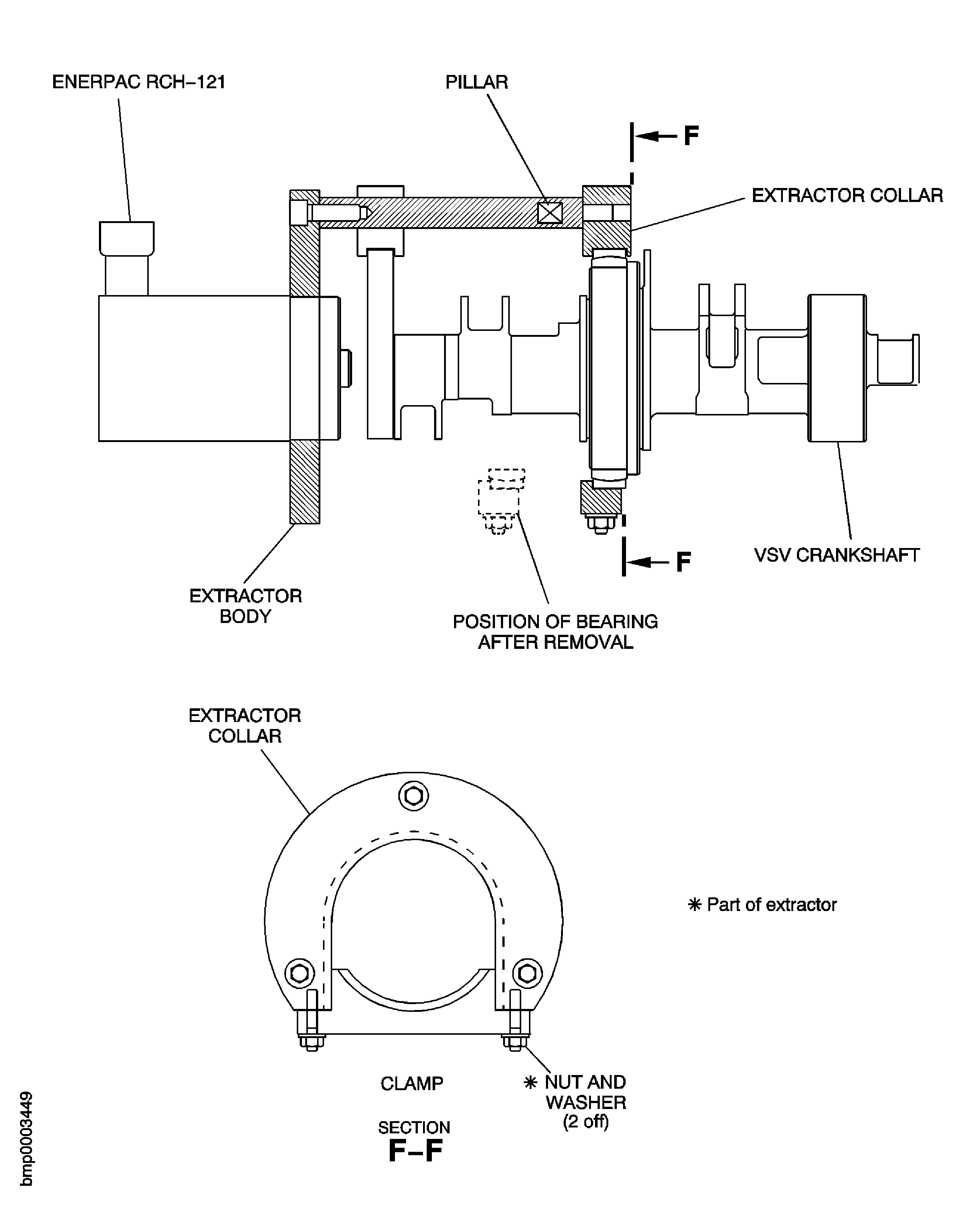

    Figure: Remove Spherical Bearing from VSV Crankshaft Assembly

    Remove Spherical Bearing from VSV Crankshaft Assembly
