| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72422001 | ENGINE-NO.4 BEARING COMPARTMENT TUBES, PRE SBE72-0592 | aa | ||
| SBE0592-01 | ENGINE-NO.4 BEARING COMPARTMENT TUBES | ab | ||
| 010 | 2A0333 | • SEAL - RING,METAL, | aa-ab | 1 |
| 030 | 2A0364 | • SEAL - RING,METAL, .625X .062X .0265 | aa-ab | 2 |
| 040 | 2A0562 | • GASKET - OPTION ALT 2A0559 | aa-ab | 1 |
| -040A | 2A0559 | • GASKET ALT 2A0560 | aa-ab | REF |
| -040B | 2A0560 | • GASKET ALT 2A0562 | aa-ab | REF |
| 060 | 2A2493-01 | • TUBE - PRESS,NO.4 BRG ASSY PRE SBE72-0592 | aa-ab | 1 |
| 060A | 2A4256-01 | • TUBE - PRESS,NO 4 BRG ASSY OF POST SBE72-0592 | aa-ab | 1 |
| 080 | 2A0335 | • BOLT | aa-ab | 3 |
| 260 | 2A1036 | • GASKET - 2.125, 3 HOLE | aa-ab | 1 |
| 280 | 2A0363 | • SLEEVE - SLG,, .625X.900X.650,3 HOL | aa-ab | 1 |
| 300 | 2A0350 | • PLATE - RTNG | aa-ab | 1 |
| 320 | MS9575-07 | • BOLT - MACHINE DOUBLE HEX 96906 | aa-ab | 3 |
| 340 | 2A1328 | • SHIELD - HEAT #4 BRG PRESSTUBE | aa-ab | 1 |
| 360 | 2A1327 | • SHIELD - HEAT #4 BRG PRESSTUBE | aa-ab | 1 |
| 420 | AS15704 | • NUT - TUBE COUPLING U1653 | aa-ab | 1 |
| 440 | 2A0838 | • WIRE - THRUST | aa-ab | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

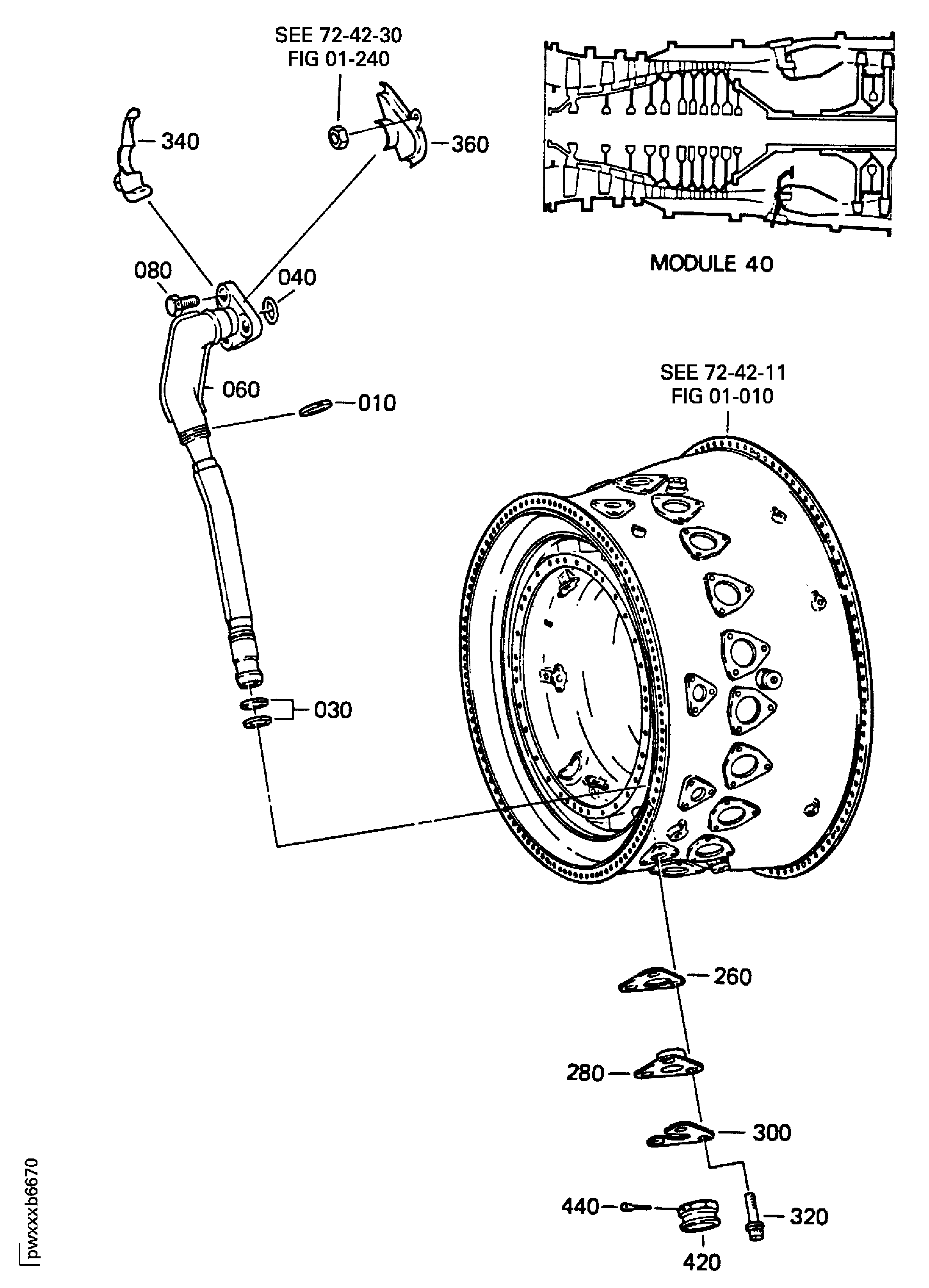

Figure: ENGINE-NO.4 BEARING COMPARTMENT TUBES
NO.4 BEARING COMPARTMENT TUBES
