DMC:V2500-A5-72-43-30-01A-941A-DIssue No:002.00Issue Date:2017-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B72433001 | NO.4 BEARING REAR COOLING DUCT AND HEATSHIELD, PRE SBE72-0190 | aa | |
| - | SBE0190-01 | NO.4 BEARING REAR COOLING DUCT AND HEATSHIELD, PRE SBE70-0713 | ab | |
| - | SBE0713-01 | NO.4 BEARING REAR COOLING DUCT AND HEATSHIELD, PRE SBE72-0415 | ac | |
| - | SBE0415-01 | NO.4 BEARING REAR COOLING DUCT AND HEATSHIELD | ad | |
| 010 | 2A1205-01 | • DUCT, NO. 4 BEARING, REAR, ASSEMBLY OF PRE SBE72-0190 | aa/01 | 1 |
| 010A | 2A3078-01 | • DUCT, COOLING, NO. 4 BEARING, ASSEMBLY PRE SBE72-0415 | aa-ac/01 | 1 |
| 010B | 2A3078-01 | • DUCT, COOLING, NO. 4 BEARING, ASSEMBLY POST SBE72-0190 PRE SBE72-0415 | ab-ac/02 | 1 |
| 010C | 2A0891-001 | • DUCT - CLG NO.4 BRG FRT 77445 POST SBE72-0415 | ad/03 | 1 |
| 010D | 2A1205-001 | • DUCT - CLG NO.4 BRG FRT 77445 POST SBE72-0415 | ad/03 | 1 |
| 010E | 2A3808-01 | • DUCT - CLG NO.4 BRG FRT 77445 POST SBE72-0415 REF SBE72-0640 | ad/03 | 1 |
| 020 | 2A0104 | • WASHER, KEY | aa-ad/03 | 7 |
| 040 | 2A1199 | • NUT, PLAIN HEXAGON | aa-ad/03 | 7 |
| -060 | 2A3383 | • • SPACER, NO. 4 BEARING COOLING DUCT POST SBE70-0713 | ac-ad/03 | 8 |
| 080 | 2A1204-01 | • SHIELD, NO. 4 BEARING HEAT, ASSEMBLY OF | aa-ad/01 | 1 |
| 080A | 2A1204-01 | • SHIELD, NO. 4 BEARING HEAT, ASSEMBLY OF | aa-ad/02 | 1 |
| 100 | 2A0104 | • WASHER, KEY | aa-ad/03 | 8 |
| 120 | 2A1199 | • NUT, PLAIN HEXAGON | aa-ad/03 | 8 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

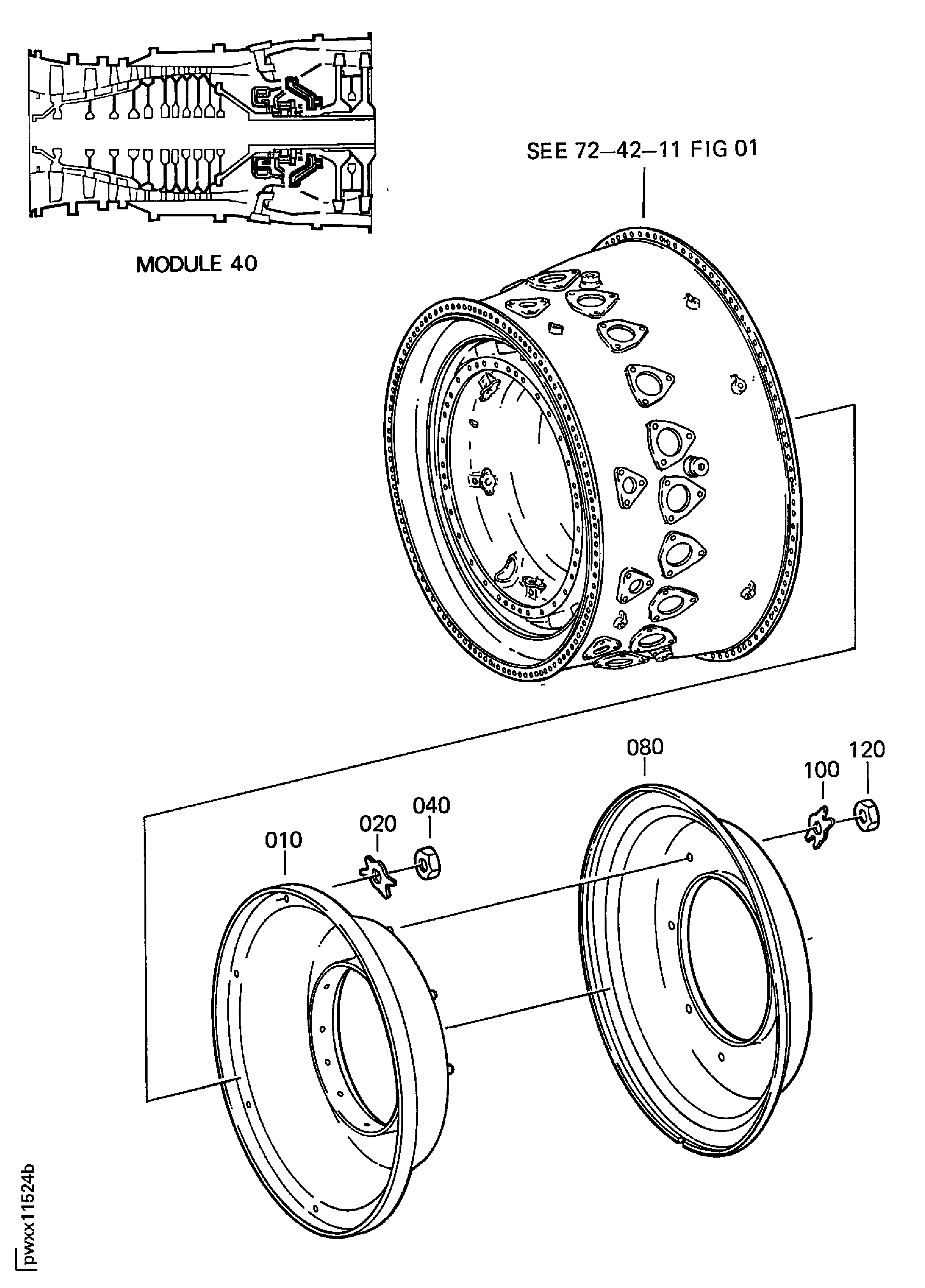

Figure: No. 4 Bearing Rear Cooling Duct And Heatshield
No. 4 Bearing Rear Cooling Duct And Heatshield
