DMC:V2500-A5-72-50-00-01A-941A-DIssue No:002.00Issue Date:2017-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B72500001 | ATTACH PARTS & FITTINGS-LP TURBINE MINI MODULE, PRE SBE70-0522 | aa | |
| - | SBE0522-01 | ATTACH PARTS & FITTINGS-LP TURBINE MINI MODULE, PRE SBE72-0567 | ab | |
| - | SBE0567-01 | ATTACH PARTS & FITTINGS-LP TURBINE MINI MODULE, PRE SBE72-0563 | ac | |
| - | SBE0563-01 | ATTACH PARTS & FITTINGS-LP TURBINE MINI MODULE, PRE SBE72-0558 | ad | |
| - | SBE0558-01 | ATTACH PARTS & FITTINGS-LP TURBINE MINI MODULE, PRE SBE72-0626 | ae | |
| - | SBE0626-01 | ATTACH PARTS & FITTINGS-LP TURBINE MINI MODULE, PRE SBE77-0015 | af | |
| - | SBE0015-01 | ATTACH PARTS & FITTINGS-LP TURBINE MINI MODULE | ag | |
| -001 | 4W6423 | TURBINE, LP MODULE PRE SBE70-0522 | aa/01 | REF |
| -001A | 4W6243 | TURBINE, LP MODULE PRE SBE72-0567 | aa-ab/01 | REF |
| -001B | 4W6243 | TURBINE, LP MODULE POST SBE70-0522 | ab-af/02 | REF |
| -001C | 4W6253 | TURBINE, LP MODULE POST SBE72-0563 PRE SBE72-0558 | ad/05 | REF |
| -001D | 4W5224 | TURBINE, LP MODULE POST SBE72-0567 | ac-af/04 | REF |
| -001E | 4W5225 | MODULE, LP TURB IDENT POST SBE72-0558 | ae-af/05 | REF |
| 050 | 4W0002 | • NUT - .250 DIA | aa-af/04 | 114 |
| 100 | 4W0587 | • BOLT - .250 DIA X .812 | aa-af/04 | 108 |
| 102 | 740-0508-503 | • FITTING, THRUST REVERSER, HOLD OPEN | aa-af/04 | 1 |
| 103 | 6A4448 | • BRACKET, CLIPPING | aa-af/04 | 1 |
| 105 | 4W0590 | • BOLT - .250 DIA X 1.000 | aa-af/04 | 3 |
| 112 | 740-0508-503 | • FITTING, THRUST REVERSER, HOLD OPEN | aa-af/04 | 1 |
| 115 | 4W0590 | • BOLT - .250 DIA X 1.000 | aa-af/04 | 3 |
| 240 | 3A0078 | • SEAL, AIR TURBINE, INNER PRE SBE72-0567 PRE SBE72-0626 | aa-ab/04 | 1 |
| 240A | 3A3063 | • SEAL, AIR TURBINE, INNER POST SBE72-0567 PRE SBE72-0626 | ac-ae/04 | 1 |
| 240B | 3A3047 | • SEAL, AIR TURBINE, INNER POST SBE72-0626 | af/04 | 1 |
| -245 | 3A2981 | • RING, DAMPER, INNER POST SBE72-0626 | af/04 | 1 |
| 250 | AS42915 | • NUT U1653 | aa-af/04 | 20 |
| 270 | 5A0388 | • BOLT | aa-af/04 | 20 |
| 350 | 5W8347 | • BRACKET | aa-af/04 | 1 |
| 370 | 5W8392 | • BRACKET | aa-af/04 | 1 |
| 390 | 2A1629 | • BRACKET, LOOP CLAMP | aa-af/04 | 8 |
| 400 | 2A2065-01 | • BRACKET, LOOP CLAMP, ASSEMBLY OF | aa-af/04 | 1 |
| 410 | 2A2065-01 | • BRACKET, LOOP CLAMP, ASSEMBLY OF | aa-af/04 | 1 |
| 640 | 2A1091-01 | • BRACKET, EGT JUNCTION BOX PRE SBE 77-0015 | aa-af/04 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

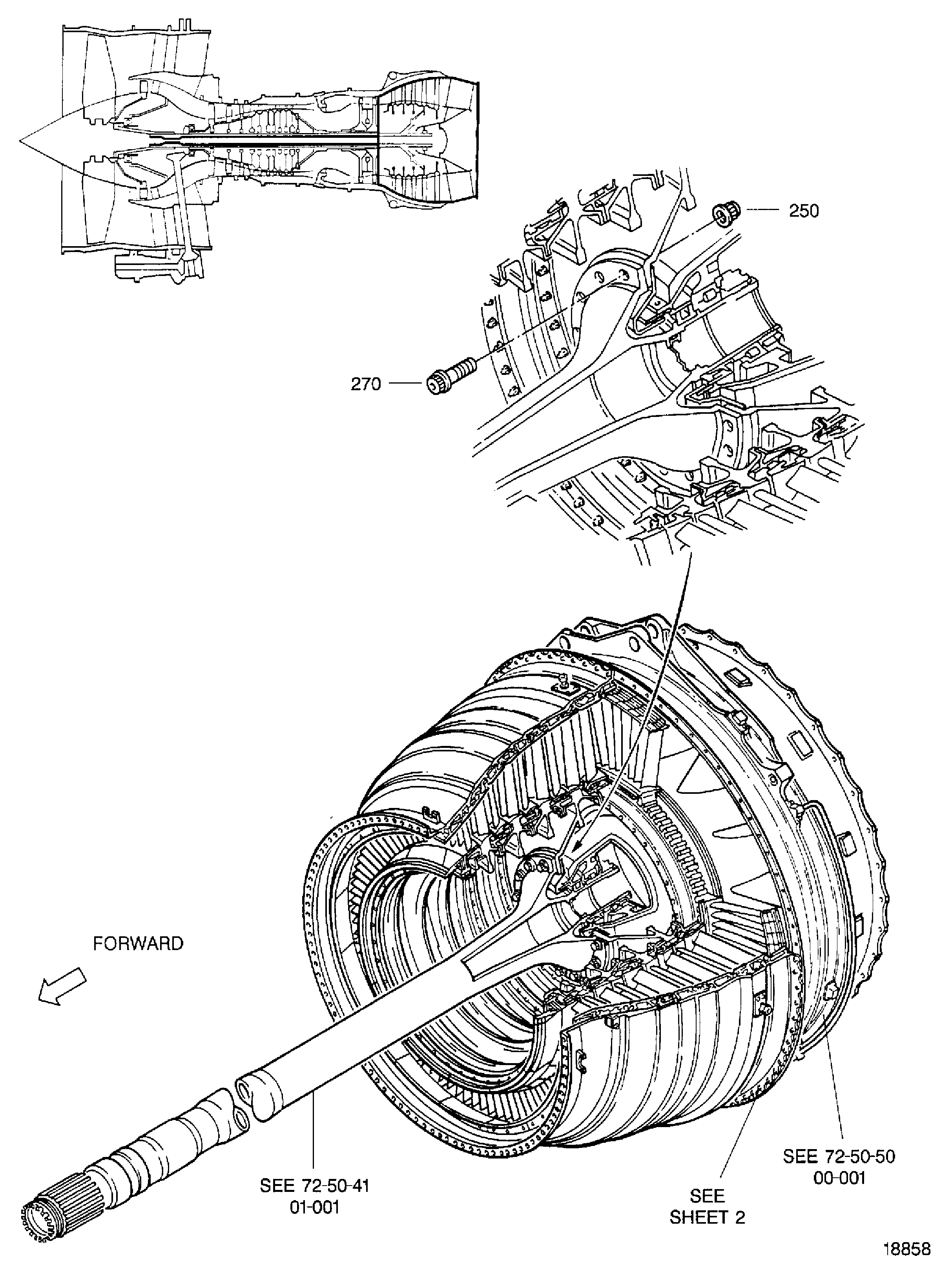

Figure: LP Turbine (LPT) And Turbine Exhaust Case (TEC) Unit

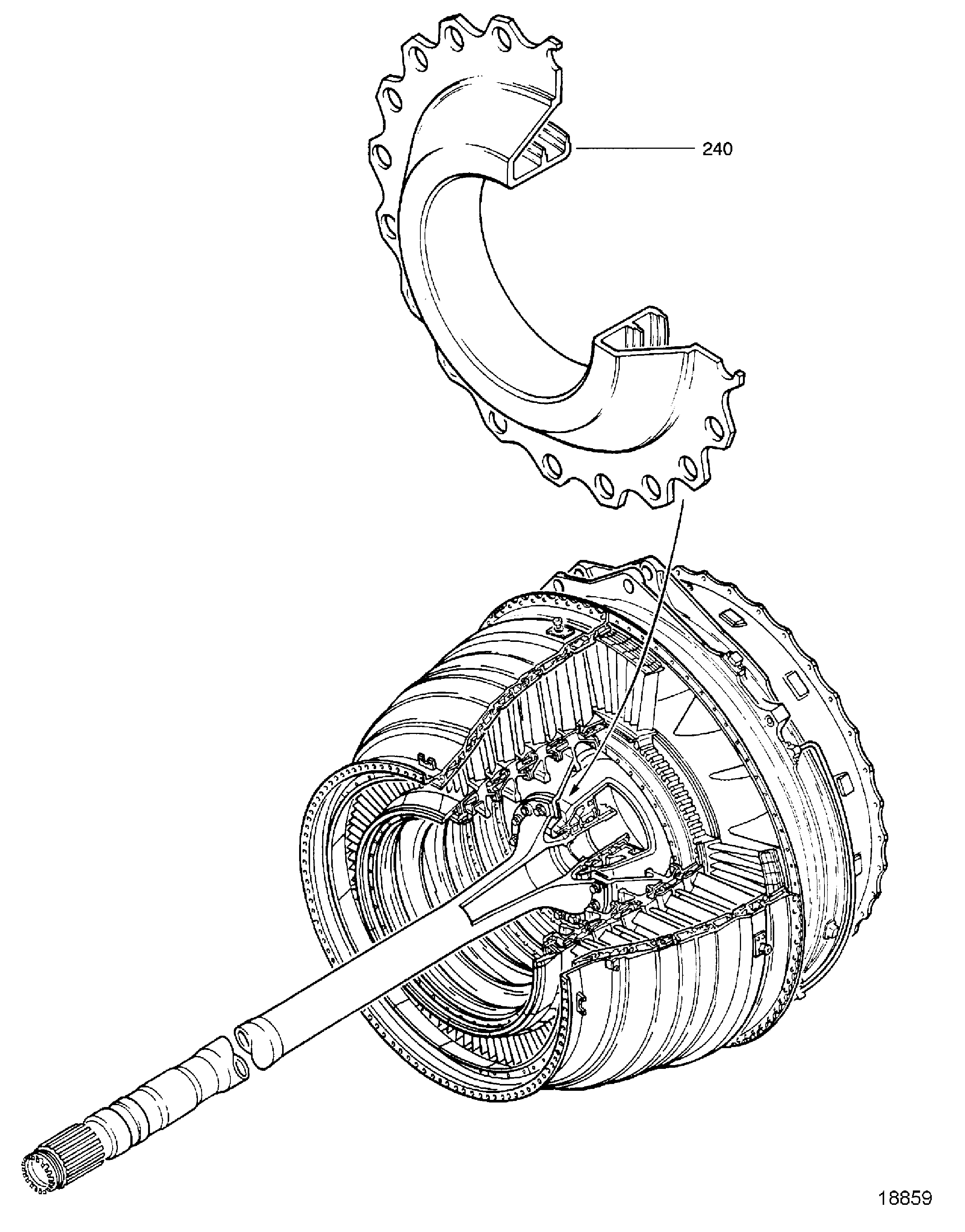

LP Turbine (LPT) And Turbine Exhaust Case (TEC) Unit
LP Turbine (LPT) And Turbine Exhaust Case (TEC) Unit
LP Turbine (LPT) And Turbine Exhaust Case (TEC) Unit
