DMC:V2500-A5-72-50-31-01A-941A-DIssue No:002.00Issue Date:2015-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B72503101 | ENGINE - LP TURBINE DISCS, PRE SBE70-0522 | ||
| - | SBE0522-01 | ENGINE - LP TURBINE DISCS, PRE SBE72-0307 | ||
| - | SBE0307-01 | ENGINE - LP TURBINE DISCS, PRE SBE70-0705 | ||
| - | SBE0705-01 | ENGINE - LP TURBINE DISCS, PRE SBE70-0942 | ||
| - | SBE0942-01 | ENGINE - LP TURBINE DISCS | ||
| 010 | 3A1987 | • DISK, TURBINE, STAGE 7 PRE SBE70-0522 | /05 | 1 |
| 010A | 3A2424 | • DISK, TURBINE, STAGE 7 POST SBE70-0522 | aa-ae/05 | 1 |
| 010B | 3A2424 | • DISK, TURBINE, STAGE 7 PRE SBE72-0307 | aa/03 | 1 |
| 010C | 3A2512 | • DISK, TURBINE, STAGE 7 POST SBE72-0307 PRE SBE70-0705 | ac-ae/04 | 1 |
| 010D | 3A2514 | • DISK, TURBINE, STAGE 7 POST SBE70-0705 | ac-ae/04 | 1 |
| 050 | 3A1986 | • DISK, TURBINE, STAGE 6 PRE SBE70-0942 | aa-ad/04 | 1 |
| 050A | 3A2996 | • DISK, TURBINE, STAGE 6 POST SBE70-0942 | aa-ae/04 | 1 |
| 100 | 3A2153 | • DISK, TURBINE, STAGE 5 PRE SBE70-0522 | aa-ae/05 | 1 |
| 100A | 3A2430 | • DISK, TURBINE, STAGE 5 POST SBE70-0522 | aa-ae/05 | 1 |
| 100B | 3A2430 | • DISK, TURBINE, STAGE 5 | *****/03 | 1 |
| 150 | 3A1984 | • DISK, TURBINE, STAGE 4 | aa-ae/04 | 1 |
| 200 | 3A2151 | • DISK, TURBINE, STAGE 3 PRE SBE70–0522 | aa/05 | 1 |
| 200A | 3A2428 | • DISK, TURBINE, STAGE 3 POST SBE70–0522 | aa-ae/05 | 1 |
| 200B | 3A2428 | • DISK, TURBINE, STAGE 3 | *****/03 | 1 |
| 200C | 3A2508 | • DISK, TURBINE, STAGE 3 POST SBE72-0307 PRE SBE70-0705 | ac-ae/04 | 1 |
| 200D | 3A2513 | • DISK, TURBINE, STAGE 3 POST SBE70-0705 | ac-ae/04 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

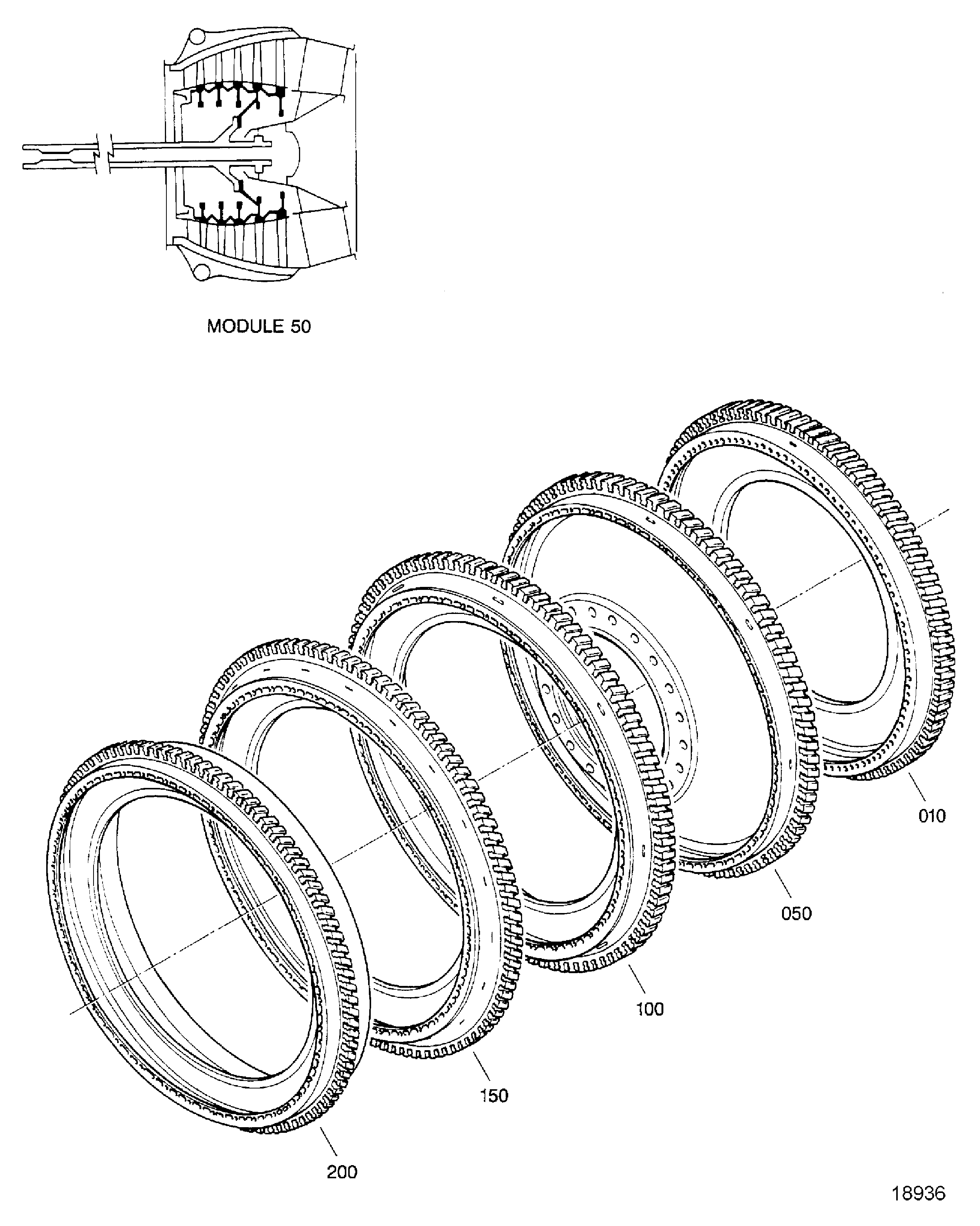

Figure: LPT Stage 3, 4, 5, 6, 7 Disks
LPT Stage 3, 4, 5, 6, 7 Disks
