DMC:V2500-A5-72-60-21-01A-941A-DIssue No:003.00Issue Date:2019-08-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72602101 | ENGINE - MAIN GEARBOX CASE AND FITTINGS, PRE SBE72-0492 | aa | ||
| SBE0492-01 | ENGINE - MAIN GEARBOX CASE AND FITTINGS, PRE SBE70-0950 | ab | ||
| SBE0950-01 | ENGINE - MAIN GEARBOX CASE AND FITTINGS | ac | ||
| 100 | AS3208-08 | • PACKING - PREFORMED U1653 | aa-ac | 1 |
| 120 | MS9902-08 | • PLUG - MACHINE THREAD 96906 | aa-ac | 1 |
| 160 | 4P0115 | • ADAPTER - OIL | aa-ac | 1 |
| 180 | 4W0002 | • NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA PRE SBE72-0492 | aa | 2 |
| 180A | 4W1246 | • BOLT - 0.250 DIA X 0.750 POST SBE72-0492 | ab-ac | 2 |
| 200 | AS3209-119 | • PACKING - PREFORMED U1653 | aa-ac | 1 |
| 220 | 4P0084 | • COVER - CRANK | aa-ac | 1 |
| 240 | 4W0002 | • NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA PRE SBE72-0492 | aa | 2 |
| 240A | 4W1246 | • BOLT - 0.250 DIA X 0.750 POST SBE72-0492 PRE SBE70-0950 | ab | 2 |
| 240B | 4W0002 | • NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA POST SBE70-0950 | ac | 2 |
| 260 | MS9321-10 | • WASHER - FLAT, 0.500 X 0.276 X 0.062 96906 | aa-ac | 2 |
| 280 | AS3209-122 | • PACKING - PREFORMED U1653 | aa-ac | 1 |
| 360 | AS3208-08 | • PACKING - PREFORMED U1653 | aa-ac | 1 |
| 380 | 4P0095 | • INSERT - SCREW | aa-ac | 1 |
| 600 | AS3208-08 | • PACKING - PREFORMED U1653 | aa-ac | 1 |
| 620 | 4P0095 | • INSERT - SCREW | aa-ac | 1 |
| 660 | 4P0096 | • ADAPTER - OIL, INPUT | aa-ac | 1 |
| 680 | 4W0002 | • NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA PRE SBE72-0492 | aa | 2 |
| 680A | 4W1246 | • BOLT - 0.250 DIA X 0.750 POST SBE72-0492 | ab-ac | 2 |
| 700 | AS3209-110 | • PACKING - PREFORMED U1653 REF SBE72-0663 REF SBE72-0705 | aa-ac | 1 |
| 720 | 4P0096 | • ADAPTER - OIL, INPUT | aa-ac | 1 |
| 740 | 4W0002 | • NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA PRE SBE72-0492 | aa | 2 |
| 740A | 4W1246 | • BOLT - 0.250 DIA X 0.750 POST SBE72-0492 | ab-ac | 2 |
| 760 | AS3209-110 | • PACKING - PREFORMED U1653 REF SBE72-0663 REF SBE72-0705 | aa-ac | 1 |
| 840 | AS3208-08 | • PACKING - PREFORMED U1653 | aa-ac | 1 |
| 860 | 4P0095 | • INSERT - SCREW | aa-ac | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

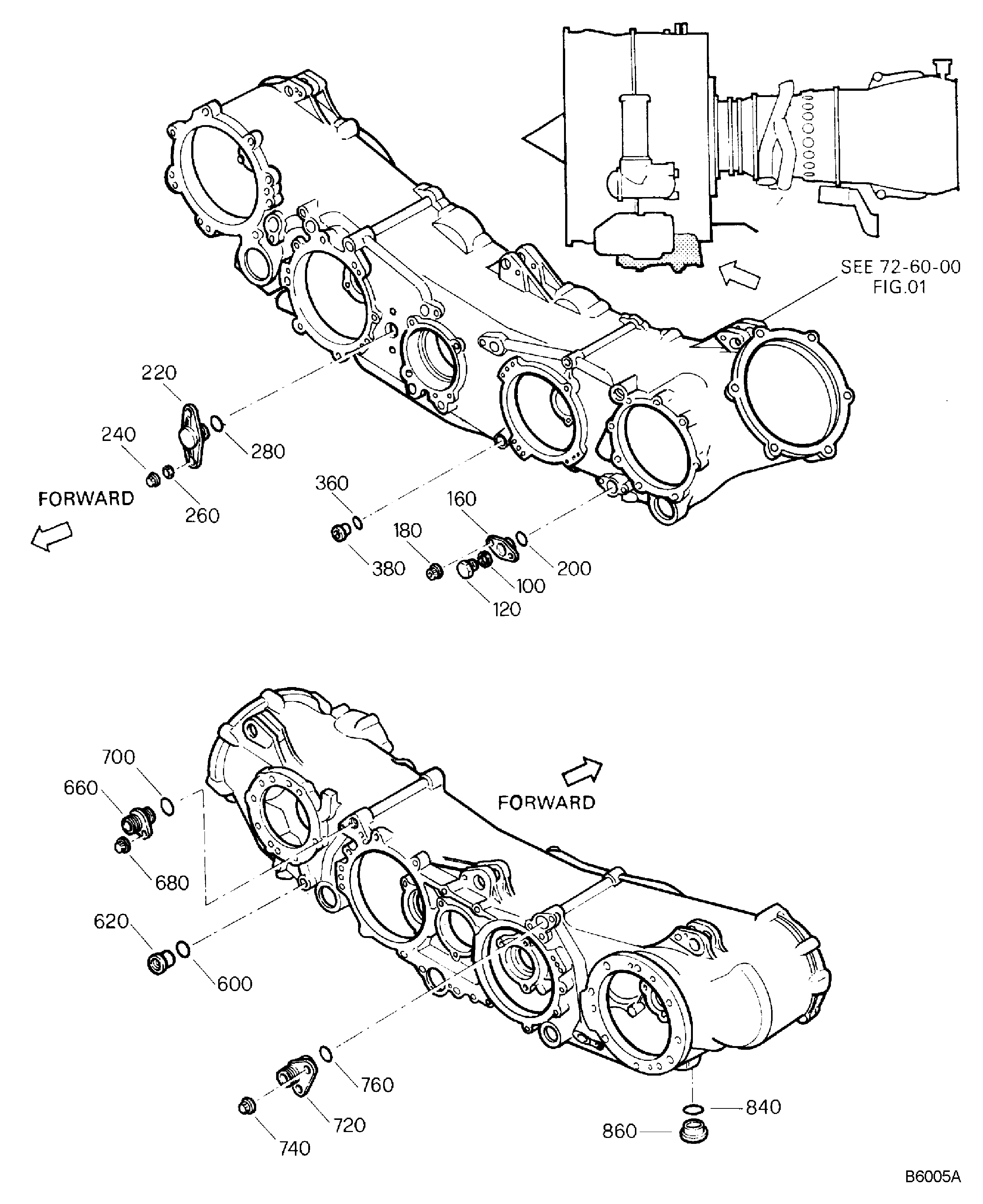

Figure: ENGINE-MAIN GEARBOX CASE AND FITTINGS
MAIN GEARBOX CASE AND FITTINGS
