DMC:V2500-A5-73-22-48-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B73224801 | ENGINE FUEL AND CONTROL-P2/T2 PROBE ASSEMBLY, PRE SBN70-0328 | aa | |
| - | SBN0328-01 | ENGINE FUEL AND CONTROL-P2/T2 PROBE ASSEMBLY, PRE SBE70-0727 | ab | |
| - | SBE0727-01 | ENGINE FUEL AND CONTROL-P2/T2 PROBE ASSEMBLY, PRE SBN70-0908 | ac | |
| - | SBN0908-01 | ENGINE FUEL AND CONTROL-P2/T2 PROBE ASSEMBLY, PRE SBN70-0909 | ad | |
| - | SBN0909-01 | ENGINE FUEL AND CONTROL-P2/T2 PROBE ASSEMBLY | ae | |
| -002 | 740-3000-601 | COWL, AIR INTAKE, ASSEMBLY 51563 | aa-ae/01 | REF |
| -002A | 745-3000-503 | COWL - AIR INTAKE 51563 *NOT FOR POST SCN17* | aa-ae/01 | REF |
| -002B | 745-3000-507 | COWL - AIR INTAKE , 51563 (PAINTED), (VRS2996) *NOT FOR POST SCN17* | *****/01 | REF |
| -002C | 745-3000-511 | COWL - AIR INTAKE , 51563 (PAINTED), (VRS2996) POST SBN71–0206 | *****/01 | REF |
| -002D | 745-3000-9503 | COWL - AIR INTAKE, 51563 (VRS2996) POST SBN71–0206 | *****/01 | REF |
| -002E | 745-3000-511 | COWL - AIR INTAKE , 51563 (REWORK), (VRS2996) POST SBN71–0206 | *****/01 | REF |
| -002F | 745-3400-503 | COWL - NOSE 51563 POST SBN70–0908 PRE SBN70–0909 | ad/01 | REF |
| -002G | 745-3400-507 | COWL - NOSE 51563 POST SBN70–0909 | ae/01 | REF |
| 020 | 740-3124-501 | TUBE - ASSY P2T2 PROBE 51563 | aa-ae/01 | 1 |
| 020A | AE709568-1 | HOSE, P2/T2, ASSEMBLY K6712 POST SBN70–0328 | ab-ae/01 | 1 |
| 030 | AN924-4S | NUT - FLARED | aa-ae/01 | 1 |
| 040 | MS21924-4S | UNION 96906 | aa-ae/01 | 1 |
| 050 | MS21902-4S | UNION, FLARELESS, TUBE 96906 PRE SBE70–0727 | aa-ab/01 | 1 |
| 050A | MS21902-4R | UNION 96906 POST 70–0727 | ac-ae/01 | 1 |
| 055 | AS43003-904 | RING , 8.92MM X 1.83MM U1653 | aa-ae/01 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

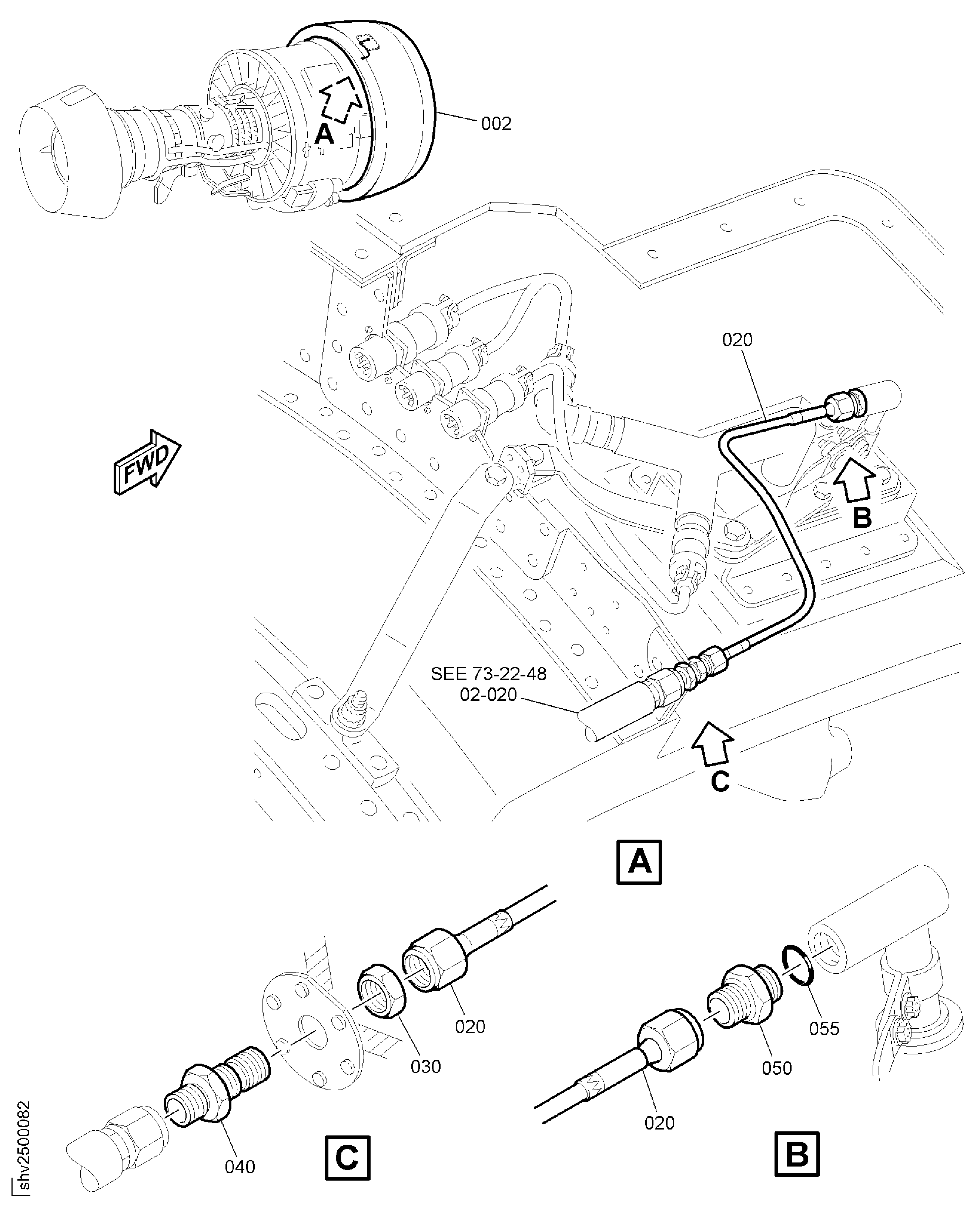

Figure: P2/T2 Sensor Air Tube
P2/T2 Sensor Air Tube

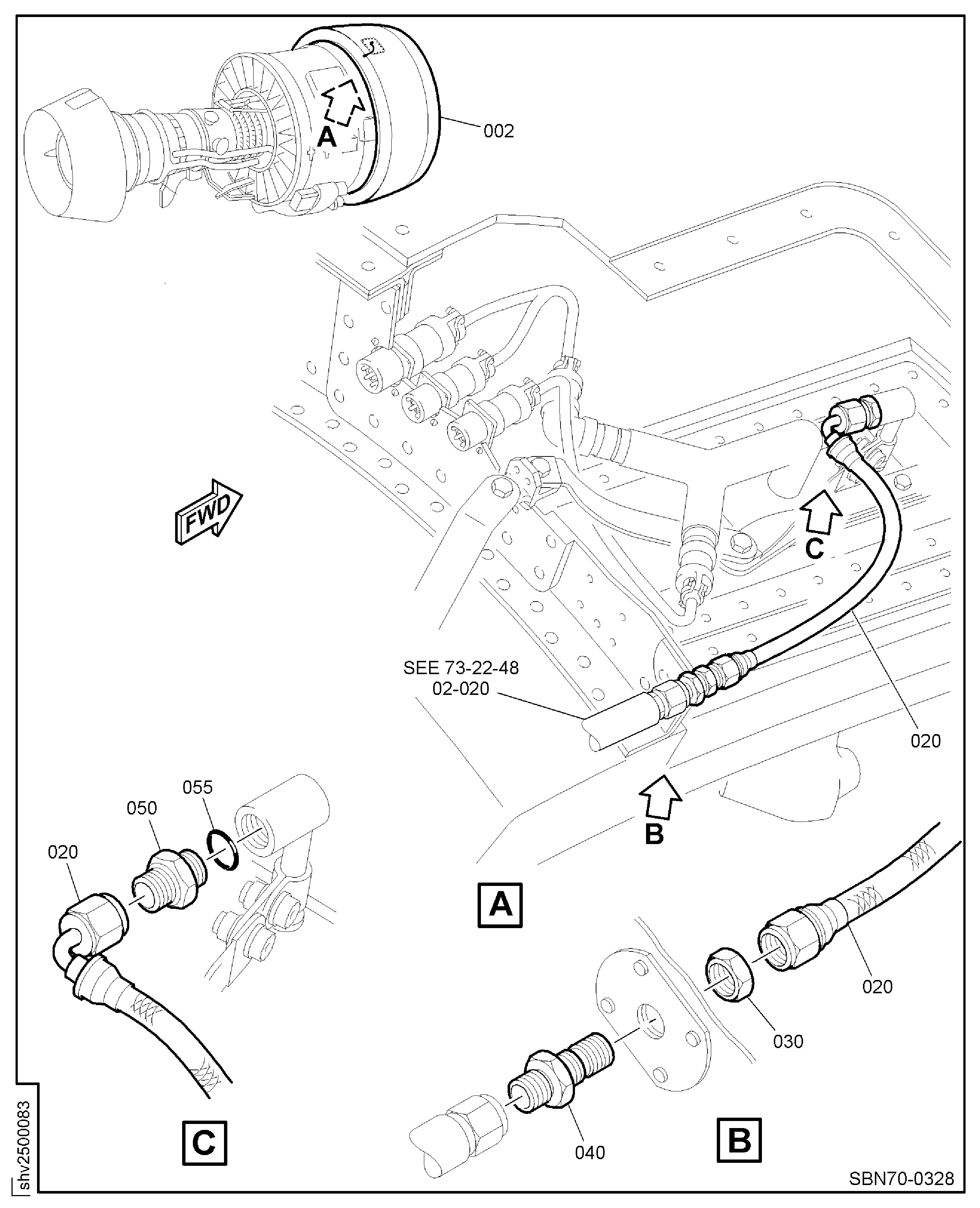

Figure: P2/T2 Sensor Air Tube (SBE70–0328)
P2/T2 Sensor Air Tube (SBE70–0328)
