ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES

DMC:V2500-A5-73-22-49-12A-941A-D|Issue No:001|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
12
000	B73224912	ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES, PRE SBE70-0567	aa
000	SBE0567-01	ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES, PRE SBE71-0216	ab
000	SBE0216-01	ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES, PRE SBE70-0835	ac
000	SBE0835-01	ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES	ad
055055	6A3124	• BRACKET	aa-ad	1

057057	4W0002	• NUT - .250 DIA	aa-ad	2
059059	AS21010	• BOLT - .250 DIA X .625 U1653	aa-ad	2

060060	6A3125	• BRACKET	aa-ad	2

062062	4W0002	• NUT - .250 DIA	aa-ad	2
064064	AS21010	• BOLT - .250 DIA X .625 U1653	aa-ad	2

065065	6A3126	• BRACKET	aa-ad	1

067067	4W0002	• NUT - .250 DIA	aa-ad	2
069069	AS21010	• BOLT - .250 DIA X .625 U1653	aa-ad	2

100100	6A2135	• TUBE - A/O AIR P12.5 PRESSURE	aa-ad	1

110110	MS9201-04	• NUT - .437 DIA 96906	aa-ad	1
125125	4W0103	• BOLT - .190 DIA X .500	aa-ad	1
126126	K8831	• WASHER - .190 DIA X 0,51 THK	aa-ad	1
128128	400WSS4	• CLIP 83930	aa-ad	1
132132	4W0001	• NUT - .190 DIA	aa-ad	1
136136	400WSS4	• CLIP 83930	aa-ad	1
168168	400WSS4	• CLIP 83930 PRE SBE71-0216	aa-ad	1
168168A	AS62404	• CLIP - 6.35 MM (0.250) U1653 POST SBE71-0216	aa-ad	1
173173	4W0103	• BOLT - .190 DIA X .500	aa-ad	1
174174	K8831	• WASHER - .190 DIA X 0,51 THK	aa-ad	1
176176	400WSS4	• CLIP 83930	aa-ad	1
180180	4W0001	• NUT - .190 DIA	aa-ad	1
181181	4W0103	• BOLT - .190 DIA X .500	aa-ad	1
182182	K8831	• WASHER - .190 DIA X 0,51 THK	aa-ad	1
184184	400WSS4	• CLIP 83930	aa-ad	1
188188	4W0001	• NUT - .190 DIA	aa-ad	1
189189	4W0103	• BOLT - .190 DIA X .500	aa-ad	1
190190	K8831	• WASHER - .190 DIA X 0,51 THK	aa-ad	1
192192	400WSS4	• CLIP 83930	aa-ad	1
196196	4W0043	• NUT - .190 DIA	aa-ad	1
200200	AS15777	• • WIRE U1653	aa-ad	1

201201	AS15701	• • NUT - TUBE COUPLING U1653	aa-ad	1
202202	AS15768	• • FERRULE - ASSY U1653	aa-ad	1
218218	UP11198	• • TRAP - ASSY,MOISTURE	aa-ad	1
242242	UP11029	• • ADAPTOR	aa-ad	1
500500	107432	• HOSE - FLEXIBLE K0685 ALT 556-1-15404-000 PRE SBE70-0567	aa-ac	1
-500500A	556-1-15404-000	• HOSE - ASSY,METALFLEX U1603 ALT C39440 PRE SBE70-0567	aa-ac	REF
-500500B	C39440	• HOSE - ASSY,METALFLEX 81349 ALT 107432 PRE SBE70-0567	aa-ac	REF
500500C	M1545-1	• TUBE - ASSY OF,AIR,FLEXIBLE 81349 ALT 107432 POST SBE70-0567 PRE SBE70-0835	aa-ad	1
500500D	107432	• HOSE - FLEXIBLE K0685 ALT 556-1-15404-000 POST SBE70-0567 PRE SBE70-0835	aa-ad	1
500500E	556-1-15404-000	• HOSE - ASSY,METALFLEX U1603 ALT C39440 POST SBE70-0567 PRE SBE70-0835	aa-ad	1
500500F	C39440	• HOSE - ASSY,METALFLEX 81349 ALT M1545-1 POST SBE70-0567 PRE SBE70-0835	aa-ad	1
500500G	39440	• TUBE - ASSEMBLY FLEXIBLE U1596 ALT M1545-1 POST SBE70-0835	aa-ad	1
500500H	M1545-1	• TUBE - ASSY OF,AIR,FLEXIBLE 81349 ALT 107432 POST SBE70-0835	aa-ad	1
500500J	107432	• HOSE - FLEXIBLE K0685 ALT 556-1-15404-000 POST SBE70-0835	aa-ad	1
500500K	556-1-15404-000	• HOSE - ASSY,METALFLEX U1603 ALT C39440 POST SBE70-0835	aa-ad	1
500500L	C39440	• HOSE - ASSY,METALFLEX 81349 ALT 39440 POST SBE70-0835	aa-ad	1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	81349
Enterprise Name:	DELETED, SEE CAGE CODE 81348

Manufacturer Code:	83930
Enterprise Name:	TRANSDIGM INC
BU Name:	TRANSDIGM INC
Department:	ADEL FASTENERS
Building:	SANDWELL INDUSTRIAL ESTATE
Street:	5000 TRIGGS STREET
City:	LOS ANGELES
State:	WEST MIDLANDS
Zip Code:	B66 1QJ
Country:	USA

Manufacturer Code:	96906
Enterprise Name:	MILITARY STANDARDS MANUAL 4120 3-M
BU Name:	MILITARY STANDARDS MANUAL 4120 3-M
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	K0685
Enterprise Name:	ICORE INTERNATIONAL LTD
BU Name:	NULL
Street:	814 LEIGH ROAD
City:	SLOUGH
State:	BERKS
Zip Code:	SL1 4BB
Country:	ENGLAND

Manufacturer Code:	U1596
Enterprise Name:	MEGGITT AEROSPACE COMPONENTS
BU Name:	MEGGITT AEROSPACE COMPONENTS
Street:	BOUNDARY WAY
City:	HEMEL HEMPSTEAD
State:	HERTS
Zip Code:	HP2 7SL
Country:	ENGLAND

Manufacturer Code:	U1603
Enterprise Name:	HS MARSTON AEROSPACE LTD
BU Name:	HS MARSTON AEROSPACE LTD
Street:	WOBASTON ROAD
City:	FORDHOUSES
State:	WOLVERHAMPTON
Zip Code:	WV10 6QJ
Country:	ENGLAND

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Part Number:	6A2135
Part Name:	TUBE - AIR, ASSEMBLY OF
Manufacturer Code:	0AM53

Part Number:	AS20624
Part Name:	NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:	U1653

Part Number:	AS20625
Part Name:	NUT, SELF LOCKING, BIHEX, .250 DIA
Manufacturer Code:	U1653
Unit Of Issue:	EA

Part Number:	AS41104
Part Name:	NUT - 0.19 DIA
Manufacturer Code:	U1653

ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES

Export Control

Copyright

Applicability

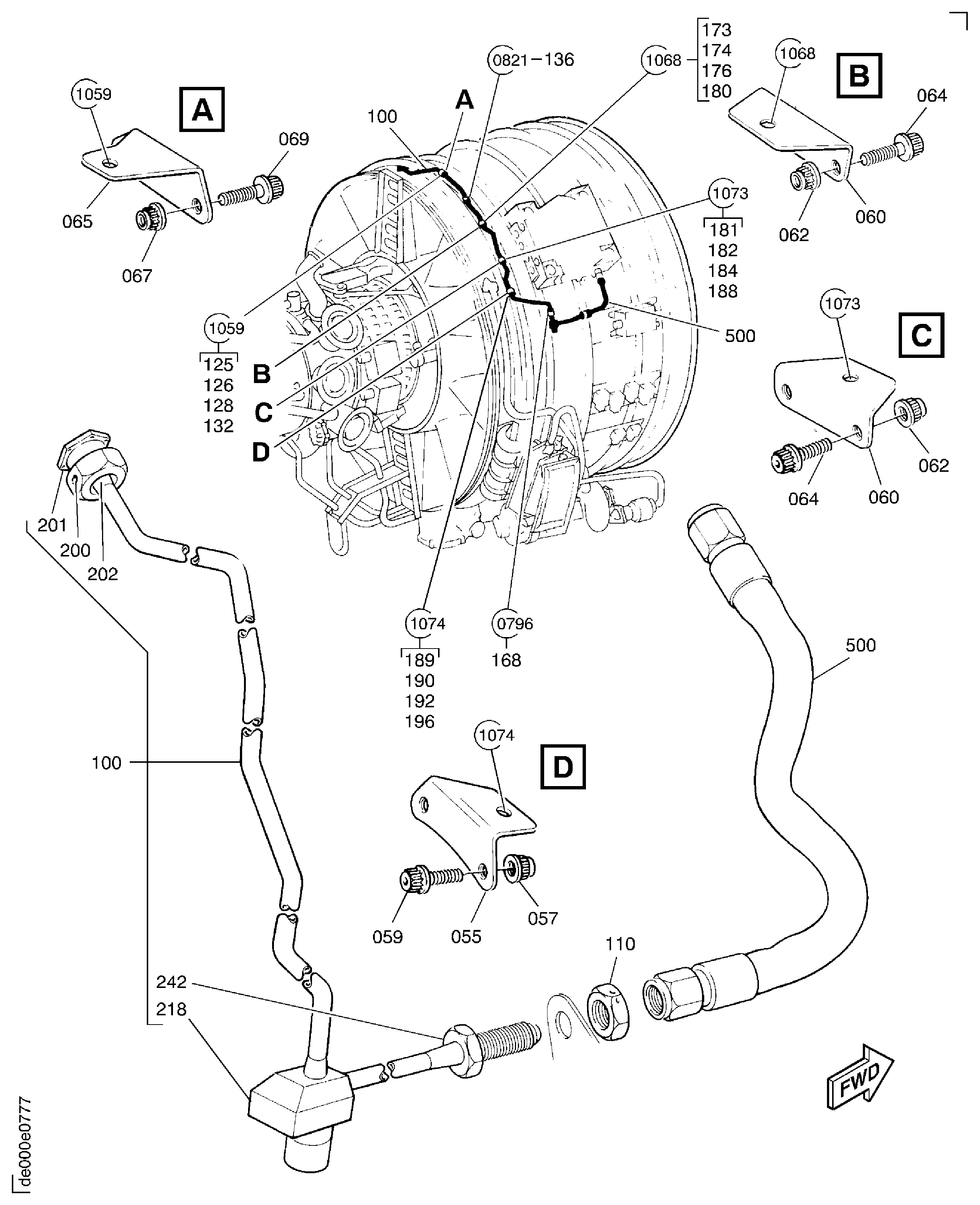

Figure: ENGINE FUEL AND CONTROL-FUEL SYSTEM AIR TUBES

FUEL SYSTEM AIR TUBES
