TASK 75-24-49-040-101-C00 LPT ACC Air Ducts And Tubes - Disassemble The Support Assemblies From The LPT Cooling Air Ducts And Tubes, Disassembly-001

DMC:V2500-A5-75-24-4900-00C-530A-C|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 75-24-49-040-101-C00 LPT ACC Air Ducts And Tubes - Disassemble The Support Assemblies From The LPT Cooling Air Ducts And Tubes, Disassembly-001

General

WARNING

DURING DISASSEMBLY DO NOT BREATHE DUST OF THE LOOSENED BOLTS. PREVENT SKIN AND EYE CONTACT WITH RELEASED DUST. THE DUST CONTAINS NICKEL PARTICLES WHICH CAN POSE A HEALTH HAZARD. BEFORE DISASSEMBLY LUBRICATE ACCESSIBLE BOLTS AND BOLT HEADS, NUTS AND EXPOSED THREADS WITH AN APPROVED, SUITABLE PENETRANT OIL. WEAR A FACE MASK AND GOGGLES. DO NOT REMOVE DUST DEPOSITS WITH COMPRESSED AIR. REMOVE ANY SURFACE DUST PARTICLES WITH A DISPOSABLE DAMP RAG OR SIMILAR. AFTER END OF THIS PROCEDURE CLEAN YOUR HANDS AND EXPOSED SKIN WHERE POSSIBLE.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.

Apply the approved penetrating oil before the removal of threaded parts. Let the parts soak before removal. For the approved oils and procedures, refer to SPM TASK 70-64-00-640-501.

Discard all flexible seals removed in this procedure.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 1M14084 Support fixture0AM53IAE 1M140842 off

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 75-24-49-040-067 Put the Lower LP Turbine Cooling Air Duct on a Work Bench

    1. Carefully put the lower LP turbine cooling air duct on a work bench.

    2. SUBTASK 75-24-49-040-068 Remove the Support Assembly B from the Lower LP Turbine Cooling Air Duct

    1. Refer to Figure and Figure.

    2. NOTE

      For the location of the support assembly.

      Loosen the 16 bolts.

    3. Remove the 16 bolts from the support assembly B.

    4. Move the support assembly B above the tube ends of the lower LP turbine cooling air duct.

    3. SUBTASK 75-24-49-040-069 Remove the Support Assembly E from the Lower LP Turbine Cooling Air Duct

    1. Refer to Figure and Figure.

    2. NOTE

      For the location of the support assembly.

      Loosen the 16 bolts.

    3. Remove the 16 bolts from the support assembly E.

    4. Move the support assembly E above the tube ends of the lower LP turbine cooling air duct.

    4. SUBTASK 75-24-49-040-070 Remove the Support Assemblies C and D from the Lower LP Turbine Cooling Air Duct

    1. Refer to Figure and Figure.

    2. NOTE

      For the location of the support assembly.

      Loosen the 16 bolts.

    3. Remove the 16 bolts from the support assemblies C and D.

    4. Move the support assemblies C and D above the tube ends of the lower LP turbine cooling air duct.

    5. SUBTASK 75-24-49-040-079 Install the Lower LP Turbine Cooling Air Duct to the Support Fixture

    1. Refer to Figure.

    2. Install the lower LP turbine cooling air duct to the IAE 1M14084 Support fixture 1 off. Make sure that the tube ends are engaged correctly in their holes.

    3. Safety the lower LP turbine cooling air duct to the support fixture with the swing bolt, the knurled knob, the two washers and the two screws.

    6. SUBTASK 75-24-49-040-080 Put the Upper LP Turbine Cooling Air Duct on a Work Bench

    1. Carefully put the upper LP turbine cooling air duct on a work bench.

    7. SUBTASK 75-24-49-040-073 Remove the Support Assemblies A and F from the Upper LP Turbine Cooling Air Duct

    1. Refer to Figure and Figure.

    2. NOTE

      For the location of the support assembly.

      Loosen the 16 bolts.

    3. Remove the 16 bolts from the support assemblies A and F.

    4. Move the support assemblies A and F above the tube ends of the upper LP turbine cooling air duct.

    8. SUBTASK 75-24-49-040-081 Install the Upper LP Turbine Cooling Air Duct to the Support Fixture

    1. Refer to Figure.

    2. Install the upper LP turbine cooling air duct to the IAE 1M14084 Support fixture 1 off. Make sure that the tube ends are engaged correctly in their holes.

    3. Safety the upper LP turbine cooling air duct to the support fixture with the swing bolt, the knurled knob, the two washers and the two screws.

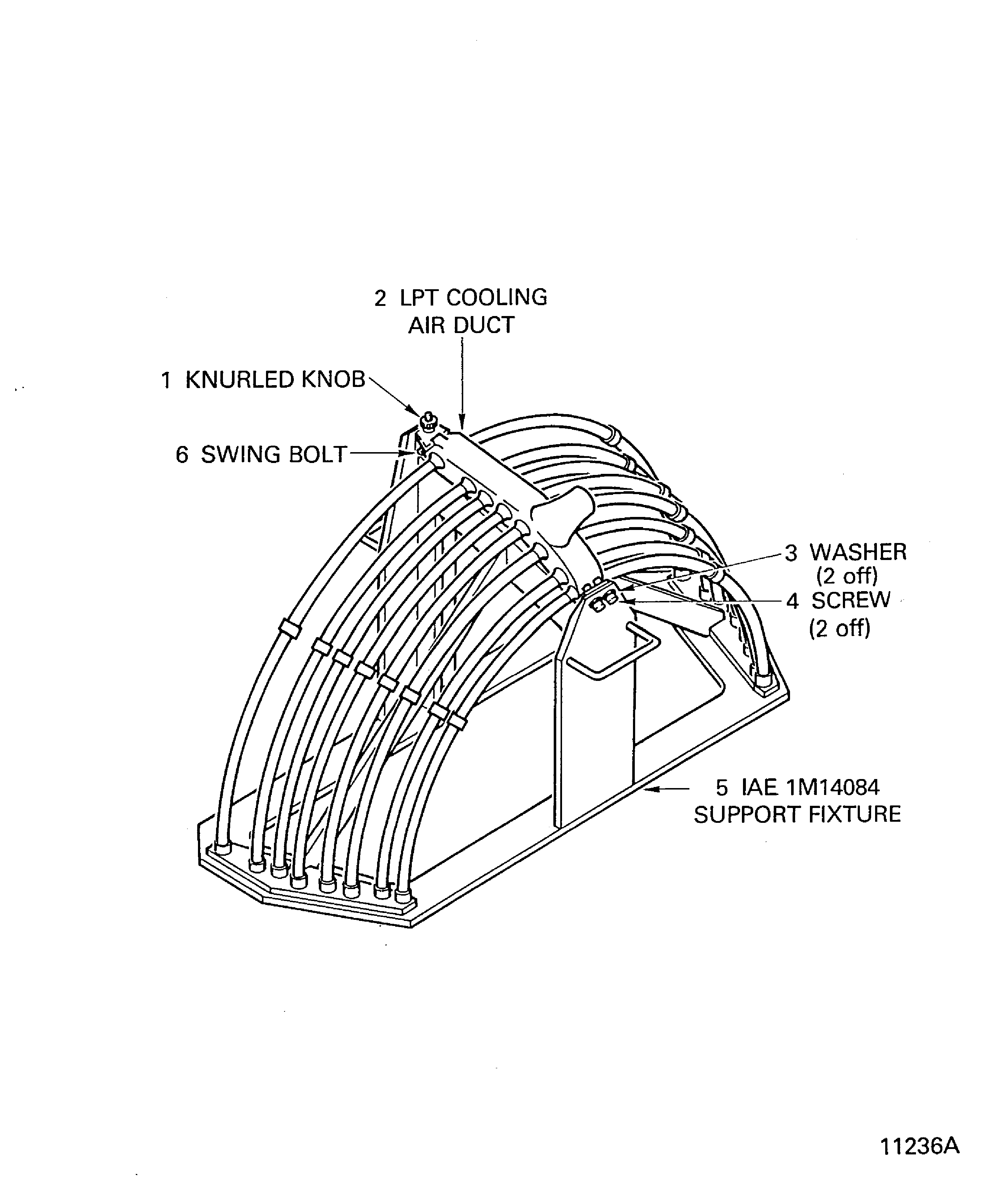

    9. Figure: Install/Remove the LP Turbine Cooling Air Duct to/from the Support Fixture

    Install/Remove the LP Turbine Cooling Air Duct to/from the Support Fixture

    Figure: Position of the Support Assemblies

    Position of the Support Assemblies

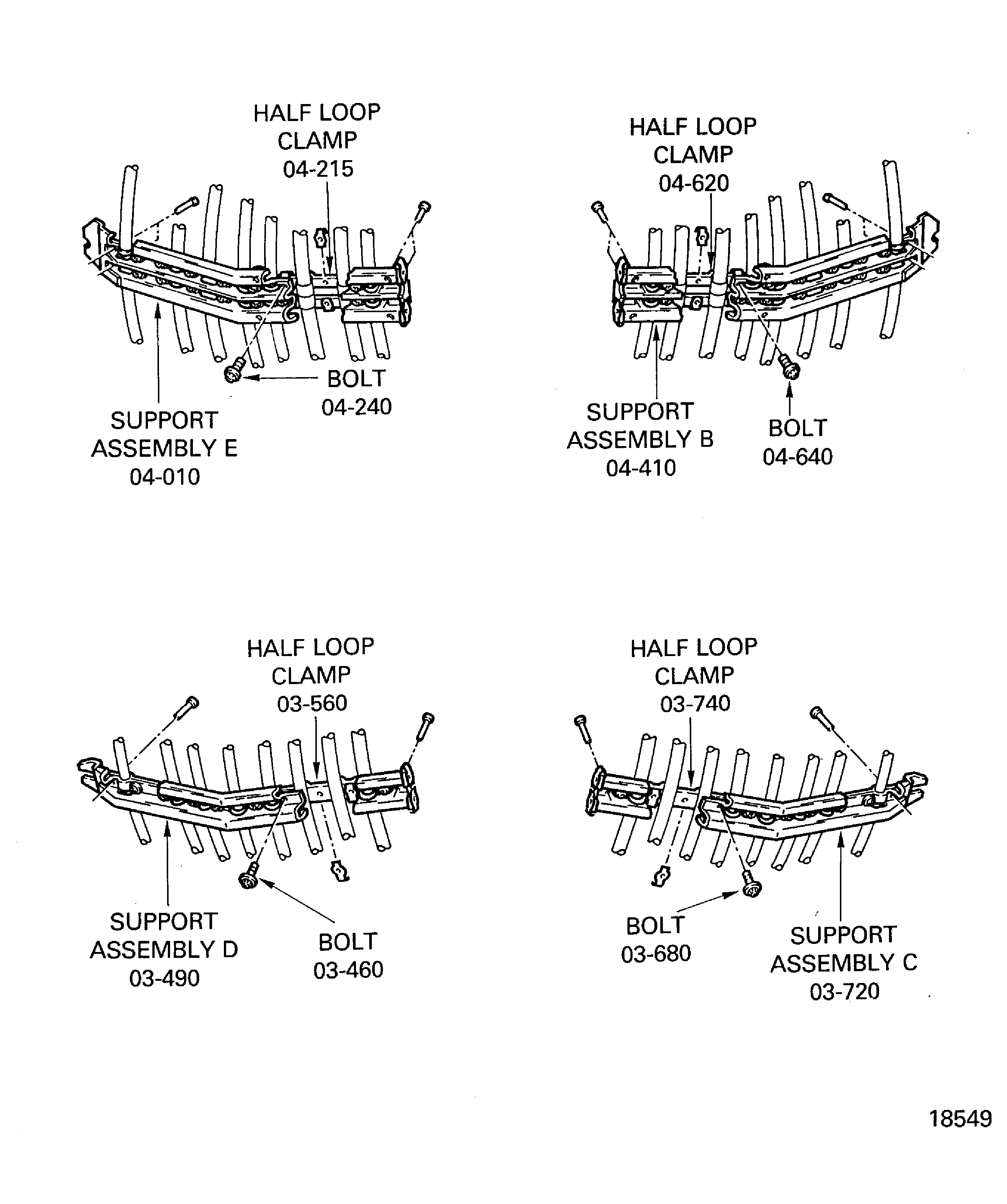

    Figure: Removal of the Support Assemblies from the Lower LP Turbine Cooling Air Duct

    Removal of the Support Assemblies from the Lower LP Turbine Cooling Air Duct

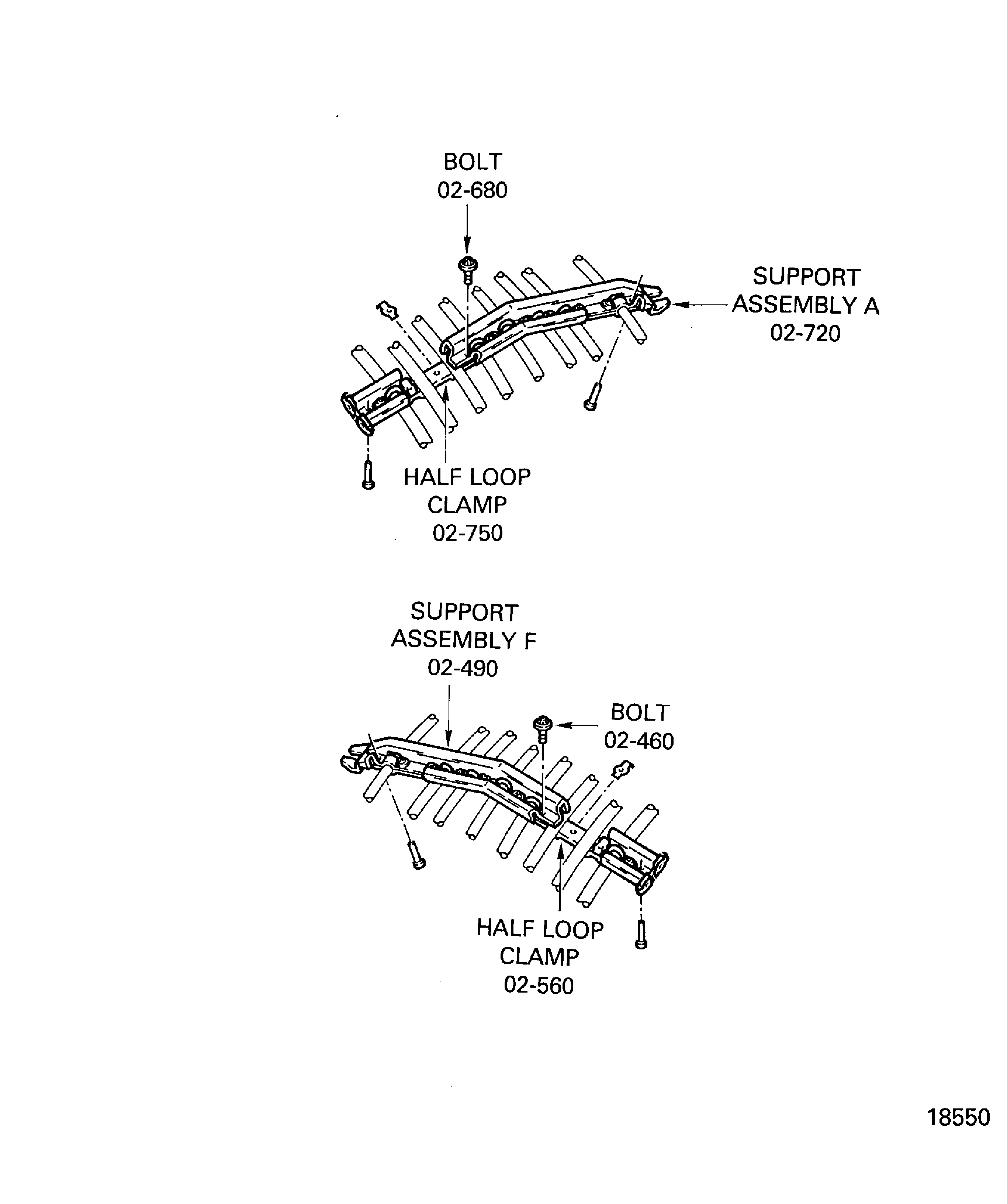

    Figure: Removal of the Support Assemblies from the Upper LP Turbine Cooling Air Duct

    Removal of the Support Assemblies from the Upper LP Turbine Cooling Air Duct

Requirements After Job Completion

Follow-On Conditions

NONE
Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:0AM53
Tool Number:IAE 1M14084
Tool Name:IAE 1M14084 Support fixture
