DMC:V2500-A5-75-27-49-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B75274901 | AIR COOLING-IGNITION COOLING LEADS, PRE SBE70-0266 | aa | |
| - | SBE0266-01 | AIR COOLING-IGNITION COOLING LEADS, PRE SBE70-0392 | ab | |
| - | SBE0392-01 | AIR COOLING-IGNITION COOLING LEADS, PRE SBE70-0604 | ac | |
| - | SBE0604-01 | AIR COOLING-IGNITION COOLING LEADS, PRE SBE70-0806 | ad | |
| - | SBE0806-01 | AIR COOLING-IGNITION COOLING LEADS | ae | |
| 050 | 5W8300 | • BRACKET | aa-ae/01 | 1 |
| 095 | NAS1594-020 | • RING, O SEALING TOROIDAL 80205 PRE SBE70-0806 | aa-ae/01 | 1 |
| 095A | M83248-2-020 | • RING, SEALING TOROIDAL, .070DIA X .864ID ALT NAS1594-020 POST SBE70-0806 | ae/01 | 1 |
| 095B | NAS1594-020 | • RING, O SEALING TOROIDAL 80205 ALT M83248-2-020 POST SBE70-0806 | ae/01 | 1 |
| 100 | 5A0422 | • HOSE - IGNITION BOX COOLING PRE SBE70-0604 | aa-ac/01 | 1 |
| 100A | BA203636 | • HOSE - AIR INLET IGNITION BOX COOLING U1901 ALT 5A0422 POST SBE70-0604 | ad-ae/01 | 1 |
| -100B | 5A0422 | • HOSE - IGNITION BOX COOLING ALT BA203636 POST SBE70-0604 | ad-ae/01 | REF |
| 110 | 4W0001 | • NUT - .190 DIA | aa-ae/01 | 2 |
| 115 | 4W2328 | • SCREW - .190 DIA X .750 PRE SBE70-0266 | aa/02 | 2 |
| 115A | AS50914 | • SCREW, .190 DIA X .875 U1653 POST SBE70-0266 PRE SBE70-0392 | ab/02 | 2 |
| 115B | 4W2330 | • SCREW - .190 DIA X .875 POST SBE70-0392 | ac-ae/02 | 2 |
| 115C | 4W2330 | • SCREW - .190 DIA X .875 | aa-ae/03 | 2 |
| 125 | AN737TW38 | • CLAMP | aa-ae/01 | 1 |
| 200 | 5A0263 | • FITTING | aa-ae/01 | 1 |
| 210 | AN737TW38 | • CLAMP | aa-ae/01 | 1 |
| 450 | 5W8300 | • BRACKET | aa-ae/01 | 1 |
| 495 | NAS1594-020 | • RING, O SEALING TOROIDAL 80205 PRE SBE70-0806 | aa-ae/01 | 1 |
| 495A | M83248-2-020 | • RING, SEALING TOROIDAL, .070DIA X .864ID ALT NAS1594-020 POST SBE70-0806 | ae/01 | 1 |
| 495B | NAS1594-020 | • RING, O SEALING TOROIDAL 80205 ALT M83248-2-020 POST SBE70-0806 | ae/01 | 1 |
| 500 | 5A0422 | • HOSE - IGNITION BOX COOLING PRE SBE70-0604 | aa-ac/01 | 1 |
| 500A | BA203636 | • HOSE - AIR INLET IGNITION BOX COOLING U1901 ALT 5A0422 POST SBE70-0604 | ad-ae/01 | 1 |
| -500B | 5A0422 | • HOSE - IGNITION BOX COOLING ALT BA203636 POST SBE70-0604 | ad-ae/01 | REF |
| 510 | 4W0001 | • NUT - .190 DIA | aa-ae/01 | 2 |
| 515 | 4W2328 | • SCREW - .190 DIA X .750 PRE SBE70-0266 | aa/02 | 2 |
| 515A | AS50914 | • SCREW, .190 DIA X .875 U1653 POST SBE70-0266 PRE SBE70-0392 | ab/02 | 2 |
| 515B | 4W2330 | • SCREW - .190 DIA X .875 | aa-ae/01 | 2 |
| 525 | AN737TW38 | • CLAMP | aa-ae/01 | 1 |
| 600 | 5A0264 | • FITTING | aa-ae/01 | 1 |
| 610 | AN737TW38 | • CLAMP | aa-ae/01 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

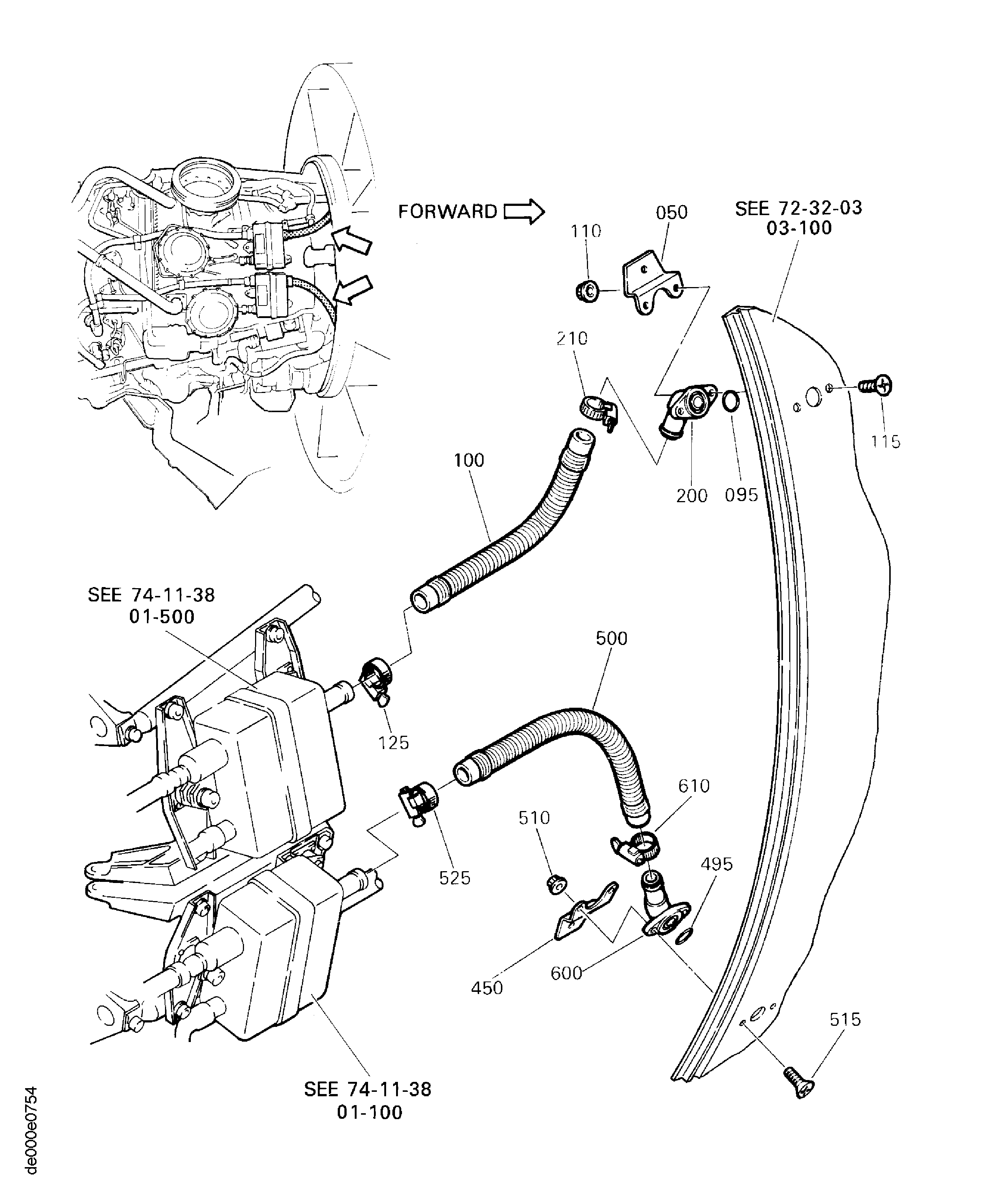

Figure: Igntion Exciter Cooling Air Tubes And Hoses
Igntion Exciter Cooling Air Tubes And Hoses
