DMC:V2500-A5-79-21-44-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B79214401 | OIL-PRESSURE OIL FILTER ELEMENT, PRE SBE70-0399 | aa | ||
| SBE0399-01 | OIL-PRESSURE OIL FILTER ELEMENT | ab | ||
| 100 | QA06249 | • ELEMENT - OIL FILTER PRESSURE K6539 ALT RA00081B (REF NO 5R5025) POST SBE70-0399 | ab | 1 |
| -100A | RA00081B | • ELEMENT - OIL FILTER PRESS F0559 ALT QA06249 (REF NO 5R0275) POST SBE70-0399 | ab | REF |
| 200 | 4B7097 | • VALVE, ASSEMBLY OF PRESS PRIM (SEE 79-21-41-01-260) | aa-ab | REF |
| -200A | AS3208-08 | • PACKING - PREFORMED U1653 (SEE 79-21-41-01-250) | aa-ab | REF |
| -210 | AS3209-153 | • PACKING - PREFORMED U1653 (SEE 79-21-41-01-330) | aa-ab | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

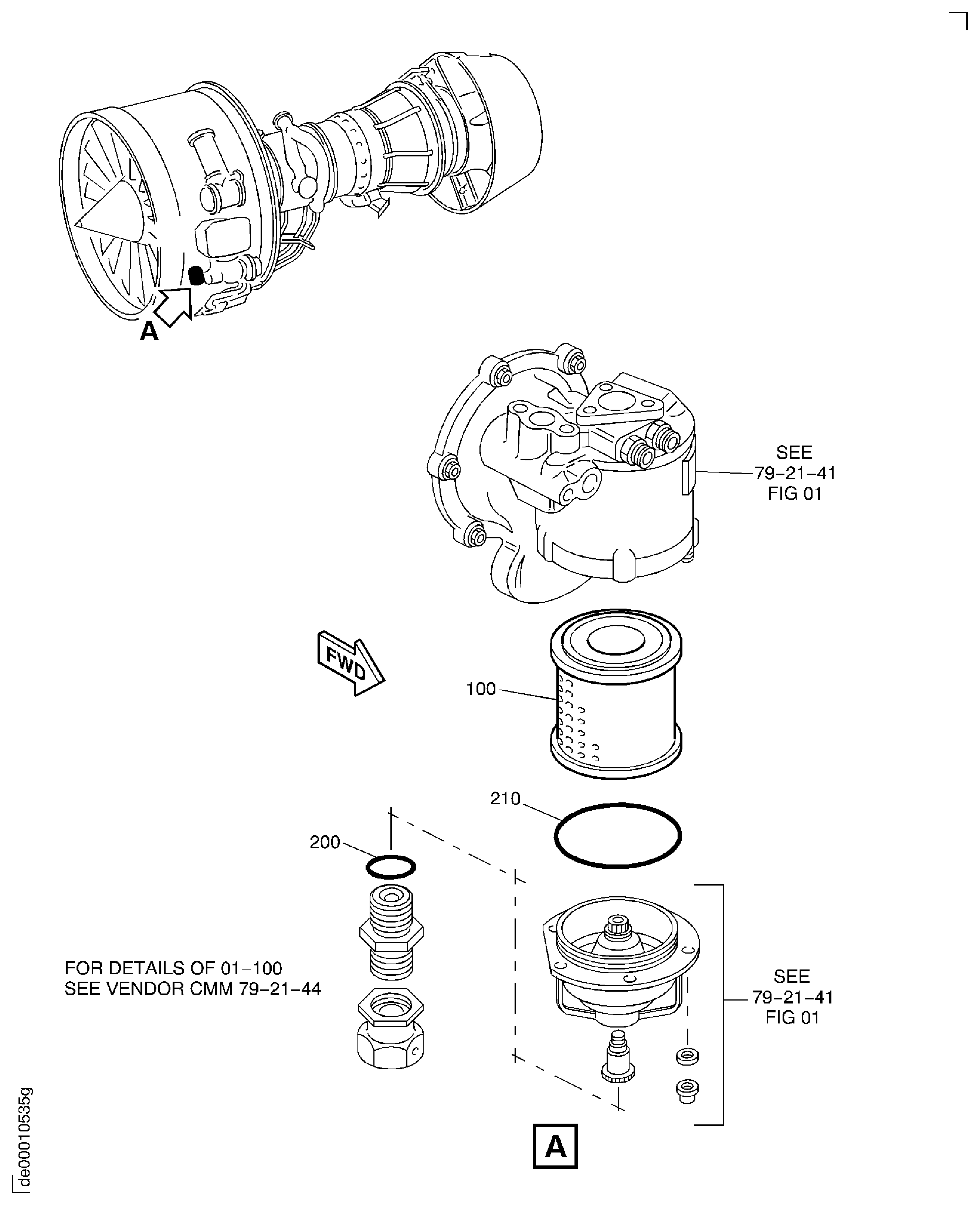

Figure: OIL-PRESSURE OIL FILTER ELEMENT
PRESSURE OIL FILTER ELEMENT
