TASK 70-35-25-300-001-E01 Repair Chafing To The Cable Of The Electrical Harness, Repair-001 (VRS7002)
General
This TASK details the procedure to repair chafing to the cable of the electrical harness.
Refer to repair, VRS7002 SPM TASK 70-35-25-300-001 (REPAIR-001) for the following:
Effectivity
Equipment and materials
General
All illustrations/Figs
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 02-195 TEFLON TAPE | LOCAL | CoMat 02-195 |
Spares
NONESafety Requirements
NONEProcedure
Refer to SPM TASK 70-35-25-300-001-H01.
CAUTION
DO NOT CUT THE CABLE.Cut off and remove the harness ties from the damaged area.
SUBTASK 70-35-25-350-030 Remove the Harness Ties
Refer to Figure.
Use CoMat 02-195 TEFLON TAPE. Approximately 1.000 in (25.40 mm) longer, either side of the damaged area.
Wind up the teflon tape.
SUBTASK 70-35-25-350-031 Wind Up the Teflon Tape
Refer to Figure
Refer to SPM TASK 70-35-25-300-001-H01.
Attach the harness tie(s).
SUBTASK 70-35-25-350-032 Attach the Harness Tie(s)
Use permanent marker.
Make a mark VRS7002/E on the identification sleeve of the harness adjacent to the part number.
SUBTASK 70-35-25-350-055 Identify the Repair

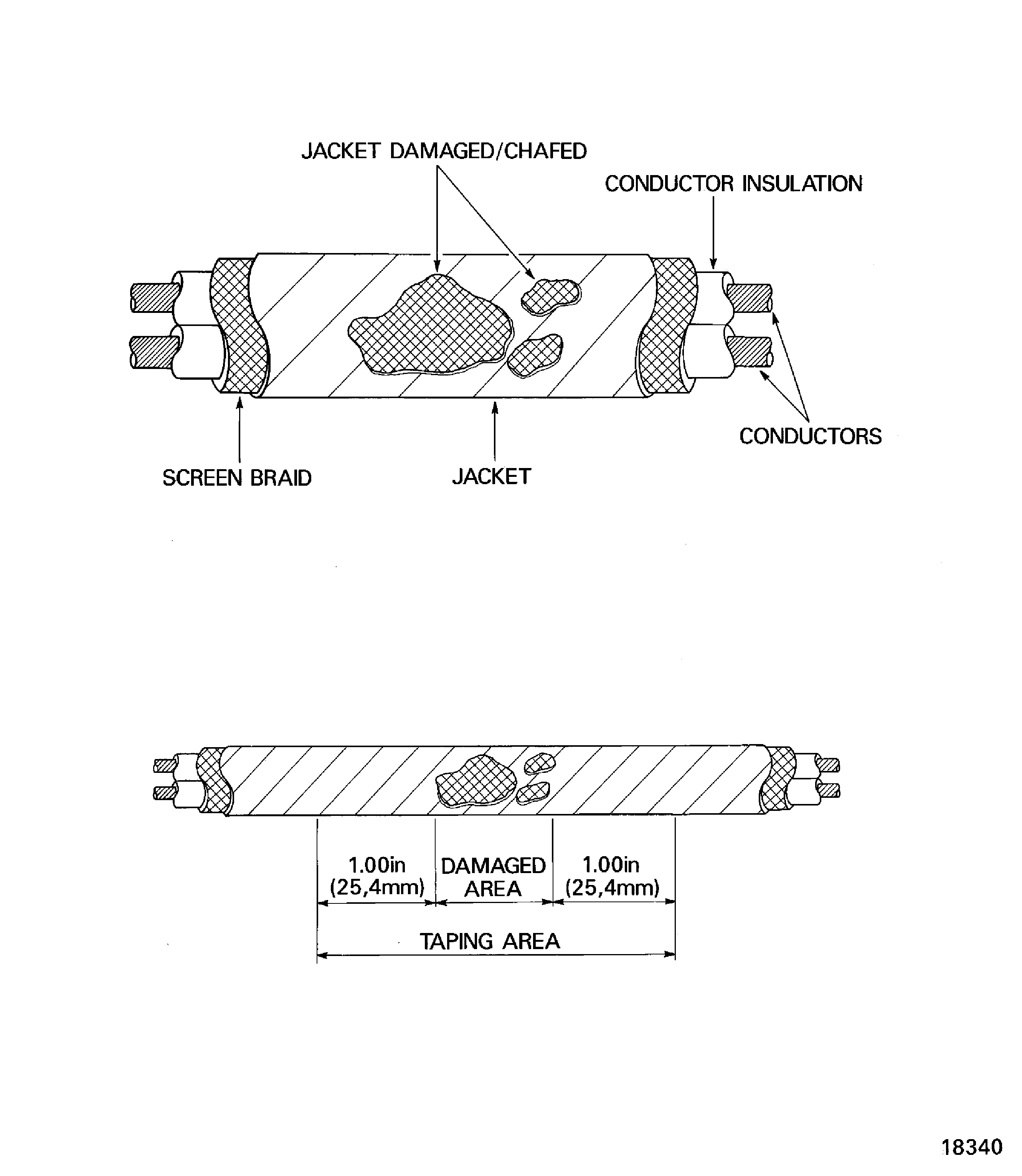

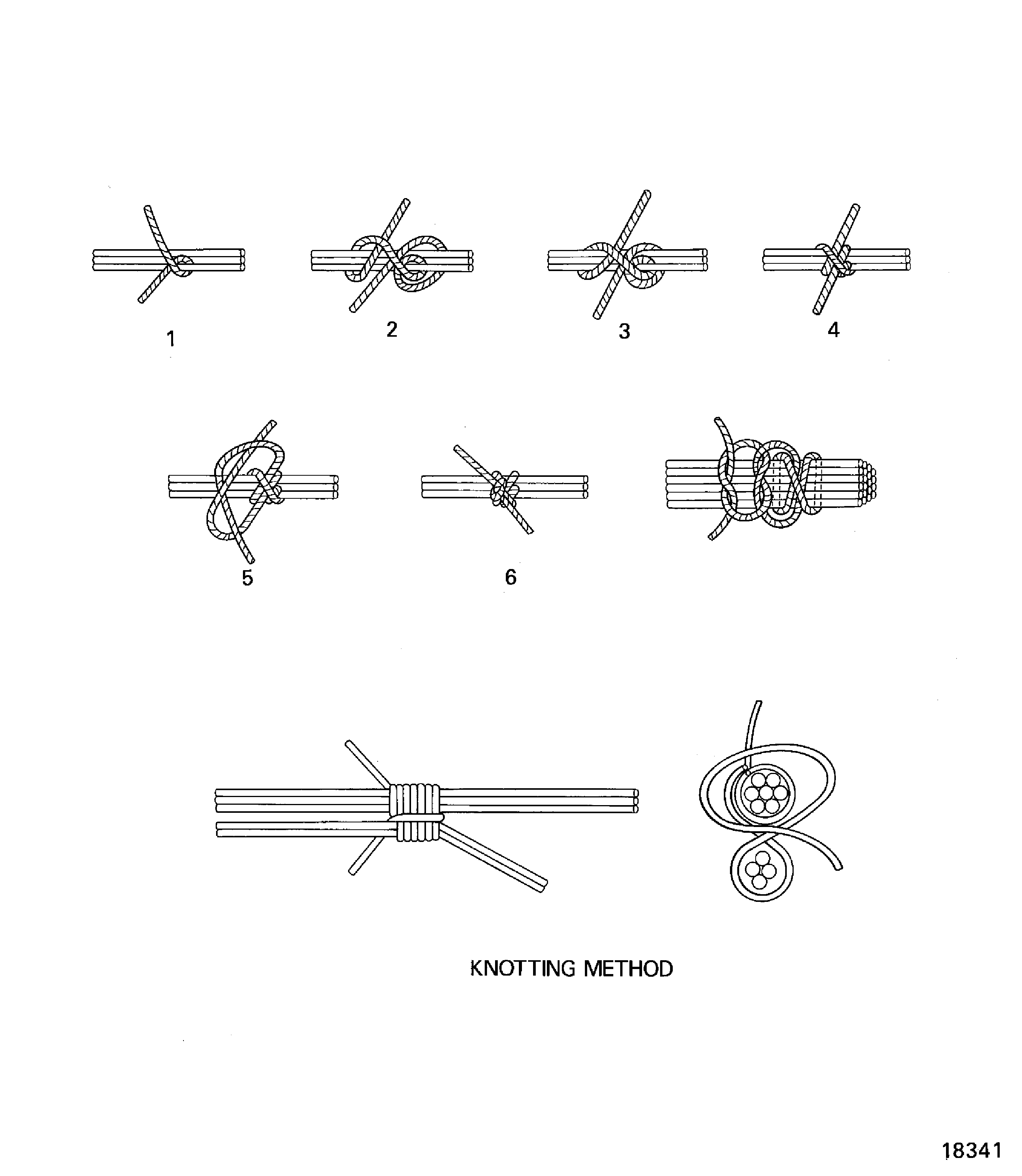

Figure: Repair details and dimensions
Repair details and dimensions
Figure: Repair details and dimensions
Repair details and dimensions
